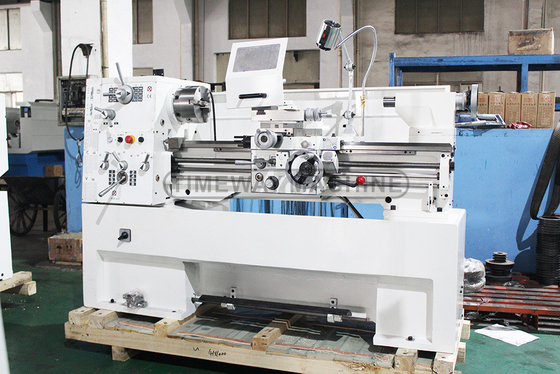

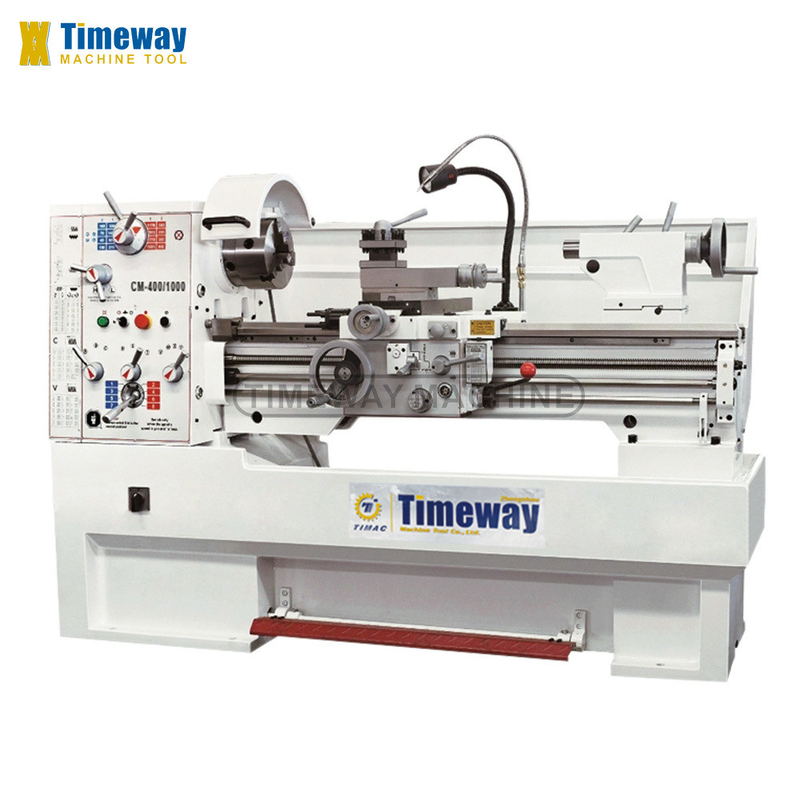

Max. Swing Diameter 410mm Light Duty Precision Gap Bed Lathe CM-400 with Performance
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | ISO9001, CE |
| Model Number: | CM-400x1000, CM-400x1500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,800.00/sets 1-2 sets |
| Packaging Details: | Woden case/Pallet (fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1500 Mm | Range Of Spindle Speed(r.p.m): | 45 - 1800 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 250 |
| Type: | Horizontal | Spindle Motor Power(kW): | 2.8 |
| Voltage: | 380V, 220V, 400V, 440V, Etc | Dimension(L*W*H): | 2060, 2560x 900x1640mm |
| Weight (KG): | 2100 KG | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Automatic Grade: | Automatic | Precision Gap Bed Lathe: | Precision Gap Bed Lathe |
| Width Of Bed: | 250mm | Max. Swing Diameter: | 410mm |
| Weight: | 1550, 1850/1800, 2100kg | Power(W): | 2.8/3.3kw |
| After-sales Service Provided: | Online Support | After Warranty Service: | Online Support |
| Local Service Location: | Canada, United Kingdom, United States, France | Condition: | New |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Canada, United Kingdom, United States, France |
| Core Components: | Bearing | Spindle Bore(mm): | 52 |
| Max. Turned Length (mm): | 1500 Mm | Year: | 2020 |
| Port: | Shanghai Port | ||
Product Description
Precision Gap Bed Lathe
Features:
1. Powerful precision gearhead lathes with cost effective;
2. Need not change any gears you can turn all the metric and inch thread indicating in chart;
3. Three points support for spindle;
4. Clutch in apron for safety and for changing apron feed direction without changing spindle running direction.
Parameter:
| Specification | CM-400 |
| Swing over bed | 410mm |
| Swing over cross slide | 255mm |
| Swing in gap | 580mm |
| Length of gap | 250mm |
| Distance between centers | 1000, 1500mm |
| Width of bed | 250mm |
| Spindle nose | D1-6 |
| Spindle bore | 52mm |
| Taper of spindle bore | No.6 Morse |
| Range of spindle speed | 16 changes 45-1800r/min |
| Max. travel of compound rest | 102mm |
| Max. travel of cross slide | 210mm |
| Leadscrew pitch | 4T.P.I. |
| Max. Section of tool | 20 × 20mm |
| Longitudinal feeds range | 0.05-1.7mm/rev |
| Cross feeds range | 0.025-0.85mm |
| Metric threads range | 39 kinds 0.2-14mm |
| Inch threads range | 45 kinds 2-72T.P.I. |
| Diametrical pitches range | 21 kinds 8-44 D.P. |
| Module pitches range | 18 kinds 0.3-3.5 M.P. |
| Dia.of tailstock sleeve | 50mm |
| Travel of tailstock sleeve | 120mm |
| Morse taper of tailstock sleeve | No.4 Morse |
| Cross adjustment | ±13mm |
| Power of main motor | 2.8/3.3kw( 3.8/4.5HP) 3PH or 5HP |
| Power of coolant pump | 0.1kw (1/8HP), 3PH |
| Overall Dimension (LxWxH) | 1940, 2440x 850x1320mm |
| Packing size (LxWxH) | 2060, 2560x 900x1640mm |
| Net weight/Gross weight | 1550, 1850/1800, 2100kg |
*** Standard accessories:
3 jaw chuck, 4 jaw chuck, face plate, steady rest, follow rest, changing gears, dead center, reduction sleeve, oil gun, coolant system, working light, chasing dial indicator, operation manual(English edition)
*** Optional accessories:
Digital readout system (DRO), quick change tool post & holders, taper turning attachment

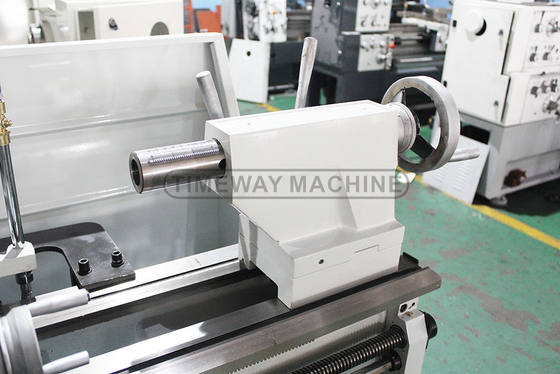

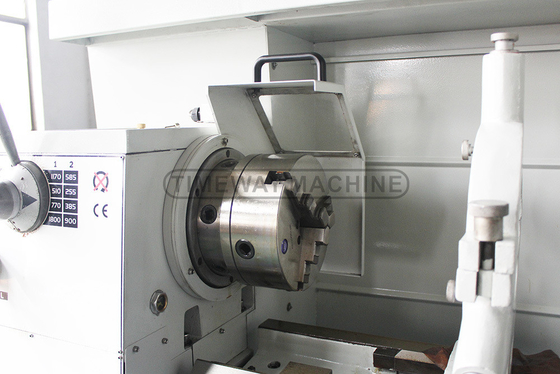

3-jaw chuck Tailstock

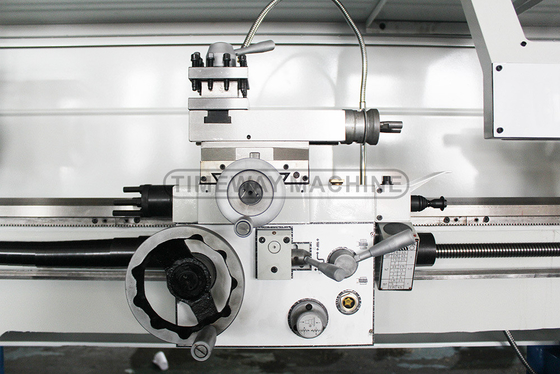

Tool Holder Sizing device

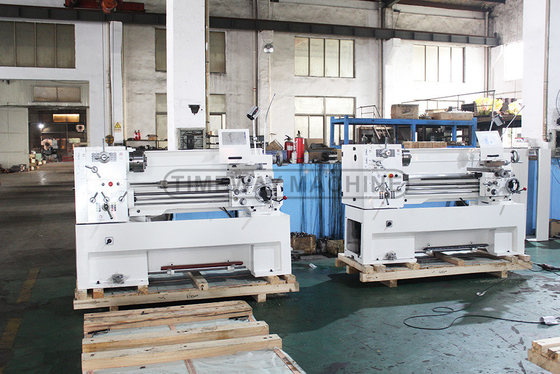

Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 2950*1150*1750MM N.W./G.W.: 1850/2250KG
Container loaded: 4 sets / 20'GP
