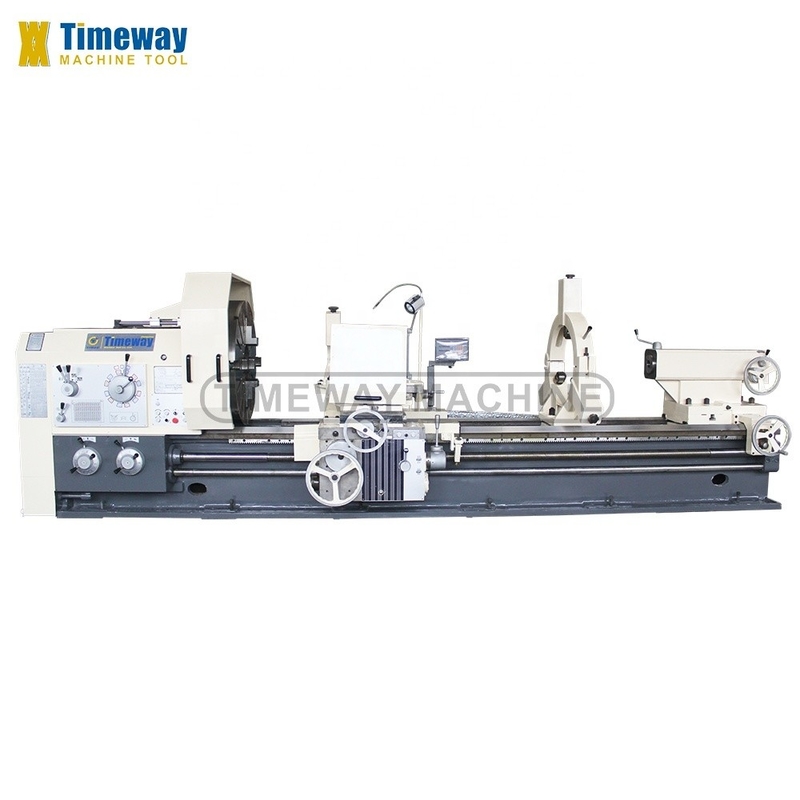

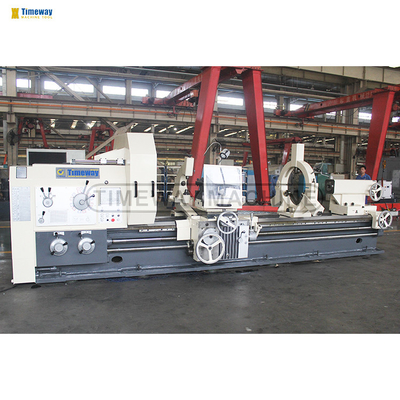

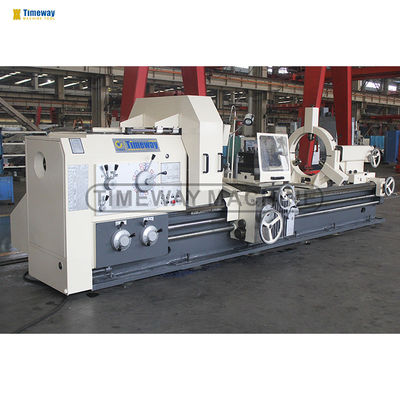

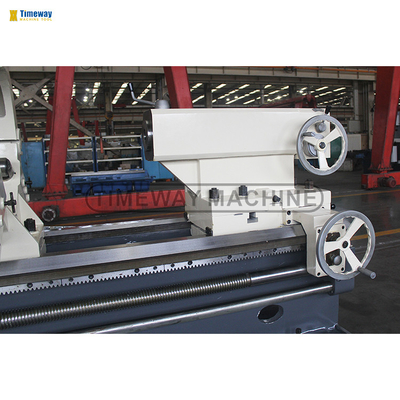

One-piece Structure 1000mm Integrated Bed Type Flat Bed Turning Machine with 4000mm Z-axis Travel
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | AL-1000Bx4M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $32,999.00/sets >=1 sets |
| Packaging Details: | wooden case(can be fumigated) |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 4000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 755 |
| Type: | Horizontal | Spindle Motor Power(kW): | 22 |
| Voltage: | 220V/380V/400V | Dimension(L*W*H): | 7100x2150x1700mm |
| Weight (KG): | 11000 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Hot Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Structure: | One-piece |
| Guideway Type: | V-flat Type | Chuck Size: | 1000mm |
| Swing Over Bed: | 1000mm | Swing Over Cross Slide: | 615mm |
| X-axis Travel: | 520mm | Z-axis Travel: | 4000mm |
| Top Tool-post Travel: | 300mm | Tool Section Size: | 45x45mm |
| Tool Post Swivel Angle: | 90° | Condition: | New |
| Spindle Bore(mm): | 130 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works |
| Showroom Location: | Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Brazil, Peru, Saudi Arabia, Pakistan, Mexico, Russia, Chile, UAE, Algeria, Romania, South Africa, Australia | Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Pressure Vessel |
| Max. Turned Length (mm): | 3800 Mm | Year: | 2020 |
Product Description
Products Description
Features:
* This series Horizontal lathe is suitable for processing large and medium-sized parts of castings, steels and non-ferrous
metals. It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn various internal
and external threads, such as metrical, inch, modulus and diametrical.
* The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful
cutting; When finished, the roundness error is not more than 0.01 mm, the cylindrical degree error is not more than 0.03 mm in the measuring length of 300 mm.
* The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. On the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.

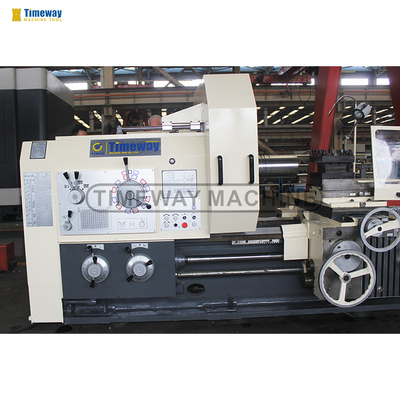

* The machine spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-row angular contact ball bearing,improving accuracy and increasing rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term operation.
* High rigidity one piece type bed with 755 mm bed span, which ensures the machine has strong stability and high precision, and the loading capacity between centers can be up to 6000 kg, and 8000 kg as optional.
* Spindle standard through hole diameter is Φ130 mm, and adopt A2-15 spindle nose connection type, runout accuracy of spindle is better.
* The machine can be used to cut the short conical surface by the top tool post, and the long conical surface can be turned by the top tool post and the longitudinal feed together.
* High power, high rigidity and wide speed range for high speed and powerful cutting, speed range of 3.15-315 rpm with 33 speeds.
* According to machining need, customers can choose electric moving tailstock, reduce operator labor intensity and improve work efficiency.
* This series Horizontal lathe is suitable for processing large and medium-sized parts of castings, steels and non-ferrous
metals. It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn various internal
and external threads, such as metrical, inch, modulus and diametrical.
* The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful
cutting; When finished, the roundness error is not more than 0.01 mm, the cylindrical degree error is not more than 0.03 mm in the measuring length of 300 mm.
* The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. On the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.
* The machine spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-row angular contact ball bearing,improving accuracy and increasing rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term operation.
* High rigidity one piece type bed with 755 mm bed span, which ensures the machine has strong stability and high precision, and the loading capacity between centers can be up to 6000 kg, and 8000 kg as optional.
* Spindle standard through hole diameter is Φ130 mm, and adopt A2-15 spindle nose connection type, runout accuracy of spindle is better.
* The machine can be used to cut the short conical surface by the top tool post, and the long conical surface can be turned by the top tool post and the longitudinal feed together.
* High power, high rigidity and wide speed range for high speed and powerful cutting, speed range of 3.15-315 rpm with 33 speeds.
* According to machining need, customers can choose electric moving tailstock, reduce operator labor intensity and improve work efficiency.
Specification | Unit | AL-1000Bx4M |
Max. swing over bed | mm | 1000 |
Max. swing over cross slide | mm | 615 |
Distance between centers | mm | 1500/2000/3000/4000/5000/6000/8000/10000/12000/- |
Max. turning length | mm | 1300/1800/2800/3800/4800/5800/7800/9800/11800/- |
Bed width | mm | 755 |
Loading capacity | kg | 6000 (opt: 8000) |
Spindle nose | - | A2-15 (8xM22) |
Spindle bore | mm | 130 |
Spindle taper | - | Metric 140 |
Spindle speed range | rpm | Forward: 3.15-315, CW: 3.5-291 |
Spindle speed step | steps | Forward: 21, Reverse: 12 |
X/Z-axis feed kinds | kinds | 56/56 |
Feed range | mm | Longitudinal: 0.1-12; Cross: 0.05-6; Top tool-post: 0.025-3 |
Metric threads range (kinds) | mm | 1-120 (44) |
Inch threads range (kinds) | TPI | 28-1/4 (31) |
Module threads range (kinds) | MP | 0.5-60 (45) |
Diametrical threads range (kinds) | DP | 1/2-56 (38) |
Distance spindle center to tool base | mm | 48 |
Tool post swivel angle | ° | ±90° |
Cross slide travel | mm | 520 |
Top slide travel | mm | 300 |
Tool section size | mm | 45x45 |
Rapid feed speed | mm/min | Longitudinal: 3740; Cross: 1870; Top tool-post: 935 |
Tailstock quill diameter | mm | 160 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | MT6 |
Main motor power | kw | 22 |
Machine length | mm | 4600/5100/6100/7100/8100/9100/11100/13100/15100/- |
Machine width | mm | 2150 |
Machine height | mm | 1700 |

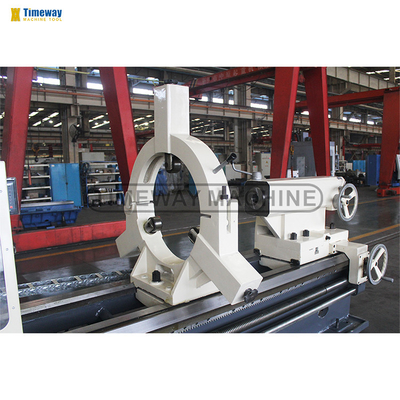

· 4-jaw independent chuck · Steady rest (over 3M length) · Follow rest (over 3M length) · Manual moving tailstock · Dead center of tailstock · 4-station tool post · Cooling system · Work lamp · Tools & tool-box · Leveling wedge and bolts · Operation manual (English) | · Face plate · 2 or 3-axis digital indicator · Chuck guard · Too-post guard · Rear splash guard · Quick changing tool post · Grinding attachment |
