5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE & ISO |
| Model Number: | FL-500B/C/D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,500.00/sets 2-3 sets |
| Packaging Details: | in wooden case (can be fumigated) or as your request |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 22 - 1800 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 360 |
| Type: | Horizontal | Spindle Motor Power(kW): | 5.5 |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 2450*1150*1750mm |
| Weight (KG): | 2150 KG | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Automatic Grade: | Manual | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
| Product Type: | High Speed Precision Gap Bed Lathe Machine | Color: | Customized |
| Max. Swing Diameter: | 500mm | Power: | 5.5kw |
| Weight: | 2150kg | Max.travel Of Top Slide: | 130mm |
| After Warranty Service: | Video Technical Support, Online Support, Field Maintenance And Repair Service | Local Service Location: | Canada, United States, Italy, Germany, Mexico, Spain, Australia, South Africa |
| Max. Swing Diameter (mm): | 500 | Condition: | New |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Restaurant, Retail, Printing Shops, Construction Works , Energy & Mining | Showroom Location: | Canada, United States, Italy, Germany, Mexico, Spain, South Africa, Australia |
| Core Components: | Motor, Engine | Max. Turned Length (mm): | 3000 Mm |
| Spindle Bore(mm): | 65 | Year: | 2020 |
| Port: | Chiana Port | ||
Product Description

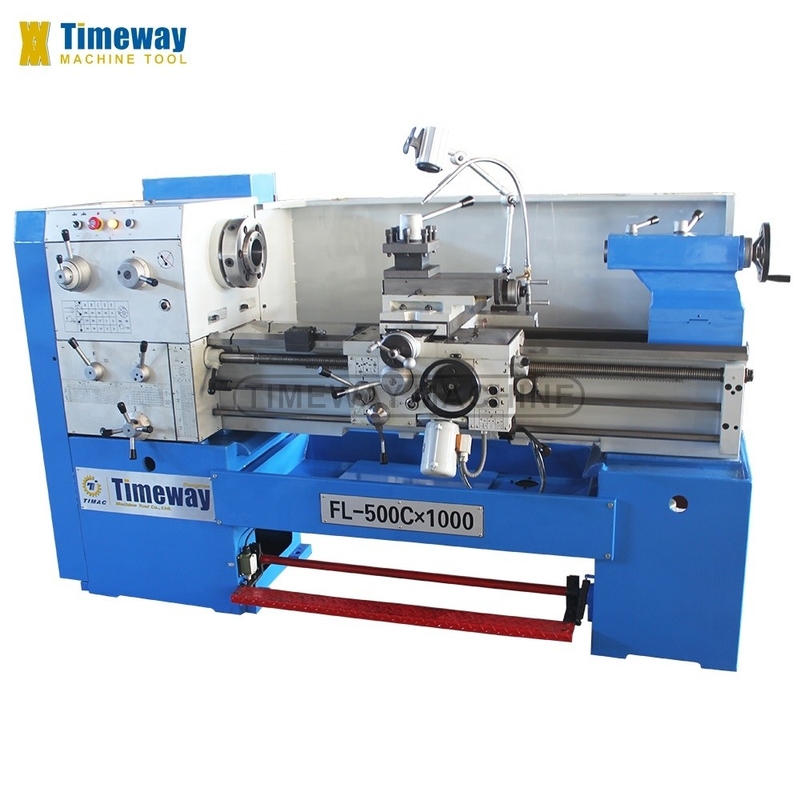

16"-26" High Speed Precision Gap-bed Lathe Machine for sale, Horizontal Lathe Machine Price
Features:
This series lathe is a fantastic model for small to medium size turning works. Even its basic configuration includes important accessories, such as 3 jaw chuck, steady and folllow rest, change gears etc. increasing the application area of this model significantly. For reducing the non-productive time, this model is also can equipped with 2 or 3 axis digital readout.
* Inductive hardened, polished gray cast-iron machine bed.
* Electro-mechanical foot brake reduces downtime significantly.
* State-of-the-art main spindle bearing with high-quality angular ball bearings.
* Large, hardened, polished gears.
Details image:

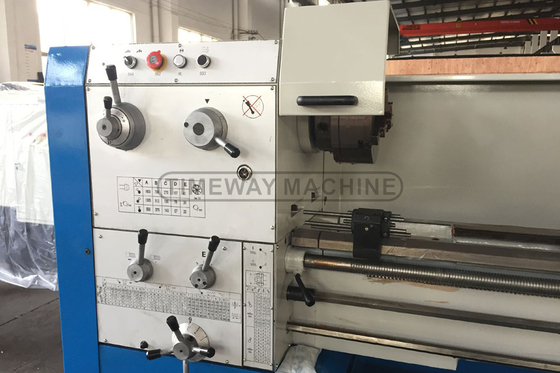

1. Headstock

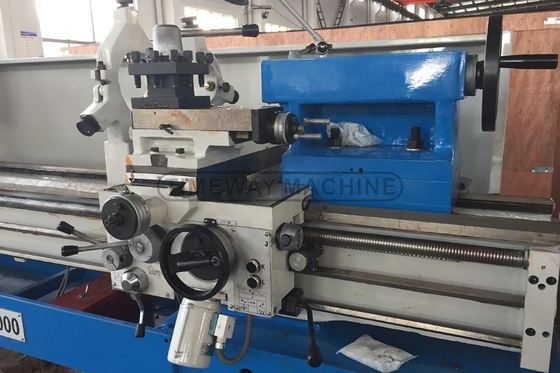

2. Tailstock: To support the workpiece to achieve high pricision processing.
Standard Accessories:
3 jaw chuck, 4 jaw chuck, Face plate, Steady rest, Follow rest, Dead center, Oil gun, Coolant system
Working light, General tools, Foundation bolts, Operation manual(English edition).
Optional Accessories:

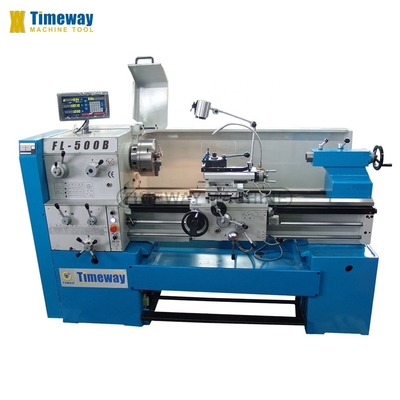

2-axes DRO, Quick change tool post, Taper turning attachment, CE execution.

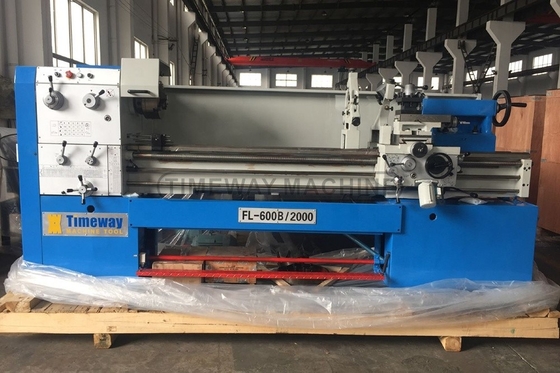

Packaging photos:

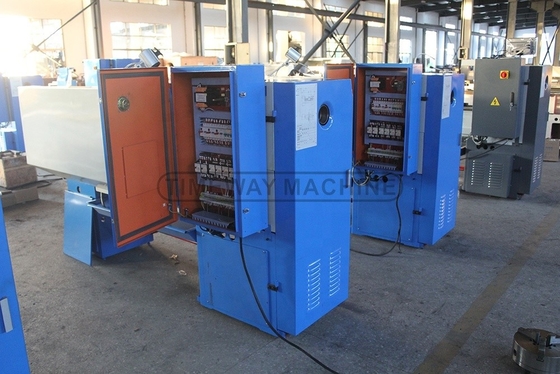

Factory photos:
Parameter:
| Specification | Unit | FL-400B/C/D | FL-500B/C/D | FL-600B/C/D | FL-660B/C/D | |
| Capacity | Max.swing over bed | mm | 400 | 500 | 600 | 660 |
| Max.swing over cross slide | mm | 240 | 325 | 360 | 420 | |
| Max.swing in gap | mm | 540 | 630 | 730 | 790 | |
| Effective length of gap | mm | 260 | ||||
| Distance between centers | mm | 1000/1500/2000/3000 | ||||
| Width of bed | mm | 360 | ||||
| Headstock | Spindle bore | mm | B:65 C:80 D:103 | |||
| Spindle nose |
| B:ISO-D6 C/D:ISO-D8 | ||||
| Spindle taper |
| B:Metric70 C/D:Metric80 | ||||
| Spindle speed(No.) | rpm | B:22-1800(15steps) C/D:24-1600(15steps) | ||||
| Feeds | Longitudinal feeds range | mm/r | 66kinds 0.072-4.038 | |||
| Cross feeds range | mm/r | 66 kinds 0.036-2.019 | ||||
| Metric threads range | mm | 66kinds 0.5-28 | ||||
| Inch threads range | T.P.I | 66kinds 1-56 | ||||
| Module threads range | mm | 33kinds 0.5-3.5 | ||||
| Diametral Threads range |
| 33kinds 8-56 | ||||
| Carriage | Max.travel of top slide | mm | 130 | |||
| Max.travel of cross slide | mm | 300 | ||||
| Max.size of toolshank | mm | 25×25 | ||||
| Tailstock | Dia.of tailstock sleeve | mm | 65 | |||
| Taper of tailstock sleeve |
| MT5 | ||||
| Max.travel of tailstock | mm | 120 | ||||
| Motor | Main drive motor | kw | 5.5 | 7.5 | ||
| Coolant pump motor | w | 125 | ||||
| Packing | Center distance:1000mm | mm | 2450×1150×1750 | |||
| 1500mm | mm | 2950×1150×1750 | ||||
| 2000mm | mm | 3450×1150×1750 | ||||
| 3000mm | mm | 4450×1150×1750 | ||||
| Net/gross | Center distance:1000mm | kg | 1600/2000 | 1650/2050 | 1750/2150 | 1850/2250 |
| 1500mm | kg | 1800/2200 | 1850/2250 | 1950/2350 | 2050/2450 | |
| 2000mm | kg | 1950/2350 | 2000/2400 | 2100/2500 | 2200/2600 | |
| 3000mm | kg | 2100/2500 | 2150/2550 | 2250/2650 | 2350/2750 | |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
