Horizontal Gap Bed Lathe Machine with 58mm Spindle Bore Max. Length of Workpiece 1000mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | CL-460x1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,500.00/sets 1-2 sets |
| Packaging Details: | in wooden case(can be fumigated)or in plywood case |
| Supply Ability: | 100 Roll/Rolls per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 25 - 2000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 5.5 | Voltage: | As Customer's Request |
| Dimension(L*W*H): | 220/275/325x108x137 Cm | Weight (KG): | 1645 KG |
| Warranty: | 1 Year | Key Selling Points: | Sustainable |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Automatic Grade: | Manual |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Product Type: | Gap Bed Lathe |
| Power(W): | 4KW | Max. Swing Diameter: | 460mm |
| After-sales Service: | Online Support | After-sales Service Provide: | Field Installation, Commissioning And Training |
| Warranty Service: | Video Technical Support | After Warranty Service: | Spare Parts |
| Condition: | New | Spindle Bore(mm): | 58 |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Farms, Retail, Energy & Mining | Showroom Location: | Canada, United States, Italy, Germany |
| Core Components: | Bearing, Gear, Motor, Engine | Max. Turned Length (mm): | 1000 Mm |
| Year: | 2020 | ||
Product Description
"460mm swing"China High Precision Metal Lathe Machine /Horizontal Gap bed Lathe Machine For Sale
Features:
1. Inductive hardened, polished grey cast-iron machine bed.
2. Easy, smooth and precisely adjustable speed and feed settings.
3. Hardened, polished gears and shafts, also in feed gear unit.
4. Centrally located, logical switches for feeds and threads with leadscrew and feed rod.
5. Head stock gears are made of high quality steel ground and hardened more than HRC 48°.
Satabdard Accessorise:
3-jaw chuck,4-jaw chuck,Face plate, Dead centers, Thread chasing dial, Splash guard, Oil gun, Work lamp, Cooling system, Steady rest, Follow rest, Change gears, Reducing sleeve, Foot brake, Foundation bolts, Toolbox & tools, Operator manual.
Optional Accessories:
Driving plate, Living center, Taper turning attachment, Drill chuck, Quick change tool holder, 2/3 axis digital readout, Chuck guard, Leadscrew guard, Tool post guard, Frequency inverter.
Parameter:
| Specification | Unit | CL-410 | CL-460 | CL-510Q |
| Max. swing over bed | mm | 410 | 460 | 510 |
| Max. swing over cross slide | mm | 220 | 270 | 320 |
| Max. swing over gap | mm | 640 | 690 | 738 |
| Distance between centers | mm | 1000/1500/ 2000 | 1000/1500/ 2000 | 1000/1500/2000 |
| Gap length | mm | 165 | 165 | 165 |
| Bed width | mm | 300 | 300 | 300 |
| Spindle nose | - | D1-6 | D1-6 | D1-8 |
| Spindle bore | mm | 58 | 58 | 80 |
| Spindle taper | - | MT6 | MT6 | MT7 |
| Spindle speed range (steps) | rpm | 25-2000 (12) | 25-2000 (12) | 25-1700 (12) |
| Top slide travel | mm | 128 | 128 | 130 |
| Cross slide travel | mm | 285 | 285 | 305 |
| Tool section size | mm | 25x25 | 25x25 | 25x25 |
| Leadscrew | - | 40x4T.P.I or pitch 6mm | 40x4T.P.I or pitch 6mm | 40x4T.P.I or pitch 6mm |
| Longitudinal feed range | mm/rev | 0.031-1.7 (42) | 0.031-1.7 (42) | 0.031-1.7 (42) |
| Cross feed range | mm/rev | 0.014-0.784 (42) | 0.014-0.784 (42) | 0.014-0.784 (42) |
| Metric threads range (kinds) | mm | 0.1-14 (41) | 0.1-14 (41) | 0.1-14 (41) |
| Inch threads range (kinds) | TPI | 2-112 (60) | 2-112 (60) | 2-112 (60) |
| Diametrical threads range (kinds) | DP | 4-112 (50) | 4-112 (50) | 4-112 (50) |
| Module threads range (kinds) | MP | 0.1-7 (34) | 0.1-7 (34) | 0.1-7 (34) |
| Tailstock quill diameter | mm | 60 | 60 | 60 |
| Tailstock quill travel | mm | 130 | 130 | 130 |
| Tailstock quill taper | - | MT4 | MT4 | MT4 |
| Main motor power | kw | 5.5 | 5.5 | 5.5 |
| Coolant pump power | kw | 0.1 | 0.1 | 0.1 |
| Machine dimensions (LxWxH) | cm | 220/275/325x108x134 | 220/275/325x108x137 | 230/275/325x111x137 |
| Packing size (LxWxH) | cm | 225/280/330x112x162 | 225/280/330x112x162 | 235/280/330x112x153 |
| Net weight | kg | 1580/1745/1900 | 1645/1810/1965 | 1446/1611/1715 |
| Gross weight | kg | 1844/2049/2229 | 1910/2115/2295 | 1711/1916/2045 |

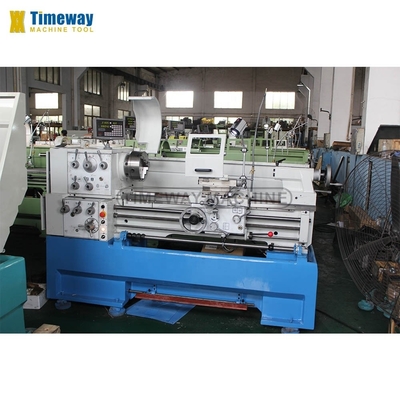

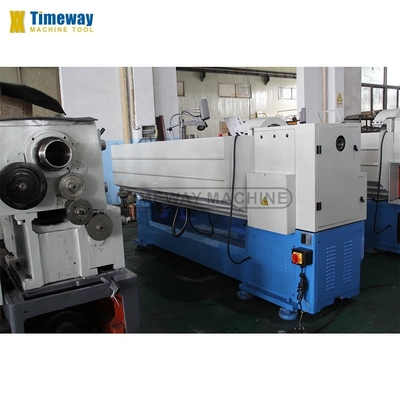

Factory images:
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
