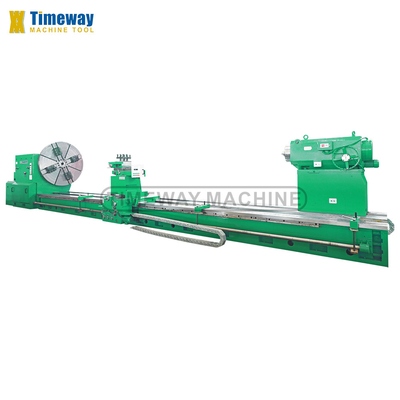

40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | AL-1600H, AL-2000H, AL-2500H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $450,000.00/sets 1-1 sets |
| Packaging Details: | Wooden pallet. |
| Supply Ability: | 10 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 10000 | Range Of Spindle Speed(r.p.m): | 0.8 - 160 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 1600 |
| Type: | Horizontal | Spindle Motor Power(kW): | 75 |
| Voltage: | 220V-440V | Dimension(L*W*H): | 13577x2515x2655 Mm |
| Weight (KG): | 40000 KG | Warranty: | 1 Year |
| Key Selling Points: | Heavy Duty Cutting Force | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | TPI: | 1-14 |
| Automatic Grade: | Manual | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Product Type: | Horizontal Heavy Duty Lathe | Loading Capacity: | 40tons |
| Max. Swing Over Cross Slide: | 2200mm | Distance Between Centers: | 3000-20000mm |
| Max. Torque Of Chuck: | 80000N.m | Bed Width: | 1600 Mm(3 Slideway) |
| Max. Travel Of Cross Slide: | 800mm | Condition: | New |
| Applicable Industries: | Manufacturing Plant, Construction Works | Showroom Location: | Canada, United States, Italy, Germany, Brazil, Peru, Mexico, Russia, Spain, Chile, UAE, South Africa, Australia |
| Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Pressure Vessel | Max. Turned Length (mm): | 9800 Mm |
| Spindle Bore(mm): | 85 | Year: | 2020 |
| Port: | China Port | ||
Product Description
Products Description
Features:
1. The machine bed is integral box-shaped three rectangular rail structure, which is cast in one-time casting with high-grade cast
iron (HT 300). After two times of aging treatment, the stability is good; the width of the guide rail is 1600 mm, the rigidity is
good, and the anti-vibration capability is strong; Precision grinding by imported guide grinding machines ensures long life, high
precision and good retention.
2. The main drive mechanism of the machine tool is driven by a 75 KW DC motor. The total speed ratio of the variable speed control mode is 1:22.2, 3 steps speed changing, and the mechanical and electrical speed ratio is 1:200. The spindle obtains a stepless speed regulation range of 0.8 to 160 r/min.
3. The feed system is connected to the main drive through the light bar, so that the feed is directly related to the spindle speed and the feed rate is convenient to select.
4. The tailstock quill is a rotatable structure, which reduces the wear and heat of the centers.
5. The machine tool standard equipped with electric moving tailstock, reduce operator labor intensity and improve work efficiency.
6. This series of machine tools supply two kinds of center frame, that is a closed center frame and an open center frame.
7. Two rows of high-precision racks are installed on front and behind the machine, the front racks drives the carriage feed to
realize turning thread, and the rear row of racks drives the tailstock for motorized movement.
8. High rigidity and high precision spindle: The machine tool spindle bearing adopts domestic famous brand products. The spindle
box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To
reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The gears in the headstock are quenched and
grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature
rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term
operation.
iron (HT 300). After two times of aging treatment, the stability is good; the width of the guide rail is 1600 mm, the rigidity is
good, and the anti-vibration capability is strong; Precision grinding by imported guide grinding machines ensures long life, high
precision and good retention.
2. The main drive mechanism of the machine tool is driven by a 75 KW DC motor. The total speed ratio of the variable speed control mode is 1:22.2, 3 steps speed changing, and the mechanical and electrical speed ratio is 1:200. The spindle obtains a stepless speed regulation range of 0.8 to 160 r/min.
3. The feed system is connected to the main drive through the light bar, so that the feed is directly related to the spindle speed and the feed rate is convenient to select.
4. The tailstock quill is a rotatable structure, which reduces the wear and heat of the centers.
5. The machine tool standard equipped with electric moving tailstock, reduce operator labor intensity and improve work efficiency.
6. This series of machine tools supply two kinds of center frame, that is a closed center frame and an open center frame.
7. Two rows of high-precision racks are installed on front and behind the machine, the front racks drives the carriage feed to
realize turning thread, and the rear row of racks drives the tailstock for motorized movement.
8. High rigidity and high precision spindle: The machine tool spindle bearing adopts domestic famous brand products. The spindle
box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To
reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The gears in the headstock are quenched and
grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature
rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term
operation.
Specification | Unit | AL-1600H | AL-2000H | AL-2500H | ||
Max. swing over bed | mm | 1600 | 2000 | 2500 | ||
Max. swing over cross slide | mm | 1250 | 1600 | 2200 | ||
Distance between centers | mm | 3000~20000 | 3000~20000 | 3000~20000 | ||
Max. torque of chuck | N.m | 80000 | 80000 | 80000 | ||
Bed width | mm | 1600 (3 slideway) | 1600 (3 slideway) | 1600 (3 slideway) | ||
Loading capacity | tons | 32 | 32 | 32 | ||
Spindle taper | - | 75° | 75° | 75° | ||
Chuck diameter | mm | 1600 | 1600/1800 | 1600/1800/2000 | ||
Spindle speed range | rpm | 0.8-160 (stepless) | 0.8-160 (stepless) | 0.8-160 (stepless) | ||
Range of longitudinal feed | mm | 0.125-48 (18) | 0.125-48 (18) | 0.125-48 (18) | ||
Range of cross feed | mm | 0.063-24 (18) | 0.063-24 (18) | 0.063-24 (18) | ||
Metric thread | mm | 2-40 | 2-40 | 2-40 | ||
Inch thread | TPI | 1-14 | 1-14 | 1-14 | ||
Module thread | MP | 1.5-20 | 1.5-20 | 1.5-20 | ||
Max. travel of cross slide | mm | 725 | 725 | 800 | ||
Max. travel of top slide | mm | 600 | 600 | 600 | ||
Section of tool shank | mm | 70x70 | 70x70 | 70x70 | ||
Tailstock quill daimeter | mm | 300 | 300 | 300 | ||
Tailstock quill travel | mm | 300 | 300 | 300 | ||
Tailstock quill taper | - | 100, 1:7 | 100, 1:7 | 100, 1:7 | ||
Tailstock rapid feed speed | mm/min | 3000 | 3000 | 3000 | ||
Tailstock quill rapid feed speed | mm/min | 664 | 664 | 664 | ||
Main motor power | kw | 75 | 75 | 75 | ||
Machine length | mm | 13577~21577 | 13577~21577 | 13577~21577 | ||
Machine width | mm | 2479 | 2479 | 2515 | ||
Machine height | mm | 2280 | 2580 | 2655 | ||
• 4-jaw independent chuck • Steady rest • Dead center of tailstock • Cooling system • Work lamp • Electric moving tailstock • Tools & tool-box • Leveling wedge and bolts • Operation manual (English) | • Face plate • 2 or 3-axis digital indicator • Chuck guard • Tool-post guard • Rear splash guard • Roller support |

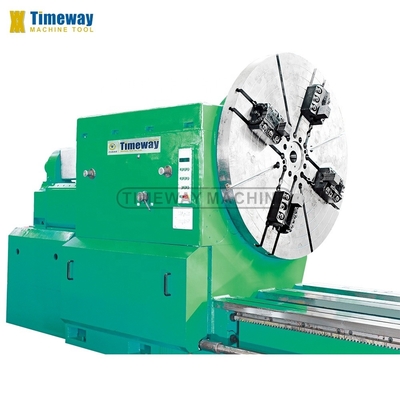

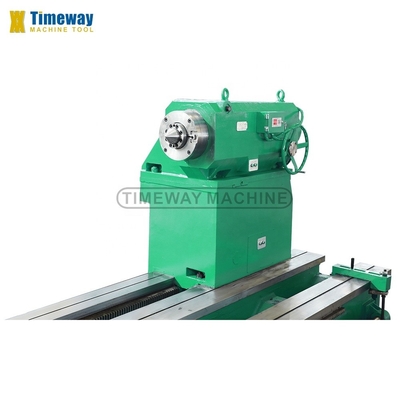

Spindle box:
For the giant lathes, the spindle through hole diameter 85 mm, box split structure, high contact rigidity; The spindle using front
and back support type two-point support mechanical structure, so that the big lathes's radial run-out and axial run-out, high
rotation accuracy. High-frequency quenching and precision grinding of gear, high precision, smooth operation, low noise.
and back support type two-point support mechanical structure, so that the big lathes's radial run-out and axial run-out, high
rotation accuracy. High-frequency quenching and precision grinding of gear, high precision, smooth operation, low noise.

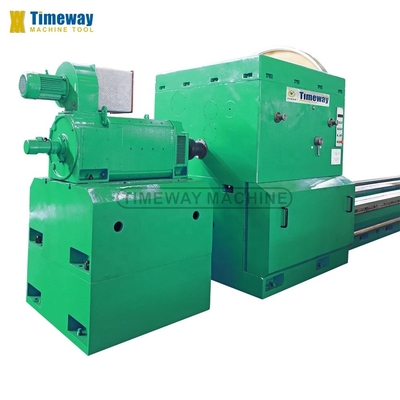

DC 75kw main motor:
The heavy duty lathes can gain spindle speed
0.8-160rpm with stepless, the main transmission structure is driven by the DC 75KW main motor, large torque and strong turning
force for the heavy duty cutting, the spindle speed is adjusted through adjustment of the pressure and magnetism.
0.8-160rpm with stepless, the main transmission structure is driven by the DC 75KW main motor, large torque and strong turning
force for the heavy duty cutting, the spindle speed is adjusted through adjustment of the pressure and magnetism.

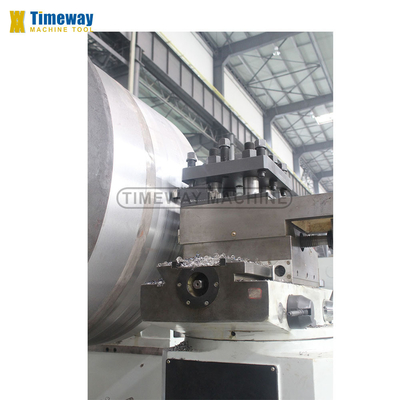

Carriage:

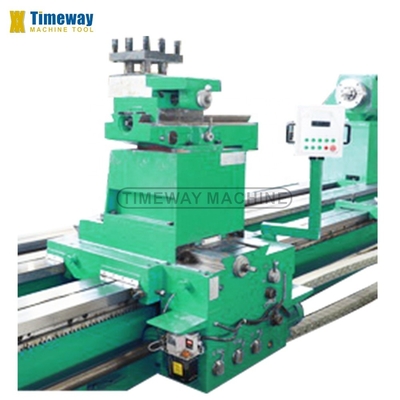

The lathes feed system is connected to the main drive through the light bar, so that the feed is directly related to the spindle speed, and the feed rate is covenient to select.
Two rows of high precision racks are installed on front and behind the giant heavy duty lathes, the front racks drives the
carriage feed to realize turning threads, and the behind rack drives foe motorized movement.
Two rows of high precision racks are installed on front and behind the giant heavy duty lathes, the front racks drives the
carriage feed to realize turning threads, and the behind rack drives foe motorized movement.
Three slideway rails:
The big heavy duty adopts the three slideway rails structure, bed width is up to 1600 mm, high rigidity and strong anti-vibration so that the loading capacity 40 tons. The
lathes' rails adopt medium-frequency hardened (HRC68), and ground by imported rail grinding machine. So the heavy duty have long-service life, high rigidity, and good stable.
lathes' rails adopt medium-frequency hardened (HRC68), and ground by imported rail grinding machine. So the heavy duty have long-service life, high rigidity, and good stable.
Tialstock:
High rigidity and large loading capacity.
Tailstock diameter: 400mm
Center tapered angle: 75°
Tailstock effective travel: 300mm
Tailstock cross moving stroke: 15mm
Tailstock diameter: 400mm
Center tapered angle: 75°
Tailstock effective travel: 300mm
Tailstock cross moving stroke: 15mm
Steady rest and roller support:
The giant lathes standard are equipped with steady rest, the roller support is optional for the client' choice.
Electric cabinet:
Clearly wire layout, CE marks electrical components.
