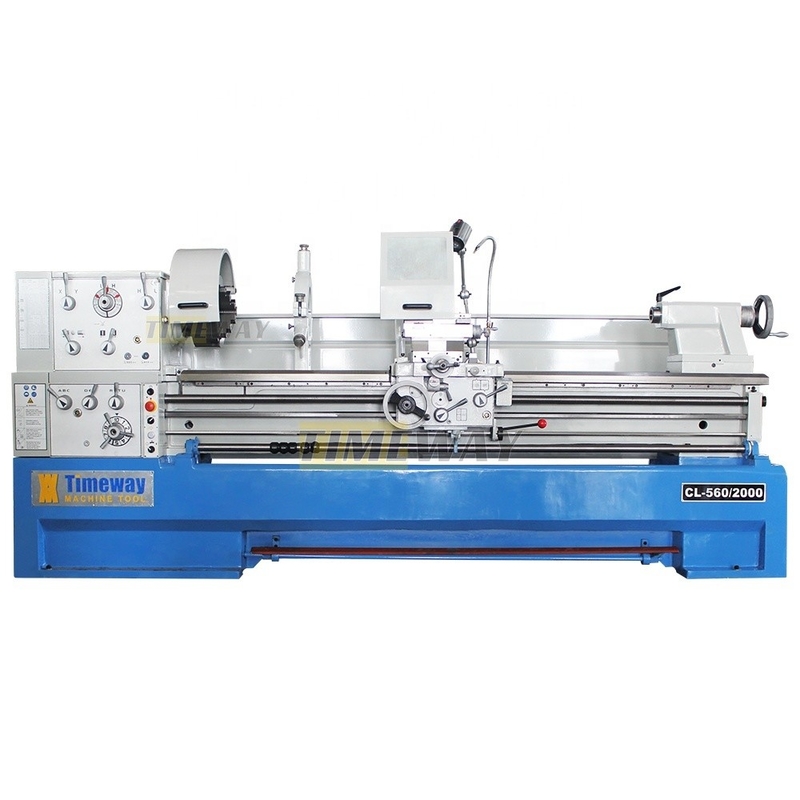

High Precision Manual Lathe Machine With Range of Spindle Speed 25 2000 r.p.m For Sell
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | CL-410 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,999.00/sets 1-2 sets |
| Packaging Details: | wooden case(can be fumigated) or plywood case |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 2000 | Range Of Spindle Speed(r.p.m): | 25 - 2000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 410 |
| Type: | Horizontal | Voltage: | As Customer's Request |
| Dimension(L*W*H): | 220*108*137 Cm | Weight (KG): | 1670 KG |
| Warranty: | 1 Year, 1 Year | Key Selling Points: | Automatic |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Automatic Grade: | Manual |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Max. Swing Over Cross Slide: | 220mm |
| Max. Swing In Gap: | 640mm | Valid Length Of Gap: | 165mm |
| Width Of Bed: | 300mm | Max .length Of Workpiece: | 3000mm |
| Spindle Bore: | 80mm | Condition: | New |
| Spindle Bore(mm): | 58 | Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Printing Shops, Construction Works , Energy & Mining |
| Showroom Location: | Canada, United States, Italy, Germany, Mexico, Spain, South Africa, Australia | Core Components: | Motor, Engine |
| Max. Turned Length (mm): | 2000 Mm | Port: | China Port |
Product Description
Products Description
* Widely used in general machinery manufacturing, production, single - piece manufacturing and other fields.

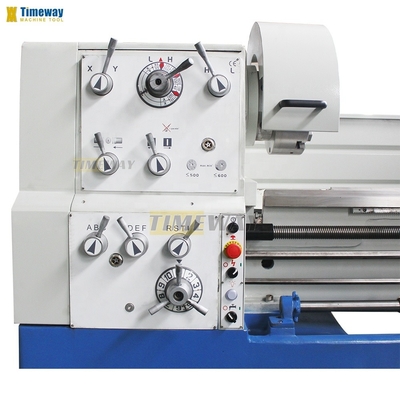

* Easy, stable and precisely adjustable speed and feed settings.
* The lathe bed is made of one piece, it is buckling resistant and vibration-free which enables precise turning.

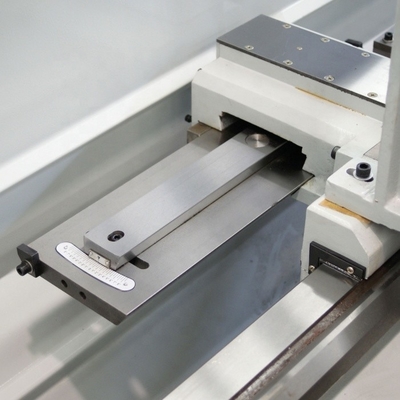

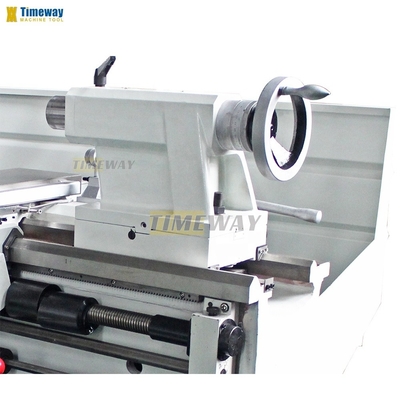

* Adjustable tailstock with fine scale for taper turning
* Easy, stable and precisely adjustable speed and feed settings.
* The lathe bed is made of one piece, it is buckling resistant and vibration-free which enables precise turning.
* Adjustable tailstock with fine scale for taper turning
Specification | Unit | CL-410 | CL-460 | CL-510 | CL-560 |
Swing over bed | mm | φ410 | φ460 | φ510 | φ560 |
Swing over cross slide | mm | φ220 | φ270 | φ300 | φ350 |
Swing in gap | mm | φ640 | φ690 | φ738 | φ788 |
Distance between centers | mm | 1000/1500/2000 | 1000/1500/2000 | 1000/1500/2000/3000 | 1000/1500/2000/3000 |
Valid length of gap | mm | 165 | 165 | 200 | 200 |
Width of bed | mm | 300 | 300 | 350 | 350 |
Spindle nose | D1-6 | D1-6 | D1-8 | D1-8 | |
Spindle bore | mm | 58 | 58 | 80 | 80 |
Taper of spindle bore | No.6 Morse | No.6 Morse | No.7Morse | No.7Morse | |
Range of spindle speed | r/min | 12 changes, 25-2000r/min | 12 changes, 25-2000r/min | 12changes,25-1600 | 12changes,25-1600 |
Max.travel of top slide | mm | 128 | 128 | 130 | 130 |
Max.travel of cross slide | mm | 285 | 285 | 326 | 326 |
Max.section of tool | mm | 25x25 | 25x25 | 25x25 | 25x25 |
Pitch thread of leadscrew | mm | 6 or 4T.P.I. | 6 or 4T.P.I. | 6 or 4T.P.I. | 6 or 4T.P.I. |
Longitudinal feeds range | mm/rev | 42 kinds, 0.031-1.7 | 42 kinds, 0.031-1.7 | 35kinds, 0.059-1.646 | 35kinds, 0.059-1.646 |
Cross feeds range | mm/rev | 42 kinds, 0.014-0.784 | 42 kinds, 0.014-0.784 | 35kinds, 0.020-0.573 | 35kinds, 0.020-0.573 |
Metric threads range | mm | 0.1-14 (41 kinds) | 0.1-14 (41 kinds) | 0.2-14 (47kinds) | 0.2-14 (47kinds) |
Inch threads range | T.P.I. | 2-112 (60 kinds) | 2-112 (60 kinds) | 2-112 (60kinds) | 2-112 (60kinds) |
Diametrical pitches range | D.P. | 4-112 (50 kinds) | 4-112 (50 kinds) | 4-112 (50kinds) | 4-112 (50kinds) |
Module pitches range | M.P. | 0.1-7 (34 kinds) | 0.1-7 (34 kinds) | 0.1-7 (39kinds) | 0.1-7 (39kinds) |
Dia. of tailstock sleeve | mm | 60 | 60 | 75 | 75 |
Travel of tailstock sleeve | mm | 128 | 128 | 180 | 180 |
Taper of tailstock sleeve | No.4 Morse | No.4 Morse | No.5Morse | No.5Morse | |
Power of main motor | kw | 5.5 (7.5HP) | 5.5 (7.5HP) | 7.5 (10HP) | 7.5 (10HP) |
Power of coolant pump | kw | 0.1 | 0.1 | 0.1 | 0.1 |
Overall dimension(LxWxH) | cm | 220/275/325x108x137 | 220/275/325x108x137 | 240/290/340/440x112x143 | 240/290/340/440x112x143 |
Packing size(LxWxH) | cm | 225/280/330x112x162 | 225/280/330x112x162 | 246/296/346/446x113x182 | 246/296/346/446x113x182 |
Net weight | kg | 1670/1920/2070 | 1720/1970/2120 | 1985/2335/2685/3385 | 2020/2370/2720/3420 |
Gross weight | kg | 1980/2265/2450 | 2045/2330/2515 | 2330/2700/3070/3810 | 2370/2740/3110/3850 |

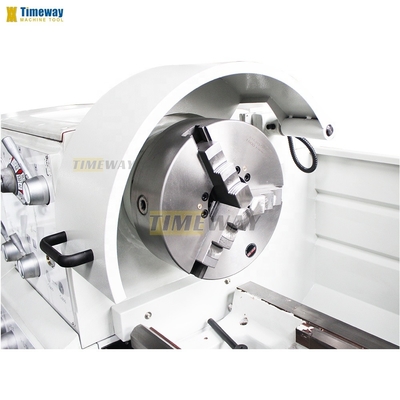

· 3 jaw chuck · 4 jaw chuck · Dead center · Face plate · Steady rest · Follow rest · Reduction sleeve · Oil gun · Coolant system · Working light · Chasing dial indicator | · Quick change tool post · 2/3 axis DRO · Living center · Taper turning attachment · Chuck guard · Leadscrew guard · Tool post guard |
