Universal Lathe Machine For Heavy Parts Max. Turned Length 4800 mm Long Service Life
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE, ISO |
| Model Number: | AL-1250, AL-1600, AL-1800, AL-2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $95,000.00/sets 1-2 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 5000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 1100 |
| Type: | Horizontal | Spindle Motor Power(kW): | 30 |
| Voltage: | As Request | Dimension(L*W*H): | Workpiece Size |
| Weight (KG): | 19000 KG | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Guideway Way: | Rectangular Type |
| Machine Using Oil: | 32# Or 46# Gear Oil | Power Cable System: | 3-phase And 4-wire System |
| Color: | Optional | Max. Swing Over Bed: | 1250/1600/1800/2000mm |
| Machine Weight Of Workpiece: | 16/20tons | Spindle Taper: | Metric 140 |
| X-axis Feed Speed: | 0.05-6mm/r | Z-axis Feed Speed: | 0.1-12mm/r |
| Condition: | New | Spindle Bore(mm): | 100 |
| Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Canada, United Kingdom, United States, Italy, France, Germany, Brazil, Peru, Mexico, Russia, Spain, Chile, Uzbekistan |
| Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Pressure Vessel | Max. Turned Length (mm): | 4800 Mm |
| Year: | 2021 | Port: | China Port. |
Product Description
| China Heavy Duty Large Universal Lathe Machinery For Heavy Parts ∴ AL-1250 ∴ ∴ AL-1600 ∴ ∴ Al-1800 ∴ ∴ AL-2000 ∴
|
Universal lathe machinery is suitable for processing large sized parts of castings, steels and non-ferrous metals. It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn metric various internal and external threads, such as inch, modulus and diameter.
| Standard accessories:
| Optional accessaries: |
|
|
|
| Technical Parameter |
| Specification | Unit | AL-1250 | AL-1600 | AL-1800 | AL-2000 |
| Max. swing over bed | mm | 1250 | 1600 | 1800 | 2000 |
| Max. swing over cross slide | mm | 900 | 1250 | 1450 | 1650 |
| Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- | |||
| Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- | |||
| Bed width | mm | 1100 | 1100 | 1100 | 1100 |
| Loading capacity | tons | 16 | 16 | 16 | 16 |
| Spindle nose | - | A2-15 | A2-15 | A2-15 | A2-15 |
| Spindle bore | mm | 100 | 100 | 100 | 100 |
| Spindle taper | - | Metric 140 | Metric 140 | Metric 140 | Metric 140 |
| Spindle speed range | rpm | Forward: 3.15-315, Reverse: 3.5-291 | |||
| Spindle speed step | steps | Forward: 21, Reverse: 12 | |||
| X/Z-axis feed kinds | kinds | 56 | 56 | 56 | 56 |
| Feed range | mm/r | Longitudinal:0.1-12; Cross:0.05-6; Top tool-post: 0.025-3 | |||
| Metric threads range (kinds) | mm | 1-120 (44) | 1-120 (44) | 1-120 (44) | 1-120 (44) |
| Inch threads range (kinds) | TPI | 28-1/4 (31) | 28-1/4 (31) | 28-1/4 (31) | 28-1/4 (31) |
| Module threads range (kinds) | MP | 0.5-60 (45) | 0.5-60 (45) | 0.5-60 (45) | 0.5-60 (45) |
| Diametrical threads range (kinds) | DP | 1/2-56 (38) | 1/2-56 (38) | 1/2-56 (38) | 1/2-56 (38) |
| Distance from spindle center to tool base | mm | 53 | 53 | 53 | 53 |
| Tool post swivel angle | ° | ±90° | ±90° | ±90° | ±90° |
| Cross slide travel | mm | 740 | 850 | 900 | 900 |
| Top slide travel | mm | 360 | 360 | 360 | 360 |
| Tool section size | mm | 50x50 | 50x50 | 50x50 | 50x50 |
| Tool post feed per gar | mm | 0.05 | 0.05 | 0.05 | 0.05 |
| Tailstock quill diameter | mm | 260 | 260 | 260 | 260 |
| Tailstock quill travel | mm | 300 | 300 | 300 | 300 |
| Tailstock quill taper | - | Metric 80 | Metric 80 | Metric 80 | Metric 80 |
| Main motor power | kw | 30 | 30 | 30 | 30 |
| Machine length | mm | 6120/7120/8120/9120/11120/13120/15120/- | |||
| Machine width | mm | 2058 | 2130 | 2330 | 2430 |
| Machine height | mm | 2200 | 2380 | 2480 | 2580 |
| Features: |
1. Mature structure: parallel turning machine is solid work, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting; When finished, the roundness error is not more than 0.015mm, the cylinder degree error is not more than 0.05mm in the measuring length of 300mm.
2. Highly rigid bed: The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. In the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.
3. Giant parallel lathe standard equipped with electric moving tailstock, reduce operator labor intensity and improve work efficiency.
4. Heavy duty lathe can be used to cut the short conical surface of the motor by the top tool post, and the long conical surface can be turned by the top tool post and the longitudinal feed.
5.High power, high rigidity and wide speed range for high speed and powerful cutting, speed range of 3.15-315rpm with 33 speeds.
6.The parallel heavy duty lathe is a heavy-duty machine tool with a maximum load-bearing capacity of 16 tons. It adopts wide rectangular guide rails with good stability and rigidity, bed width is 1100mm.
7.The tailstock quill is a rotatable structure, which reduces the wear and heat of the centers.
| Customer acceptance: |
| |
| |
| Machine details: |

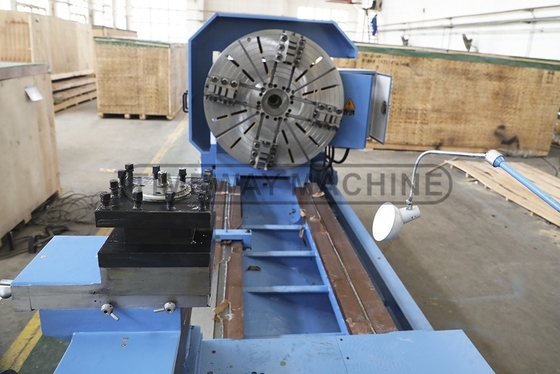

| Spindle box & Carriage:

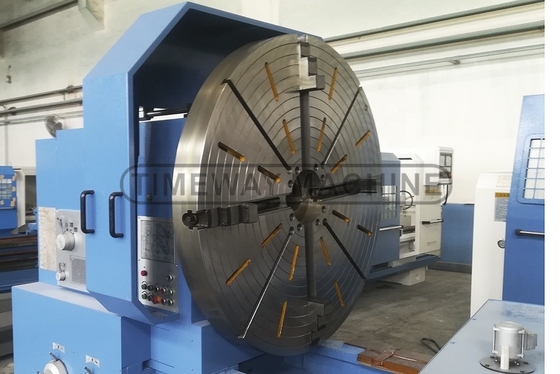

The spindle nose of parallel lathe is A2-15, standard equipped with 4-jaw chuck diameter 1600mm.
Parallel lathe machine can get 33steps spindle speed through gear-changes, make sure various kinds of processing requiremnt.

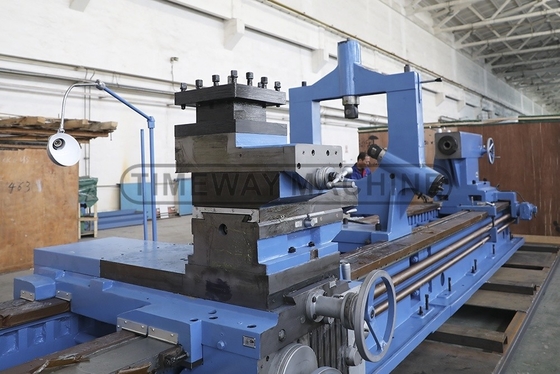

The lathe carriage can realize automatic cutting and rapid feed on the cross, longitudinal direction, and finish mechanical feeding for the top tool-post.
|
| Guideway rails:
The cutting lathe adopts 1100mm width rails span, and uses rectangular type guideways, large loading capacity and higher stable. |
|
|
| Electric cabinet:
The electric cabinet is installed on the back of the parallel, it is beautiful and convenient to transport. |
| CE electrical components:
The electric cabinet is conform to CE standard, all electrical components adopt famous-brand, the clients also choose brand you like.
| |

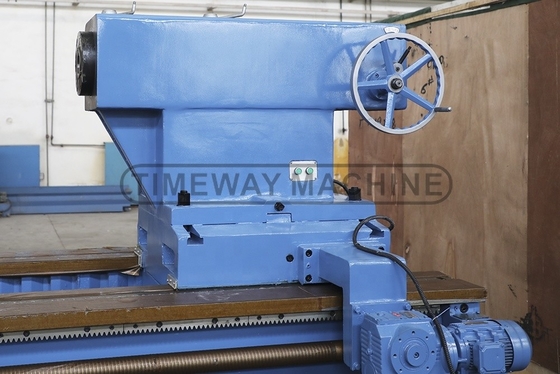

| Electric moving tailstock:
The heavy duty parallel lathe standard is equipped with electric moving tailstock, reduce the labor intensity of the operators. |
| Steady rest:
As a standard configuration, the steady rest meet cutting thin and long bar, to guarantee machining accuacy. | |
| Roller support:
The roller suppport is used for loading heavy and large parts, increase loading capacity up to 20tons of the parallel lathe. |

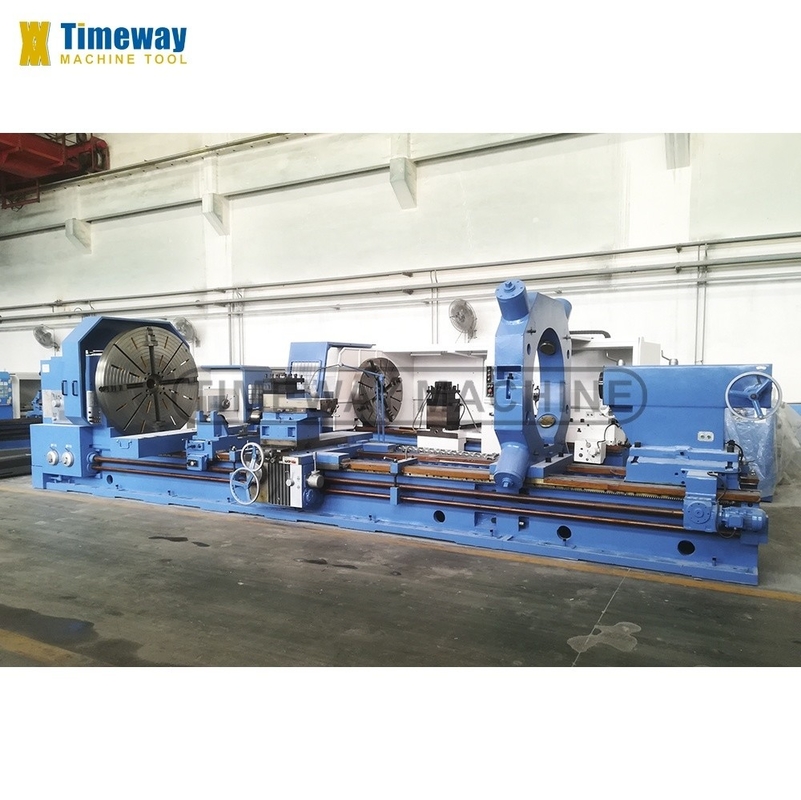

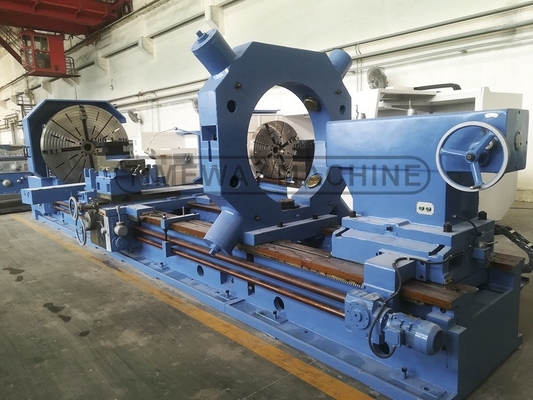

| Finished machine: |
