Features :
1. Precision ground;
2. Clutched head stock;
3. Safety torque limiting device for lead screw;
4. Safety overload clutch for feed rod;
5. Rapid traverse (optional);
6. Main spindle supported at 2 points with precision taper roller bearing.
Standard Accessories :

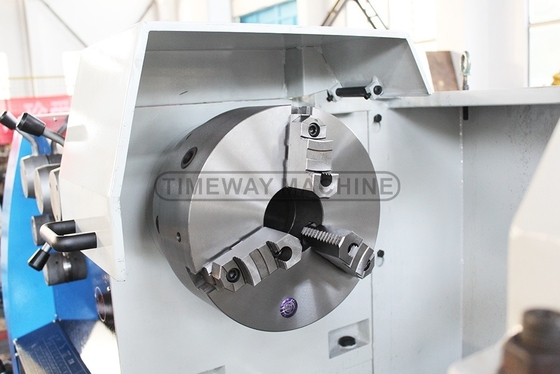

3 jaw chuck, Changing gears, Dead center, Reduction sleeve, Oil gun, Coolant system, Working light,

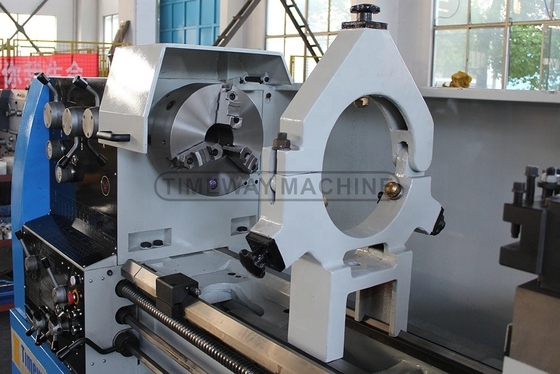

4 jaw chuck, Face plate, Steady rest, Follow rest, Chasing dial indicator.
Optional Accessories :
Digital readout system (D.R.O), quick change tool post & holders, taper turning attachment
 |

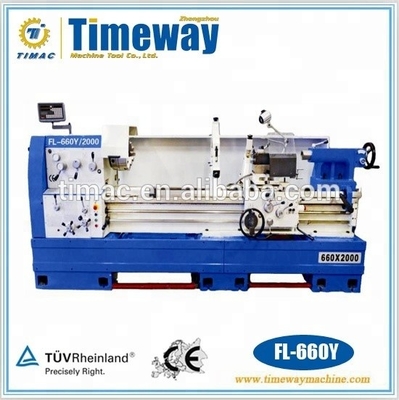

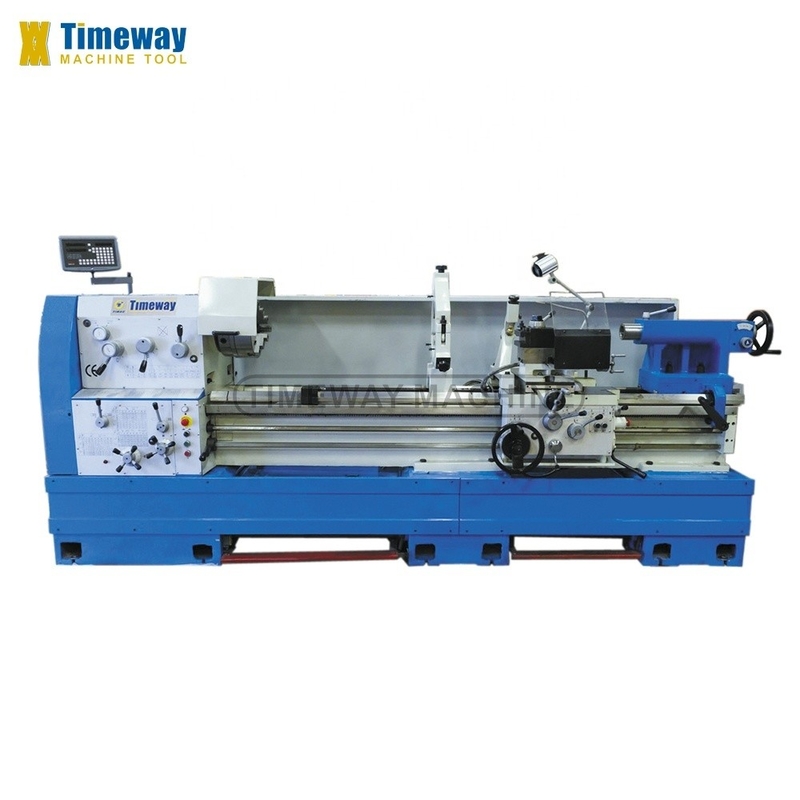

400mm Bed Width 24"-40" Precision Gap Bed Lathe Machine Customized Design
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE & ISO |
| Model Number: | FL-660Y |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $28,000.00/sets >=1 sets |
| Packaging Details: | in wooden case (can be fumigated) or as your request |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 9 - 1275 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 400 |
| Type: | Horizontal | Spindle Motor Power(kW): | 7.5 |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 2450*1150*1750mm |
| Weight (KG): | 3100 KG | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Automatic Grade: | Manual |
| Product Name: | Manual Metal Lathe Machine | Color: | Customized |
| Workpiece Length: | 1000mm | Processing Capacity: | Medium Duty |
| Spindle Bore: | 103mm | Name: | Gap Bed Lathe Machine |
| Machine Type: | Gap Bed Lathe | Keyword: | Horizontal Lathe Machine |
| Condition: | New | Spindle Bore(mm): | 103 |
| Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Energy & Mining | Showroom Location: | Canada, United States, Italy, Germany |
| Core Components: | Pump, Motor, Engine | Max. Turned Length (mm): | 1000 Mm |
| Year: | 2020 | Port: | Chiana Port |
Product Description
24"-40" Precision Gap-bed Lathe Machine For Sale At Low Price
PRODUCT SPECIFICATIONS

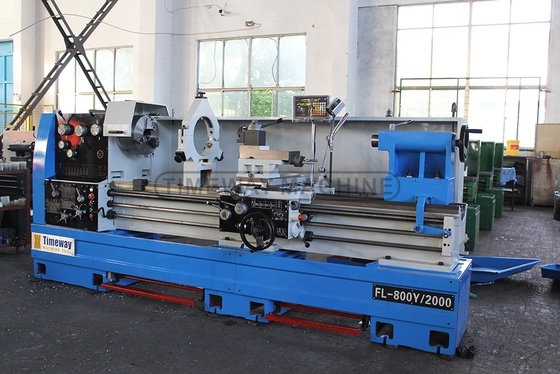

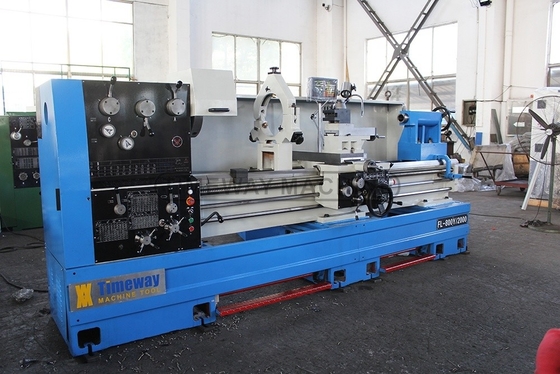

Specification | Unit | FL-600Y | FL-660Y | FL-800Y | FL-1000Y | ||||
Capacity | Max.swing over bed | mm | 600 | 660 | 800 | 1000 | |||
Max.swing over cross slide | mm | 405 | 435 | 545 | 745 | ||||
Max.swing in gap | mm | 800 | 860 | 1000 | 1200 | ||||
Effective length of gap | mm | 280 | |||||||
Distance between centers | mm | 1000/1500/2000/3000/4000 | |||||||
Width of bed | mm | 400 | |||||||
Headstock | Spindle bore | mm | 103(Optional: 165) | ||||||
Spindle nose | ISO-D111(Optional:ISO-D15) | ||||||||
Spindle taper | Metric 115 | ||||||||
Spindle speed(No.) | rpm | 9-1275(ccw/18), 16-816(cw/6) | |||||||
Net/gross | 1000mm | kg | 2900/3100 | 3100/3300 | 3300/3500 | 3500/3700 | |||
1500mm | kg | 3100/3300 | 3300/3500 | 3500/3700 | 3700/3900 | ||||
2000mm | kg | 3300/3600 | 3500/3800 | 3700/4000 | 3900/4200 | ||||
3000mm | kg | 3700/4100 | 3900/4300 | 4100/4500 | 4300/4700 | ||||
4000mm | kg | 4100/4600 | 4300/4800 | 4500/5000 | 4700/5200 | ||||
Positive Comments From Customers
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
