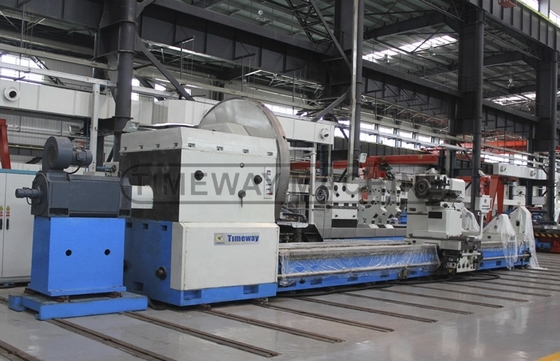

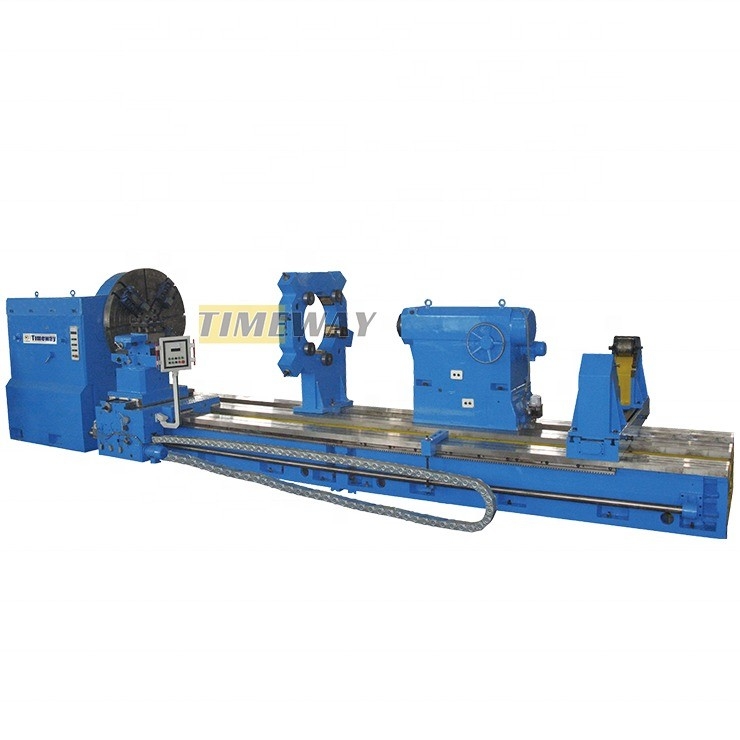

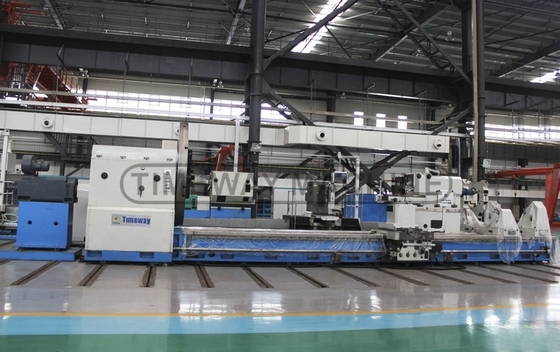

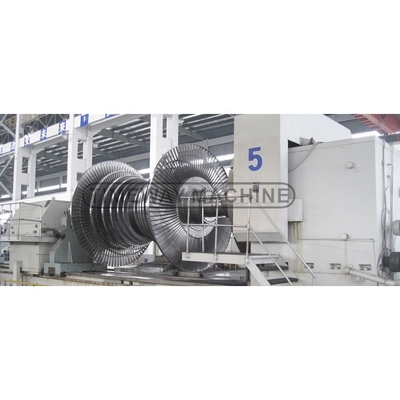

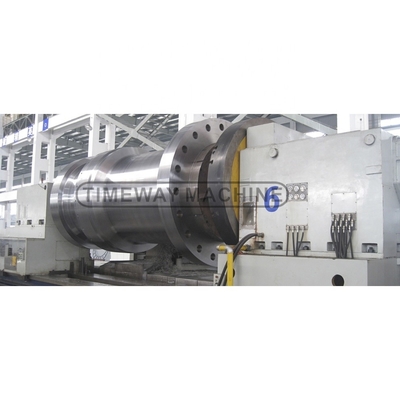

75kW Spindle Motor Power Heavy Duty Horizontal Lathe Machine With Large Size Capacity
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | AL-1600Hx6000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $340,000.00/sets 1-2 sets |
| Packaging Details: | in wooden case (can be fumigated) or plywood case |
| Supply Ability: | 50 Set/Sets per Year |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 6000 | Range Of Spindle Speed(r.p.m): | 0.8 - 160 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 1600 |
| Type: | Horizontal | Spindle Motor Power(kW): | 75 |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 16577x2479x2280mm |
| Weight (KG): | 30000 KG | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Loading Capacity: | 25/32/40tons |
| Chuck Diameter: | 1600mm | Spindle Taper: | 1:7 |
| X/Z-axis Feed Speed: | 1500mm/min | X/Z-axis Rapid Feed Speed: | 3000mm/min |
| Tailstock Rapid Feed Speed: | 3000mm/min | Tailstock Sleeve Rapid Feed Speed: | 664mm/min |
| Thread Processing: | Gear-rack | Main Motor: | Large Power DC Motor |
| After-sales Service Provided: | Online Support | Condition: | New |
| Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction Works , Energy & Mining | Showroom Location: | Canada, Turkey, United Kingdom, United States, Italy, Germany, Brazil, Mexico, Spain, Chile, South Africa, Uzbekistan, Australia |
| Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Pressure Vessel | Spindle Bore(mm): | 85 |
| Max. Turned Length (mm): | 5800 Mm | Year: | 2021 |
| Port: | China Ports | ||
Product Description
Products Description
Features:
1.Stable performance: It is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts
and non-ferrous metals.
2.Highly rigid bed: The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the
guide rail adopts an intermediate frequency quenching grinding process. In the sliding guide surface, the anti-crawling guide
plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state,
thereby avoiding the occurrence of low-speed crawling.
3.High rigidity overall bed with 600 mm bed span, which ensures the machine has strong stability and high precision, and bed
loading capacity to 3000 kg.
4.High rigidity and high precision spindle: The machine tool spindle bearing adopts famous brand products. The spindle box adopts
a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce
thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support
structure of a two-way angular contact ball bearing. Improve accuracy and increase rigidity. The gears in the headstock are
quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low
temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during
long-term operation.
5.Top slide can turn short cone by automatic feed or by hand, top slide and longitudinal feed are combined to turn the long
conical surface.
1.Stable performance: It is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts
and non-ferrous metals.
2.Highly rigid bed: The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the
guide rail adopts an intermediate frequency quenching grinding process. In the sliding guide surface, the anti-crawling guide
plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state,
thereby avoiding the occurrence of low-speed crawling.
3.High rigidity overall bed with 600 mm bed span, which ensures the machine has strong stability and high precision, and bed
loading capacity to 3000 kg.
4.High rigidity and high precision spindle: The machine tool spindle bearing adopts famous brand products. The spindle box adopts
a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce
thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support
structure of a two-way angular contact ball bearing. Improve accuracy and increase rigidity. The gears in the headstock are
quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low
temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during
long-term operation.
5.Top slide can turn short cone by automatic feed or by hand, top slide and longitudinal feed are combined to turn the long
conical surface.
Specification | Unit | AL-1600H | AL-2000H | AL-2500H |
Max. swing over bed | mm | 1600 | 2000 | 2500 |
Max. swing over cross slide | mm | 1250 | 1600 | 2200 |
Distance between centers | mm | 3000~20000 | 3000~20000 | 3000~20000 |
Max. torque of chuck | N.m | 80000 | 80000 | 80000 |
Bed width | mm | 1600 (3 slideway) | 1600 (3 slideway) | 1600 (3 slideway) |
Loading capacity | tons | 32 | 32 | 32 |
Spindle taper | - | 75° | 75° | 75° |
Chuck diameter | mm | 1600 | 1600/1800 | 1600/1800/2000 |
Spindle speed range | rpm | 0.8-160 (stepless) | 0.8-160 (stepless) | 0.8-160 (stepless) |
Range of longitudinal feed | mm | 0.125-48 (18) | 0.125-48 (18) | 0.125-48 (18) |
Range of cross feed | mm | 0.063-24 (18) | 0.063-24 (18) | 0.063-24 (18) |
Metric thread | mm | 2-40 | 2-40 | 2-40 |
Inch thread | TPI | 1-14 | 1-14 | 1-14 |
Module thread | MP | 1.5-20 | 1.5-20 | 1.5-20 |
Max. travel of cross slide | mm | 725 | 725 | 800 |
Max. travel of top slide | mm | 600 | 600 | 600 |
Section of tool shank | mm | 70x70 | 70x70 | 70x70 |
Tailstock quill daimeter | mm | 300 | 300 | 300 |
Tailstock quill travel | mm | 300 | 300 | 300 |
Tailstock quill taper | - | 100, 1:7 | 100, 1:7 | 100, 1:7 |
Tailstock rapid feed speed | mm/min | 3000 | 3000 | 3000 |
Tailstock quill rapid feed speed | mm/min | 664 | 664 | 664 |
Main motor power | kw | 75 | 75 | 75 |
Machine length | mm | 13577~21577 | 13577~21577 | 13577~21577 |
Machine width | mm | 2479 | 2479 | 2515 |
Machine height | mm | 2280 | 2580 | 2655 |
· 3-jaw chuck · Steady rest (over 2M length) · Follow rest (over 2M length) · Manual moving tailstock · Dead center of tailstock · 4-station tool post · Cooling system · Work lamp · Tools & tool-box · Leveling wedge and bolts · Operation manual (English) | · 4-jaw independent chuck · Face plate · 2 or 3-axis digital indicator · Chuck guard · Too-post guard · Rear splash guard · Quick changing tool post |
Spindle box:
The heavy duty lathe have 18 steps forward spindle speed 6-750 r/min; and also have 6 steps reverse 10-775 r/min. Wide spindle speed meet various processing requirements.

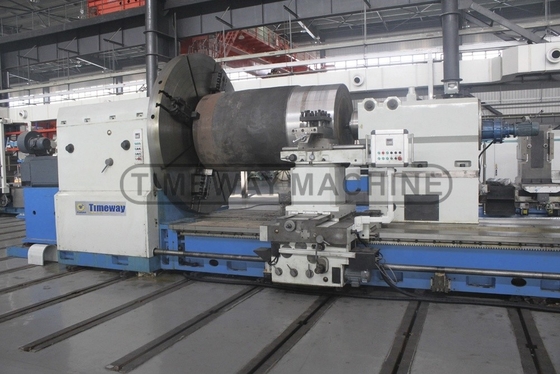

Spindle & Lathe chuck:
The 3-jaws chuck comes standard for the horizontal lathe, and the 4-jaws chuck and the face plate comes optional. The lathe chuck adopts C11-type spindle nose connection, convenient and fast. Pull-push spindle guard comes optional, finish stopping the spindle when it is opened.
Tool-post guard (optional):
Foldable protection guard for the tool-post can effectively protect the safety of the worker, and does not hinder tool change.
2-axis/ 3-axis DRO:
Regarding to customers' requirement, the DRO is available to operate the lathe machine more directly.
