Range of Spindle Speed r.p.m 25 1600 r.p.m Precision Gap-bed TORNOS CL-800S Competitive
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE norms |
| Model Number: | CL-800S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases (fumigated) |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 25 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Width Of Bed (mm): | 400 |
| Type: | Horizontal | Spindle Motor Power(kW): | 7.5 |
| Voltage: | As Required. | Dimension(L*W*H): | 3210/3710/4710 X 1230 X 1670mm |
| Weight (KG): | 3980 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Automatic Grade: | Manual | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support |
| Lathe: | Machinery | Max. Swing Diameter: | 800mm |
| Power: | 7.5kw | Weight: | 2800/2900/3300kg |
| After Warranty Service: | Online Support | Local Service Location: | Canada, United Kingdom, United States, Germany |
| Condition: | New | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | Canada, United Kingdom, United States, Germany | Core Components: | Bearing |
| Spindle Bore(mm): | 105 | Max. Turned Length (mm): | 3000 Mm |
| Year: | 2020 | Port: | Shanghai Port |
Product Description

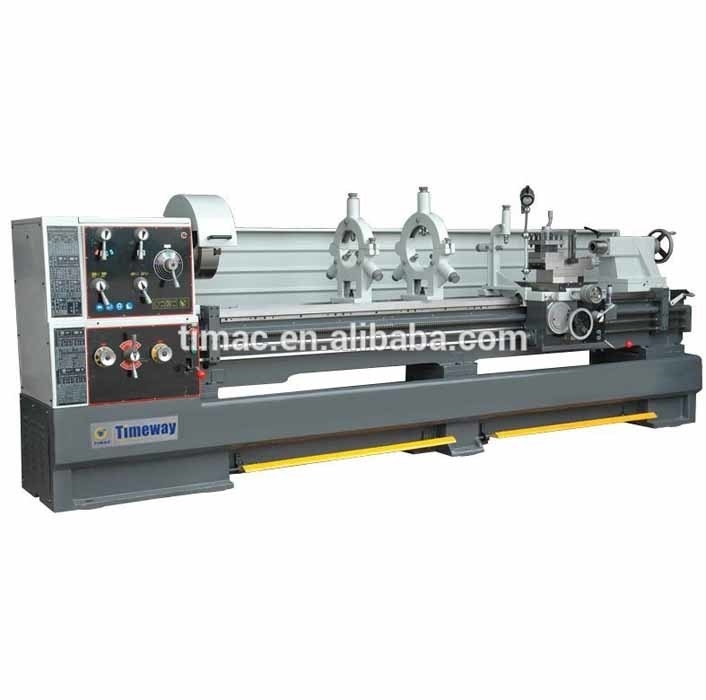

Precision Gap-bed Lathe TORNOS
Features:
1. Powerful precision gearhead lathes with cost effective;
2. Need not change any gears you can turn all the metric and inch thread indicating in chart;
3. Three points support for spindle;
4. Clutch in apron for safety and for changing apron feed direction without changing spindle running direction.
Parameter:
| Model | CL-510 | CL-560 | CL-660 | CL-800S | CL-800 |
| Swing over bed | 510mm(20") | 560mm(22") | Φ660mm | Φ800mm | |
| Swing over cross slide | 300mm(11-7/8") | 350mm(13-3/4") | Φ440mm | Φ570mm | Φ560mm |
| Swing in gap | 738mm(29") | 788mm(31") | Φ900mm | Φ1035mm | Φ1040mm |
| Distance between centers | 1500mm/2000mm | 1500mm/2000mm/3000mm | |||
| Valid length of gap | 200mm(8") | 250mm | |||
| Width of bed | 350mm(13-3/4") | 400mm | 400mm | 510mm | |
| Spindle nose | D1-8 | ||||
| Spindle bore | 80mm(3-1/8") | Φ105mm | |||
| Taper of spindle bore | No.7Morse | Φ113mm(1:20)/MT5 | |||
| Range of spindle speed | 12changes25-1600r/min | 16changes25-1600rpm | 16changes17-1100rpm | ||
| Max.travel of top slide | 130mm(5-1/8") | 230mm | |||
| Max.travel of cross slide | 326mm(12-15/16") | 368mm | 420mm | ||
| Max.section of tool | 25×25mm(1"×1") | ||||
| Pitch thread of leadscrew | 6mm or 4T.P.I. | Φ40mm×2T.P.I. or Φ40mm×12mm | |||
| Longitudinal feeds range | 35kinds, 0.059-1.646mm/rev(0.0022"-0.0612"/rev) | 25 kinds, 0.044-1.48mm/rev (0.00165"-0.05497"/rev) | |||
| Cross feeds range | 35kinds, 0.020-0.573mm(0.00048"-0.01354") | 25 kinds, 0.022-0.74mm/rev (0.00083"-0.02774"/rev ) | |||
| Metric threads range | 47kinds0.2-14mm | 0.45-120mm (54 kinds) | |||
| Inch threads range | 60kinds2-112T.P.L | 7/16-80T.P.I. (54 kinds) | |||
| Diametrical pitches range | 50kinds4-112D.P. | 7/8-160DP (42 kinds) | |||
| Module pitches range | 39kinds0.1-7M.P. | 0.25-60MP (46 kinds) | |||
| Dia. of tailstock sleeve | 75mm(3") | Φ90mm | |||
| Travel of tailstock sleeve | 180mm(7") | 235mm | |||
| Taper of tailstock sleeve | No.5Morse | ||||
| Power of main motor | 7.5kw(10HP)3PH | 11kW (15HP) | |||
| Power of coolant pump | 0.1kW(1/8HP) 3PH | ||||
| Overall dimension(L×W×H) cm | 290/340×112×143 | 321/371/471cm ×123cm×167cm | 321/371/471cm ×136cm×167cm | ||
| Packing size(L×W×H) cm | 296/346×113×182 | 324/374/474cm ×114cm×191cm | 324/374/474cm× 127cm×191cm | ||
| Net weight | 2335/2685 | 2370/2720 | 2800/2900/ 3300kg | 2850/3050/ 3450kg | 3100/3300/ 3900kg |
| Gross weight | 2700/3070 | 2740/3110 | 3100/3200/ 3700kg | 3180/3450/ 3980kg | 3450/3750/ 4450kg |
***Standard accessories:
3 jaw chuck, 4 jaw chuck, Face plate, Steady rest, follow rest, changing gears, dead center, reduction sleeve, oil gun, Chasing dial indicator, centers, Coolant system, Working light, Foot brake system, Operation manual(English edition)
***Optional accessories:
Digital readout system (D.R.O), Quick change toolpost, Taper turning attachment

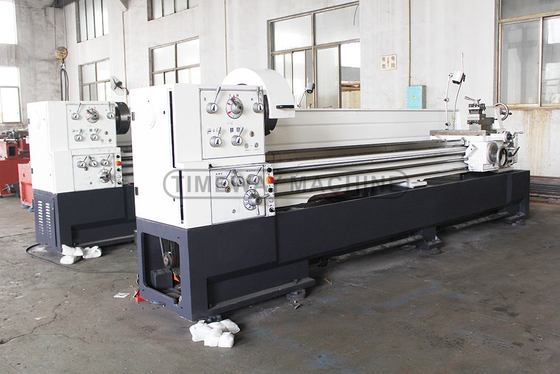

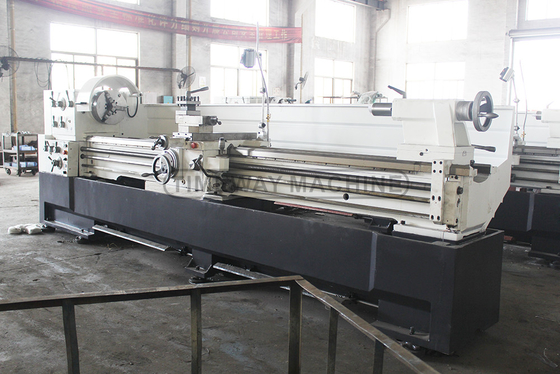

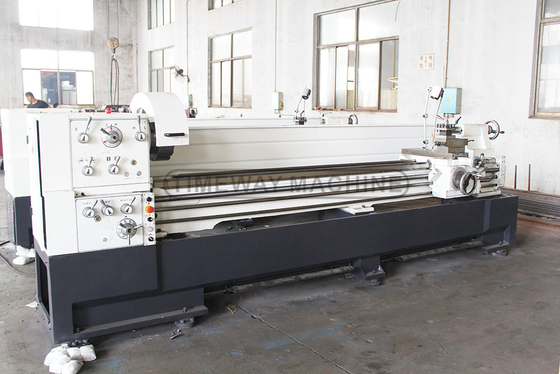

Detail Image:
| |
| |
| |
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 2950*1150*1750MM N.W./G.W.: 1850/2250KG
Container loaded: 4 sets / 20'GP
