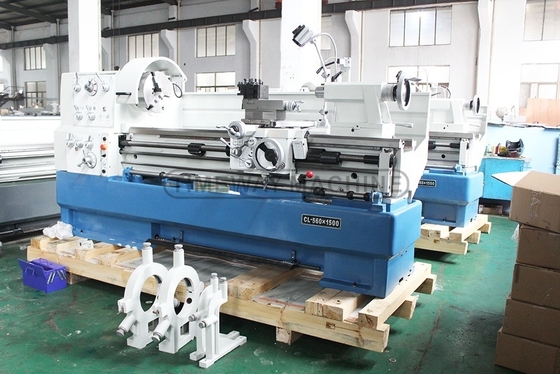

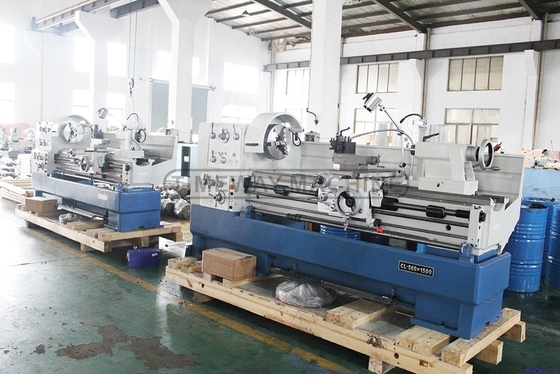

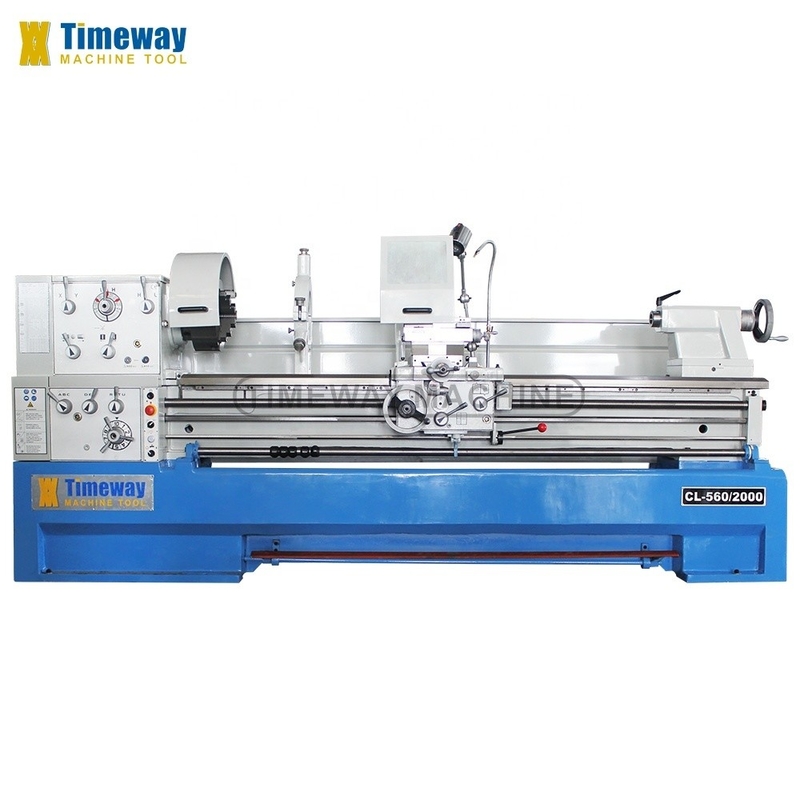

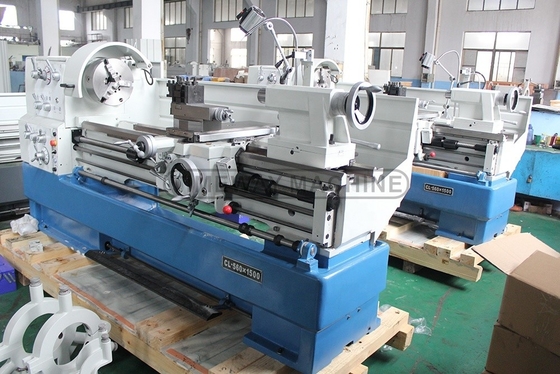

788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE & ISO |
| Model Number: | CL-560/2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10,615.00/sets 1-2 sets |
| Packaging Details: | wooden case(can be fumigated) or plywood case |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 25 - 2000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Width Of Bed (mm): | 350 |
| Type: | Horizontal | Spindle Motor Power(kW): | 7.5 |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 2900/3400*1120*1430mm |
| Weight (KG): | 3410 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Automatic Grade: | Manual | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Product Type: | Precision Gap Bed Lathe | Max. Swing Diameter: | 560mm |
| Power: | 7.5 Kw | Weight: | Net Weight : 2370/2720 Kg |
| Color: | Customers' Request | Swing In Gap: | 788mm |
| Condition: | New | Spindle Bore(mm): | 80 |
| Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Retail, Construction Works , Energy & Mining | Showroom Location: | Canada, United Kingdom, United States, Italy, Germany, Peru, Argentina, UAE |
| Core Components: | Bearing | Max. Turned Length (mm): | 3000 Mm |
| Year: | 2020 | ||
Product Description
Products Description
Specification | Unit | CL-560 |
Swing over bed | mm | φ560 |
Swing over cross slide | mm | φ350 |
Swing in gap | mm | φ788 |
Distance between centers | mm | 1000/1500/2000/3000 |
Valid length of gap | mm | 200 |
Width of bed | mm | 350 |
Spindle nose | - | D1-8 |
Spindle bore | mm | 80 |
Taper of spindle bore | - | No.7 Morse |
Range of spindle speed | r/min | 12 changes, 25-1600 |
Max.travel of top slide | mm | 130 |
Max.travel of cross slide | mm | 326 |
Max.section of tool | mm | 25x25 |
Pitch thread of leadscrew | mm | 6 or 4 T.P.I. |
Longitudinal feeds range | mm/rev | 35kinds, 0.059-1.646 |
Cross feeds range | mm/rev | 35kinds, 0.020-0.573 |
Metric threads range | mm | 0.2-14 (47kinds) |
Inch threads range | T.P.I. | 2-112 (60kinds) |
Diametrical pitches range | D.P. | 4-112 (50kinds) |
Module pitches range | M.P. | 0.1-7 (39kinds) |
Dia. of tailstock sleeve | mm | 75 |
Travel of tailstock sleeve | mm | 180 |
Taper of tailstock sleeve | - | No.5 Morse |
Power of main motor | kw | 7.5 (10HP) |
Power of coolant pump | kw | 0.1 |
Overall dimension(LxWxH) | mm | 2400/2900/3400/4400x1120x1430 |
Packing size(LxWxH) | mm | 2460/2960/3460/4460x1130x1820 |
Net weight | kg | 2020/2370/2720/3420 |
Gross weight | kg | 2370/2740/3110/3850 |
· 3 jaw chuck · 4 jaw chuck · Dead center · Face plate · Steady rest · Follow rest | · Reduction sleeve · Oil gun · Coolant system · Working light · Chasing dial indicator · 2-axis DRO |
