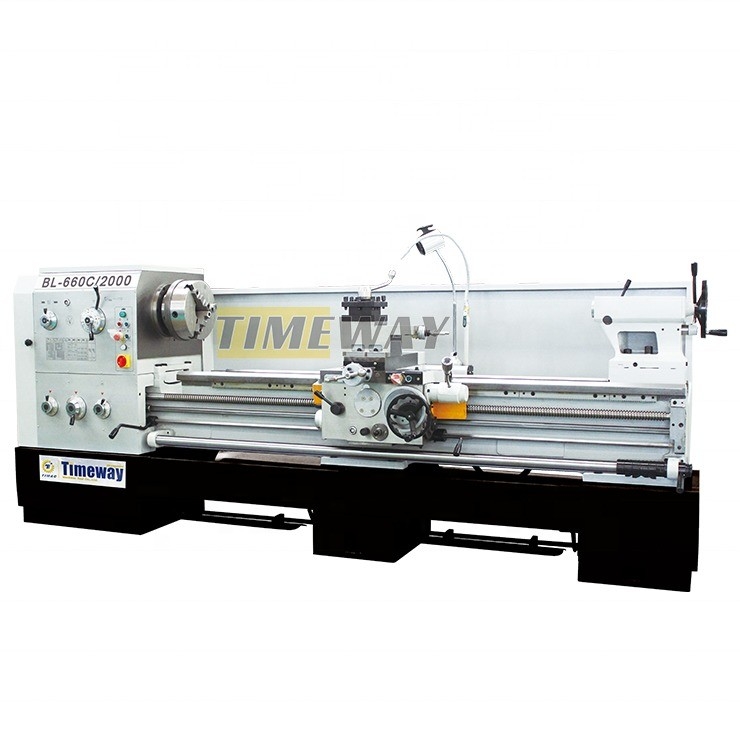

Highly Recommended 1640 Gear Head Gap Bed Lathe with 75mm Tailstock Quill Diameter
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | TUV |
| Model Number: | BL-500C/BL-6600C/BL-800C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $9,900.00/sets 1-2 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 2950 | Range Of Spindle Speed(r.p.m): | 26 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Voltage: | As Require!! | Weight (KG): | 2050 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Automatic Grade: | Semi-automatic |
| After-sales Service Provided: | Online Support | Gear Head Gap Bed Lathe: | 1640, 1660 |
| Max. Swing Diameter: | 400mm | Power: | 4/5.5kw |
| X-axis Rapid Feed Speed: | 50HZ: 1.9; 60HZ: 2.3m/min | Z-axis Rapid Feed Speed: | 50HZ: 4.5; 60HZ: 5.4m/min |
| Tailstock Quill Diameter: | 75mm | Condition: | New |
| Spindle Bore(mm): | 105 | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | United States, Germany, India, Spain, Colombia, Ukraine, Uzbekistan | Core Components: | Motor, Gearbox |
| Max. Turned Length (mm): | 2950 Mm | Port: | China Port |
Product Description
Products Description
Features:
The series lathe is suitable for all kinds of turning work, such as internal and external turning, taper turning, and other rotary parts turning, end face turning, also turning all kinds of common thread: Inch, Metric, Module and D.P; perform drilling, reaming, tapping and groove broaching.
The series lathe is suitable for all kinds of turning work, such as internal and external turning, taper turning, and other rotary parts turning, end face turning, also turning all kinds of common thread: Inch, Metric, Module and D.P; perform drilling, reaming, tapping and groove broaching.
High torsional horizontal lathe bed, high quality cast iron manufacturing,guideway through the medium frequency quenching and precision grinding.
Saddle guideway paste PTFE guide soft belt, wear-resisting, vibration absorbing, good accuracy stable.
Spindle adopts three support structure, good rigidity, high precision,
strong cutting.
strong cutting.
Wide range of speed, the rationality of implementation speed.
The machine can cut directly thread metric and inch.
Gap-bed lathe can realize cutting all kinds of flat stocks and irregular shapes.
Gap-bed lathe can realize cutting all kinds of flat stocks and irregular shapes.
Equipped with complete the special parts foruser to choose.
Spindle through hole diameter Φ105.
Specification | Unit | BL-500C | BL-660C | BL-800C |
Max. swing over bed | mm | 500 | 660 | 800 |
Max. swing over cross slide | mm | 300 | 420 | 560 |
Max. swing over gap | mm | 710 | 870 | 1000 |
Gap length | mm | 240 | 240 | 240 |
Distance between centers | mm | 750/1000/1500/2000/3000 | 750/1000/1500/2000/3000 | 2000/3000 |
Max. turning length | mm | 700/950/1450/1950/2950 | 700/950/1450/1950/2950 | 1850/2850 |
Spindle bore | mm | Φ105 | Φ105 | Φ105 |
Spindle taper | - | Φ113, 1:20 | Φ113, 1:20 | Φ113, 1:20 |
Spindle nose | - | ISO 702/II No.8 | ISO 702/II No.8 | ISO 702/II No.8 |
Spindle speed range (steps) | rpm | 36-1600 (12) | 36-1600 (12) | 30-1400 (12) |
Top slide travel | mm | 145 | 145 | 145 |
Cross slide travel | mm | 320 | 310 | 320 |
Tool section size | mm | 25x25 | 25x25 | 25x25 |
X-axis rapid feed speed | m/min | 50HZ: 1.9; 60HZ: 2.3 | 50HZ: 1.9; 60HZ: 2.3 | 50HZ: 1.9; 60HZ: 2.3 |
Z-axis rapid feed speed | m/min | 50HZ: 4.5; 60HZ: 5.4 | 50HZ:4.5; 60HZ: 5.4 | 50HZ: 4.5; 60HZ: 5.4 |
X-axis feed range | mm/r | 0.027-1.07 (65) | 0.027-1.07 (65) | 0.027-1.07 (65) |
Z-axis feed range | mm/r | 0.63-2.52 (65) | 0.63-2.52 (65) | 0.63-2.52 (65) |
Metric threads range (kinds) | mm | 1-14 (22) | 1-14 (22) | 1-14 (22) |
Inch threads range (kinds) | TPI | 28-2 (25) | 28-2 (25) | 28-2 (25) |
Module threads range (kinds) | MP | 0.5-7 (18) | 0.5-7 (18) | 0.5-7 (18) |
Diametrical threads range (kinds) | DP | 56-4 (24) | 56-4 (24) | 56-4 (24) |
Tailstock quill diameter | mm | Φ75 | Φ75 | Φ90 |
Tailstock quill travel | mm | 150 | 150 | 150 |
Tailstock quill taper | - | MT5 | MT5 | MT5 |
Main motor power | kw | 7.5 | 7.5 | 7.5 |
Rapid feed motor power | kw | 0.3 | 0.3 | 0.3 |
Coolant pump motor power | kw | 0.12 | 0.12 | 0.12 |
Machine length | mm | 2382/2632/3132/3632/4632 | 2382/2632/3132/3632/4632 | 3365/4365 |
Machine width | mm | 975 | 975 | 1340 |
Machine height | mm | 1270 | 1450 | 1490 |
Machine weight | kg | 2050/2100/2300/2500/2900 | 2150/2200/2400/2600/3000 | 3000/3200 |
Standard accessories:
3-jaw chuck
4-jaw chuck
Face plate
Steady rest
Follow rest
Changing gears
Dead center
Reduction sleeve
Oil gun
Coolant system
Working lamp
Working lamp
General tools
Operation manual
Optional accessories:
Chasing dial indicator
Liver center
Digital readout system (DRO)
Quick change tool-post
Taper turningattachment
