1800mm Horizontal Swing Large Type Parallel Turning Lathe Machines for Toolroom Design
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac, TIMEWAY |
| Certification: | ISO9001, CE |
| Model Number: | AL-1800Cx8000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $150,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases (fumigated) |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 8000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 970 |
| Type: | Horizontal | Spindle Motor Power(kW): | 22 |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 11020x2665x2680 Mm |
| Weight (KG): | 21500 KG | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Lathe Color: | Optional |
| Max. Weight Of Workpiece: | 10tons Or 12tons | Lathe Function: | Cutting Large Parts |
| Max. Machining Diameter Of Workpiece: | 1800mm | Max. Machining Diameter Between Centers: | 1410mm |
| Machining Force: | 45000N | Longitudinal Stroke: | 8000mm |
| Cross Stroke: | 800mm | Top Turret Stroke: | 300mm |
| Tailstock Quill Diameter: | 220mm | After-sales Service Provided: | Online Support, Video Technical Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Canada, United Kingdom, United States, France, Germany, Brazil, Indonesia, Mexico, Russia, Australia, Romania, South Africa |
| Condition: | New | Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Food Shop, Printing Shops, Construction Works , Energy & Mining |
| Showroom Location: | Canada, United Kingdom, United States, France, Germany, Brazil, Indonesia, Russia, Romania, South Africa | Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Pressure Vessel |
| Max. Turned Length (mm): | 7800 Mm | Spindle Bore(mm): | 130 M'm |
| Year: | 2021 | Port: | Tianjin Or Shanghai Port |
Product Description
| Manufacturer 1800mm Swing Large Type Parallel Turning Lathe Machines For Toolroom
∴ AL-1800Cx8000 ∴
|
| Standard accessories:
| Optional accessaries: |
|
|
|
| Technical Parameter |
| Specficiation | Unit | AL-1600C | AL-1800C | |
| Capacities | Swing over bed | mm | 1600 | 1800 |
| Swing over carriage | mm | 1210 | 1410 | |
| Max. length of workpiece | mm | 3000/4000/5000/6000/8000/10000/12000/14000/16000/18000 | ||
| Max. length of turning | mm | 2800/3800/4800/5800/7800/9800/11800/13800/15800/17800 | ||
| Max. torque of spindle | N.m | 12590 | ||
| Max. cutting force | N | 45000 | ||
| Max. force of longitudinal | N | 18000 | ||
| Max. weight of workpiece | kg | 10000(12000) | ||
| Spindle | Dia. of spindle thru hole | mm | 130 | |
| Taper hole of spindle | - | Metric 140 | ||
| Number of forward turning | kinds | 21kinds | ||
| Number of reverse turning | kinds | 12kinds | ||
| Range of spindle speeds | r/min | Forward:3.15-315, Reverse:3.5-291 | ||
| Feed motion | Longitudinal and cross | kinds | 56kinds | |
| Range of feed motion | mm | Longitudinal:0.1-12, Transverse:0.05-6, Top slide:0.025-3 | ||
| Number of metric thread | kinds | 44kinds | ||
| Range of metric thread | mm | 1-120 | ||
| Number of inch thread | kinds | 31kinds | ||
| Range of inch thread | TPI | 28-1/4 | ||
| Number of module thread | kinds | 45kinds | ||
| Range of module thread | mm | 0.5-60 | ||
| Number of dia. pitch thread | kinds | 38kinds | ||
| Range of dia. pitch thread | DP | 1/2-56 | ||
| Tool post | Size of tool shank | mm | 45x45 | |
| Tool post swing range | ° | ±90° | ||
| Max. travel of carriage | mm | 2900/3900/4900/5900/7900/9900/11900/13900/15900/17900 | ||
| Max. travel of cross slide | mm | 650 | ||
| Max. travel of top slide | mm | 300 | ||
| Rapid of tool post | mm/min | Longitudinal:3740, Transverse:1870, Top slide:935 | ||
| Tailstock | Dia. of tailstock quill | mm | 220 | |
| Travel of tailstock quill | mm | 300 | ||
| Taper hole of tailstocj quill | - | MT6 | ||
| Others | Main motor power | kw | 22 | |
| Speed | r/min | 970 | ||
| Power of tool post | kw | 1.5 | ||
| Machine overall dimension
| Length | mm | 6020/7020/8020/9020/11020/13020/15020/17020/19020/21020 | |
| Width | mm | 1995 | ||
| Height | mm | 2525 | 2665 | |
| Features: |
1. This series parallel turning lathe adopts 970mm wide rectangular induction hardened and ground bed guide ways, so of excellent stability, high rigidity, and with max. bearing 10tons between centers.
2. The main spindle is of precision roller bearing 3-point supporting structure.
3. Saddle guide ways with Teflon belt coated, rotating tailstock quill structure to minimize friction and heat generation.
4. The parallel turning lathe machine are suitable for various turning works, such as turning of external and internal cylindrical surfaces, end faces, and turning of metric or inch threads, modular threads and diamatrical pitch threads, etc.
5. Motorized short taper turning could be done by the top slide independently, and long taper’s motorized turning could be done by top slide combined with longitudinal feed.
6. Further more, heavy type lathes can also carry out drilling, trepanning and boring processes, etc.
| Machine details: |
| Headstock & Feed box:
The metalworking lathe can gain 33steps spindle speed (3.15-315rpm), wide speed range meet various different processes. The lathe can turning multi threads by changing gears in the feed box. |
| Bed & Carriage:
The hardened bed rails are ground by imported precision gantry-type guideway grinding machine, make sure high rigidity and stable movement. 970mm width rails guarantee big loading capacity (10tons). |
| Electrical moving tailstock:
Electrical moving tailstock comes standard for metalworking lathe, effectively reduce larbor intersity of the worker and realize fast positioning.
|
|
Accessories:
Manual turning machines are standard follow rest and steady rest to cut small diameter parts. Optional roller support is suitable for loading heavy and large parts.
| |
| |

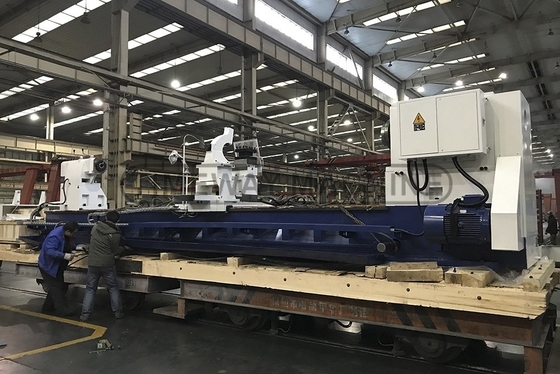

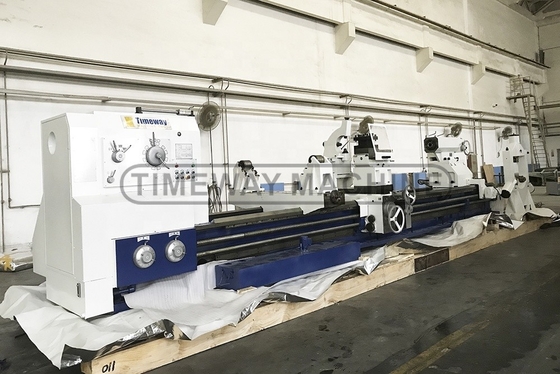

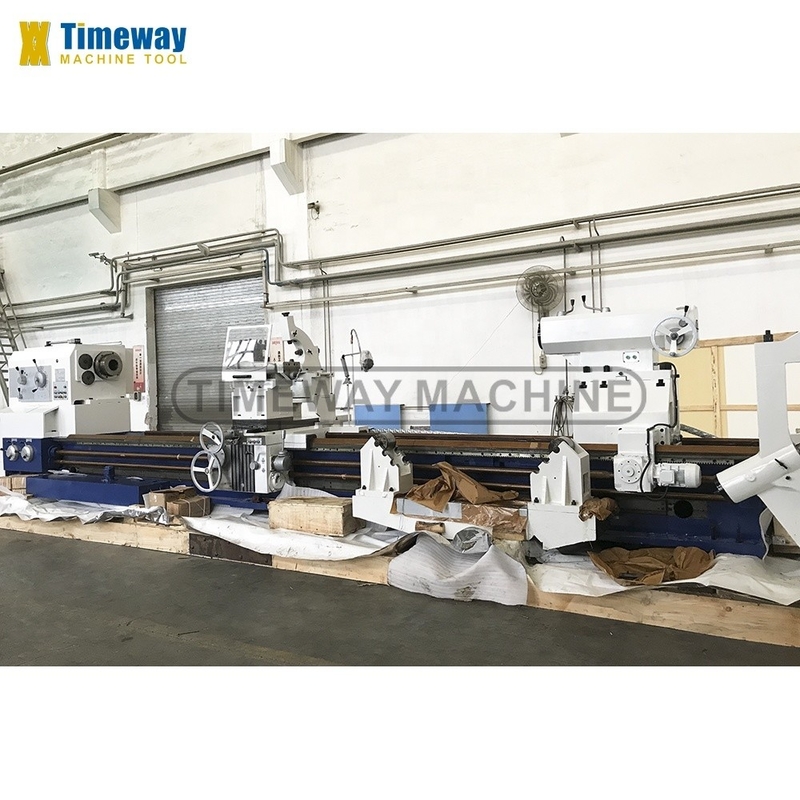

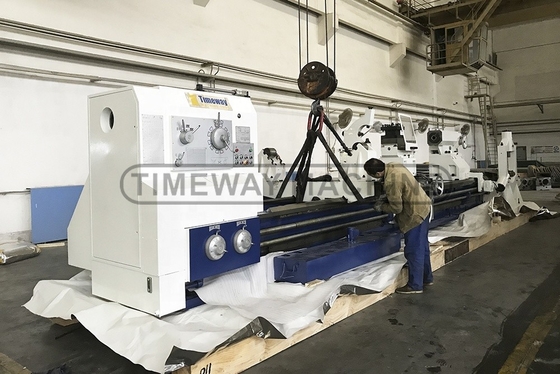

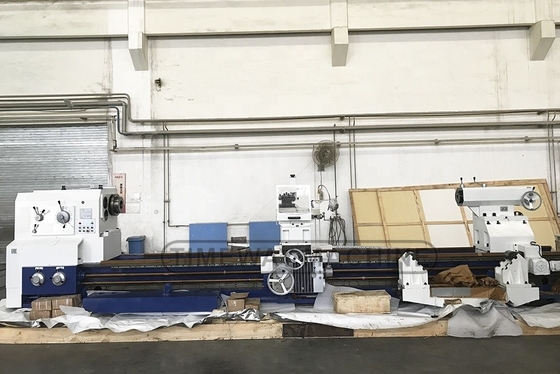

| Ready for shipment: |
| Why choose TIMEWAY MACHINE? |
