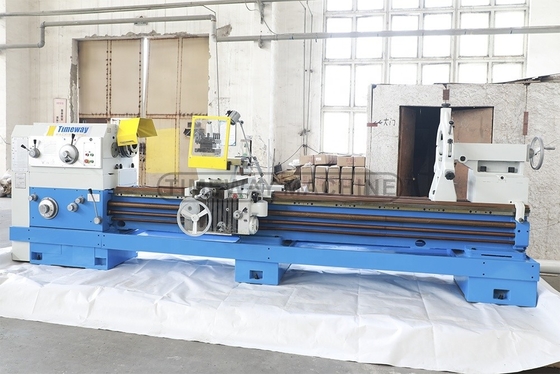

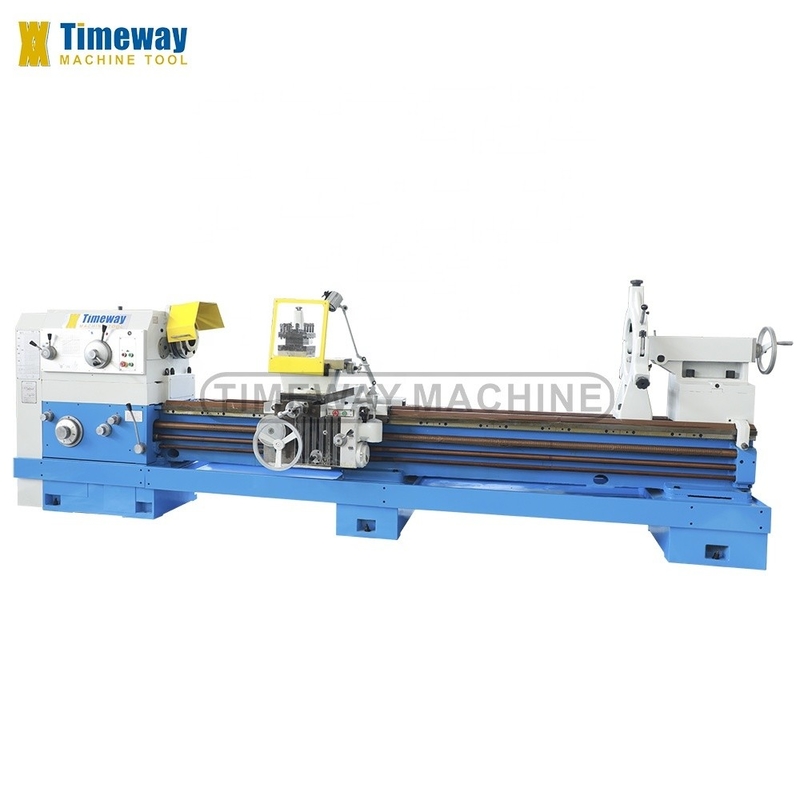

Customized Voltage 2 Tons Loading Metal Industry Lathe Heavy Duty Horizontal Lathe Machine

high-speed and powerful cutting.

2. Stable performance: It is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous metals.

3. Highly rigid bed: The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and

the guide rail adopts an intermediate frequency quenching grinding process. In the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.

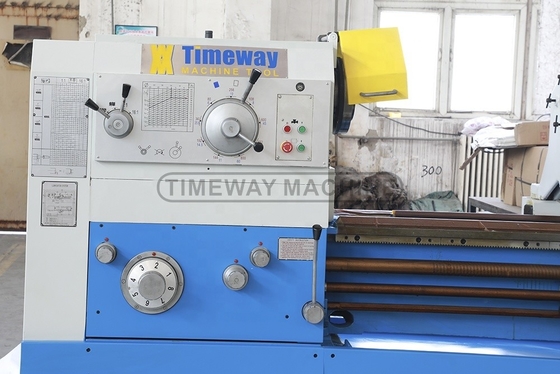

4. High rigidity and high precision spindle: The machine tool spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-way angular contact ball bearing. Improve accuracy and increase rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term operation.

5. High torsion-resistant flat bed, high-quality cast iron carefully manufactured, and induction on the rail surface quenching

precision treatment, by the sticky PTFE conductive rails and precision scraping by hand.

6. Adopt split type bed structure, the guide rail surface adopt double V-flat rails, 550mm bed width and the bearing capacity can be to 2000kg.
