Max. Swing Diameter 630mm High Speed Horizontal Gap-bed Lathe
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE,ISO Standard |
| Model Number: | AL-630B,AL-800B,AL-940B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,900.00/sets 1-2 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 10000 | Range Of Spindle Speed(r.p.m): | 6 - 800 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 11 | Voltage: | 380V/50HZ |
| Dimension(L*W*H): | As Length | Weight (KG): | 12500 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | Horizontal Gap Bed Lathe | Swing Over Carriage: | 660mm |
| Max. Weight Of Workpiece: | 2000kg | Bed Width: | 550mm |
| Spindle Bore: | 110mm | Spindle Speed: | 6-800rpm(18steps) |
| Max. Swing Diameter: | 630/800/940mm | Weight: | As Length |
| Power: | AC 11kw | Condition: | New |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Energy & Mining | Showroom Location: | Italy, Germany, Brazil, India, Mexico, South Africa, Kazakhstan, Ukraine |
| Core Components: | Bearing, Pump, Gear, Motor | Max. Turned Length (mm): | 10000 Mm |
| Spindle Bore(mm): | 110 | Port: | China Port. |
Product Description

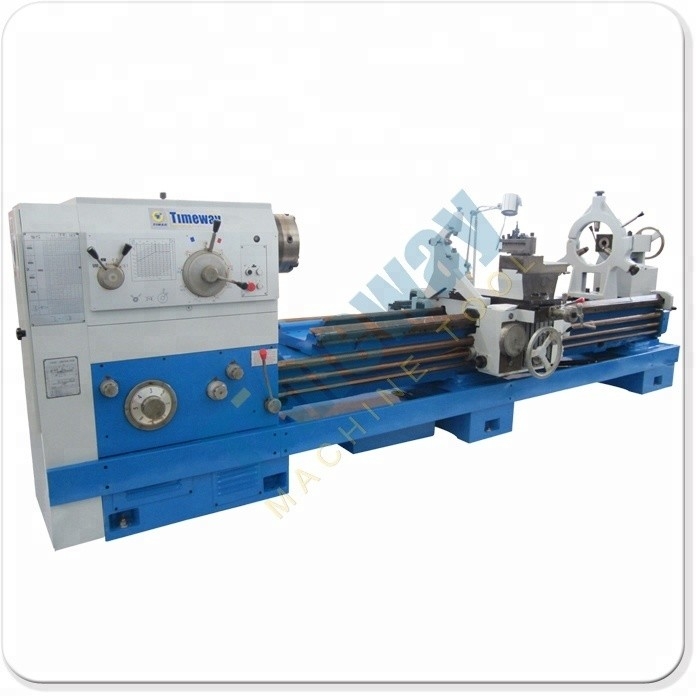

High Speed Horizontal Gap Bed Lathe
AL-630B AL-800B Al-940B
Gap-bed Lathe Machine
These gap bed lathes are suitable mainly for turning internal and external cylindrical, conical and other swing surfaces as well as various metric, inch module and diametric pitch threads. They can also be used for broaching oil grooves and keyways.
Features:
1. The side wall of bed is constructed with double-rib plates, and the shape of internal ribs is of box type and bevel ribs combination.
2. On apron, there is a device operated by a single lever, used for rapid traverse of the carriage.
Spindle’s braking and rotating direction change is controllled by hydraulic system, or by hand operation according to your choice.
3. The saddle guideway is glued by “TSF” soft belt wear resisting materials.
4. We can equip the lathe with automatic feeding mechanism.
The top slid can be used independently for turning short cone, or in combination with longitudinal feeding turing long taper surface.
Technical Parameter:
| Specification | Unit | AL-630B | AL-800B | AL-940B | |
| Capacity | Swing over bed | mm | 630 | 800 | 940 |
| Swing over carriage | mm | 350 | 520 | 660 | |
| Max. length of workpiece | mm | 750 1000 1500 2000 3000 4000 5000 6000 7000 9000 10000 | |||
| Max. turning length | mm | 600 850 1350 1850 2850 3850 4850 5850 6850 8850 9850 | |||
| Swing over gap | mm | 830 | 1000 | 1140 | |
| Effective width of gap | mm | 300 | |||
| Span of guideway | mm | 550 | |||
| Spindle | Spindle nose |
| C11 | ||
| Spindle hole | mm | 110 | |||
| Taper hole of spindle |
| 1:20/120 | |||
| Range of spindle speeds | r/min | 7.5~1000 | 6~800 | 6~800 | |
| Number of spindle speeds |
| 18kinds | |||
| Feed | Longitudinal and cross | r/min | 64; 0.1~24.32 | ||
| Cross-to-longitudinal feed rate |
| 1/2 | |||
| Screw pitch of leadscrew | mm | 12 | |||
| Number and range of metric thread | mm | 50; 1~240mm | |||
| Number and range of inch thread | T.P.I | 26; 14~1 | |||
| Number and range of module thread | mm | 53; 0.5~120mm | |||
| Number and range of diametrical pitch thread | T.P.I | 24; 28~1 | |||
| Rapid traverse speed of carriage | mm/min | 4000 | |||
| Travel | Max. travel of cross slide | mm | 440 | 540 | 570 |
| Max. travel of top slide | mm | 200 | |||
| Section of tool shank | mm | 32 | |||
| Tailstock | Diameter of tailstock quill | mm | 100 | ||
| Travel of tailstock quill | mm | 250 | |||
| Taper hole of tailstock quill |
| Morse 5 | |||
| Other | Main motor power | kw | 11 | ||
| Machine mass | kg | 3200 3400 3700 4200 4700 5800 6800 7800 8800 10800 11800 | 3400 3600 3900 4400 4900 6000 7000 8000 9000 11000 12000 | 3900 4100 4400 4900 5400 6500 7500 8500 9500 11500 12500 | |
| Dimensions | Length | mm | 2958 3275 3725 4225 5225 6275 7355 8355 9275 11275 12275 | ||
| Width | mm | 1393 | 1437 | 1430 | |
| Height | mm | 1537 | 1622 | 1690 | |

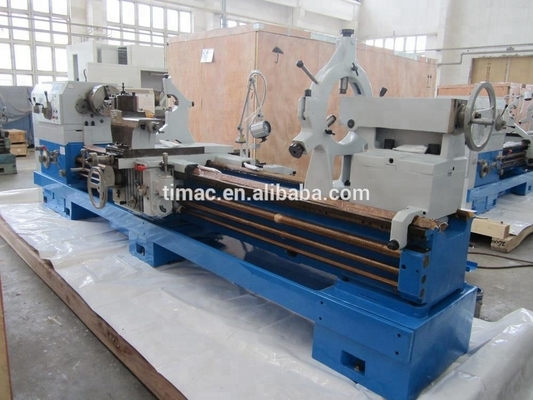

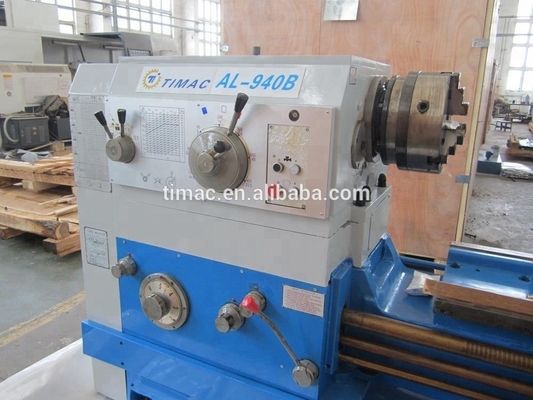

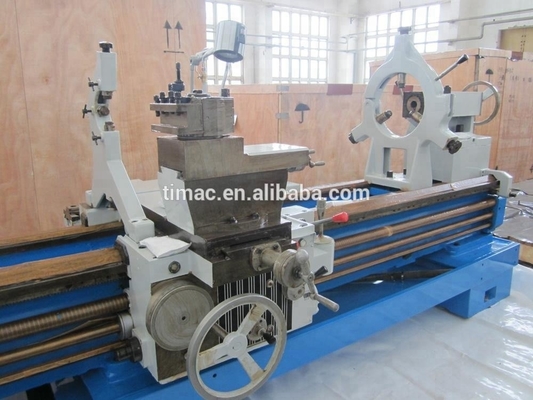

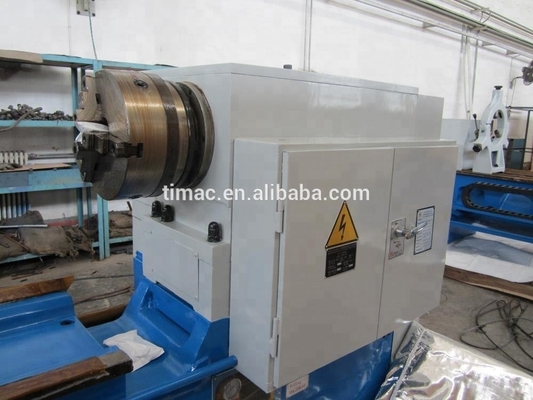

• Spindle and Feed Box • Electric Cabinet • Carriage and Tailstock

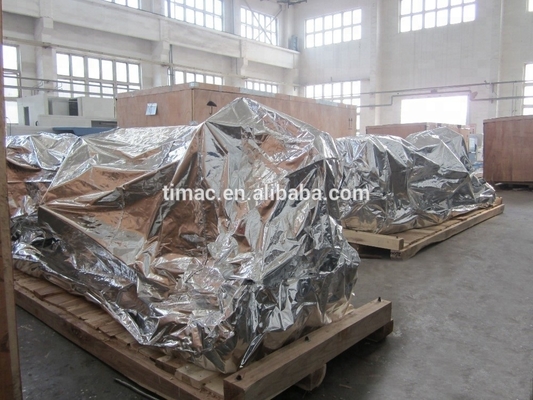

• The machine is ready for shipment, adopts vacuume package for good moisture proof.
