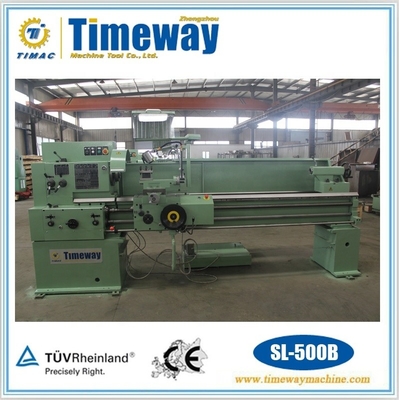

Max. Turned Length of 2000 mm SL-500B Centre Lathe Machine with Customizable Voltage
Product Details:
| Place of Origin: | China |
| Brand Name: | Timac TIMEWAY |
| Certification: | ISO9001, CE |
| Model Number: | SL-500B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $8,200.00/sets >=1 sets |
| Packaging Details: | Wooden case (fumigated) |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 2000 | Range Of Spindle Speed(r.p.m): | 22 - 2000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 6.6 | Voltage: | As Require |
| Dimension(L*W*H): | 2400x1100x1505 Mm | Weight (KG): | 1940 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Automatic Grade: | Manual |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Universal Centre Lathe: | TRENS Lathe |
| Spindle Bore: | 50mm | Processing Capacity: | Heavy Duty |
| Weight: | 1735, 1835, 1940 Kg | Workpiece Length: | 2000mm |
| Name: | Lathe Machine | Condition: | New |
| Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advertising Co | Showroom Location: | Italy, Peru, Pakistan, Russia, South Korea, South Africa, Australia |
| Core Components: | Bearing, Pump, Gear, Motor | Spindle Bore(mm): | 50 |
| Max. Turned Length (mm): | 2000 Mm | ||
Product Description
Product Description
Universal Center Lathe
Feature：
SL-500B is the universal center lathe(horizontal gap bed lathe) for professional users, designed for piece and small lot
production, suitable for maintenance and repair divisions as well.
• It is customers´ classic with main motor output of 5.5 kw.
• Positive price/value ratio
• Easy maintenance
• Long lifetime
• Low operating costs
• Easy and ergonomic control
• High turning precision
• Various versions with wide range of optional accessories
production, suitable for maintenance and repair divisions as well.
• It is customers´ classic with main motor output of 5.5 kw.
• Positive price/value ratio
• Easy maintenance
• Long lifetime
• Low operating costs
• Easy and ergonomic control
• High turning precision
• Various versions with wide range of optional accessories
Specification
Model | SL500B | |||||
CAPACITY | Max. distance between two centers | 1000mm | 1500mm | 2000mm | ||
Max. swing dia. over bed | Φ 500mm | |||||
Max. swing dia. over cross slide | Φ 270mm | |||||
Max. swing dia. over gap | Φ 700mm | |||||
Max. workpiece weight between center | 300kg | |||||
SPINDLE | Spindle nose | STN ISO 702 / III - C6 | ||||
Spindle bore | Φ 52mm | |||||
Internal spindle taper | Morse 6 | |||||
Spindle speed range and step | 22~2000min -1 (18steps) | |||||
Limit speed for max.torque | 1200/45N.m/min -1 | |||||
TAILSTOCK | Tailstock sleeve diameter | Φ 70mm | ||||
Max. travel of tailstock quill | 180mm | |||||
Taper hole of tailstock | Morse 5 | |||||
Standard Configuration:
Metric or Inch version, Right handwheel (on apron), 3 jaw chuck Φ 250mm, 4 jaw chuck Φ 250mm, Face plate, Chuck guard, Steady rest, Follow rest, 4-way tool post & guard, Coolant tank, Halogen light, Dead center, Rear splash guard, General tools, Packing with wooden pallet for shipment.
Positive Comments From Customers
Company Profile

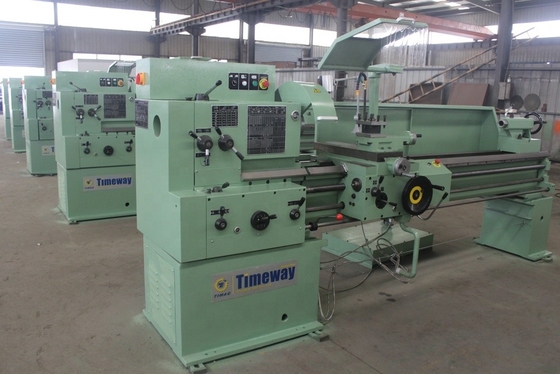

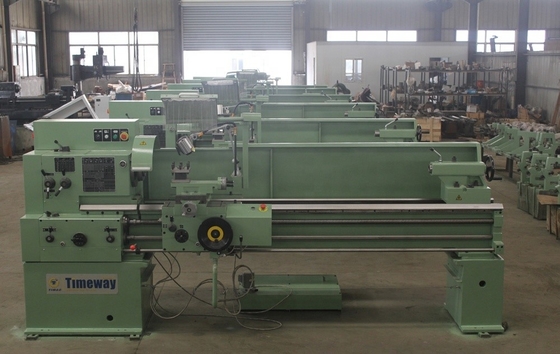

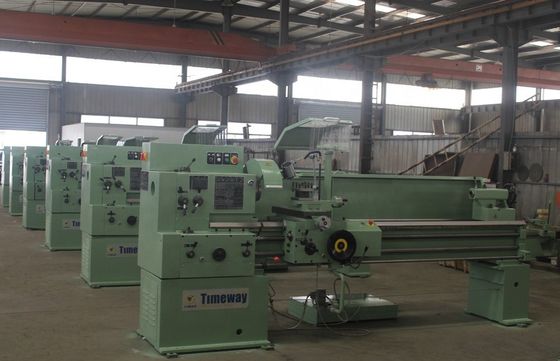

Factory Display：
