10 Tons Metal Lathe Machine AL-1600C with Competitive and Voltage As Customer's Request
Product Details:
| Place of Origin: | China |
| Brand Name: | Timac |
| Certification: | ISO9001, CE |
| Model Number: | AL-1600C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $145,560.00/sets 1-1 sets |
| Packaging Details: | Wooden cases (fumigated) |
| Supply Ability: | 60 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 18000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 22 | Voltage: | As Customer's Request |
| Dimension(L*W*H): | As Model | Weight (KG): | 28000 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Automatic Grade: | Manual |
| After-sales Service Provided: | Online Support | Lathe: | Machine Tools |
| Max. Swing Diameter: | 1600mm | Weight: | 14500kg |
| Power: | 22KW | Condition: | New |
| Spindle Bore(mm): | 130 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction Works , Energy & Mining |
| Showroom Location: | United States, Italy, Germany, UAE, South Africa, Kazakhstan, Australia | Core Components: | Bearing, Pump, Gear, Motor |
| Max. Turned Length (mm): | 17800 Mm | Year: | 2022 |
| Port: | Tianjin Or Shanghai Port | ||
Product Description

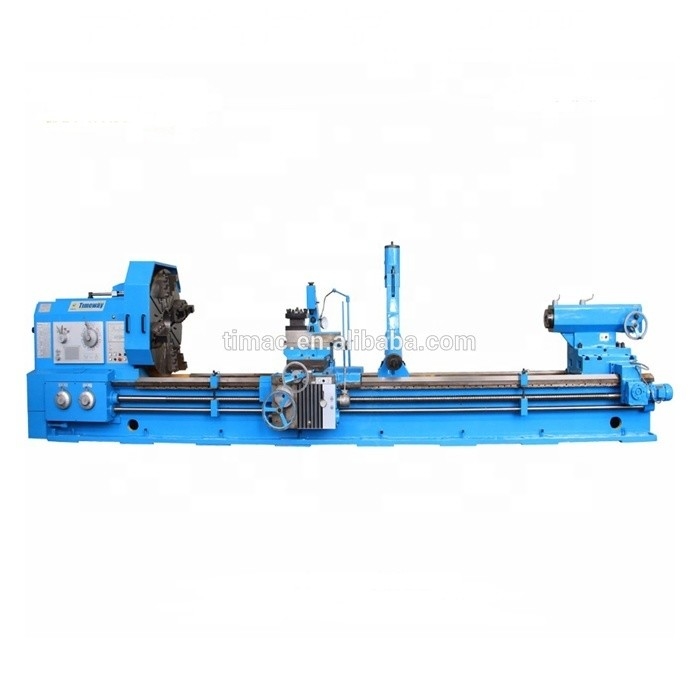

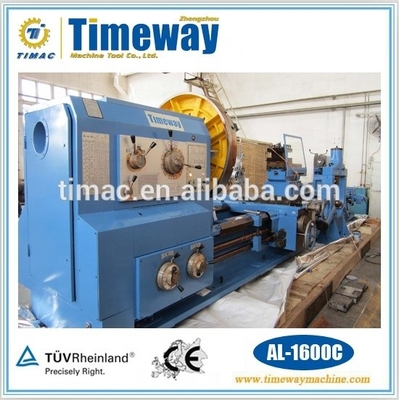

Horizontal Metal Industry Lathe Machine
Features:
These lathes are suitable mainly for turning internal and external cylindrical, conical and other swing surface as well as various metric, inch, module and diametric pitch threads. They can also be used for broaching oil grooves and key ways.

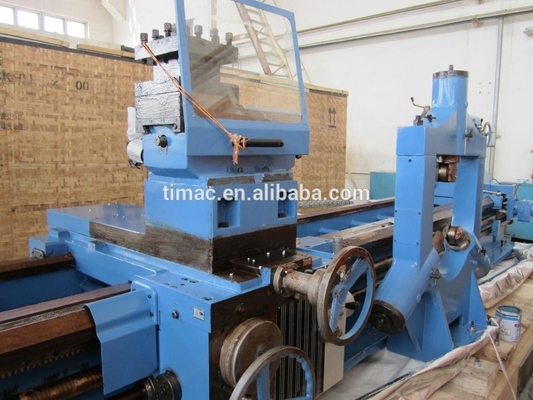

1. The side wall of bed is constructed with double rib plates, and the shape of internal ribs is of box type and bevel ribs combination. The rigidity is higher than that of ordinary lathes. The precision is stable. And these lathes can carry out strong force cutting.

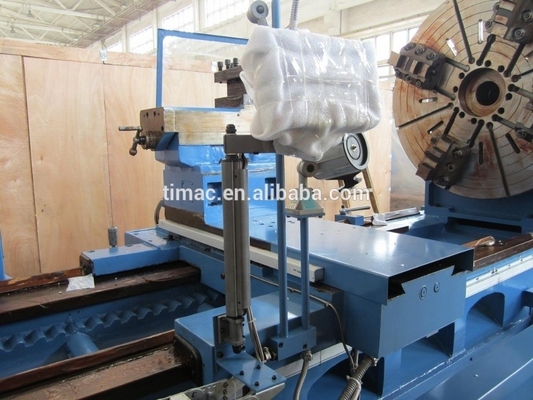

2. On apron, there is a device, operated by a single lever, used for rapid traverse of the carriage. Spindle's braking and rotating direction change is controlled by hydraulic system, or by hand operation, all to user's choice.

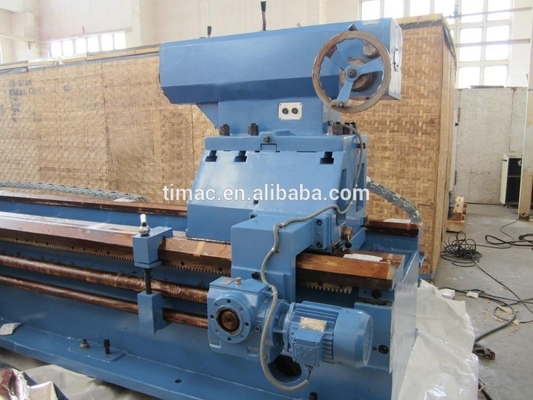

3. The saddle guide way is glued by “TSF” soft belt wear resisting materials.
4. On user's demand, we can equip the lathe with automatic feeding mechanism .
The top slide can be used independently for turning of short cone.
In combination with longitudinal feeding, it can also turn long taper surface.
Parameter:
| Specficiation | Unit | AL-1250C | AL-1400C | AL-1600C | |
| Capacities | Swing over bed | mm | 1250 | 1400 | 1600 |
| Swing over carriage | mm | 865 | 1010 | 1210 | |
| Max. length of workpiece | mm | 3000/4000/5000/6000/8000/10000/12000/14000/16000/18000 | |||
| Max. length of turning | mm | 2800/3800/4800/5800/7800/9800/11800/13800/15800/17800 | |||
| Max. torque of spindle | N.m | 12590 | |||
| Max. cutting force | N | 45000 | |||
| Max. force of longitudinal | N | 18000 | |||
| Max. weight of workpiece | kg | 10000 | |||
| Spindle | Dia. of spindle thru hole | mm | 130 | ||
| Taper hole of spindle | Metric 140 | ||||
| Number of forward turning | 21kinds | ||||
| Number of reverse turning | 12kinds | ||||
| Range of spindle speeds | r/min | Forward:3.15-315, Reverse:3.5-291 | |||
| Feed motion | Longitudinal and cross | 56kinds | |||
| Range of feed motion | mm | Longitudinal:0.1-12, Transverse:0.05-6, Top slide:0.025-3 | |||
| Number of metric thread | 44kinds | ||||
| Range of metric thread | mm | 1-120 | |||
| Number of inch thread | 31kinds | ||||
| Range of inch thread | 2028-1-4 | ||||
| Number of module thread | 45kinds | ||||
| Range of module thread | mm | 0.5-60 | |||
| Number of dia. pitch thread | 38kinds | ||||
| Range of dia. pitch thread | 1/2-56DP | ||||
| Tool post | Size of tool shank | mm | 45x45 | ||
| Tool post swing range | ±90° | ||||
| Max. travel of carriage | mm | 2900/3900/4900/5900/7900/9900/11900/13900/15900/17900 | |||
| Max. travel of cross slide | mm | 650 | |||
| Max. travel of top slide | mm | 300 | |||
| Rapid of tool post | mm/min | Longitudinal:3740, Transverse:1870, Top slide:935 | |||
| Tailstock | Dia. of tailstock quill | mm | 220 | ||
| Travel of tailstock quill | mm | 300 | |||
| Taper hole of tailstocj quill | Morse No.6# | ||||
| Others | Main motor power | kw | 22 | ||
| Speed | r/min | 970 | |||
| Power of tool post | kw | 1.5 | |||
| Machine overall dimension | Length | mm | 6020/7020/8020/9020/11020/13020/15020/17020/19020/21020 | ||
| Width | mm | 1995 | |||
| Height | mm | 2175 | 2325 | 2525 | |
| Machine weight(AL-1250C) | kg | 14500/15800/17000/18300/20000/21500/25000/27000/- | |||
| Machine weight(AL-1400C) | kg | 15000/16300/17500/18800/20500/22000/25500/27500/- | |||
| Machine weight(AL-1600C) | kg | 15500/16800/18000/19300/21000/22500/26000/28000/- | |||
* AL-630B Series (Bed width: 550mm; Loading capacity: 2 tons)
* AL-800 Series (Bed width: 600mm; Loading capacity: 3 tons)
* AL-1000B Series (Bed width: 755mm; Loading capacity: 6 tons)
* AL-1250C Series (Bed width: 970mm; Loading capacity: 10 tons)
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 2950*1150*1750MM N.W./G.W.: 1850/2250KG
Container loaded: 4 sets / 20'GP
If you have any queries please give us a
call or send us a message.
We will be happy to assist you!
