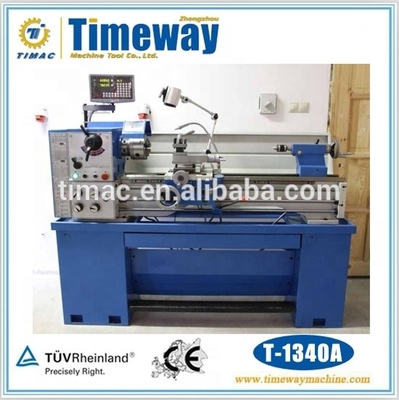

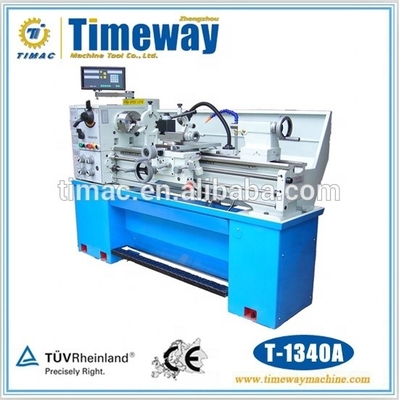

330mm Max Swing Manual Precision Gear Head Metal Lathe The Ultimate Metalworking Tool
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE ISO |
| Model Number: | T-1340A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,000.00/sets 1-3 sets |
| Packaging Details: | wooden case(can be fumigated) |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 70 - 2000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 1.5 | Voltage: | 380V/50HZ |
| Dimension(L*W*H): | 1940x760x1520mm | Weight (KG): | 560 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Other | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Max. Swing Diameter Over Cross Slide: | 198mm |
| Max. Length Of Workpiece: | 1000mm | Processing Capacity: | Medium Duty |
| Spindle Taper: | MT 5# | Spindle Bote: | 38mm |
| Machine Type: | Horizontal Engine Lathe | Max. Swing Diameter: | 330mm |
| Max.swing Over Bed: | 330mm | Condition: | New |
| Spindle Bore(mm): | 38 | Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works |
| Showroom Location: | Brazil, Mexico, Russia, Algeria, Romania, South Africa, Malaysia, Australia | Max. Turned Length (mm): | 1000 Mm |
| Year: | 2022 | Core Components: | Bearing, Gear, Motor, Gearbox, Other |
Product Description
Product Description

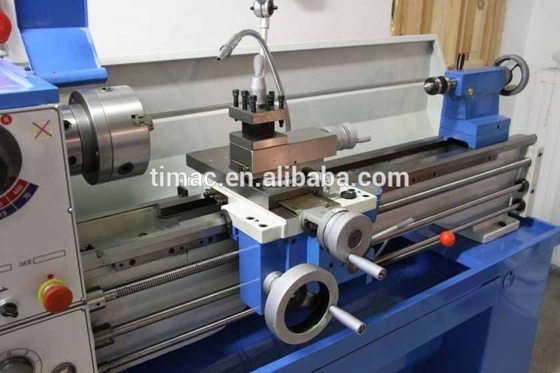

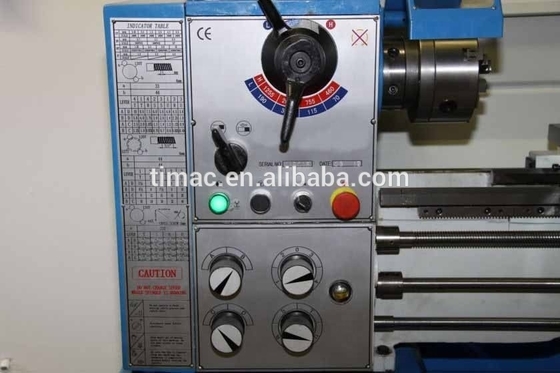

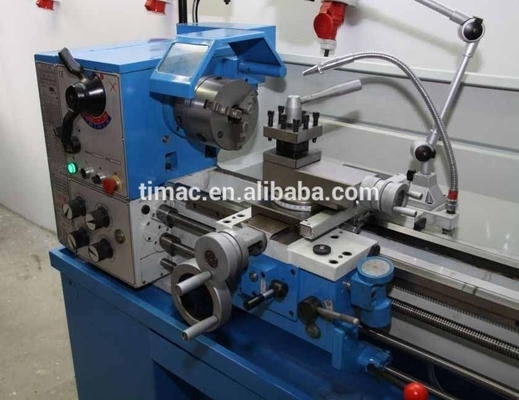

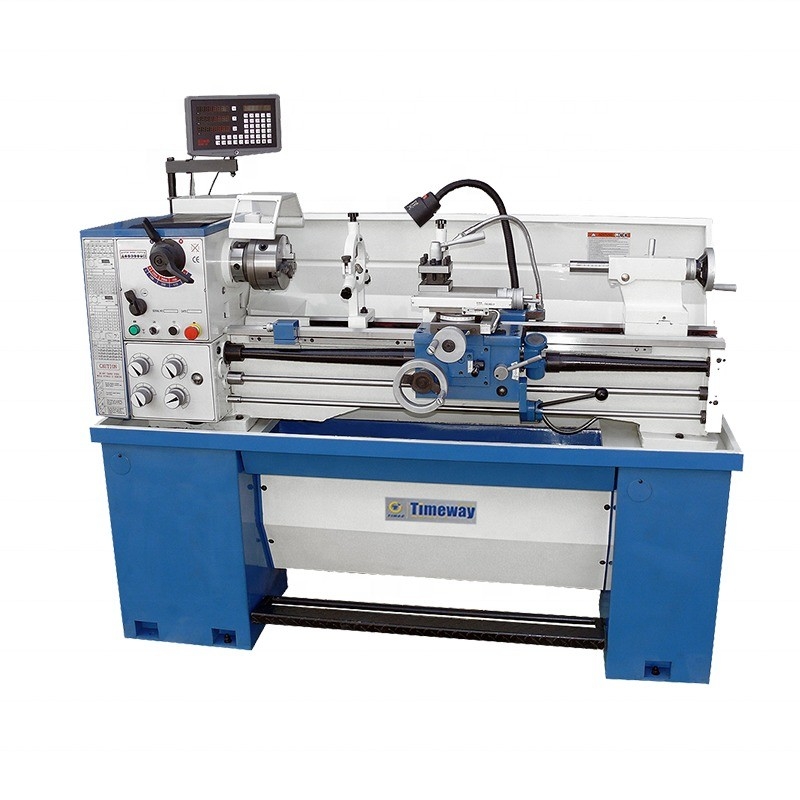

Precision Gear Head Engine Lathe
Standard accessories:
* 3 jaw chuck, 4 jaw chuck
* Face plate, steady rest
* Follow rest, oil gun
* Dead center
* Changing gears
* Reduction sleeve
* Chasing dial indicator
* Working light
* Coolant system
* Tools and tool box
* Operator manual
* Face plate, steady rest
* Follow rest, oil gun
* Dead center
* Changing gears
* Reduction sleeve
* Chasing dial indicator
* Working light
* Coolant system
* Tools and tool box
* Operator manual
Optional accessories:
* Foot brake system
* Digital readout system (DRO)
* Quick change tool post & holders
* Taper turning attachment
* Digital readout system (DRO)
* Quick change tool post & holders
* Taper turning attachment
Specification
Specification | Unit | T-1340A |
Max.swing over bed | mm | 330 |
Max.swing over cross slide | mm | 198 |
Max.swing in gap | mm | 450 |
Distance between centers | mm | 1000 |
Spindle bore | mm | 38 |
Spindle speed | rpm | 70-2000(8steps) |
Main motor | kw | 1.5 |
Net weight/Gross weight | kg | 560/600 |
Packing dimension | mm | 1940×760×1520 |
