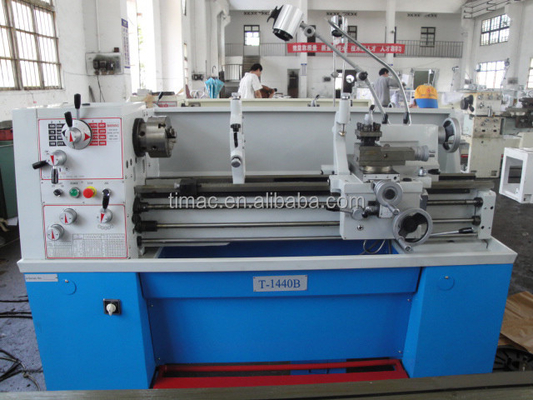

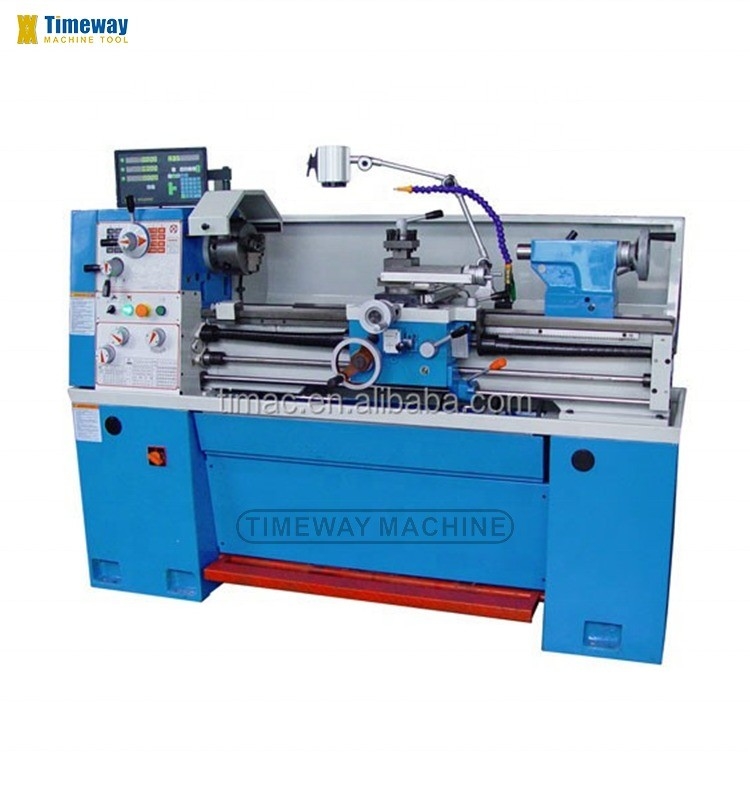

T-1440B Precision Gear Head Engine Lathe with 220mm Swing Diameter Over Cross Slide
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | ISO9001 CE |
| Model Number: | T-1440B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000.00/sets 1-2 sets |
| Packaging Details: | wooden case(can be fumigated) |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 45 - 1800 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 1.5 | Voltage: | 380v 50hz |
| Dimension(L*W*H): | 1940x760x1520mm | Weight (KG): | 750 KG |
| Warranty: | 1 Year, 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Color: | Customer Reqirement | Swing Diameter Over Cross Slide: | 220mm |
| Max. Length Of Workpiece: | 1000mm | Spindle Speed: | 45-1800rpm(16steps) |
| Spindle Bore: | 38mm | Max. Swing Diameter: | 360mm |
| Weight: | 750kg | Power: | 1.5kw(main Motor) |
| Condition: | New | Spindle Bore(mm): | 38 |
| Showroom Location: | Philippines, Brazil, Mexico, Russia, Thailand, Romania, South Africa | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Core Components: | Bearing, Gear, Motor, Gearbox, Other | Max. Turned Length (mm): | 1000 Mm |
| Year: | 2022 | Port: | China Port |
Product Description
Products Description
* Precision ground and supersonic frequency hardened bed ways.
* The spindle is supported with precision roller bearing.
* Headstock gears are made of high quality steel, ground and hardened.
* Removable gap is provided for larger diameter work.
* Easy operating gear box has various feeds and thread cutting function.
* The spindle is supported with precision roller bearing.
* Headstock gears are made of high quality steel, ground and hardened.
* Removable gap is provided for larger diameter work.
* Easy operating gear box has various feeds and thread cutting function.
Specification | Unit | T-1440B |
Max.swing over bed | mm | 356 |
Max.swing over cross slide | mm | 220 |
Max.swing in gap | mm | 506 |
Distance between centers | mm | 1000 |
Spindle nose | D4 | |
Spindle bore | mm | 38 |
Spindle bore taper | M.T.#5 | |
Spindle speed | rpm | 45-1800(16steps) |
Longitudinal feed range | mm/rev | 0.043-0.653 |
Cross feed range | mm/rev | 0.015-0.220 |
Metric threads | mm | 0.4-7 |
Inch threads | TPI | 4-112 |

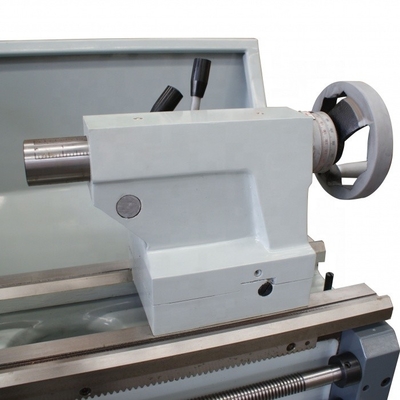

Tailstock bore taper | M.T.#3 | |
Main motor | kw | 1.5 |
Net weight/Gross weight | kg | 750/880 |
Packing dimension(LxWxH) | mm | 1940x760x1520 |

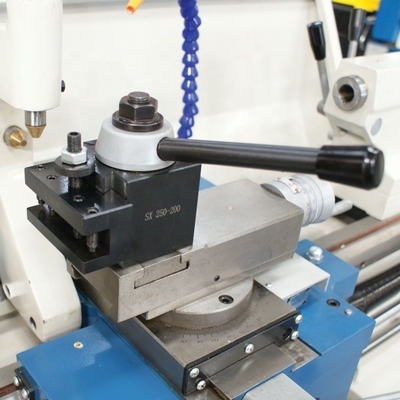

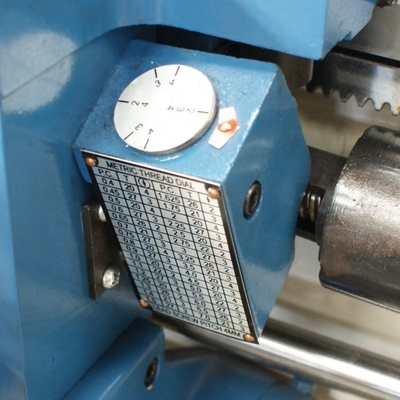

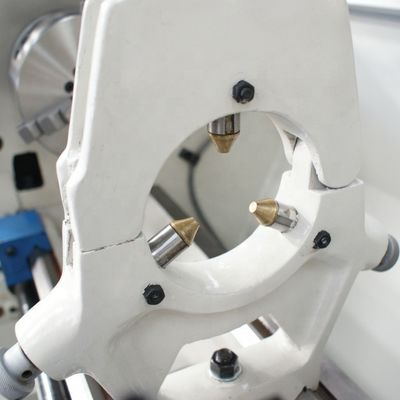

· 3 jaw chuck · 4 jaw chuck · Dead center · Face plate · Steady rest · Follow rest · Reduction sleeve · Oil gun · Coolant system · Working light · Chasing dial indicator | · Quick change tool post · 2/3 axis DRO · Living center · Taper turning attachment · Chuck guard · Leadscrew guard · Tool post guard |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
