Upgrade Your Workshop with a 14"-24" High Speed Precision Gap Bed Metal Lathe Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE & ISO |
| Model Number: | FL-600F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,900.00/sets 1-2 sets |
| Packaging Details: | in wooden case (can be fumigated) or as your request |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1500 | Range Of Spindle Speed(r.p.m): | 40 - 1400 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 360 |
| Type: | Horizontal | Spindle Motor Power(kW): | 7.5 |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 295x115x175cm |
| Weight (KG): | 1900 KG | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Automatic Grade: | Manual | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Free Spare Parts, Field Maintenance And Repair Service |
| Color: | Customized | Machine Type: | 14"-24" High Speed Precision Gap Bed Metal Lathe Machine |
| Max. Swing Diameter: | 600mm | Weight: | 1900kg |
| Power: | 7.5kw | After Warranty Service: | Online Support, Field Maintenance And Repair Service |
| Local Service Location: | Canada, United States, Italy, Germany | Condition: | New |
| Applicable Industries: | Garment Shops, Manufacturing Plant, Farms, Retail, Food Shop, Energy & Mining | Showroom Location: | Canada, United States, Italy, Germany |
| Core Components: | Pump, Motor, Engine | Spindle Bore(mm): | 52 |
| Max. Turned Length (mm): | 1500 Mm | Year: | 2020 |
| Port: | Chiana Port | ||

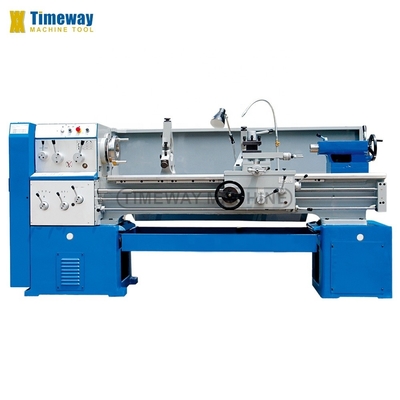

Product Description
"360-600mm Swing " High Speed Precision Gap Lathe Machine for sale, Horizontal Lathe Machine Price
This series lathe is a famous model for medium-size turning works. Even its basic configuration includes important accessories,
such as 3-jaw chuck, steady rest and follow rest, changing gears, etc., increasing the application area of this model significantly.
For reducing the non-productive time, this model is also can equipped with 2 or 3-axis digital readout.
1. Inductive hardened, polished grey cast iron machine bed.
2. State-of-the-art main spindle bearing with high quality angular ball bearings.
3. Electro-mechanical foot brake reduces down time significantly.
4. Large, hardened, polished gears.
5. Easy, smooth and precisely adjustable speed and feed settings.
Standard Accessories:
3 jaw chuck, 4 jaw chuck, Face plate, Steady rest, Follow rest, Dead center, Oil gun, Coolant system
Working light, General tools, Foundation bolts, Operation manual(English edition).
Parameter :
| Specification | Unit | FL-360A | FL-400A | FL-500A | FL-600A |
| FL-360F | FL-400F | FL-500F | FL-600F | ||
| Max. swing over bed | mm | 360 | 400 | 500 | 600 |
| Max. swing over cross slide | mm | 190 | 230 | 330 | 430 |
| Max. swing in gap | mm | 520 | 560 | 660 | 760 |
| Center distance | mm | 750, 1000, 1500, 2000 | |||
| Bed width | mm | 360 | |||
| Spindle hole | mm | 52 (optional: 82) | |||
| Spindle nose |
| ISO-C6 | |||
| Spindle taper |
| Morse No. 6 | |||
| Spindle speeds | rpm | A: 40-1400 (9 Steps), F: 16-1600 (12 Steps) | |||
| Metric threads range | mm | A: 0.25-14mm (19 Steps), F: 0.25-7mm (17Kinds) | |||
| Inch threads range | T.P.I | A: 2-40TPI, F: 0.25-7mm (17Kinds) | |||
| Module threads range | M.P | A: 0.5-3.5mm (11 Kinds), F: 0.25-3.5mm (12 Kinds) | |||
| Diametric threads range | D.P | A: ---, F: 0.25-3.5mm (12 Kinds) | |||
| Longitudinal feed range | mm/rev | 0.0832-4.66 | |||
| Cross feed range | mm/rev | 0.048-2.69 | |||
| Max. travel of top slide | mm | 95 | |||
| Max. travel of cross slide | mm | 180 | 200 | 250 | 250 |
| Max. size of tool (W x H) | mm | 20 x 20 | |||
| Tailstock sleeve diameter | mm | 65 | |||
| Tailstock sleeve taper |
| Morse No. 4 | |||
| Tailstock sleeve travel | mm | 140 | |||
| Main motor | kw | 4 | 5.5 | 5.5 | 7.5 |
| Net weight / Gross weight | |||||
| 750mm | kg | 1350/1750 | 1400/1800 | 1500/1900 | 1600/2000 |
| 1000mm | kg | 1450/1850 | 1500/1900 | 1600/2200 | 1700/2100 |
| 1500mm | kg | 1600/2000 | 1650/2050 | 1750/2150 | 1900/2300 |
| 2000mm | kg | 1750/2150 | 1800/2200 | 1900/2300 | 2050/2450 |
| Packing size(LxWxH) | mm | 2250, 2450, 2950, 3450 x 1150 x 1750 | |||

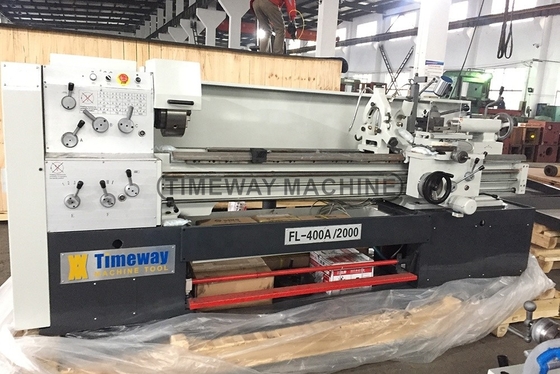

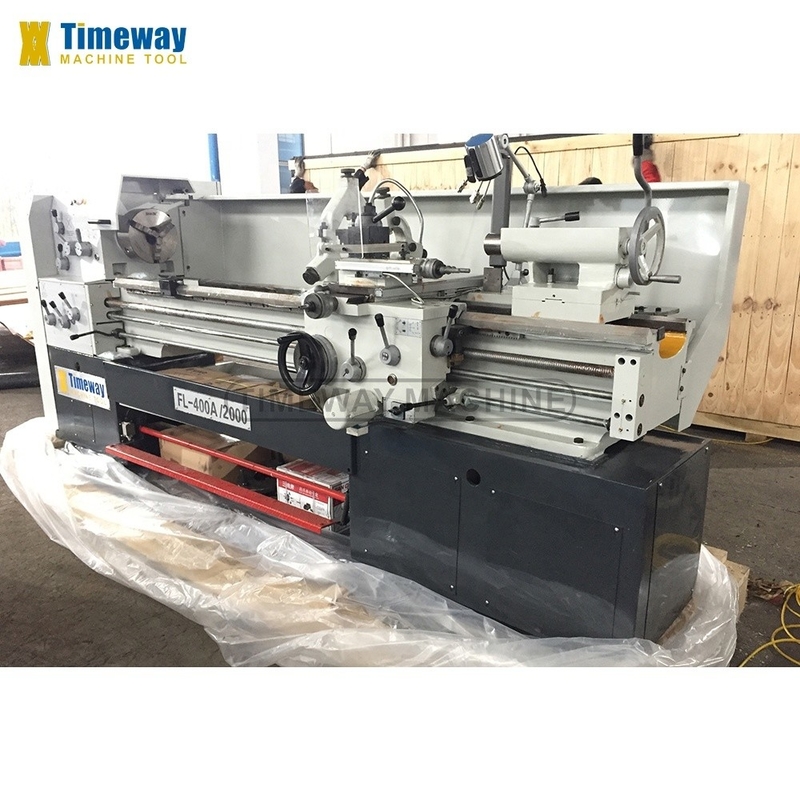

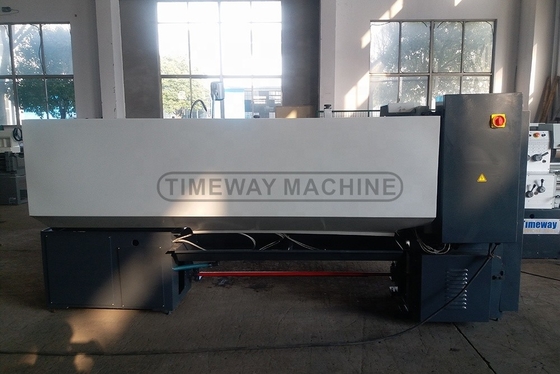

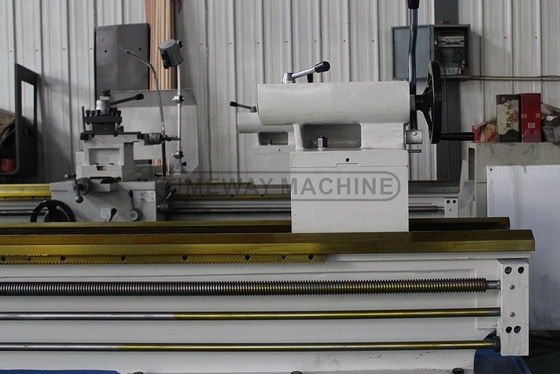

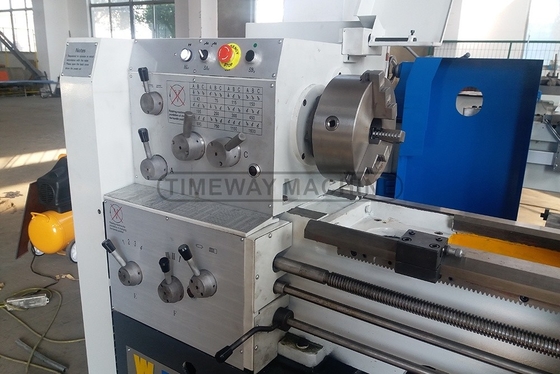

Factory photos:
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
