400-800mm Swing Taper of tailstock sleeve MT4 Horizontal Precision Gap Bed Metal Lathe
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | CM-400/1500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $49,800.00/sets 1-2 sets |
| Packaging Details: | in wooden case (can be fumigated) or in plywood case |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1500mm | Range Of Spindle Speed(r.p.m): | 45 - 1800 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Width Of Bed (mm): | 400 |
| Type: | Horizontal | Spindle Motor Power(kW): | 3.3 |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 2060/2560x900x1640mm |
| Weight (KG): | 1300 KG | Warranty: | 1 Year, 1 Year |
| Key Selling Points: | Sustainable | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Automatic Grade: | Manual | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Machine Name: | Horizontal Precision Gap Bed Metal Lathe | Power(W): | 3.3KW |
| Max. Swing Diameter: | 400mm | Taper Of Tailstock Sleeve: | MT4 |
| Condition: | New | Spindle Bore(mm): | 52 |
| Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Printing Shops, Energy & Mining, Food & Beverage Shops | Showroom Location: | Canada, United States, Italy, Germany, Mexico, South Africa, Australia |
| Core Components: | Bearing, Pump, Gear, Motor, Engine | Max. Turned Length (mm): | 1500 Mm |
| Year: | 2020 | Port: | China Port |
Product Description

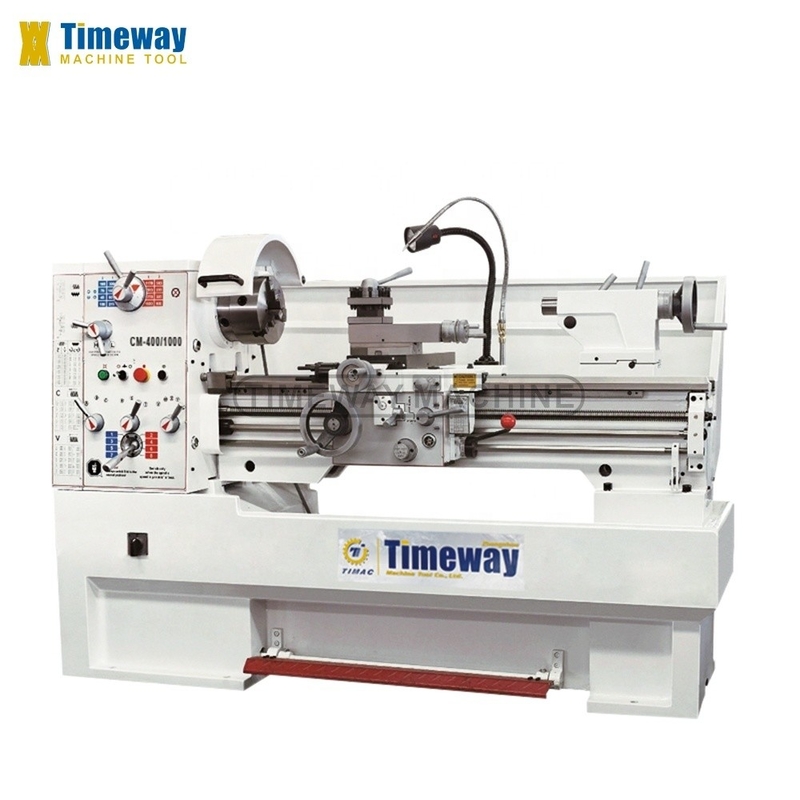

Torno / Horizontal Precision Gap Bed Metal Lathe Machine
Features:
This series universal center lathe is a fantastic model for small to medium size turning works. Even its basic configuration includes important accessories, such as 3-jaw chuck, steady and follow rest, change gears etc. Increasing the application area of this model significantly. For reducing the non-productive time, this model is also can equipped with 2 or 3 axis digital readout.
1.Inductive hardened, polished grey cast-iron machine bed.
2.Centrally located, logical switches for feeds and threads with leadscrew and feed rod.
3.Adjustable tailstock for taper turning, handwheel feature adjustable scale(0.02mm).
4.Head stock gears are made of high quality steel ground and hardened more than HRC 48°.
Standard accessories:
3-jaw chuck, 4-jaw chuck, Face plate, Dead centers, Thread chasing dial, Splash guard, Oil gun, Work lamp, Cooling system, Steady rest, Follow rest, Change gears, Reducing sleeve, Foot brake, Foundation bolts, Toolbox & tools, Operator manual.
Optional accessories:
Driving plate, Living center, Taper turning attachment, Drill chuck, Quick change tool holder, 2/3 axis digital readout, Chuck guard, Leadscrew guard, Tool post guard, Frequency inverter.
Parameter:
| Specification | Unit | CM-400 | CM-400V |
| Max. swing over bed | mm | 410 | 410 |
| Max. swing over cross slide | mm | 255 | 255 |
| Max. swing over gap | mm | 580 | 580 |
| Center height | mm | 205 | 205 |
| Distance between centers | mm | 1000/ 1500 | 1000/ 1500 |
| Bed width | mm | 250 | 250 |
| Tool section size | mm | 20x20 | 20x20 |
| Cross slide travel | mm | 210 | 210 |
| Top slide travel | mm | 140 | 140 |
| Spindle bore | mm | 52 | 52 |
| Spindle taper | - | D1-6 | D1-6 |
| Leadscrew | TPI | 4 | 4 |
| Spindle speed range (steps) | rpm | 45-1800 (16) | 30-550 or 550-3000 (stepless) |
| Metric threads range (kinds) | mm | 0.1-14 (39) | 0.1-14 (39) |
| Inch threads range (kinds) | TPI | 2-72 (45) | 2-72 (45) |
| Module threads range (kinds) | MP | 0.3-3.5 (18) | 0.3-3.5 (18) |
| Diametrical threads range (kinds) | DP | 8-44 (21) | 8-44 (21) |
| Longitudinal feed range | mm/rev | 0.05-1.7 | 0.05-1.7 |
| Cross feed range | mm/rev | 0.025-0.85 | 0.025-0.85 |
| Tailstock quill diameter | mm | 50 | 50 |
| Tailstock quill travel | mm | 120 | 120 |
| Tailstock quill taper | - | MT4 | MT4 |
| Main motor power | kw | 3.3/2.2 | 3.3/2.2 |
| Coolant pump power | w | 90 | 90 |
| Packing size (LxWxH) | mm | 2060/2560x900x1640 | 2060/2560x900x1640 |
| Net weight | kg | 1300/1550 | 1350/1600 |
| Gross weight | kg | 1500/1750 | 1555/1755 |

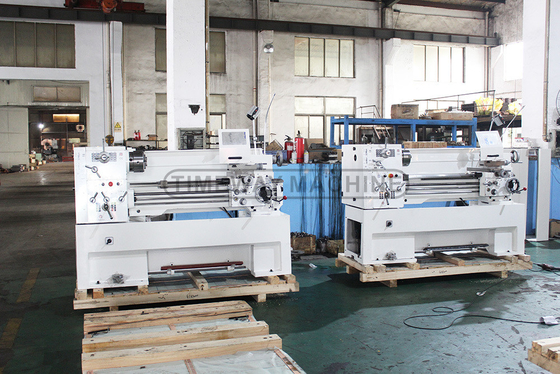

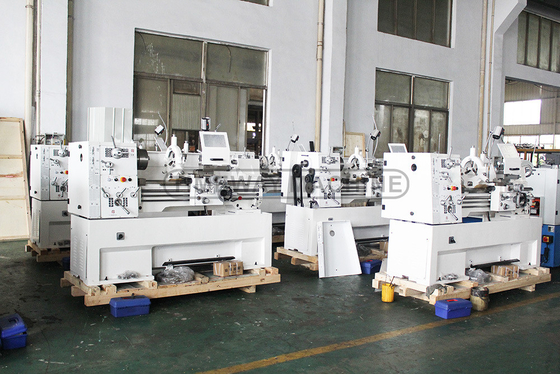

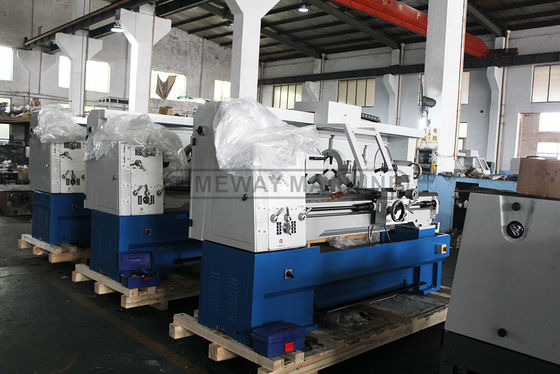

Factory photos:

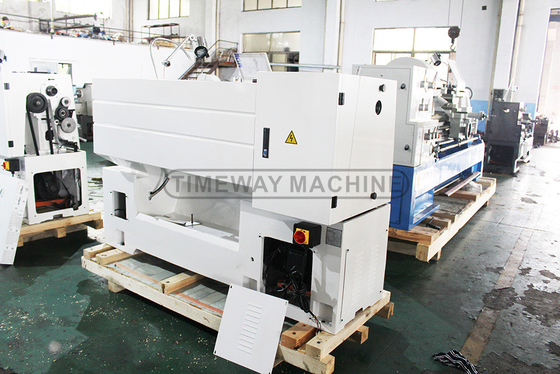

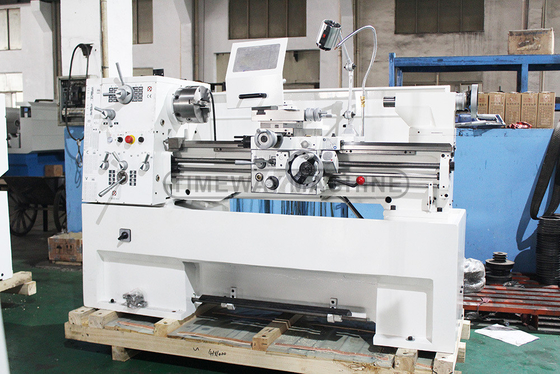

Details image:
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
