4710x1360x1670mm Precision Gap-bed Lathe The Ideal Solution for High Speed Machining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | CL-800x3000mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets >=1 sets |
| Packaging Details: | wooden case or plywood case |
| Supply Ability: | 400 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 25 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Width Of Bed (mm): | 400 |
| Type: | Horizontal | Spindle Motor Power(kW): | 7.5 |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 4710x1360x1670mm |
| Weight (KG): | 4495 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Automatic Grade: | Manual | CNC Or Not: | Normal |
| High Precision Lathe: | Universal Gap-bed Lathe Machine | Color: | Customized Option |
| Machine Type: | Gap Bed Lathe Machine | Name: | High Precision Metal Lathe Machine |
| Max. Workpiece Length: | 3000mm | Spindle Bore: | 105mm |
| Processing Capacity: | Light Duty | Condition: | New |
| Spindle Bore(mm): | 105 | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | Canada, United Kingdom, United States, Germany | Core Components: | Bearing |
| Max. Turned Length (mm): | 3000 Mm | Year: | 2020 |
| Port: | China Port. | ||
Product Description
Product Description

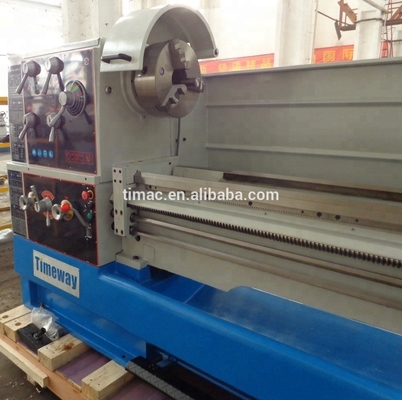

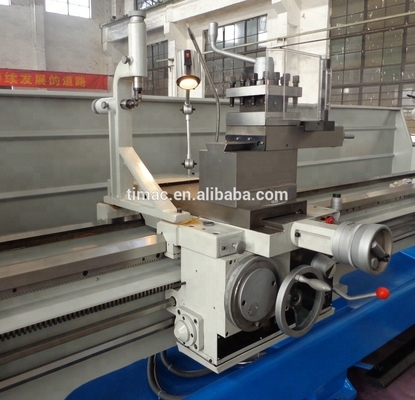

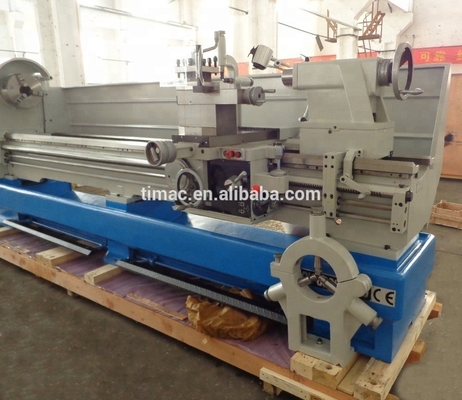

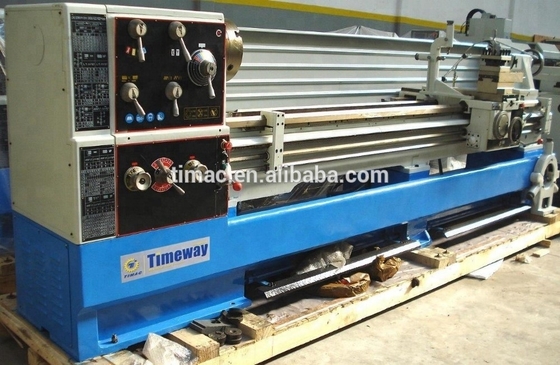

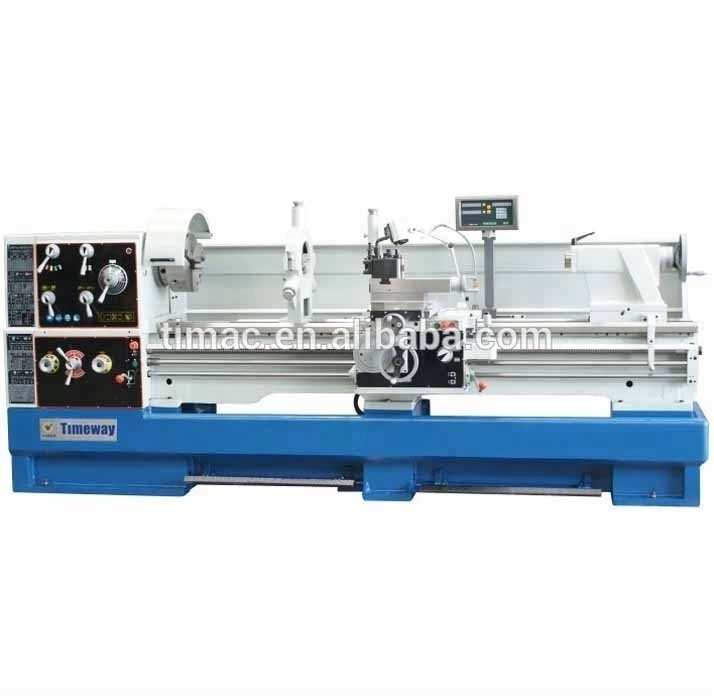

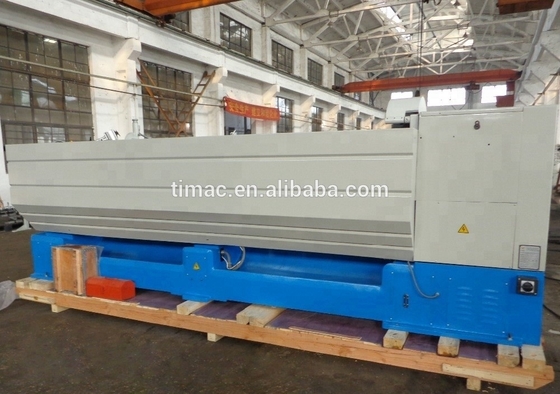

Precision Gap-bed Lathe
Specification
Specification | CL-660 | CL-800 | |
Swing over bed | Φ660mm | Φ800mm | |
Swing over cross slide | Φ440mm | Φ560mm | |
Swing in gap | Φ900mm | Φ1040mm | |
Distance between centers | 1500mm/2000mm/3000mm | ||
Valid length of gap | 250mm | ||
Width of bed | 400mm | 510mm | |
Spindle nose | D1-8 | ||
Spindle bore | Φ105mm | ||
Range of spindle speed | 16changes25-1600rpm | 16changes17-1100rpm | |
Max. travel of top slide | 230mm | ||
Max. travel of cross slide | 368mm | 420mm | |
Power of main motor | 7.5kw(10HP)3PH | 11kW (15HP) | |
Overall dimension(L×W×H) cm | 321/371/471×123×167cm | 321/371/471×136×167cm | |
Packing size(L×W×H) cm | 324/374/474×114×191cm | 324/374/474×127×191cm | |
Net weight | 2800/2900/3300kg | 3100/3300/3900kg | |
Gross weight | 3100/3200/3700kg | 3450/3750/4450kg | |
Standard accessories:
3 jaw chuck, changing gears, dead center, reduction sleeve, oil gun, coolant system, working light, 4 jaw chuck, face plate,
steady rest, follow rest, chasing dial indicator.
steady rest, follow rest, chasing dial indicator.
Optional accessories:
Digital readout system (DRO), quick change tool post & holders, taper turning attachment.
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
