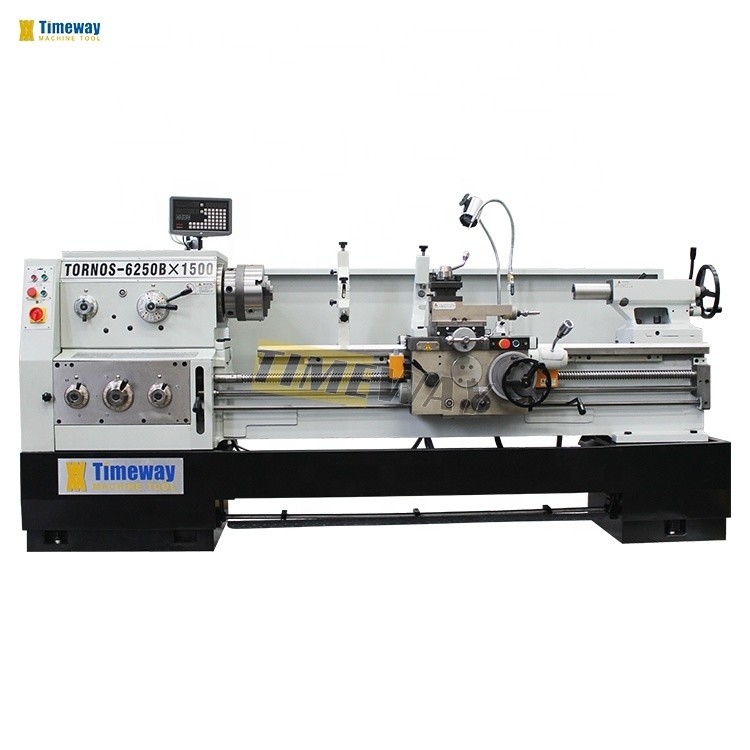

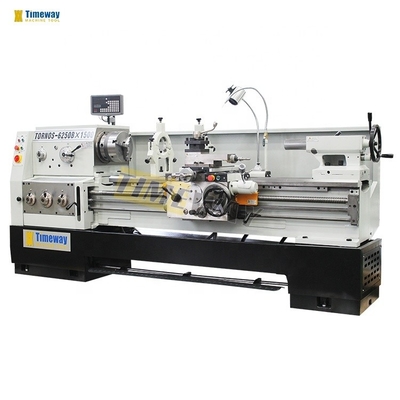

Medium Duty TORNOS Series Universal Precision Gap Bed Lathe Machine Weight KG 2300 KG
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | ISO, CE Standard |
| Model Number: | CS-6240B CS-6250B CS-6266B CS6280B CS6250C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,999.00/sets >=1 sets |
| Packaging Details: | wooden case or plywood case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1500 | Range Of Spindle Speed(r.p.m): | 36 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 7.5 | Voltage: | As Customers' Request |
| Dimension(L*W*H): | 3132x975x1230mm | Weight (KG): | 2300 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | Other | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Automatic Grade: | Manual |
| After-sales Service Provided: | Online Support | Universal Lathe: | Precision Gap Bed Lathe |
| Max. Swing Diameter Over Bed: | 500mm | Power: | 7.5KW |
| Max. Workpiece Length: | 1500mm | Spindle Bore Diameter: | 82mm |
| Warranty Period: | 1 Year | Condition: | New |
| Spindle Bore(mm): | 82 | Showroom Location: | United Kingdom, United States, Italy, France, Germany, Brazil, Peru, Pakistan, India, Russia, Argentina, Chile, UAE, South Africa, Kazakhstan, Nigeria, Malaysia, Australia |
| Max. Turned Length (mm): | 1500 Mm | Applicable Industries: | Building Material Shops, Manufacturing Plant, Retail, Construction Works , Other |
| Core Components: | Bearing, Gear, Motor, Gearbox, Other | ||
Product Description
Products Description
Features:
1. Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
2. Threading Inch, Metric, Module and D.P;
3. Perform drilling, boring and groove broaching;
4. Machine all kinds of flat stocks and those in irregular shapes;
5. Respectively with through-hole spindle bore, that can hold barstocks in larger diameter;
6. Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
7. There are hand brake and foot brake for users to choose.

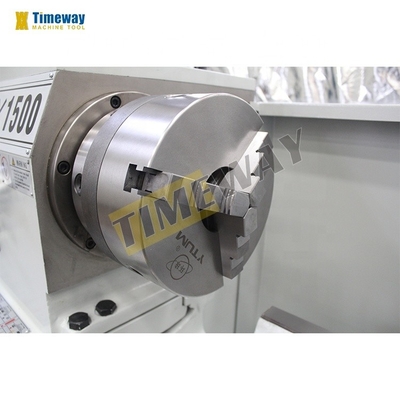

· 3-jaw chuck · Steady rest (over 2M length) · Follow rest (over 2M length) · Manual moving tailstock · Dead center of tailstock · 4-station tool post · Cooling system · Work lamp · Tools & tool-box · Leveling wedge and bolts · Operation manual (English) | · 4-jaw independent chuck · Face plate · 2 or 3-axis digital indicator · Chuck guard · Too-post guard · Rear splash guard · Quick changing tool post |
Specification | Unit | CS6240B | CS6250B | CS6266B | CS6280B | CS6250C | CS6266C | CS6280C | ||||||
Max. swing dia. over bed | mm | Φ400 | Φ500 | Φ660 | Φ800 | Φ500 | Φ660 | Φ800 | ||||||
Max. swing dia.in gap | mm | Φ630 | Φ710 | Φ870 | Φ1000 | Φ710 | Φ870 | Φ1000 | ||||||
Max. swing dia. over slides | mm | Φ220 | Φ300 | Φ420 | Φ560 | Φ300 | Φ420 | Φ560 | ||||||
Max. workpiece length | mm | 1000/ 1500/ 2000/ 3000 | 2000/ 3000 | 1000/ 1500/ 2000/ 3000 | 2000/ 3000 | |||||||||
Spindle bore diameter | mm | Φ52 | Φ82 | Φ52 | Φ52 | Φ105 | Φ52 | Φ52 | ||||||
Type of spindle nose | 6240B: ISO 702/III NO.6 bayonet lock; others: ISO 702/II NO.8 com-lock type | |||||||||||||
Spindle speed | rpm | 24 steps 9-1600 | 24 steps 8-1400 | 12 steps 36-1600 | 12 steps 30-1400 | |||||||||
Diameter of quill | mm | Φ75 | Φ90 | Φ75 | Φ90 | |||||||||
Max. travel of quill | mm | 150 | ||||||||||||
Taper of quill (Morse) | MT | 5 | ||||||||||||
Tool O.D. size | mm | 25x25 | ||||||||||||
Max. X travel | mm | 145 | ||||||||||||
Max. Z travel | mm | 320 | 310 | 320 | ||||||||||
X feed range | mm/r | 93 kinds 0.028-6.43 | 65 kinds 0.063-2.52 | |||||||||||
Z feed range | mm/r | 93 kinds 0.012-2.73 | 65 kinds 0.027-1.07 | |||||||||||
Metric threads | mm | 48 kinds 0.5-224 | 22 kinds 1-14 | |||||||||||
Inch threads | t.p.i | 48 kinds 72-1/4 | 25 kinds 28-2 | |||||||||||
Module threads | nmm | 42 kinds 0.5-112 | 18 kinds 0.5-7 | |||||||||||
Diametric pitch threads | t.p.i. | 42 kinds 56-1/4 | 24 kinds 56-4 | |||||||||||
Spindle motor power | kw | 7.5 | ||||||||||||
Cooling pump motor power | kw | 0.06 | ||||||||||||
Length | mm | 2632/ 3132/ 3632/ 4632 | 3365/ 4365 | 2632/ 3132/ 3632/ 4632 | 3365/ 4365 | |||||||||
Width | mm | 975 | 1050 | 1340 | 975 | 1340 | ||||||||
Height | mm | 1230 | 1350 | 1430 | 1270 | 1450 | 1490 | |||||||
Weight | kg | 2050/ 2250/ 2450/ 2850 | 2100/ 2300/ 2500/ 2900 | 2400/ 2600/ 2800/ 3000 | 3300/ 3700 | 2100/ 2300/ 2500/ 2900 | 2200/ 2400/ 2600/ 3000 | 3000/ 3200 | ||||||
