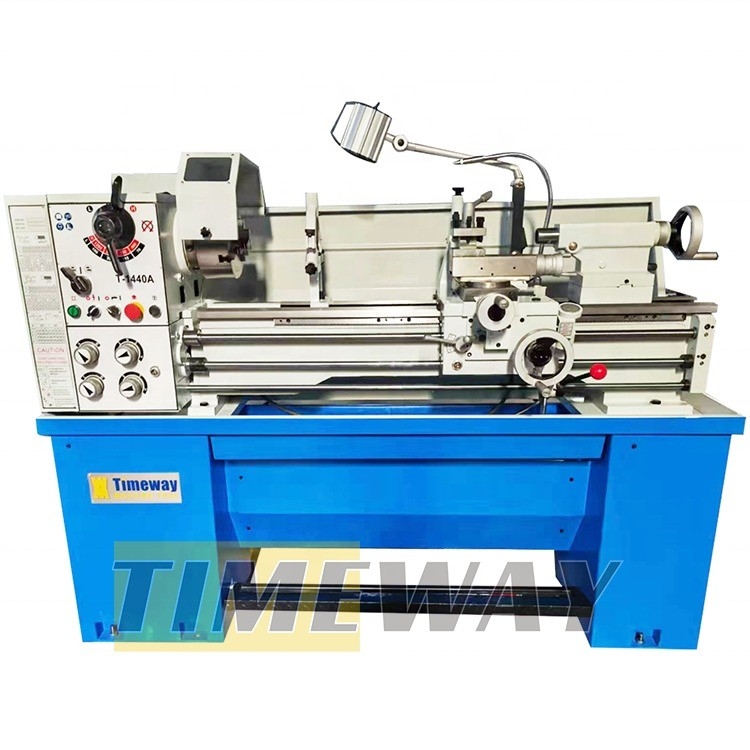

Metal Lathe with 45-1800 r.p.m Spindle Speed Range and 38mm Spindle Bore from T Series
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE, ISO |
| Model Number: | T-1340A,T-1340B,T-1440A,T-1440B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $4,000.00/sets 1-4 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 400 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 45 - 1800 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 1.5/2.4 | Voltage: | As Request |
| Dimension(L*W*H): | 1940*760*1520mm | Weight (KG): | 880 KG |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Automatic Grade: | Manual |
| Processing Ability: | Light Duty | Lathe Machine: | High Precision Lathe Machine |
| Spindle Bore: | 38/40mm(51mm Optional) | Machine Type: | Lathe Machine For Metal |
| Maximum Workpiece Length: | 1000mm | Weight: | 540/590/1200kg |
| Name: | Metal Lathe Manual Lathe | Condition: | New |
| Spindle Bore(mm): | 38 | Showroom Location: | Canada, Turkey, Peru, India, Mexico, Russia, Thailand, Argentina, Chile, Sri Lanka, Romania, Australia |
| Max. Turned Length (mm): | 356 Mm | Applicable Industries: | Garment Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Advertising Company, Other |
| Core Components: | Bearing, Motor, Gearbox, Other | Port: | China Port. |
Product Description
Company Profile
Text Introduction：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our production base was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Video Introduction：
Factory Display：
Product Description
T series High Speed Precision Lathe Machine/Metal Lathe
Standard Accessories:
3 jaw chuck, changing gears, dead centers, reductions sleeve, oil gun, coolant system, working light.
Optional Accessories:
4 jaw chuck, face plate, steady rest, follow rest, chasing dial indicator, liver center.
Digital readout system(DRO), quick change tool post & holders, taper turning attachment.
Specification
Model | Unit | T-1340A | T-1340B | T-1440A | T-1440B |
Max.swing over bed | mm | 330 | 330 | 356 | 356 |
Max.swing in gap | mm | 450 | 476 | 476 | 506 |
Longitudinal feed range | mm/rev | 0.078-1.044 | 0.067-1.019 | 0.078-1.044 | 0.043-0.653 |
Cross feed range | mm/rev | 0.22-0.298 | 0.018-0.275 | 0.22-0.298 | 0.015-0.220 |
Metric Threads | mm | 0.45-10 | 0.45-10 | 0.45-10 | 0.4-7 |
Inch threads | TPI | 21/4-40 | 31/2-80 | 21/4-40 | 4-112 |
Positive Comments From Customers
Seller Recommended
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
