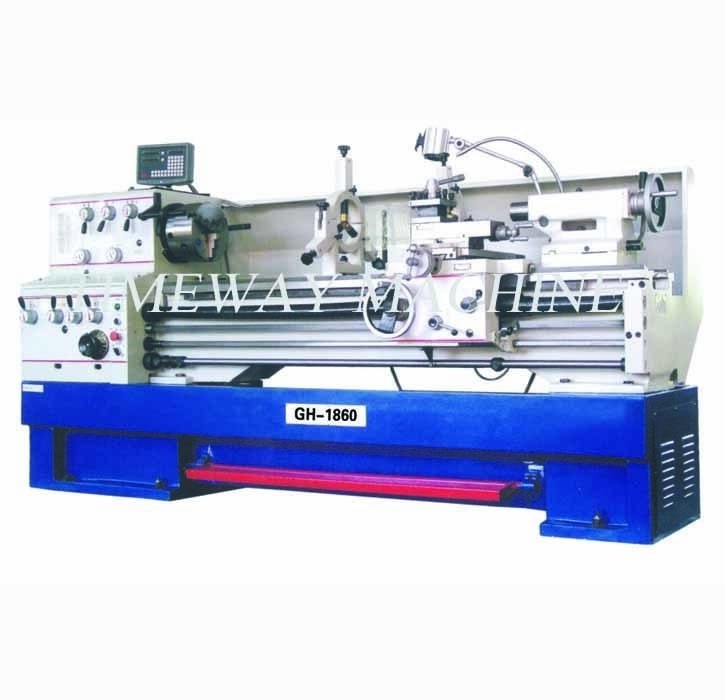

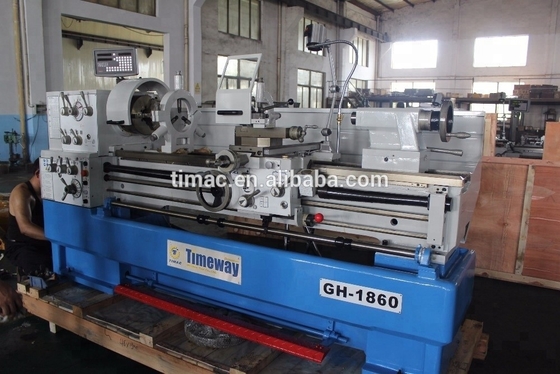

GH 1880 High Speed Precision Lathe Machine with Energy Saving in 2022
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC, Timeway |
| Certification: | CE ISO |
| Model Number: | GH-1840, GH-1860, GH-1880 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $9,800.00/sets 1-2 sets |
| Packaging Details: | wood case (fumigated) |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 2000 | Range Of Spindle Speed(r.p.m): | 25 - 2000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Width Of Bed (mm): | 300 |
| Type: | Horizontal | Spindle Motor Power(kW): | 5.5 |
| Voltage: | Customer's Requirement | Dimension(L*W*H): | 225*112*162cm, 280*112*156cm, 330*112*156cm |
| Weight (KG): | 1965 KG | Warranty: | 1 Year |
| Key Selling Points: | Energy Saving | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Processing Capacity: | Light |
| Automatic Grade: | Semi-automatic | CNC Or Not: | Normal |
| Lathe Machine: | GH1840, GH1860, GH1880 | Max. Swing Diameter: | 460 |
| Weight: | 1910kg, 2115kg, 2295kg | Power: | 5.5KW |
| Max. Workpiece Length: | 1000mm | Spindle Bore: | 58mm |
| Condition: | New | Spindle Bore(mm): | 58 |
| Showroom Location: | Egypt, United States, Italy, Brazil, Pakistan, India, Russia, South Korea, UAE, Malaysia, Australia | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Core Components: | Bearing, Pump, Gear, Motor, Other | Max. Turned Length (mm): | 2000 Mm |
| Year: | 2022 | Port: | China Port |
Product Description
Products Description
Features:
* Triple bearings supporting headstock spindle.
* Adjustable taper roller bearings providing spindle accuracy.
* Precision 'V'-beds & headstock gears are all hardened & ground.
* One piece cast iron base increases rigidity.
* Overload protection on drive motor and coolant system.
* Universal enclosed gearbox incorporating metric & imperial thread capabilities.
* Inching button incorporated on the control panel for convenient spindle speed
selection.
* Foot operated spindle brake with safety cut out switch.
* 300 mm wide induction hardened heavy duty cast iron bed.
* Removable gap bed allowing work piece to swing up to 690 mm.
* Chuck guard fitted with safety micro switch.
* Powered longitudinal and cross feeds.
* Adjustable 4 position length-stop mechanism for accurate repetitive operation.
* Micro adjustable saddle stop.
* Dual calibrated dials incorporating metric & imperial graduations.
* Coolant system with flexible hose enabling operator to manipulate flow direction.
* Oil sight glass for head stock and gearbox.
* Low voltage halogen work light.
* Lubrication pump on saddle oiling slides.
* D1-6 camlock spindle for quick chuck removal.
* 12 spindle speeds from 25-1600 rpm .
* spindle speeds stepless in two grades: 30-600/600-3000 rpm is optional.
* Large 58 mm spindle bore, 80 mm spindle bore is optional.
* Triple bearings supporting headstock spindle.
* Adjustable taper roller bearings providing spindle accuracy.
* Precision 'V'-beds & headstock gears are all hardened & ground.
* One piece cast iron base increases rigidity.
* Overload protection on drive motor and coolant system.
* Universal enclosed gearbox incorporating metric & imperial thread capabilities.
* Inching button incorporated on the control panel for convenient spindle speed
selection.
* Foot operated spindle brake with safety cut out switch.
* 300 mm wide induction hardened heavy duty cast iron bed.
* Removable gap bed allowing work piece to swing up to 690 mm.
* Chuck guard fitted with safety micro switch.
* Powered longitudinal and cross feeds.
* Adjustable 4 position length-stop mechanism for accurate repetitive operation.
* Micro adjustable saddle stop.
* Dual calibrated dials incorporating metric & imperial graduations.
* Coolant system with flexible hose enabling operator to manipulate flow direction.
* Oil sight glass for head stock and gearbox.
* Low voltage halogen work light.
* Lubrication pump on saddle oiling slides.
* D1-6 camlock spindle for quick chuck removal.
* 12 spindle speeds from 25-1600 rpm .
* spindle speeds stepless in two grades: 30-600/600-3000 rpm is optional.
* Large 58 mm spindle bore, 80 mm spindle bore is optional.
Specification | GH-1840 | GH-1860 | GH-1880 | ||
Swing over bed | 460 mm(18") | ||||
Swing over cross slide | 270 mm(10-3/4") | ||||
Swing in gap diameter | 690 mm(27-1/8") | ||||
Distance between centers | 1000 mm(40") | 1500 mm(60") | 2000 mm(80") | ||
Valid length of gap | 165 mm(6-1/2") | ||||
Width of bed | 300 mm(11-13/16") | ||||
Spindle nose | D1-6 | ||||
Spindle bore | 58 mm(2-1/4") | ||||
Taper of spindle bore | No.6 Morse | ||||
Range of spindle speed | 12 changes, 25~2000 r/min | ||||
Max. travel of compound rest | 128 mm(5") | ||||
Max. travel of cross slide | 285 mm(11-1/4") | ||||
Max. section of tool | 25×25 mm(1"×1") | ||||
Pitch thread of leadscrew | 6 mm or 4 T.P.I. | ||||
Longitudinal feeds range | 42 kinds, 0.031-1.7 mm/rev(0.0011"-0.0633"/rev) | ||||
Cross feeds range | 42 kinds, 0.014-0.784 mm/rev(0.00033"-0.01837"/rev) | ||||
Metric threads range | 41 kinds, 0.1-14 mm | ||||
Inch threads range | 60 kinds, 2-112 T.P.I. | ||||
Diametrical pitches range | 50 kinds, 4-112 DP | ||||
Module pitches range | 34 kinds, 0.1-7 MP | ||||
Dia. of tailstock sleeve | 60 mm(2-5/16") | ||||
Travel of tailstock sleeve | 128 mm(5") | ||||
Taper of tailstock sleeve | No.4 Morse | ||||
Power of main motor | 5.5 kw(7.5HP) 3PH | ||||
Power of coolant pump | 0.1 kw(1/8HP) 3PH | ||||
Overall dimension (L×W×H) | 220×108×137 cm | 275×108×137 cm | 325×108×137 cm | ||
Packing size (L×W×H) | 225×112×162 cm | 280×112×156 cm | 330×112×156 cm | ||
Net weight | 1645 kg | 1810 kg | 1965 kg | ||
Gross weight | 1910 kg | 2115 kg | 2295 kg | ||
· 3 jaw chuck · 4 jaw chuck · Dead center · Face plate · Steady rest · Follow rest · Reduction sleeve · Oil gun · Coolant system · Working light · Chasing dial indicator | · Quick change tool post · 2/3 axis DRO · Living center · Taper turning attachment · Chuck guard · Leadscrew guard · Tool post guard |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
