330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | T-1340A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $4,000.00/sets 1-2 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 400 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Type: | Horizontal | Voltage: | As Request |
| Dimension(L*W*H): | 1940x760x1520mm | Weight (KG): | 560 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Spindle Bore: | 38mm | Automatic Grade: | Manual |
| CNC Or Not: | Normal | Lathe Machine: | High Precision Metal Lathe Machine |
| Max. Swing Diameter: | 330mm | Weight: | 560/600kg |
| Power: | 1.5kw | Processing Capacity: | Medium |
| Max.workpiece Length: | 1000mm | Warranty Period: | 1 Year |
| Condition: | New | Spindle Bore(mm): | 38 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Other | Showroom Location: | Peru, Indonesia, Mexico, Thailand, South Africa, Malaysia |
| Core Components: | Bearing, Gear, Motor, Gearbox, Other, Engine | Max. Turned Length (mm): | 1000 Mm |
| Port: | China Port. | ||
Product Description

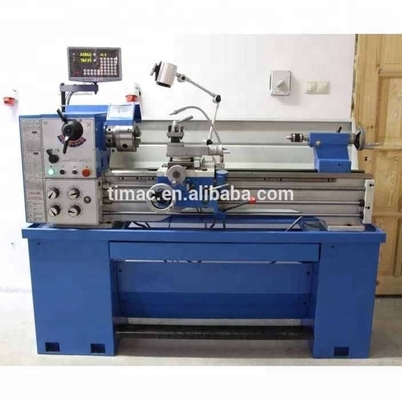

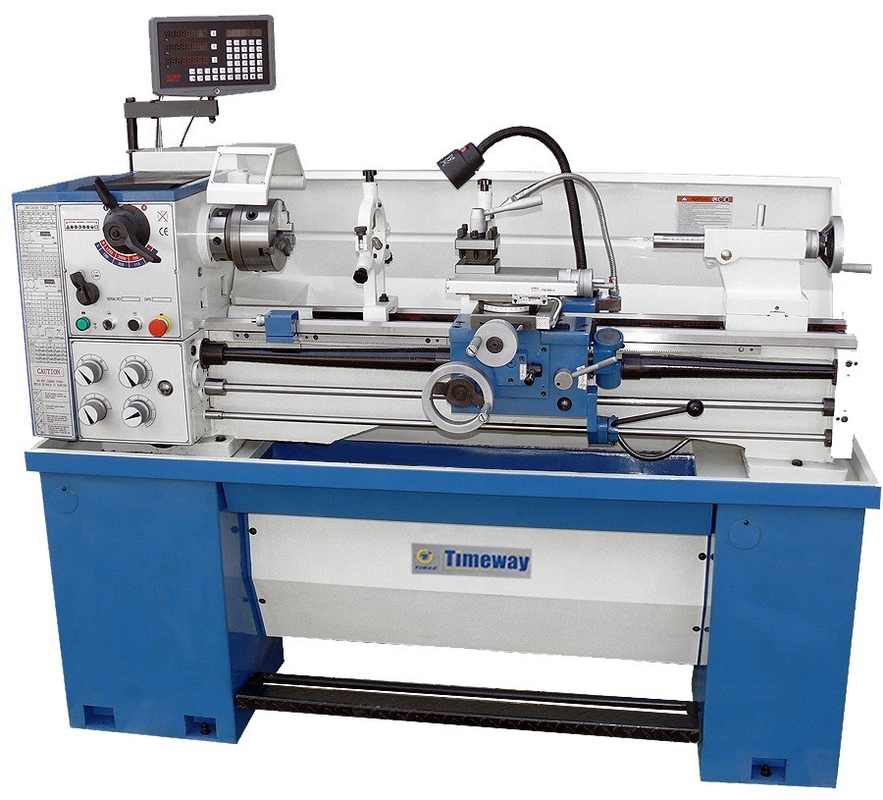

Precision Gear Head Engine Lathe
T-1340A
Technical Parameter:
| Specification | Unit | T-1340A |
| Max.swing over bed | mm | 330 |
| Max.swing over cross slide | mm | 198 |
| Max.swing in gap | mm | 450 |
| Distance between centers | mm | 1000 |
| Spindle nose |
| D4 |
| Spindle bore | mm | 38 |
| Spindle bore taper |
| M.T.#5 |
| Spindle speed | rpm | 70-2000(8steps) |
| Longitudinal feed range | mm/rev | 0.078-1.044 |
| Cross feed range | mm/rev | 0.22-0.298 |
| Metric threads | mm | 0.45-10 |
| Inch threads | TPI | 21/4-40 |
| Tailstock bore taper |
| M.T.#3 |
| Main motor | kw | 1.5 |
| Net weight/Gross weight | kg | 560/600 |
| Packing dimension | mm | 1940×760×1520 |
Standard accessories:
3 jaw chuck, 4 jaw chuck,
Face plate, steady rest,
Follow rest, oil gun,
Dead center,
Changing gears,
Reduction sleeve,
Chasing dial indicator
Optional accessories:
Coolant system, working light,
Foot brake system
Digital readout system (DRO),
Quick change tool post & holders,
Taper turning attachment
