7.5kW Spindle Motor Power Heavy-duty Metal Lathe/Universal Gap-bed Lathe 3500 KG Weight
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | FL-600B/C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,985.00/sets 1-2 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 400 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1500 | Range Of Spindle Speed(r.p.m): | 40 - 1400 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 330 |
| Type: | Horizontal | Spindle Motor Power(kW): | 7.5 |
| Voltage: | As Request | Dimension(L*W*H): | 2460x1150x1800mm |
| Weight (KG): | 3500 KG | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Automatic Grade: | Manual | After-sales Service: | Engineers Available To Service Machinery Overseas |
| Max. Swing Diameter: | 600mm | Weight: | 1800/2500kg |
| Power(W): | 7.5kw | Max. Swing Over Cross Slide: | 230mm |
| Bed Width: | 360mm | After-sales Service Provided: | Online Support |
| Name: | Gap Bed Lathe Machine | Condition: | New |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Showroom Location: | Canada, United States, Italy, Germany, Mexico, Spain, South Africa |
| Core Components: | Bearing, Pump, Gear, Motor | Spindle Bore(mm): | 80/52/65 |
| Max. Turned Length (mm): | 1500 Mm | Year: | 2020 |
Product Description

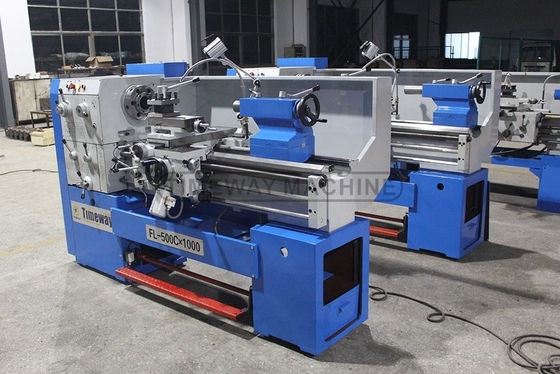

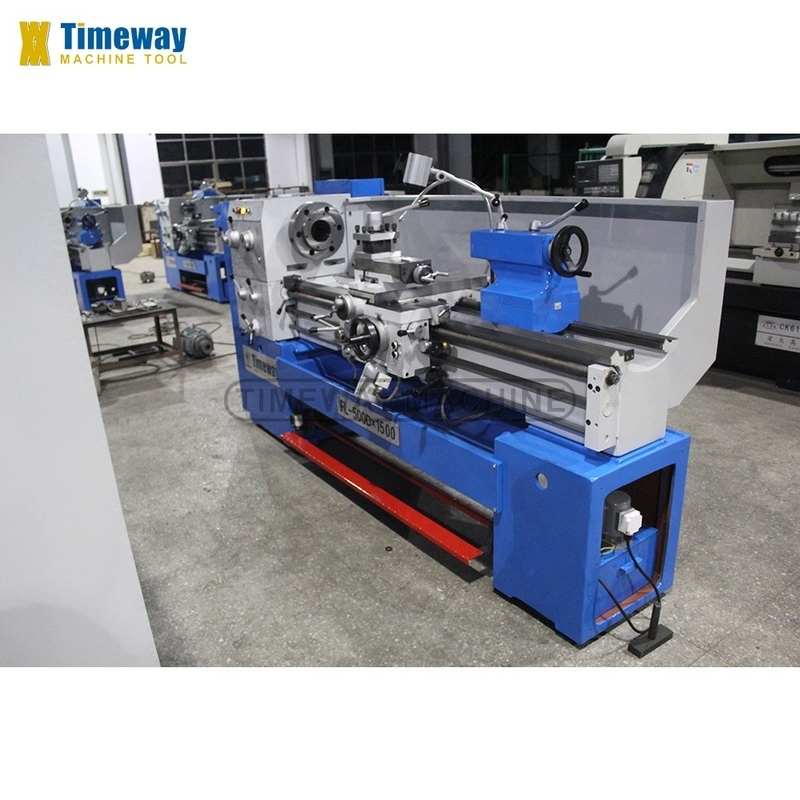

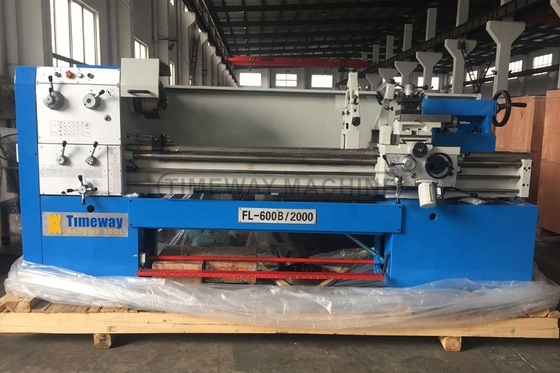

High Productivity Metal Lathe/Universal Gap-bed Lathe/Tornos (FL-500B/C,FL-600B/C)
Parameters:
| Model | FL-400A FL-400F | FL-500A FL-500F | FL-400B FL-400C | FL-450B FL-450C | FL-500B FL-500C | FL-600B FL-600C |
| Max. swing over bed | 400mm | 500mm | 400mm | 450mm | 500mm | 600mm |
| Max. swing over cross slide | 230mm | 330mm | 225mm | 285mm | 325mm | 360mm |
| Max. swing in gap | 560mm | 660mm | 530mm | 580mm | 630mm | 730mm |
| Center distance | 1000,1500mm | 1000,1500, 2000mm | ||||
| Bed width | 360mm | 330mm | ||||
| Spindle hole | 52mm | (B series: 65mm), 80mm | ||||
| Spindle nose | C6 | (B series: ISO-C6 or ISO-D6), ISO-C8 or ISO-D8 | ||||
| Spindle taper | Morse No. 6 | (B series: Metric 70mm), Metric 85mm | ||||
| Spindle speeds | [C series: 40-1400rpm (9 Steps) ], 16-1600rpm (12 Steps) | (B series: 22-1800rpm), 24-1600rpm (15 Steps) | ||||
| Metric threads range | [C series: 0.25-14mm (19 Steps) ], 0.25-7mm(17Kinds) | 0.5-28mm (66Kinds) | ||||
| Inch threads range | [C series: 2-40tpi ], 5-144tpi (30 Kinds) | 1-56tpi (66 Kinds) | ||||
| Module threads range | [C series: 0.5-3.5mm (11 Kinds) ], 0.25-3.5mm (12 Kinds) | 0.5-3.5mm (33 Kinds) | ||||
| Diametral threads range | [C series: ---], 10-288D.P (30 Kinds) | 8-56D.P (33 Kinds) | ||||
| Longitudinal feed range | --- | 0.072-4.038mm/rev | ||||
| Cross feed range | --- | 0.036-2.019mm/rev | ||||
| Longitudinal rapid travel | --- | 5m/min | ||||
| Max. travel of top slide | 95mm | 130mm | ||||
| Max. travel of cross slide | 180mm | 222mm | 300 | |||
| Max. size of tool (W x H) | 20 x 20mm | 25 x 20mm | 25 x 25mm | |||
| Tailstock sleeve diameter | 65mm | 75mm | ||||
| Tailstock sleeve taper | Morse No. 4 | Morse No. 5 | ||||
| Tailstock sleeve tavel | 140mm | 120mm | ||||
| Main motor | 4kw | 5.5kw | 7.5kw | |||
| Net weight/Gross weight | ||||||
| 1000mm | 1500/2150kg | 1600/2250kg | 1640/2250kg | 1680/2330kg | 1700/2350kg | 1800/2500kg |
| 1500mm | 1650/2300kg | 1750/2400kg | 1850/2250kg | 1890/2590kg | 1910/2610kg | 2010/2760kg |
| 2000mm |
|
| 2090/2860kg | 2130/2880kg | 2150/2920kg | 2250/3070kg |
| PACKING SIZE(LxWxH) | ||||||
| 1000mm | 2470x1150x1590mm | 2460x1150x1800mm | ||||
| 1500mm | 2970x1150x1590mm | 2950x1150x1800mm | ||||
| 2000mm |
| 3460x1150x1800mm | ||||
Standard accessories:
3 jaw chuck, changing gears, Dead center, Reduction sleeve, Oil gun, Coolant system, Working light.
Optional accessories:
4 jaw chuck, Face plate, Steady rest, Follow rest, Chasing dial indicator, Liver center.
Details image:

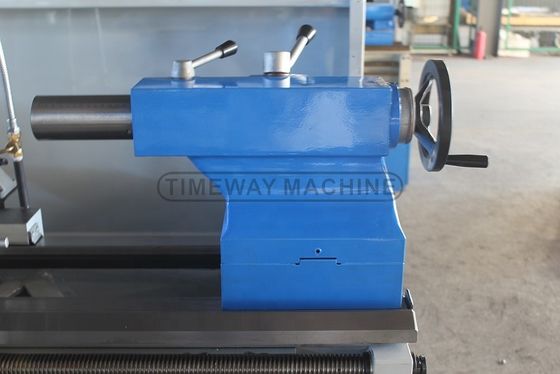

| The tailstock:
To support the long diameter workpiece, then to ensure the processing precision.
|
| The DRO:
According to the customers' needs, 2 axis or 3 axis can be sellected. | |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
