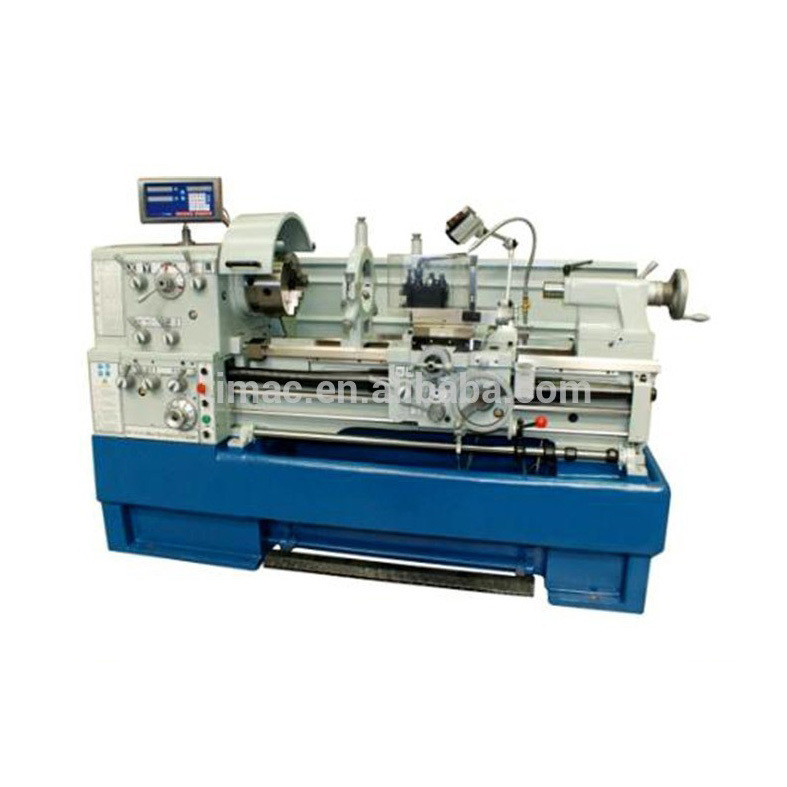

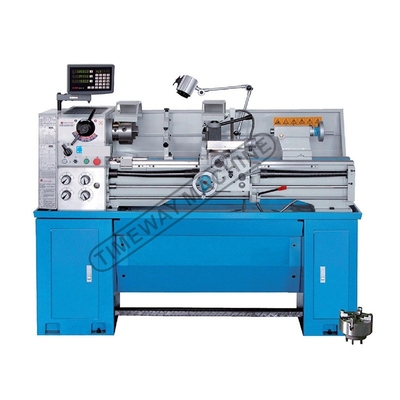

460mm Max. Swing Diameter High Precision Industrial Lathe for Normal CNC Manufacturing
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | T-1640,T-1660,,T-1840,T-1860 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,900.00/sets 1-2 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1500 | Range Of Spindle Speed(r.p.m): | 25 - 2000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 300 |
| Type: | Horizontal | Spindle Motor Power(kW): | 4 |
| Voltage: | 220/380V | Dimension(L*W*H): | 800x1120x1700mm |
| Weight (KG): | 2020 KG | Warranty: | 1 Year, 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Automatic Grade: | Manual | After-sales Service Provided: | Online Support |
| High Precision Industrial Lathe: | High Precision Industrial Lathe | Max. Swing Diameter: | 460mm |
| Power: | 4/5.5kw | Distance Between Centers: | 1500mm |
| Max. Swing Over Bed: | 400mm | Spindle Bore: | 58mm |
| Condition: | New | Spindle Bore(mm): | 58 |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | France, Indonesia, Russia, South Africa, Malaysia, Australia |
| Core Components: | Bearing, Gear, Motor, Gearbox, Other | Max. Turned Length (mm): | 1500 Mm |
| Port: | China Port | ||
Product Description
High precision industrial lathe
Features:
1. Precision ground and supersonic frequency hardened bed ways is designed in double wall structure, giving superb rigidity
2. The spindle system is high in rigidity and accuracy
3. The design of the main drive is optimized and the gears in the headstock are precision ground.
4. The noise of the machine is low.
5. There is no need for change gears.
6. The machine can turn about 200 kinds of metric, whitworth, module and D.P. threads.
7. An automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece, which is safe and reliable.
8. A pedal braking device providing quick and effective stop while operating.
| Model | T-1640, T-1660 | T-1840, T-1860 |
| Swing Over Bed | 400mm(16") | 460mm(18") |
| Swing Over Cross Slide | 224mm(8-13/16") | 274mm(10-3/4") |
| Swing In Gap | 640mm(25-1/8") | 690 mm(27-1/8") |
| Length Of Gap | 155mm(6-1/8") | |
| Max. Length Of Workpiece | 1000mm(40") , 1500mm(60") | 1000mm(40"), 1500mm(60") |
| Bed Width | 300mm(11-13/16") | |
| Spindle Nose | D1-6 | |
| Spindle Bore | 58mm(2-1/4") | |
| Taper Of Spindle Bore | NO.6Morse | |
| Range Of Spindle Speed | 12steps 25-2000r/min | |
| Max.Travel Of Compound Rest | 120mm(4-3/4") | |
| Max.Travel Of Cross Slide | 290mm(11-3/8") | |
| Leadscrew Pitch | 4T.P.I. | |
| Max. Section Of Tool | 25mm×25mm(1×1") | |
| Longitudinal Feeds Range | 42kinds 0.031-1.7mm/rev, (0.0011"-0.0633"/rev) | |
| Cross Feeds Range | 42kinds 0.014-0.784mm/rev, (0.00033"-0.01837"/rev) | |
| Metric Threads Range | 41kinds 0.1-14mm | |
| Inch Threads Range | 60kinds 2-112T.P.I. | |
| Diametrical Pitches Range | 50kinds 4-112D.P. | |
| Module Pitches Range | 34kinds 0.1-7M.P. | |
| Dia. Of Tailstock Sleeve | 60mm(2-5/16") | |
| Travel Of Tailstock Sleeve | 120mm (4-3/4") | |
| Morse Taper Of Tailstock Sleeve | NO.4 Morse | |
| Power Of Main Motor | 4kw(5.4HP),optional 5.5kw(7.5HP)3PH | |
| Power Of Coolant Pump | 0.1kw(1/8HP).3PH | |
| Net Weight/Gross Weight | 1670/1980kg, 1970/2320kg | 1720/2045kg, 2020/2358 kg |
| Overall Dimension ( L× W × H)mm | 2170, 2720×1040×1340 | 2250, 2720×1120×1700 |
| Packing Size ( L× W × H)mm | 2250, 2800×1120×1700 | 2250, 2800×1120×1700 |
Standard Accessories:
3 Jaw Chuck, 4 Jaw Chuck Face Plate, Steady Rest, Follow Rest, Change Gears Set, Work Light, Chasing Dial Indicator, Reduction Sleeve, Dead Centers, Full Length Splash Guard, Coolant System, Brake System, Tool Box & Tools
Optional Accessories:
Taper Turning Attachment, Live Center, Leadscrew Guard, Digital Readout, Quick Change Tool Post, Chuck Guard, Digital Readout (2 Axis), Drill Chuck+Arbor
