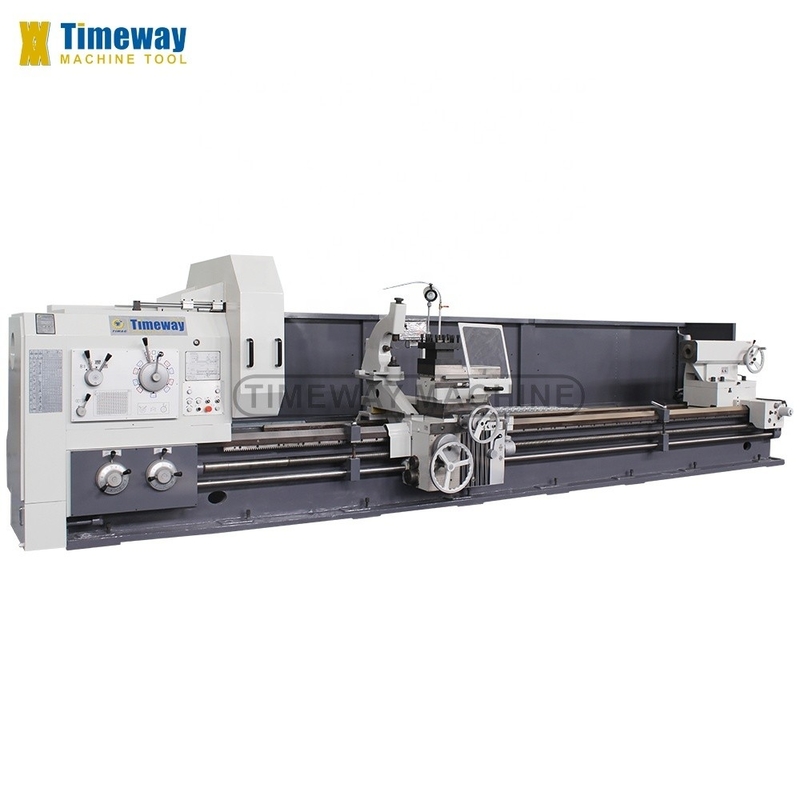

865mm Swing 6 tons precision Horizontal Lathe for Heavy-duty Work and Large Workpieces
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE, ISO |
| Model Number: | AL-1000B, AL-1250B, AL-1400B, AL-1600B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $60,000.00/sets 1-2 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 5000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 755 |
| Type: | Horizontal | Spindle Motor Power(kW): | 22 |
| Voltage: | 220V ~ 460V | Dimension(L*W*H): | As Machine Model |
| Weight (KG): | 12500 KG | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Marketing Type: | Hot Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Working Accuracy Grade: | IT6 |
| Roughness: | Ra1.6um | Chuck: | 4-jaw Independent Chuck |
| Chuck Size: | 1000 Mm | Swing Diameter Over Bed: | 1250 Mm |
| Swing Diameter Over Cross Slide: | 865 Mm | Max Weight Of Workpiece: | 6 Tons (OPT. :8tons) |
| Cross Travel: | 580 Mm | Longitudinal Travel: | 3000 Mm |
| Condition: | New | Spindle Bore(mm): | 130 |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Showroom Location: | Canada, United States, Italy, France, Germany, Mexico, Russia, Spain, South Africa, Australia |
| Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Pressure Vessel | Max. Turned Length (mm): | 4800 Mm |
| Year: | 2020 | Port: | China Port |
Product Description
| Parallel Metal Lathe Heavy Duty Horizontal Lathe |
| Technical Parameter |
| Specification | Unit | AL-1000B | AL-1250B | AL-1400B | AL-1600B |
| Max. swing over bed | mm | 1000 | 1250 | 1400 | 1640 |
| Max. swing over cross slide | mm | 615 | 865 | 1015 | 1250 |
| Distance between centers | mm | 1500/2000/3000/4000/5000/6000/8000/10000/12000/- | |||
| Max. turning length | mm | 1300/1800/2800/3800/4800/5800/7800/9800/11800/- | |||
| Bed width | mm | 755 | 755 | 755 | 755 |
| Loading capacity | kg | 6000 (opt: 8000) | 6000 (opt: 8000) | 6000 (opt: 8000) | 6000 (opt: 8000) |
| Spindle nose | - | A2-15 | A2-15 | A2-15 | A2-15 |
| Spindle bore | mm | 130 | 130 | 130 | 130 |
| Spindle taper | - | Metric 140 | Metric 140 | Metric 140 | Metric 140 |
| Spindle speed range | rpm | Forward: 3.15-315, CW: 3.5-291 | |||
| Spindle speed step | steps | Forward: 21, Reverse: 12 | |||
| X/Z-axis feed kinds | kinds | 56/56 | 56/56 | 56/56 | 56/56 |
| Feed range | mm | Longitudinal: 0.1-12; Cross: 0.05-6; Top tool-post: 0.025-3 | |||
| Metric threads range (kinds) | mm | 1-120 (44) | 1-120 (44) | 1-120 (44) | 1-120 (44) |
| Inch threads range (kinds) | TPI | 28-1/4 (31) | 28-1/4 (31) | 28-1/4 (31) | 28-1/4 (31) |
| Module threads range (kinds) | MP | 0.5-60 (45) | 0.5-60 (45) | 0.5-60 (45) | 0.5-60 (45) |
| Diametrical threads range (kinds) | DP | 1/2-56 (38) | 1/2-56 (38) | 1/2-56 (38) | 1/2-56 (38) |
| Distance spindle center to tool base | mm | 48 | 48 | 48 | 48 |
| Tool post swivel angle | ° | ±90° | ±90° | ±90° | ±90° |
| Cross slide travel | mm | 520 | 580 | 580 | 630 |
| Top slide travel | mm | 300 | 300 | 300 | 300 |
| Tool section size | mm | 45x45 | 45x45 | 45x45 | 45x45 |
| Rapid feed speed | mm/min | Longitudinal: 3740; Cross: 1870; Top tool-post: 935 | |||
| Tailstock quill diameter | mm | 160 | 160 | 160 | 160 |
| Tailstock quill travel | mm | 300 | 300 | 300 | 300 |
| Tailstock quill taper | - | MT6 | MT6 | MT6 | MT6 |
| Main motor power | kw | 22 | 22 | 22 | 22 |
| Machine length | mm | 4600/5100/6100/7100/8100/9100/11100/13100/15100/- | |||
| Machine width | mm | 2150 | 2150 | 2150 | 2150 |
| Machine height | mm | 1700 | 1825 | 1950 | 2150 |
| Standard accessories:
| Optional accessaries: |
|
|
|
| Features |
Horizontal lathe is suitable for processing large and medium-sized parts of castings, steels and non-ferrous metals. It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn metric various internal and external threads, such as inch, modulus and diameter.
1.High rigidity overall bed with 755mm bed span, which ensures the machine has strong stability and high precision, and bed loading capacity to 6000kg.
2.Spindle standard through the hole for the 130mm large hole, and adopt A2-15 spindle nose connection type, runout accuracy of spindle is better.
3.The machine tool can be used to cut the short conical surface of the motor by the top tool post, and the long conical surface can be turned by the top tool post and the longitudinal feed.
4.High power, high rigidity and wide speed range for high speed and powerful cutting, speed range of 3.15-315rpm with 33 speeds.
5.According to machining need, customers can choose electric moving tailstock, reduce operator labor intensity and improve work efficiency.
1. Bed with high rigidity.
The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. In the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.
2.High rigidity and high precision spindle.
The machine tool spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-way angular contact ball bearing. Improve accuracy and increase rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term operation.
3.spindle-box of heat-symmetrical structure to avoid spindle axis drifting .
| Machine details |
| Spindle box with 33steps spindle speed | Standard 4-jaw independent chuck |
| | |
| Carriage with PTFE rails | Optional electric moving tailstock |
| |
| Diameter 130mm spindle through hole | 22kw big power main motor |
| |
| CE standard electrical cabiner | Optional 2/3-axis DRO |
| |

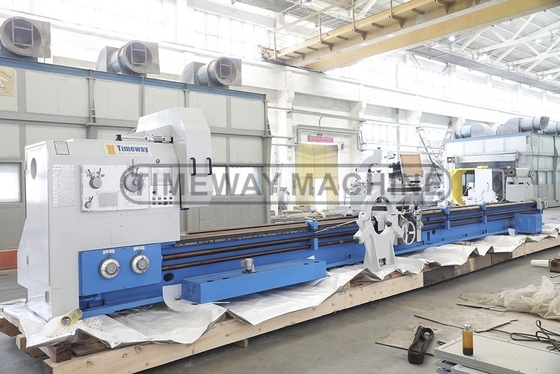

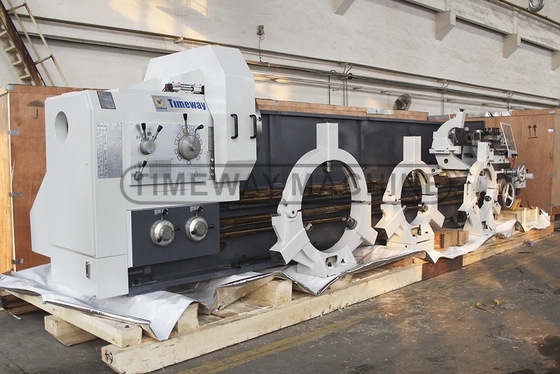

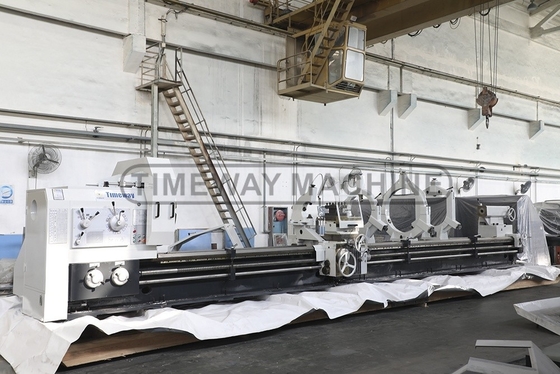

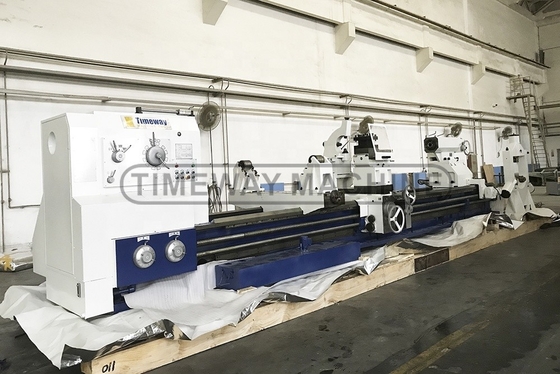

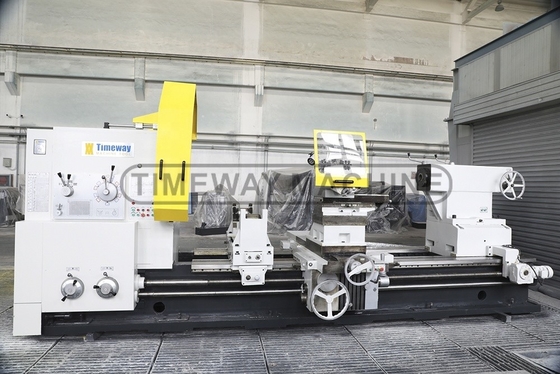

| Finished machine for the shipment |
| AL-1250Bx5000 |
|
| Al-1250Bx8000 |
| |
| Al-1600Bx10000 |
| |
| AL-1600Bx6000 |
|
| AL-1000Bx3000 |
|
