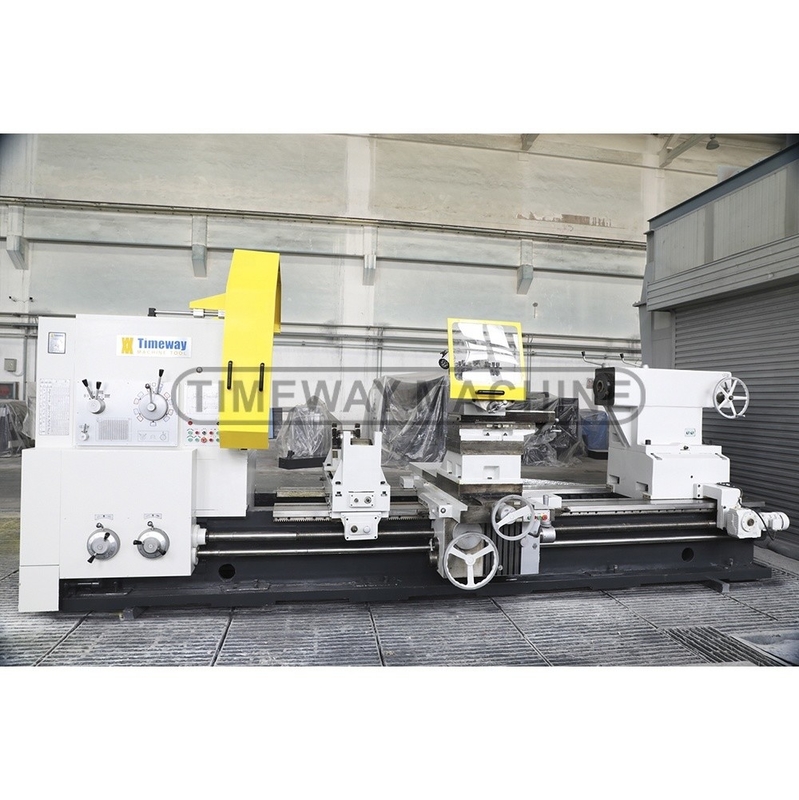

Lathe Speed 3.15-315 21 Heavy Duty Parallel Lathe Machine 2000mm for Torno Paralelo
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | AL-2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $80,000.00/sets 1-2 sets |
| Packaging Details: | wooden case or plywood case |
| Supply Ability: | 50 Set/Sets per Month . |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 1100 |
| Type: | Horizontal | Spindle Motor Power(kW): | 30 |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 6120x2430x2580 Mm |
| Weight (KG): | 15000 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Turning Diameter: | 2000 Mm |
| Max. Turning Diameter Of The Bar: | 1650mm | Max. Weight Of Workpiece: | 16 Or 20 Tons |
| Lathe Speed: | 3.15-315 (21); 3.5-291 (12) | X-axis Travel: | 900mm |
| Top Slide Travel: | 360mm | Tailstock Sleeve Diameter: | 260mm |
| Tailstock Sleeve Travel: | 300mm | Guideway Type: | Width 1100mm Rectangular Rails |
| After-sales Service Provided: | Online Support | Condition: | New |
| Spindle Bore(mm): | 100 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Brazil, Peru, Russia, South Africa | Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Pressure Vessel |
| Max. Turned Length (mm): | 2800 Mm | Year: | 2020 |
| Port: | China Port | ||
Product Description

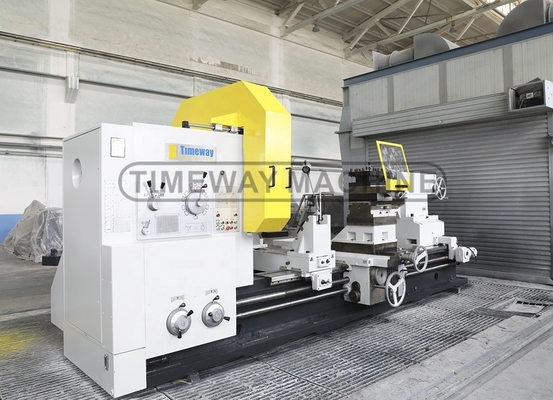

Horizontal Lathes Machine Heavy Duty Parallel Lathe Machine
♦♦♦ AL-1250
♦♦♦♦ AL-1600
♦♦♦♦♦ AL-1800
♦♦♦♦♦♦ AL-2000
Heavy-duty parallel Lathe Machines are suitable for various turning works, such as turning of external and internal cylindrical surfaces, end faces and turning of metric or inch threads, module threads and diametrical pitch threads, ect.
Motorized short taper turning could be done by the top slide independently, and long taper’s motorized turning could be done by top slide combined with longitudinal feed.
Features:
1. These heavy duty parallel lathe adopt 1100mm wide rectangular induction hardened and ground bed guide-ways, so of excellent stability, high rigidity and with maximum bearing of 16 tons between centers.
2. The main spindle is of precision roller bearings three-point supporting structure, make sure the high accuracy for the runout of the parallel lathe.
3. Saddle guideways with teflon belt coated, rotating tailstock quill structure to minimize friction and heat generation.
Main technical specifications:
| Specification | Unit | AL-1250 | AL-1600 | AL-1800 | AL-2000 | ||
| Capacities | Swing over bed | mm | 1250 | 1600 | 1800 | 2000 | |
| Swing over carriage | mm | 900 | 1250 | 1280 | 1650 | ||
| Max. length of workpiece | mm | 3000 ~ 20000 | |||||
| Max. turning length | mm | 2800 ~ 19800 | |||||
| Span of guideway | mm | 1100 | |||||
| Spindle | Spindle nose code | mm | A2-15 | ||||
| Spindle thru bole | mm | 100 | |||||
| Taper hole of spindle | - | metric 140 | |||||
| Number of forward turning speeds | kinds | 21kinds | |||||
| Number of reverse turning speeds | kinds | 12kinds | |||||
| Spindle speed | Forward | r/min | 3.15~315 | ||||
| Reverse | r/min | 3.5~291 | |||||
| Feed motion | Number of feeds per revolution(longitudinal/transverse) | kinds | 56/56kinds | ||||
| Feed per revolution | Longitudinal | mm/r | 0.1~12(0.004"~0.473") | ||||
| Transverse | mm/r | 0.05~6(0.002"~0.236') | |||||
| Upper tool-post | mm/r | 0.025~3(0.001''~0.118") | |||||
| Number and range of metric thread | mm | 44;1~120mm | |||||
| Number and range of inch thread | TPI | 31; 28~1/4" | |||||
| Number and range of module thread | mm | 45;0.5~60mm | |||||
| Number and range of diametrical pitch thread | DP | 38;1/2~56DP | |||||
| Tool post | Distance between spindle centerline and tool resting plane | mm | 53 | ||||
| Section of tool shank | mm | 50 | |||||
| Tool post swing range | ° | ±90° | |||||
| Max. travel of top slide | mm | 380 | |||||
| Max. travel of cross slide | mm | 740(29") | 850(33'') | 850 | 850(33") | ||
| Tool post travel per turn of the slide of top or cross slide | mm | 0.05(0.002") | |||||
| Rapid travel speed | Longitudinal | mm/min | 3740 | ||||
| Transverse | mm/min | 1870 | |||||
| Top slide | mm/min | 935 | |||||
| Tailstock | Diameter of tailstock quill | mm | 200(8'') | ||||
| Travel of tailstock quill | mm | 300(12") | |||||
| Taper hole of tailstock quill |
| Morse 6 | |||||
| Machine overall dimension | Height | mm | 2120 | 2670 | 2770 | 2870 | |
| Width | mm | 2360 | |||||
| Max. weight of workpiece | kg | 15000 (AL-2000x3M) | |||||

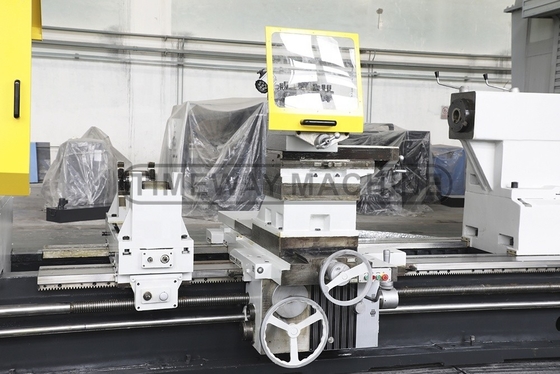

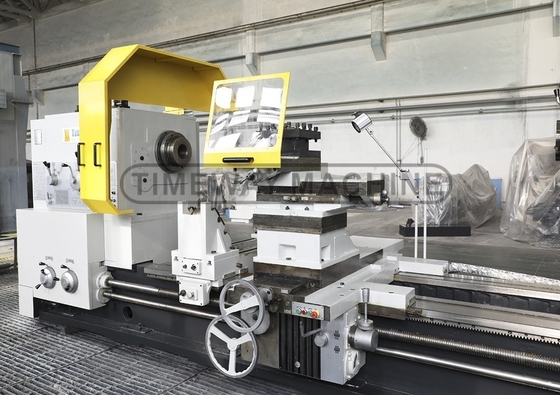

| Spindle box & Carriage:
The spindle nose of parallel lathe is A2-15, standard equipped with 4-jaw chuck diameter 1600mm.
Parallel lathe machine can get 33steps spindle speed through gear-changes, make sure various kinds of processing requiremnt.
The lathe carriage can realize automatic cutting and rapid feed on the cross, longitudinal direction, and finish mechanical feeding for the top tool-post.
|

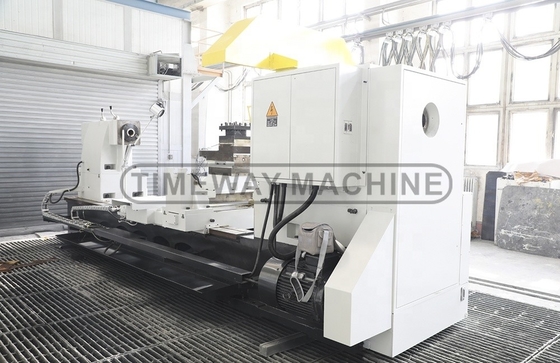

| Electric cabinet:
The electric cabinet is installed on the back of the parallel, it is beautiful and convenient to transport.
The electric cabinet is conform to CE standard, all electrical components adopt famous-brand, the clients also choose brand you like.

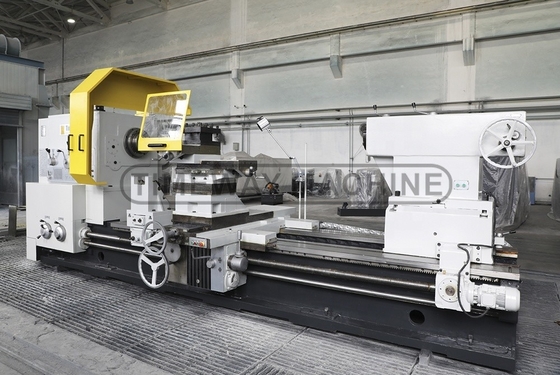

| |
| | Electric moving tailstock:
The heavy duty parallel lathe standard is equipped with electric moving tailstock, reduce the labor intensity of the operators. |
| Steady rest:
As a standard configuration, the steady rest meet cutting thin and long bar, to guarantee machining accuacy. | |
| | Roller support:
The roller suppport is used for loading heavy and large parts, increase loading capacity up to 20tons of the parallel lathe. |
