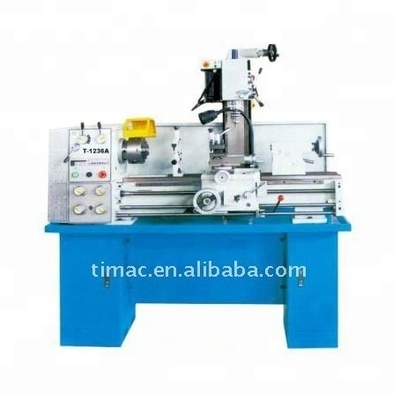

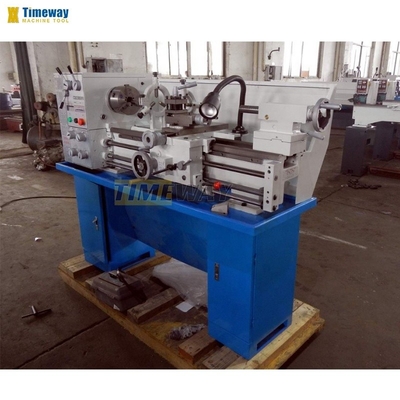

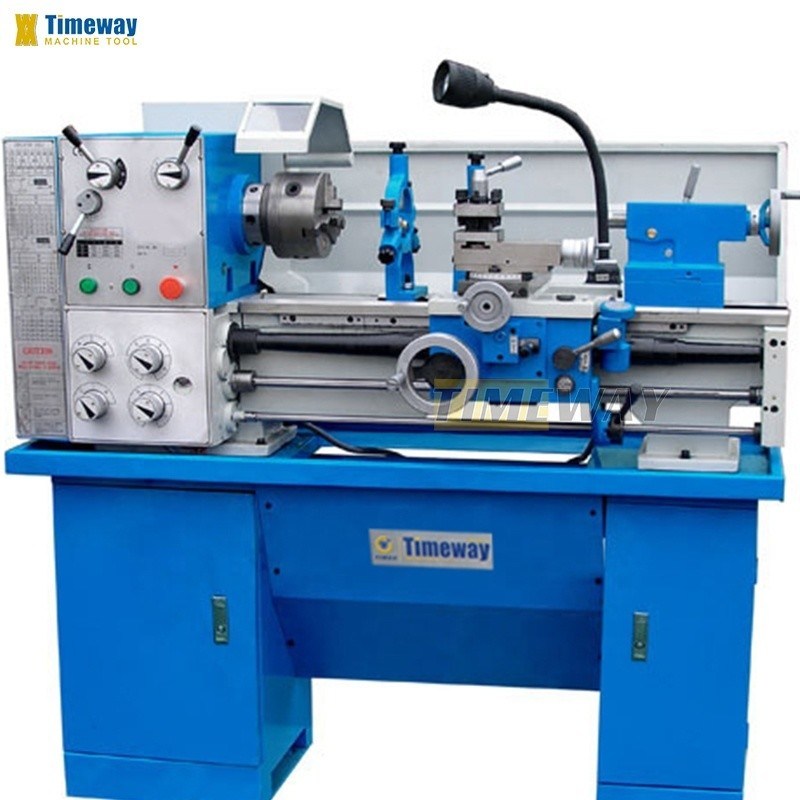

Light Processing Capacity Precision Manual Lathe for Multi-Functional Turning 1.5 KW
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC, TIMEWAY |
| Model Number: | T-1236A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10,000.00/sets 1-2 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 910 | Range Of Spindle Speed(r.p.m): | 65 - 1400 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Width Of Bed (mm): | 430 |
| Type: | Horizontal | Spindle Motor Power(kW): | 1.5 |
| Voltage: | As Request | Dimension(L*W*H): | 1680x750x1420 Mm |
| Weight (KG): | 620 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Automatic Grade: | Manual | CNC Or Not: | Normal |
| Machine Tool: | Engine Lathe With Milling Machine | Max. Swing Diameter: | 300 Mm |
| Weight: | As Model | Power: | 1.5 KW |
| Spindle Bore: | 38 Mm | Processing Capacity: | Light |
| Max. Workpiece Length: | 910 Mm | Condition: | New |
| Spindle Bore(mm): | 38 | Showroom Location: | Canada, Turkey, Italy, Brazil, Kenya, UAE, Romania, Uzbekistan, Malaysia |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Engine, Other |
| Max. Turned Length (mm): | 910 Mm | Year: | 2022 |
| Port: | China Port | ||
Product Description
Products Description
* Widely used in general machinery manufacturing, production, single - piece manufacturing and other fields.
* Easy, stable and precisely adjustable speed and feed settings.
* The lathe bed is made of one piece, it is buckling resistant and vibration-free which enables precise turning.

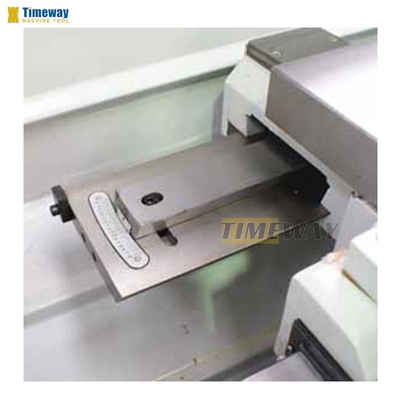

* Adjustable tailstock with fine scale for taper turning
* Easy, stable and precisely adjustable speed and feed settings.
* The lathe bed is made of one piece, it is buckling resistant and vibration-free which enables precise turning.
* Adjustable tailstock with fine scale for taper turning
Specification | T-1236A |
Swing over bed | 300 mm |
Swing over cross slide | 180 mm |
Max.swing over gap | 430 mm |
Distance between centers | 910 mm |
Spindle bore | 38 mm |
Taper of spindle bore | MT5 |
Range of spindle speed | 65-1400 rpm |
Range of longitudinal feeds | 0.017-1.291 mm/rev |
Range of cross feeds | 0.017-0.276 mm/rev |
Range of metric threads | 0.4-7 mm |
Range of inch threads | 4-60 T.P.I. |
Max.travel of tailstock quill | 100 mm |
Taper of tailstock bore | MT3 |
Motor power | 1.1/1.5kw |
Packing size(LxWxH) | 1850x750x1400 cm |
Net weight | 540kg/620kg |
· 3 jaw chuck · 4 jaw chuck · Dead center · Face plate · Steady rest · Follow rest · Reduction sleeve · Oil gun · Coolant system · Working light · Chasing dial indicator | · Quick change tool post · 2/3 axis DRO · Living center · Taper turning attachment · Chuck guard · Leadscrew guard · Tool post guard |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
