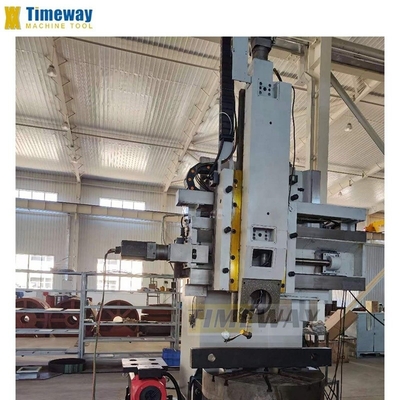

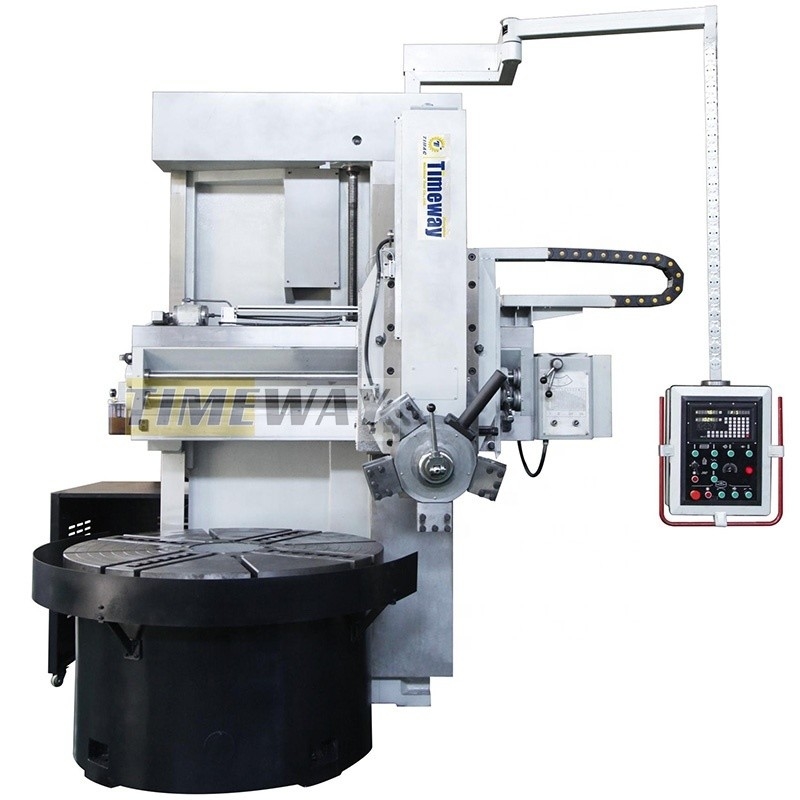

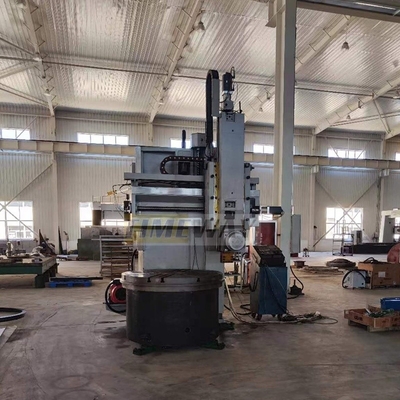

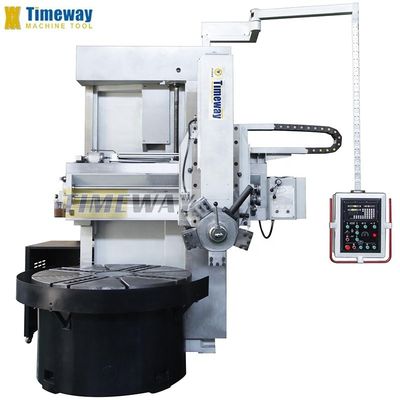

VL1250 Vertical Turning Lathe with High Productivity Max. Turned Length mm 1010 mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | VL1250E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $75,000.00/sets 1-1 sets |
| Packaging Details: | wooden cases |
| Supply Ability: | 300 Set/Sets per Month . |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1250 Mm | Range Of Spindle Speed(r.p.m): | 6.3 - 2000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | VERTICAL |
| Spindle Motor Power(kW): | 22 Kw | Voltage: | 220/380V |
| Dimension(L*W*H): | 2360x2300x3580 Mm | Weight (KG): | 8300 KG |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | Vertical Lathe | Keyword: | Vertical |
| Model: | VL1250 | CNC Or Not: | Normal |
| Max. Turning Diameter: | 1250 Mm | Max. Weight Of Workpiece: | 5000 Kg |
| Worktable Diameterv: | 1010 Mm | Worktable Speed Range/steps: | 6.3-200 Rpm(16steps) |
| Max. Cutting Force Of Vertical Tool-post: | 20 KN | Tool-post Rapid Feed Speed: | 1800 Mm/min |
| Condition: | New | Spindle Bore(mm): | 105 |
| Showroom Location: | Egypt, Canada, Turkey, Italy, Philippines, Brazil, Peru, Indonesia, Russia, Thailand | Max. Turned Length (mm): | 1010 Mm |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Other | Core Components: | Bearing, PLC, Other |
| Port: | China Port | ||
Product Description
Products Description
Specifications | Units | VL1250E | VL1600E | VL2000E | VL2300E |
Max. turning diameter | mm | 1250 | 1600 | 2000 | 2300 |
Max. height of workpiece | mm | 1000/1250 /1400 | 1000/1250/ 1400/1600 | 1250/1600 | 1250/1600 |
Max. weight of workpiece | kg | 5000 | 8000 | 12000 | 12000 |
Worktable diameter | mm | 1010 | 1400 | 1800 | 2000 |
Max. cutting force of vertical tool-post | KN | 20 | 25 | 25 | 25 |
Max. cutting force of side tool-post | KN | 20 | 20 | 20 | 20 |
Max. torque of worktable | KN.m | 17.5 | 25 | 32 | 32 |
Worktable speed range/steps | rpm | 6.3-200 (16) | 5-160 (16) | 4-125 (16) | 3.2-100 (16) |
Vertical tool-post feed speed | mm/min | 0.8-86 (12) | 0.8-86 (12) | 0.8-86 (12) | 0.8-86 (12) |
Tool-post rapid feed speed | mm/min | 1800 | 1800 | 1800 | 1800 |
Vertical tool-post swivel angle | ° | ±30° | ±30° | ±30° | ±30° |
Vertical tool-post cross travel | mm | -28-733 | -15-930 | -65-1150 | -86-1300 |
Vertical tool post vertical travel | mm | 650/800 | 800/1000 | 800/1000 | 800/1000 |
Side tool-post cross travel | mm | 630 | 630 | 630 | 630 |
Side tool-post vertical travel | mm | 900 | 900 | 900 | 900 |
Main motor power | kw | 22 | 30 | 37 | 37 |
Machine dimensions (LxWxH) | cm | 236x230x358 | 283x287x387 | 321x297x420 | 370x339x424 |
Machine weight | t | 8.3/8.6/8.9 | 12.6/13.8/14.1 | 17.5/17.8 | 18.8/19.5 |
▪ Operating panel ▪ Manual pentagon tool post▪ Tool holder (1pc) ▪ Boring tool holder (1pc) ▪ Chuck jaws (4pcs) ▪ Hydraulic system ▪ Work lamp ▪ Lubrication system ▪ General tools ▪ Foundation bolts & leveling pads ▪ operation manual (English) | ▪ Side tool post ▪ 2-axes DRO |
