Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | T-1440W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Type: | Horizontal | Voltage: | 380v 50hz |
| Dimension(L*W*H): | 1940x760x1520mm | Weight (KG): | 1200 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Color: | Customized Option |
| Max. Workpiece Length: | 1000mm | Processing Capacity: | Medium |
| Spindle Bore: | 40mm | Spindle Taper: | MT5# |
| Spindle Speed: | 40-1800rpm(12steps) | Max. Swing Diameter: | 356mm |
| Weight: | 1200kg | Power: | 1.5/2.4kw |
| Condition: | New | Spindle Bore(mm): | 40 |
| Showroom Location: | Italy, Philippines, Peru, Indonesia, Mexico, Thailand, South Africa | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Core Components: | Gear, Motor, Engine, Other | Max. Turned Length (mm): | 1000 Mm |
| Port: | China Port | ||
Product Description

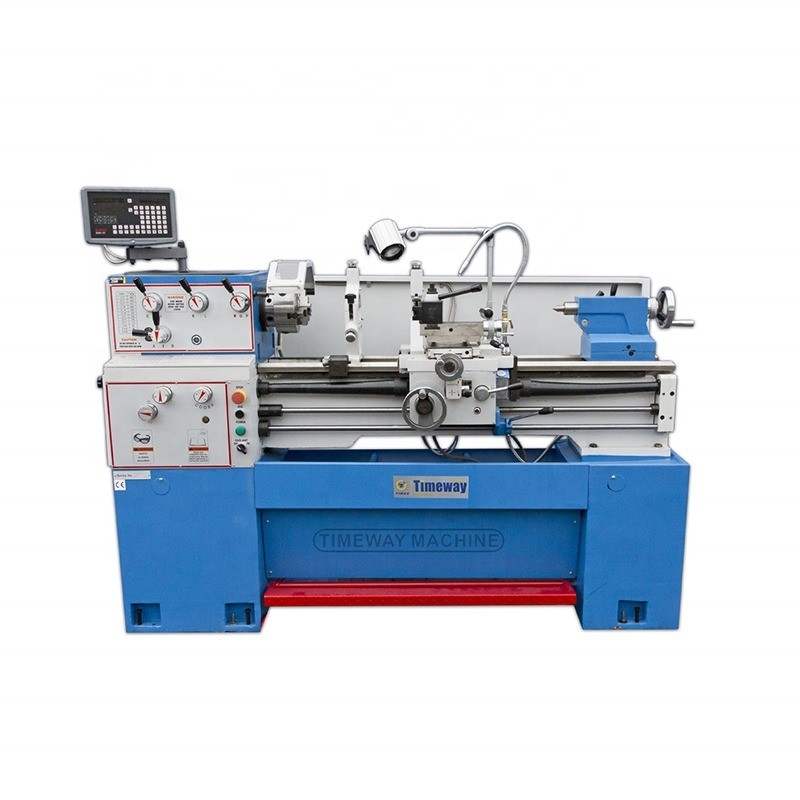

Universal Mechanical Precision Lathe
Feature:
| Universal Mechanical Precision Lathe |
| 1) Precision ground and supersonic frequency hardened bed ways. |
| 2) The spindle is supported with precision roller bearing. |
| 3) Headstock gears are made of high quality steel, ground and hardened |
| 4) Removable gap is provided for larger diameter work |
| 5) Easy operating gear box has various feeds and thread cutting function |
Parameter:
| Specification | Unit | T- 1236A | T- 1340A | T- 1440A | T- 1340B | T- 1440B | T- 1440W | |
| *Capacity | Center height | mm | 150 | 165 | 178 | 150 | 178 | 178 |
| Max.swing over bed | mm | 300 | 330 | 356 | 300 | 356 | 356 | |
| Max.swing over cross slide | mm | 180 | 198 | 224 | 198 | 220 | 210 | |
| Max.swing in gap | mm | 430 | 450 | 476 | 476 | 506 | 508 | |
| Distance between centers | mm | 910 | 1000 | |||||
|
| ||||||||
| *Spindle | Spindle nose |
| D4 | |||||
| Spindle bore | mm | 38 | 40 | |||||
| Spindle bore taper |
| M.T.#5 | ||||||
| Spindle speed | rpm | 65-1810 (8 steps) | 70-2000 (8 steps) | 45-1800 (16steps) | 40-1800 (12 steps) | |||
| *Feed | Longitudinal feed range | mm/rev | 0.079-1.291 | 0.078-1.044 | 0.067-1.019 | 0.043-0.653 | ||
| Cross feed range | mm/rev | 0.017-0.276 | 0.22-0.298 | 0.018-0.275 | 0.015-0.220 | |||
| *Threads | Metric threads | mm | 0.4-7 | 0.45-10 | 0.45-10 | 0.4-7 | ||
| Inch threads | T.P.I | 4-60 | 21/4-40 | 31/2-80 | 4-112 | |||
| *Tailstock | Tailstock bore taper |
| M.T.#3 | |||||
| *Other | Main motor | kw | 1.5 | 1.5/2.4 | ||||
| Net weight/Gross weight | kg | 540/590 | 560/600 | 580/620 | 495/595 | 750/880 | 1200/1300 | |
| Packing dimension | mm | 1680x750x1420 | 1940×760×1520 | |||||

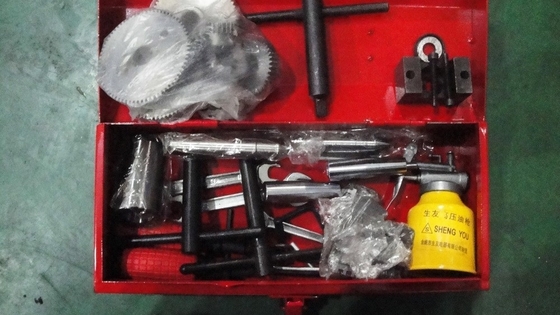

***Standard accessories:
3 jaw chuck, changing gears, dead center, reduction sleeve, oil gun, coolant system, working light,
4 jaw chuck, face plate, steady rest, follow rest, chasing dial indicator.
***Optional accessories:

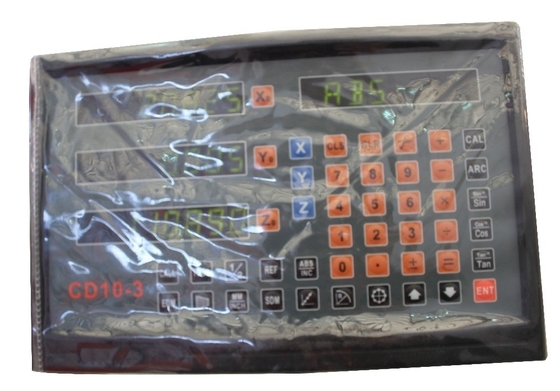

Digital readout system (DRO), quick change tool post & holders, taper turning attachment
OEM Program: Brand & Logo, Color & Vlotage can be appointed by you.
Delivery time: 30 days or so.
Packing : In wooden cases (Can be fumigated )
Payment terms: T/T with 30% down payment.
Warranty period: 1 year after delivery.
