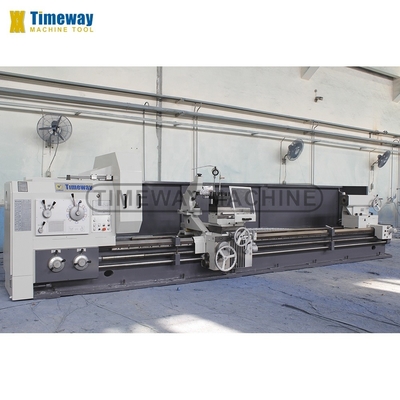

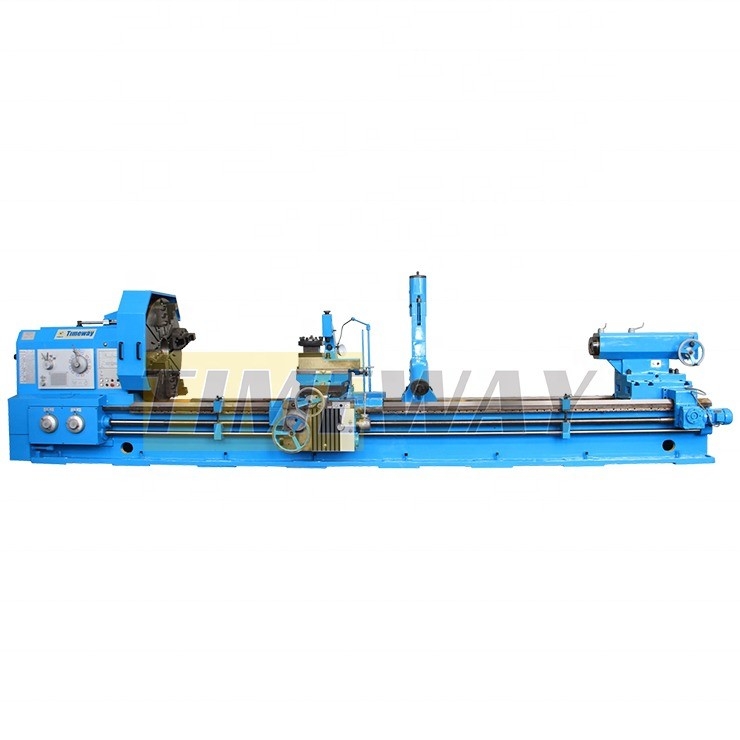

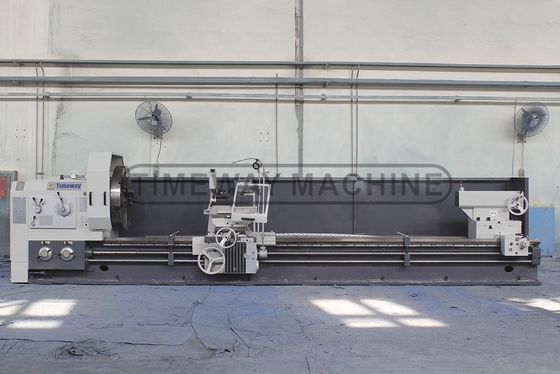

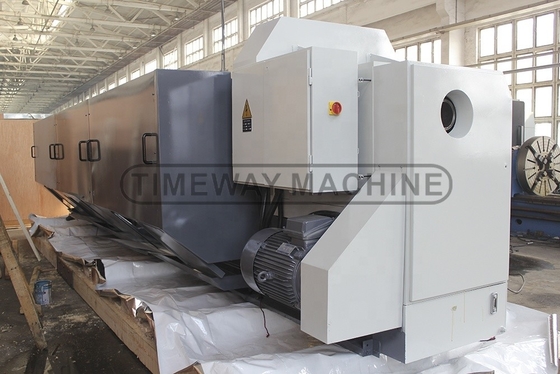

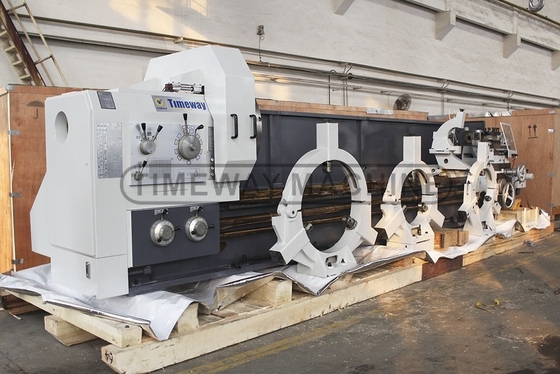

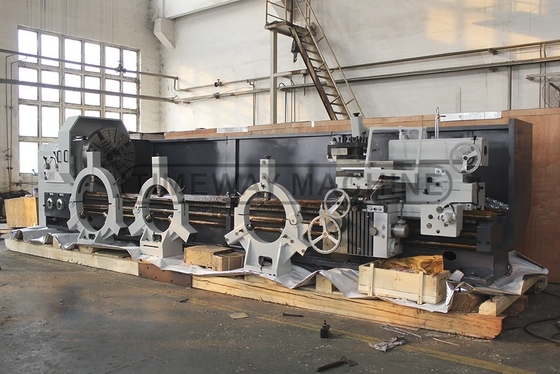

High Precision Heavy Duty Semi-Automatic Tornos For Machinery Turning Working Accuracy IT6
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | AL-1250Bx5M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $60,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 5000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 755 |
| Type: | Horizontal | Voltage: | 220V~460V |
| Dimension(L*W*H): | 8100x2150x1825 Mm | Weight (KG): | 14000 KG |
| Warranty: | 1 Year | Key Selling Points: | High Rigidity |
| Marketing Type: | Hot Product 2021 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 6000 | Spindle Taper: | Metric 140 |
| Cutting Torque: | 0 N.m | Rapid Feed Speed(mm/min): | 0 - 3740 Mm/min |
| Feed Speed(mm/min): | 0 - 1870 Mm/min | Tool Post Stations: | 8, 4, 6, 12 |
| Working Accuracy: | IT6 | Surface Roughness: | Ra1.6um |
| Gap Of Connection Surfaces: | Less Than 0.04mm | Tornos Level: | Less Than 0.04/1000mm |
| Max. Swing Over Bed: | 1250mm | Max. Swing Over Cross Slide: | 865mm |
| Load Bearing: | 6000kg | Longitudinal Rapid Feed Speed: | 3740mm/min |
| Cross Rapid Feed Speed: | 1870mm/min | Top Tool-post Rapid Feed Speed: | 935mm/min |
Product Description
Products Description
Introduction:
We, " Timeway Machine " offer wide range series of heavy duty tornos, starting from 150mm up to 1000mm Centre Height, and distance between centres from 750mm up to 6000mm.
For the heavy duty type tornos, there is a delelopment of distance between centres from 8000mm up to 18000mm, Max. weight of weight from 3 tons up to 32 tons, and width of bed ( 600mm, 755mm, 1100mm, 1600mm)increase accordingly along theswing and weight of machine to ensure the stronger stability and longer service life.
Features:
High precision tornos
1. Bed with high rigidity Casted in whole piece, box type internal structure, of high rigidity, with hardened guideway, TSF coated carriage to minimize the possibility of low speed stick-slip.
2. Main spindle with high rigidity and high accuracy Spindle comes with bearing of famous brand, spindle-box
We, " Timeway Machine " offer wide range series of heavy duty tornos, starting from 150mm up to 1000mm Centre Height, and distance between centres from 750mm up to 6000mm.
For the heavy duty type tornos, there is a delelopment of distance between centres from 8000mm up to 18000mm, Max. weight of weight from 3 tons up to 32 tons, and width of bed ( 600mm, 755mm, 1100mm, 1600mm)increase accordingly along theswing and weight of machine to ensure the stronger stability and longer service life.
Features:
High precision tornos
1. Bed with high rigidity Casted in whole piece, box type internal structure, of high rigidity, with hardened guideway, TSF coated carriage to minimize the possibility of low speed stick-slip.
2. Main spindle with high rigidity and high accuracy Spindle comes with bearing of famous brand, spindle-box
Specification | Unit | AL-1000B | AL-1250B | AL-1400B | AL-1600B | ||||
*Capacity | Centre height | mm | 500 | 625 | 700 | 820 | |||
Swing over bed | mm | 1000 | 1250 | 1400 | 1640 | ||||
Swing over carriage | mm | 615 | 865 | 1015 | 1250 | ||||
Maximum length of workpiece | mm | 1500/3000/5000/6000/8000/10000 | |||||||
/12000/14000/16000/18000 | |||||||||
Maximum turning length | mm | 1300/2800/4800/5800/7800/9800 | |||||||
/11800/13800/15800/17800 | |||||||||
Max.weight of workpiece | ton | 6 ( optional 8 tons) | |||||||
Width of guide way | mm | 755 | |||||||
*Spindle | Spindle nose | mm | A2-15(8XM22) | ||||||
Spindle bore | mm | 130 | |||||||
Taper hole of spindle | 1:20/140 | ||||||||
Number of forward turning speeds | 21 | ||||||||
Number of reverse turning speeds | 12 | ||||||||
spindle speeds(forward) | r/min | 3.15-315 | |||||||
spindle speeds(reverse) | r/min | 3.5-291 | |||||||
*Feed | Number of feeds per revolutio | 56/56 | |||||||
(longitudinal/transverse) | |||||||||
Feed per revolution(Longitudinal) | mm | 0.1-12(0.004"-0.473") | |||||||
Feed per revolution(Transverse) | mm | 0.05-6(0.002"-0.236") | |||||||
Feed per revolution(Upper tool-post) | mm | 0.025-3(0.001"-0.118") | |||||||
*Threads | Number and range of metric thread | mm | 44;1-120mm | ||||||
Number and range of inch thread | T.P.I | 31;28-1/4 | |||||||
Number and range of module thread | mm | 45:0.5-60mm | |||||||
Number and range of diametrical | D.P | 38:1/2-56DP | |||||||
pitch thread | |||||||||
*Carriage | Distance between spindle center | mm | 48 | ||||||
line and tool resting plane | |||||||||
Section of tool shank | mm | 45 | |||||||
Tool post swing range | ° | ±90° | |||||||
Maximum travel of carrige | mm | 1450/2950/4950/5950/7950/9950 | |||||||
/11950/13950/15950/17950 | |||||||||
Maximum travel of top slide | mm | 300 | |||||||
Maximum travel of cross slide | mm | 520(20") | 580(22") | 580 | 630(24") | ||||
Tool post travel per turn of the | mm | 0.05(0.002") | |||||||
dials of top or cross slide | |||||||||
Rapid travel speed(longitudinal) | mm/min | 3740 | |||||||
Rapid travel speed(Transverse) | mm/min | 1870 | |||||||
Rapid travel speed(Top slide) | mm/min | 935 | |||||||
*Tailstock | Diameter of tailstock quill | mm | 160(6") | ||||||
Travel of tailstock quill | mm | 300(12") | |||||||
Taper hole of tailstock quill | Morse 6 | ||||||||
*Motor | Main motor power | kw | 22 | ||||||
· 4-jaw independent chuck · Steady rest (over 3M length) · Follow rest (over 3M length) · Manual moving tailstock · Dead center of tailstock · 4-station tool post · Cooling system · Work lamp · Tools & tool-box · Leveling wedge and bolts · Operation manual (English) | · Face plate · 2 or 3-axis digital indicator · Electrical moving tailstock · Chuck guard · Tool-post guard · Rear splash guard · Quick changing tool post · Grinding attachment |
