High Precision All Geared Big Lathes Metal Cutting Machines with Voltage As order
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | AL-2000x4000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $71,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 4000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 1100 |
| Type: | Horizontal | Spindle Motor Power(kW): | 30 |
| Voltage: | As Order | Dimension(L*W*H): | 7120x2430x2580 Mm |
| Weight (KG): | 15000 KG | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Function: | Parallel Cutting Bars |
| Guideway Type: | Three Rectangular Guideways | Loading Capacity: | 16 Tons (increase 20 Tons) |
| Spindle Speed (forward): | 3.15-315 Rpm (21steps) | Spindle Speed (reverse): | 3.5-291 Rpm (12steps) |
| Longitudinal Rapid Feed Speed: | 3740 Mm/min | Cross Rapid Feed Speed: | 1870 Mm/min |
| Tailstock Rapid Feed Speed: | 3000 Mm/min | Cross Travel: | 900 Mm |
| After-sales Service Provided: | Online Support | Condition: | New |
| Spindle Bore(mm): | 100 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Printing Shops, Energy & Mining |
| Showroom Location: | Canada, United States, France, Germany, Peru, Mexico, Russia, Spain, South Africa | Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Pressure Vessel |
| Max. Turned Length (mm): | 3800 Mm | Year: | 2020 |
| Port: | China Port | ||
Product Description

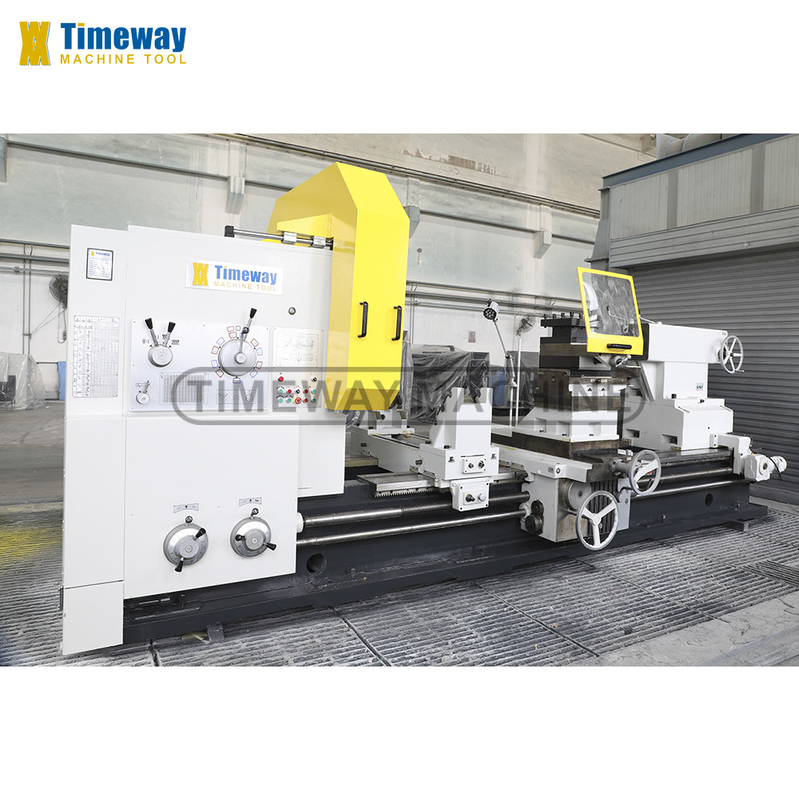

| Horizontal Lathe Giant Parallel Heavy Duty Lathe ∴ AL-2000x4000 ∴
|
We, " Timeway Machine " offer wide range series of Universal Lathe, starting from 150mm up to 1000mm Centre Height, and distance between centres from 750mm up to 6000mm.
For the heavy duty lathes, there is a delelopment of distance between centres from 8000mm up to 18000mm, Max. weight of weight from 3 tons up to 32 tons, and width of bed ( 600mm, 755mm, 1100mm, 1600mm) increase accordingly along the swing and weight of machine to ensure the stronger stability and longer service life.
Giant parallel lathe is suitable for processing large sized parts of castings, steels and non-ferrous metals. It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn metric various internal and external threads, such as inch, modulus and diameter.
| Standard accessories:
| Optional accessaries: |
|
|
|
| Technical Parameter |
| Specification | Unit | AL-2000 |
| Max. swing over bed | mm | 2000 |
| Max. swing over cross slide | mm | 1650 |
| Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- |
| Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- |
| Bed width | mm | 1100 |
| Loading capacity | tons | 16 |
| Spindle nose | - | A2-15 |
| Spindle bore | mm | 100 |
| Spindle taper | - | Metric 140 |
| Spindle speed range | rpm | Forward: 3.15-315, Reverse: 3.5-291 |
| Spindle speed step | steps | Forward: 21, Reverse: 12 |
| X/Z-axis feed kinds | kinds | 56 |
| Feed range | mm/r | Longitudinal:0.1-12; Cross:0.05-6; Top tool-post: 0.025-3 |
| Metric threads range (kinds) | mm | 1-120 (44) |
| Inch threads range (kinds) | TPI | 28-1/4 (31) |
| Module threads range (kinds) | MP | 0.5-60 (45) |
| Diametrical threads range (kinds) | DP | 1/2-56 (38) |
| Distance from spindle center to tool base | mm | 53 |
| Tool post swivel angle | ° | ±90° |
| Cross slide travel | mm | 900 |
| Top slide travel | mm | 360 |
| Tool section size | mm | 50x50 |
| Tool post feed per gar | mm | 0.05 |
| Tailstock quill diameter | mm | 260 |
| Tailstock quill travel | mm | 300 |
| Tailstock quill taper | - | Metric 80 |
| Main motor power | kw | 30 |
| Machine length | mm | 6120/7120/8120/9120/11120/13120/15120/- |
| Machine width | mm | 2430 |
| Machine height | mm | 2580 |
| Features: |
1. Mature structure: parallel turning machine is solid work, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting; When finished, the roundness error is not more than 0.015mm, the cylinder degree error is not more than 0.05mm in the measuring length of 300mm.
2. Highly rigid bed: The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. In the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.
3. Giant parallel lathe standard equipped with electric moving tailstock, reduce operator labor intensity and improve work efficiency.
4. Heavy duty lathe can be used to cut the short conical surface of the motor by the top tool post, and the long conical surface can be turned by the top tool post and the longitudinal feed.
5.High power, high rigidity and wide speed range for high speed and powerful cutting, speed range of 3.15-315rpm with 33 speeds.
6.The parallel heavy duty lathe is a heavy-duty machine tool with a maximum load-bearing capacity of 16 tons. It adopts wide rectangular guide rails with good stability and rigidity, bed width is 1100mm.
7.The tailstock quill is a rotatable structure, which reduces the wear and heat of the centers.
| Machine details: |
| |
| Spindle box & feed box | Safety protection guard for the chuc & tool post |
| |
| Carriage with pasting PTFE rails | Electric moving tailstock |
| |
| Rapid motor for X, Y, top tool-post fast moving | CE electric cabinet |
| | |
| Optional roller support | Standard closed steady rest |

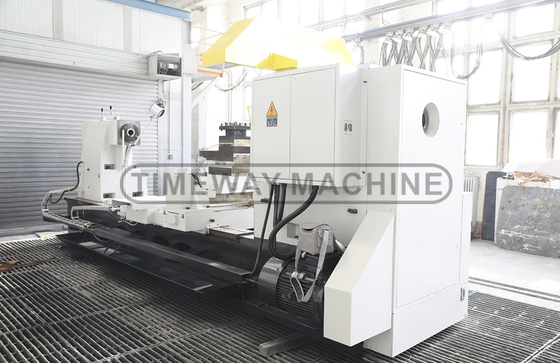

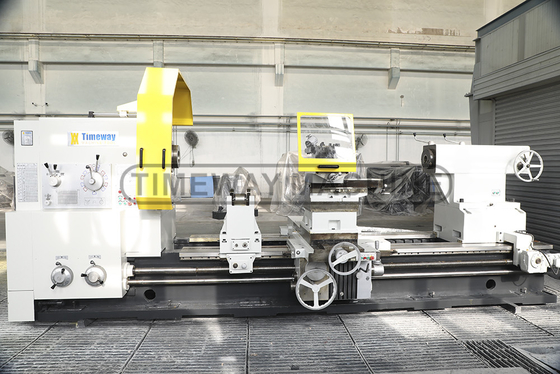

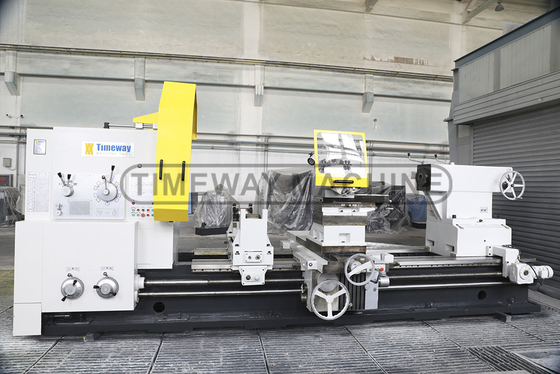

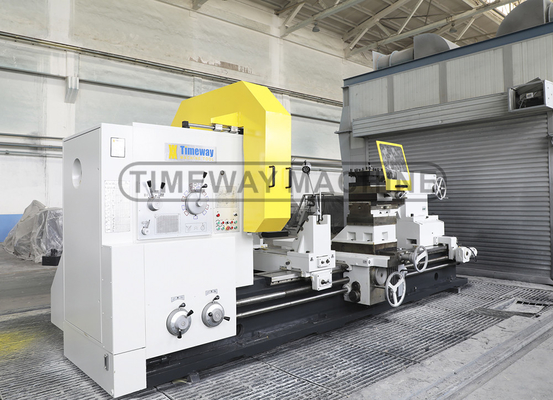

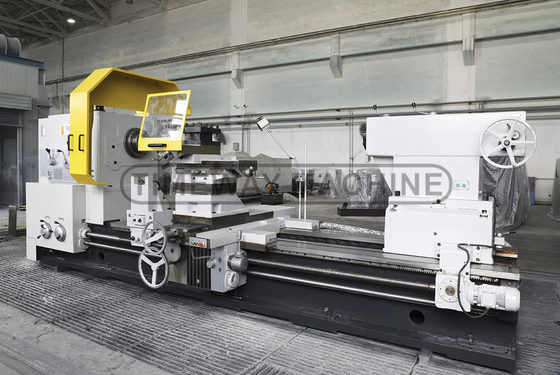

| Finished machine: |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
