Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
 |
1940X760X1520mm Spindle Precision Gap Lathe Machine with Medium Processing Capacity
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | GH-32C x 1000mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,225.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Type: | Horizontal | Dimension(L*W*H): | 1940X760X1520mm |
| Weight (KG): | 620 KG | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Hot Product 2022 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Key Selling Point: | Competitive Price | Name: | Spindle Precision Gap Lathe Machine |
| Color: | Customized Option | Machine Type: | Engine Lathe |
| Keyword: | Large Engine Lathe | Spindle Bore: | 51mm |
| Product Name: | Manual Metal Lathe Machine | Max.workpiece Length: | 1000mm |
| Processing Capacity: | Medium | Condition: | New |
| Showroom Location: | Italy, Brazil, Peru, Indonesia, India, Mexico, Thailand, Morocco | Spindle Bore(mm): | 51 |
| Max. Turned Length (mm): | 1000 Mm | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Core Components: | Gear, Motor, Engine, Other | Port: | China Port |
Product Description
Product Description

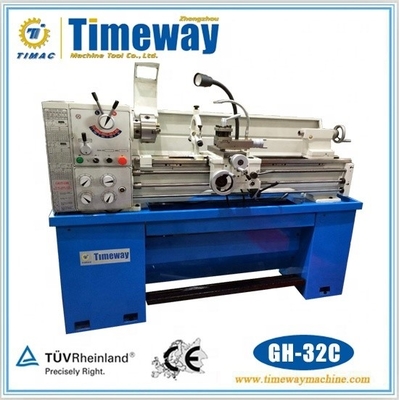

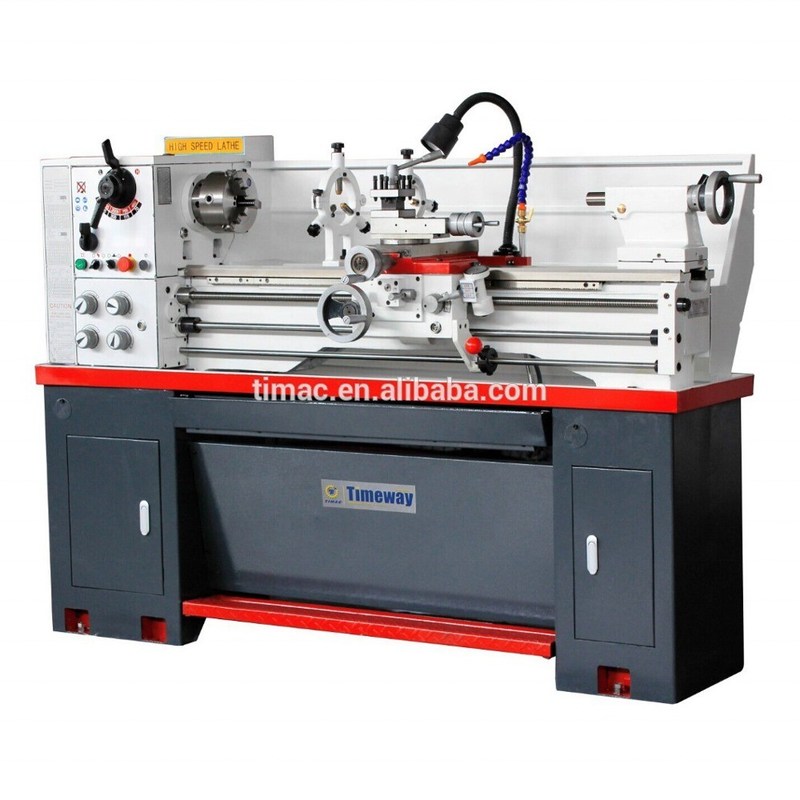

Spindle Precision Gap Lathe Machine
Specification
Specification | GH-32C |
Swing over bed | 330mm |
Range of spindle speeds | 70~2000 r.p.m |
Range of longitudinal feeds | 0.078-1.044mm/r |
Range of metric threads | 0.45-10mm |
Cross slide travel | 160mm |
Tailstock quill travel | 92mm |
Packing size(LxWxH) | 1740/1940X760X1520mm |
Standard items:
3 jaw chuck, changing gears, dead center, reduction sleeve, oil gun, 4 jaw chuck, face plate, steady rest, follow rest, chasingdial indicator
Optional items:
Coolant system, Working light , Foot brake, Digital readout system (D.R.O), Quick change tool post & holders, Taper turning
attachment
attachment
Positive Comments From Customers
Company Profile
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
