36C Precision Gap Lathe Machine with Max. Turned Length 1000mm and Spindle Bore 51mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | ISO9001; CE |
| Model Number: | GH-36C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,225.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 70 - 2000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Voltage: | As Request | Dimension(L*W*H): | 1740X760X1520mm |
| Weight (KG): | 650 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Automatic Grade: | Manual |
| Color: | Customized Option | Max. Workpiece Length: | 1000mm |
| Processing Capacity: | Medium | Spindle Bore: | 51mm |
| Spindle Bore Taper: | MT6# | Spindle Speed: | 7-2000rpm(8steps) |
| Max. Swing Diameter: | 356mm | Power: | 1.5kw |
| Condition: | New | Showroom Location: | Italy, Peru, Indonesia, Mexico, Thailand, Morocco, South Africa, Australia |
| Spindle Bore(mm): | 51 | Max. Turned Length (mm): | 1000 Mm |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Core Components: | Gear, Motor, Other |
| Port: | China Port | ||
Product Description
Products Description
* Widely used in general machinery manufacturing, production, single - piece manufacturing and other fields.
* Easy, stable and precisely adjustable speed and feed settings.
* The lathe bed is made of one piece, it is buckling resistant and vibration-free which enables precise turning.

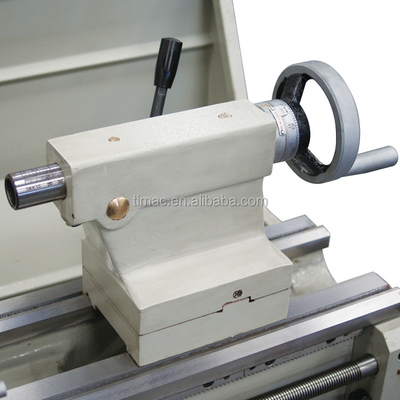

* Adjustable tailstock with fine scale for taper turning
* Easy, stable and precisely adjustable speed and feed settings.
* The lathe bed is made of one piece, it is buckling resistant and vibration-free which enables precise turning.
* Adjustable tailstock with fine scale for taper turning

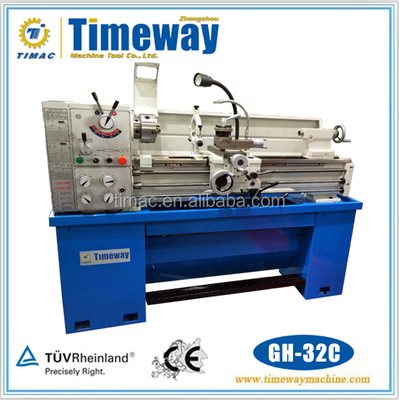

Specification | GH-32C | GH-36C | |
Swing over bed | 330mm | 356mm | |
Swing over gap | 450mm | 476mm | |
Swing over cross slide | 198mm | 224mm | |
Distance between centers | 750mm, 1000mm | ||
Taper of spindle bore | MT6 | ||
Spindle nose | D5 | ||
Spindle bore | 51mm | ||
Number of spindle speeds | 8 | ||
Range of spindle speeds | 70~2000 r.p.m | ||
Range of cross feeds | 0.022-0.298mm/r | ||
Range of longitudinal feeds | 0.078-1.044mm/r | ||
Range of inch threads | 2-1/2~40 T.P.I | ||
Range of metric threads | 0.45-10mm | ||
Top Slide travel | 76mm | ||
Cross slide travel | 160mm | ||
Tailstock quill travel | 92mm | ||
Taper of tailstock quill | MT4 | ||
Motor | 1.5KW | ||
Packing size(LxWxH) | 1740/1940X760X1520mm | ||
Net weight | 620KG | 650KG | |

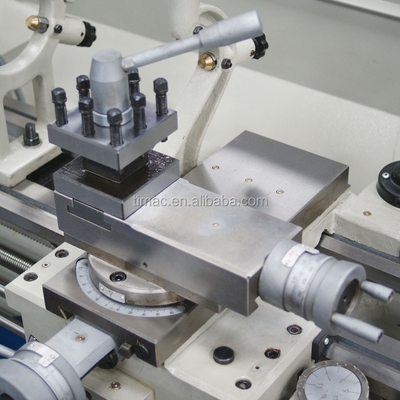

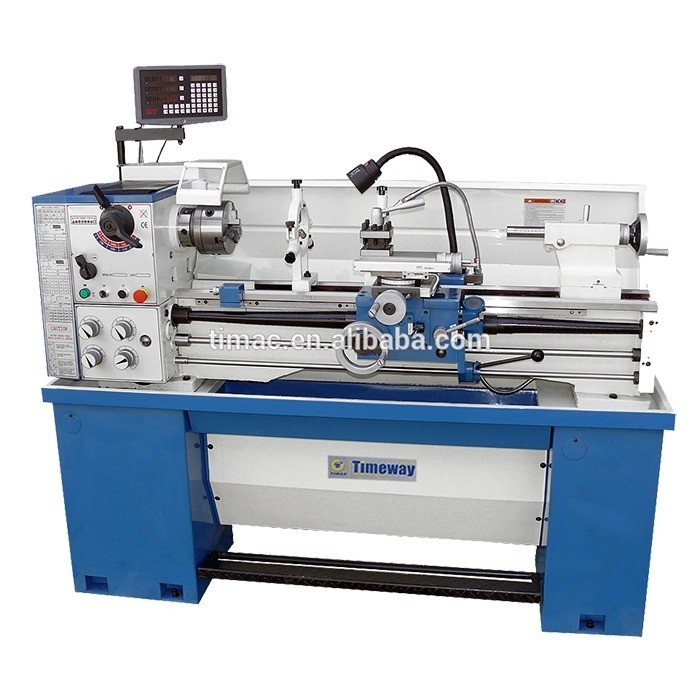

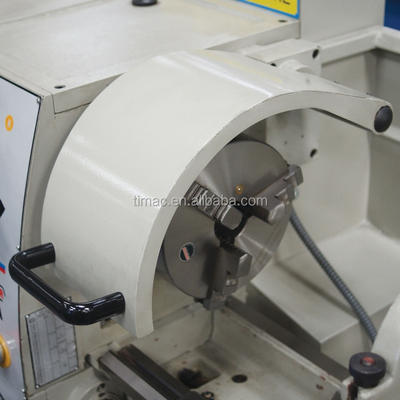

· 3 jaw chuck · 4 jaw chuck · Dead center · Face plate · Steady rest · Follow rest · Reduction sleeve · Oil gun · Coolant system · Working light · Chasing dial indicator | · Quick change tool post · 2/3 axis DRO · Living center · Taper turning attachment · Chuck guard · Leadscrew guard · Tool post guard |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
