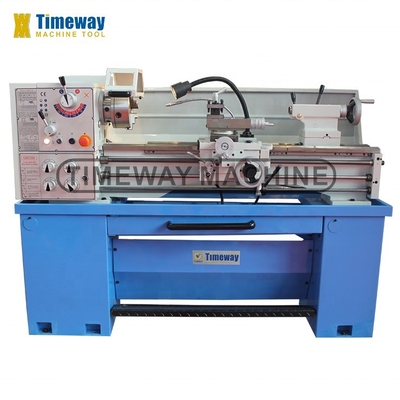

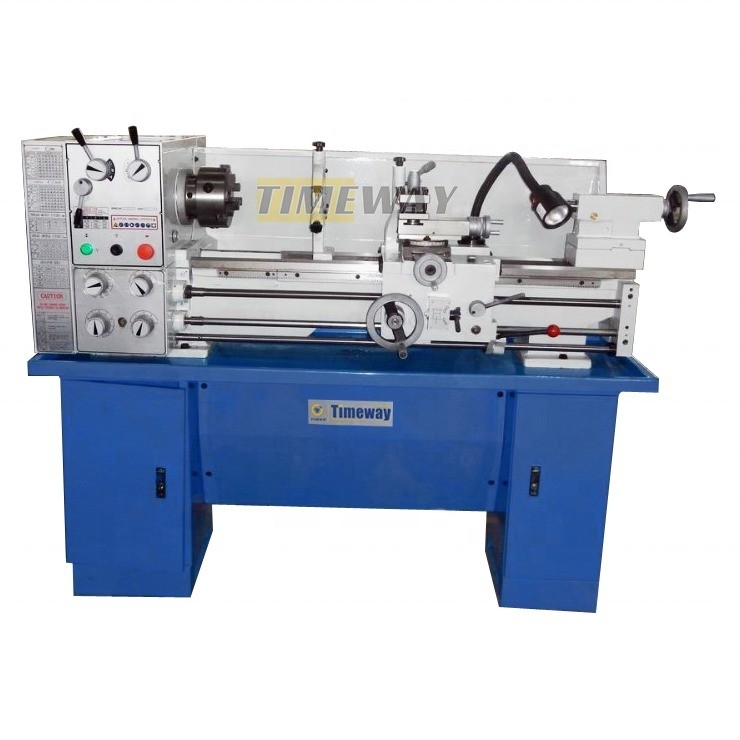

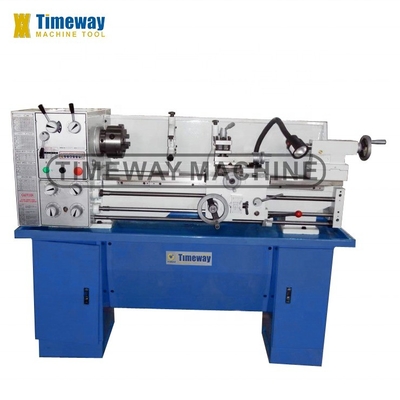

Precision Universal Metal Mechanical Parallel Lathe Machine with 1000mm Workpiece Length
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE ISO |
| Model Number: | T1236A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,000.00/pieces 1-2 pieces |
| Packaging Details: | Plywood case |
| Supply Ability: | 500 Piece/Pieces per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 65 - 1810 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Voltage: | 220/380V | Weight (KG): | 600 KG |
| Warranty: | 1 Year | Key Selling Points: | Sustainable |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Automatic Grade: | Manual |
| After-sales Service Provided: | Online Support | Universal Mechanical Precision Lathe: | Universal Mechanical Precision Lathe |
| Max. Swing Diameter: | 330mm | Workpiece Length: | 1000mm |
| Processing Capacity: | Heavy Duty | Spindle Bore: | 38 |
| Tailstock Quill Travel: | 100mm | Condition: | New |
| Spindle Bore(mm): | 38 | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | Germany, Viet Nam, Morocco, UAE, South Africa, Ukraine | Core Components: | Bearing, Pressure Vessel |
| Max. Turned Length (mm): | 1000 Mm | Port: | China Port |
Product Description
Products Description
T-Series Engine Lathe：
Features:
Precision ground and hardened bedways. The spindle is equipped with precision roller bearins. Headstock gears adopt
high quality steel ground and hardened. Removable gap is provided for larger working range. Easy operating gear box has various
feeds and threads cutting function. Oil-bath lubricated main drive and feed gears. Interlocking feature prevents simultaneous
advance of leadscrew and feed shaft. Manual central lubrication and closed cooling circuit. Different length of machine tools are
available.
high quality steel ground and hardened. Removable gap is provided for larger working range. Easy operating gear box has various
feeds and threads cutting function. Oil-bath lubricated main drive and feed gears. Interlocking feature prevents simultaneous
advance of leadscrew and feed shaft. Manual central lubrication and closed cooling circuit. Different length of machine tools are
available.
Specification | Unit | T-1236A | T-1340A | T-1440A |
Max. swing over bed | mm | 300 | 330 | 356 |
Max. swing over cross slide | mm | 180 | 198 | 224 |
Max. swing over gap | mm | 430 | 476 | 502 |
Distance between centers | mm | 750/910/1000 | 750/1000 | 750/1000 |
Bed width | mm | 178 | 187 | 187 |
Valid length of gap | mm | - | 210 | 210 |
Spindle nose | - | D1-4 | D1-4 | D1-4 |
Spindle bore | mm | 38 | 38/51 | 38/51 |
Spindle bore taper | - | MT5# | MT5# | MT5# |
Spindle speed range | rpm | 65-1400/65-1810(9steps) | 70-2000(8steps) | 70-2000(8steps) |
Longitudinal feeds | mm/r | 0.079-1.291 | 0.052-1.392 | 0.052-1.392 |
Cross feeds | mm/r | 0.017-0.276 | 0.014-0.38 | 0.014-0.38 |
Max. cross-slide travel | mm | 160 | 170 | 170 |
Max. top-slide travel | mm | 85 | 95 | 95 |
Top-slide swivel range | deg. | ±45° | ±45° | ±45° |
Metric threads | mm | 0.4-7 | 0.4-7 | 0.4-7 |
Whitworth threads | TPI. | 4-60 | 4-56 | 4-56 |
Tailstock quill taper | - | MT3# | MT3# | MT3# |
Tailstock quill travel | mm | 100 | 100 | 100 |
Main motor power | kw | 1.1/1.5 | 1.5 | 1.5 |
Net weight | kg | 500/540/620 | 520/560 | 520/560 |
Gross weight | kg | 550/590/670 | 630/645 | 630/645 |
Packing dimensions(LxWxH) | mm | 1480/1680/1940x750x1400 | 1680/1930x760x1580 | 1680/1930x760x1580 |
Standard Accessories:
Three jaw chuck
Dead center
Thread chasing dial
Chip tray
Work light
Cooling system
Rear splash guard
Tool box and tools
Operator manual
Optional Accessories:
Foot brake pedal
Driving plate
Taper turning attachment
Drill chuck
Quick change tool holder
Steady rest
Follow rest2-axis/3-axis position indicator

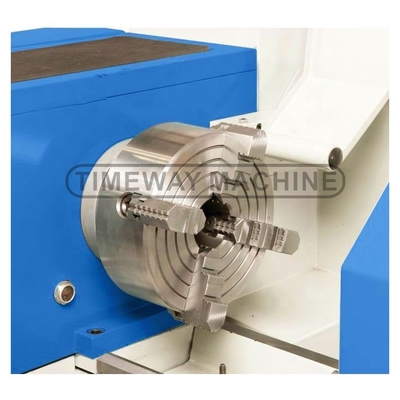

Four jaw chuck
Variable speed
Chuck guard
