2200/2750/3250x1080x1370 High Rigidity Gear Head Gap-bed Lathe Machine for Your Workshop
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | CL-410, CL-460, CL-510 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $8,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000/1500/2000 | Range Of Spindle Speed(r.p.m): | 25 - 2000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Width Of Bed (mm): | 300 |
| Type: | Horizontal | Spindle Motor Power(kW): | 5.5 |
| Voltage: | 220V/380V | Dimension(L*W*H): | 2200/2750/3250x1080x1370 |
| Weight (KG): | 1645 KG | Warranty: | 1 Year |
| Key Selling Points: | High Rigidity | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Gap Length: | 165mm |
| Spindle Speed Ranges: | 25-2000rmp | Max. Swing Over Gap: | 690mm |
| Bed Width: | 300mm | Cross Slide Travel: | 285mm |
| Distance Between Centers: | 1000/1500/ 2000mm | Max. Swing Over Cross Slide: | 270mm |
| Longitudinal Feed Range: | 0.031-1.7 (42)mm/rev | Cross Feed Range: | 0.014-0.784 (42)mm/rev |
| Packing Size (LxWxH): | 225/280/330x112x162cm | Condition: | New |
| Spindle Bore(mm): | 58 | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Showroom Location: | United States, Italy, France, Germany, Pakistan, India, Mexico, Russia, Chile, UAE, South Africa, Australia | Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Engine |
| Max. Turned Length (mm): | 1900 Mm | Year: | 2020 |
Product Description

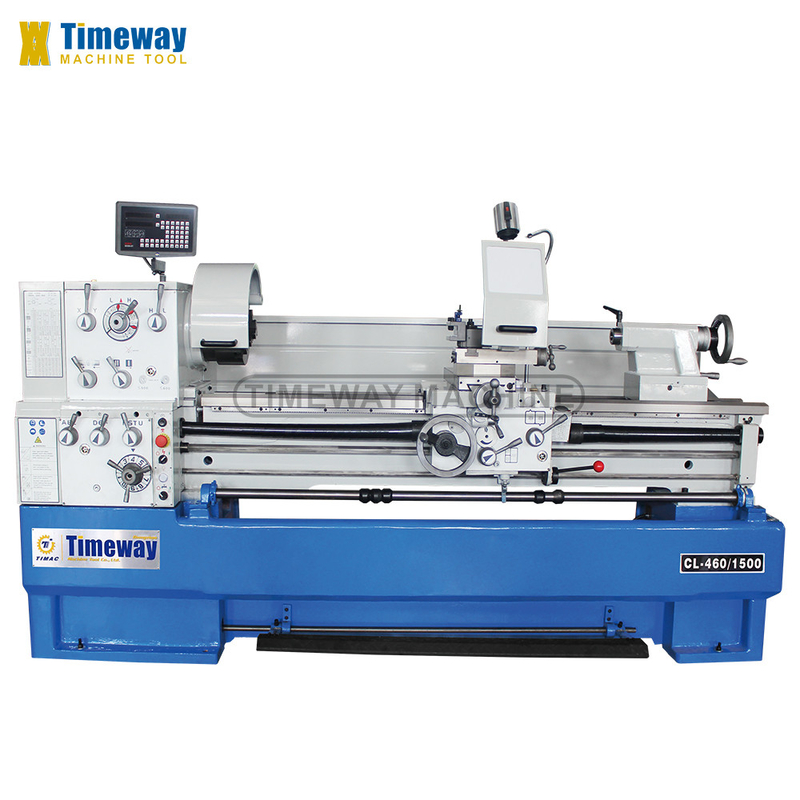

High Precision Gear Head Gap-bed Lathe
(CL-410,CL-460,CL-510Q)
Features:
This series universal center lathe is a fantastic model for small to medium size turning works. Even its basic configuration includes important accessories, such as 3-jaw chuck, steady and follow rest, change gears etc. Increasing the application area of this model significantly. For reducing the non-productive time, this model is also can equipped with 2 or 3 axis digital readout.
1.Inductive hardened, polished grey cast-iron machine bed.
2.Electro mechanical foot brake reduces downtime significantly.
3.State-of-the-art main spindle bearing with high quality angular ball bearings.
4.Easy, smooth and precisely adjustable speed and feed settings.
5.Hardened, polished gears and shafts, also in feed gear unit.
6.Centrally located, logical switches for feeds and threads with leadscrew and feed rod.

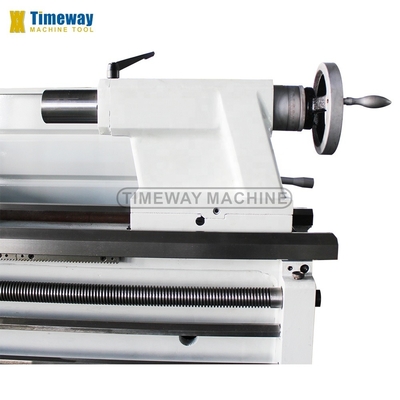

7.Adjustable tailstock for taper turning, handwheel feature adjustable scale(0.02mm).
8.The removeable bridge allows machining of workpieces with a big diameter.
9.Head stock gears are made of high quality steel ground and hardened more than HRC 48°.
Parameter:
| Specification | Unit | CL-410 | CL-460 | CL-510Q |
| Max. swing over bed | mm | 410 | 460 | 510 |
| Max. swing over cross slide | mm | 220 | 270 | 320 |
| Max. swing over gap | mm | 640 | 690 | 738 |
| Distance between centers | mm | 1000/1500/ 2000 | 1000/1500/ 2000 | 1000/1500/2000 |
| Gap length | mm | 165 | 165 | 165 |
| Bed width | mm | 300 | 300 | 300 |
| Spindle nose | - | D1-6 | D1-6 | D1-8 |
| Spindle bore | mm | 58 | 58 | 80 |
| Spindle taper | - | MT6 | MT6 | MT7 |
| Spindle speed range (steps) | rpm | 25-2000 (12) | 25-2000 (12) | 25-1700 (12) |
| Top slide travel | mm | 128 | 128 | 130 |
| Cross slide travel | mm | 285 | 285 | 305 |
| Tool section size | mm | 25x25 | 25x25 | 25x25 |
| Leadscrew | - | 40x4T.P.I or pitch 6mm | 40x4T.P.I or pitch 6mm | 40x4T.P.I or pitch 6mm |
| Longitudinal feed range | mm/rev | 0.031-1.7 (42) | 0.031-1.7 (42) | 0.031-1.7 (42) |
| Cross feed range | mm/rev | 0.014-0.784 (42) | 0.014-0.784 (42) | 0.014-0.784 (42) |
| Metric threads range (kinds) | mm | 0.1-14 (41) | 0.1-14 (41) | 0.1-14 (41) |
| Inch threads range (kinds) | TPI | 2-112 (60) | 2-112 (60) | 2-112 (60) |
| Diametrical threads range (kinds) | DP | 4-112 (50) | 4-112 (50) | 4-112 (50) |
| Module threads range (kinds) | MP | 0.1-7 (34) | 0.1-7 (34) | 0.1-7 (34) |
| Tailstock quill diameter | mm | 60 | 60 | 60 |
| Tailstock quill travel | mm | 130 | 130 | 130 |
| Tailstock quill taper | - | MT4 | MT4 | MT4 |
| Main motor power | kw | 5.5 | 5.5 | 5.5 |
| Coolant pump power | kw | 0.1 | 0.1 | 0.1 |
| Machine dimensions (LxWxH) | cm | 220/275/325x108x134 | 220/275/325x108x137 | 230/275/325x111x137 |
| Packing size (LxWxH) | cm | 225/280/330x112x162 | 225/280/330x112x162 | 235/280/330x112x153 |
| Net weight | kg | 1580/1745/1900 | 1645/1810/1965 | 1446/1611/1715 |
| Gross weight | kg | 1844/2049/2229 | 1910/2115/2295 | 1711/1916/2045 |
Standard accessories:
Thread chasing dial
Splash guard
Oil gun
Work lamp
Cooling system
Steady rest
Follow rest
Change gears
Reducing sleeve
Foot brake
Foundation bolts
Toolbox & tools
Operator manual
Optional accessories:
Living center
Taper turning attachment
Drill chuck
Quick change tool holder
2/3 axis digital readout
Chuck cover
Leadscrew cover
Tool post cover
Driving plate
Delta frequency inverter
Optional equipments:

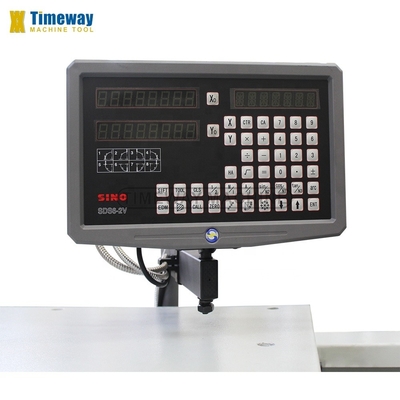

Digital readout system (DRO)

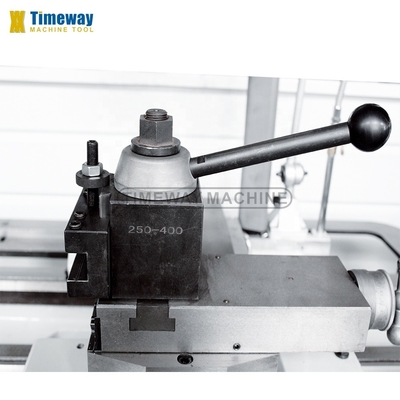

Quick change tool post & holders
Taper turning attachment

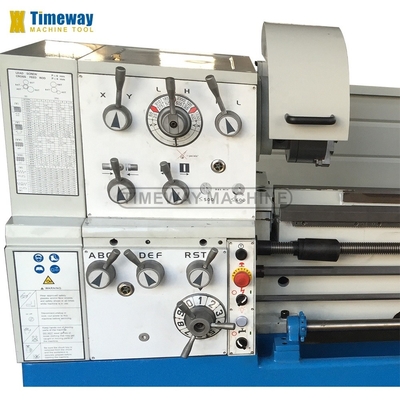

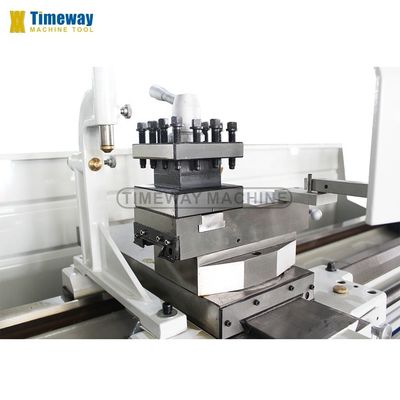

Details image:
| | |
| | |
| | |
| | |
Packaging image:
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
