400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | FL-500A FL-500F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case (can be fumigated) |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1500 | Range Of Spindle Speed(r.p.m): | 16 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 360 |
| Type: | Horizontal | Spindle Motor Power(kW): | 4/5.5 |
| Voltage: | As Customers' Requirement | Dimension(L*W*H): | As Model |
| Weight (KG): | 1750 KG | Warranty: | 1 Year |
| Key Selling Points: | Energy Saving | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Automatic Grade: | Manual | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Lathe Machine: | Gap Bed Lathe Machine | Max. Swing Diameter: | 500mm |
| Weight: | As Model | Power(W): | 4kw/5.5kw |
| Spindle Taper: | Morse No. 6 | Spindle Nose: | C6 |
| Max. Swing In Gap: | 660mm | Condition: | New |
| Spindle Bore(mm): | 52 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail |
| Showroom Location: | Canada, United States, Italy, Germany, Mexico, South Africa, Australia | Core Components: | Bearing, Gear, Motor, Engine |
| Max. Turned Length (mm): | 1500 Mm | Year: | 2020 |
Product Description
Precision Gap Bed Lathe Machine
Feature:
- Powerful precision gearhead lathes with cost effective;
- Need not change any gears you can turn all the metric and inch thread indicating in chart;
- Three points support for spindle;
- Clutch in apron for safety and for changing apron feed direction without changing spindle running direction.
Technical Parameter:
| Specification | Unit | FL-360A | FL-400A | FL-500A | FL-600A |
| FL-360F | FL-400F | FL-500F | FL-600F | ||
| Max. swing over bed | mm | 360 | 400 | 500 | 600 |
| Max. swing over cross slide | mm | 190 | 230 | 330 | 430 |
| Max. swing in gap | mm | 520 | 560 | 660 | 760 |
| Center distance | mm | 750, 1000, 1500, 2000 | |||
| Bed width | mm | 360 | |||
| Spindle hole | mm | 52 (optional: 82) | |||
| Spindle nose | ISO-C6 | ||||
| Spindle taper | Morse No. 6 | ||||
| Spindle speeds | rpm | A: 40-1400 (9 Steps), F: 16-1600 (12 Steps) | |||
| Metric threads range | mm | A: 0.25-14mm (19 Steps), F: 0.25-7mm (17Kinds) | |||
| Inch threads range | T.P.I | A: 2-40TPI, F: 0.25-7mm (17Kinds) | |||
| Module threads range | M.P | A: 0.5-3.5mm (11 Kinds), F: 0.25-3.5mm (12 Kinds) | |||
| Diametric threads range | D.P | A: ---, F: 0.25-3.5mm (12 Kinds) | |||
| Longitudinal feed range | mm/rev | 0.0832-4.66 | |||
| Cross feed range | mm/rev | 0.048-2.69 | |||
| Max. travel of top slide | mm | 95 | |||
| Max. travel of cross slide | mm | 180 | 200 | 250 | 250 |
| Max. size of tool (W x H) | mm | 20 x 20 | |||
| Tailstock sleeve diameter | mm | 65 | |||
| Tailstock sleeve taper | Morse No. 4 | ||||
| Tailstock sleeve travel | mm | 140 | |||
| Main motor | kw | 4 | 5.5 | 5.5 | 7.5 |
| Net weight / Gross weight | |||||
| 750mm | kg | 1350/1750 | 1400/1800 | 1500/1900 | 1600/2000 |
| 1000mm | kg | 1450/1850 | 1500/1900 | 1600/2200 | 1700/2100 |
| 1500mm | kg | 1600/2000 | 1650/2050 | 1750/2150 | 1900/2300 |
| 2000mm | kg | 1750/2150 | 1800/2200 | 1900/2300 | 2050/2450 |
| Packing size(LxWxH) | mm | 2250, 2450, 2950, 3450 x 1150 x 1750 | |||
Standard accessories:
3 jaw chuck, 4 jaw chuck, Face plate, Steady rest, follow rest, changing gears, dead center, reduction sleeve,
oil gun, Chasing dial indicator, centers, Coolant system, Working light, Foot brake system, Operation manual(English edition).

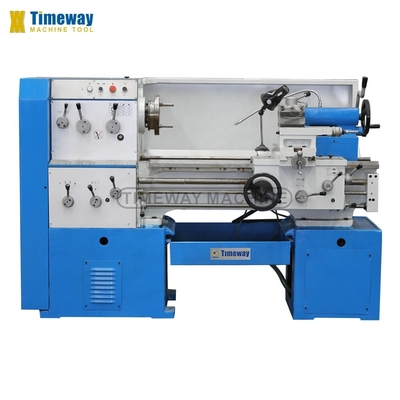

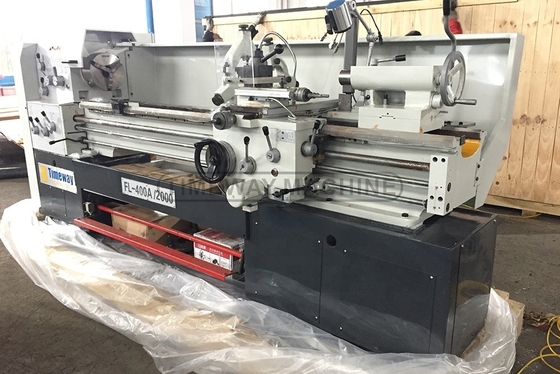

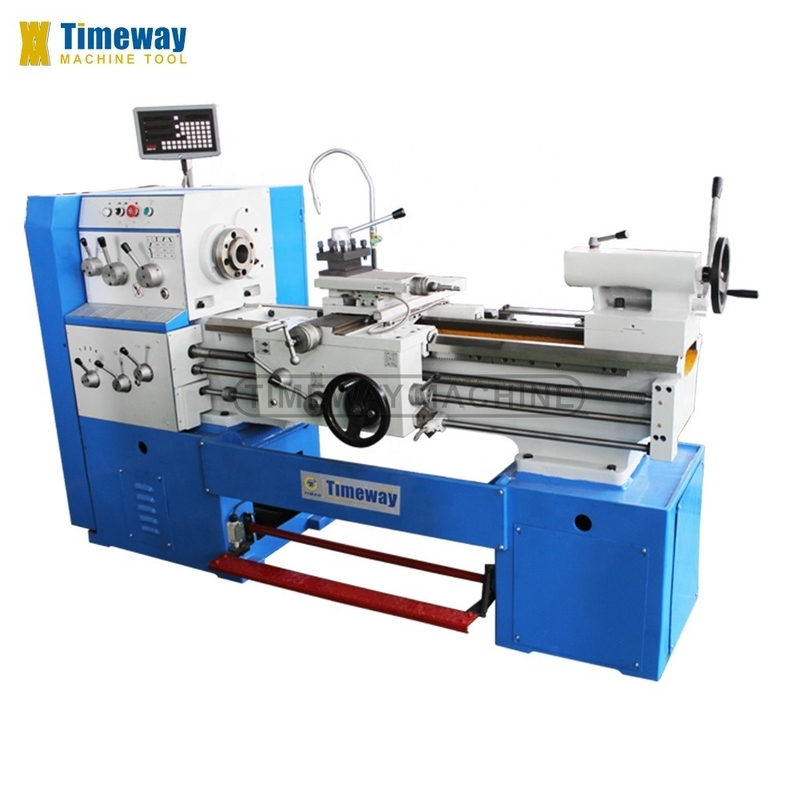

FL-400A & FL-400F
Factory photos:
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
