725mm X-axis Travel Special Lathe Machine for Large Roller in Machinery Repair Shops
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | AL-2000Hx8000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $360,000.00/sets 1-2 sets |
| Packaging Details: | wooden case(can be fumigated) |
| Supply Ability: | 5 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 8000 | Range Of Spindle Speed(r.p.m): | 0.8 - 160 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 1600 |
| Type: | Horizontal | Spindle Motor Power(kW): | 75 |
| Voltage: | 220V/380V/415V/440V | Dimension(L*W*H): | 13577x2479x2580mm |
| Weight (KG): | 35000 KG | Warranty: | 1 Year |
| Key Selling Points: | High Rigidity | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Swing Over Bed: | 2000mm |
| Max. Swing Over Cross Slide: | 1600mm | Max. Spindle Torque: | 80000N.m |
| Max. Weight Of Workpiece: | 25/32/40tons | 4-jaw Chuck Size: | 1600/1800mm |
| Spindle Speed Step: | Stepless | X-axis Travel: | 725mm |
| Top Tool Post Travel: | 600mm | Z-axis Travel: | 8000mm |
| Lathe Color: | Customized | Condition: | New |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining | Showroom Location: | Canada, United Kingdom, United States, Italy, France, Germany, Spain, South Africa, Australia |
| Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Pressure Vessel | Spindle Bore(mm): | 85 |
| Max. Turned Length (mm): | 7800 Mm | Year: | 2021 |
| Port: | China Ports | ||
Product Description

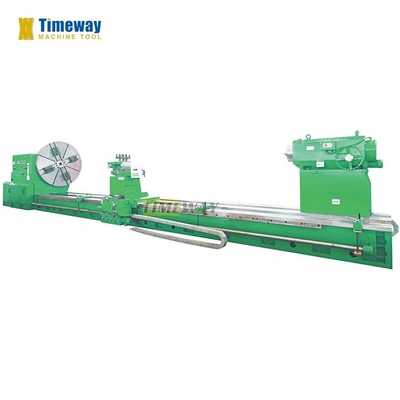

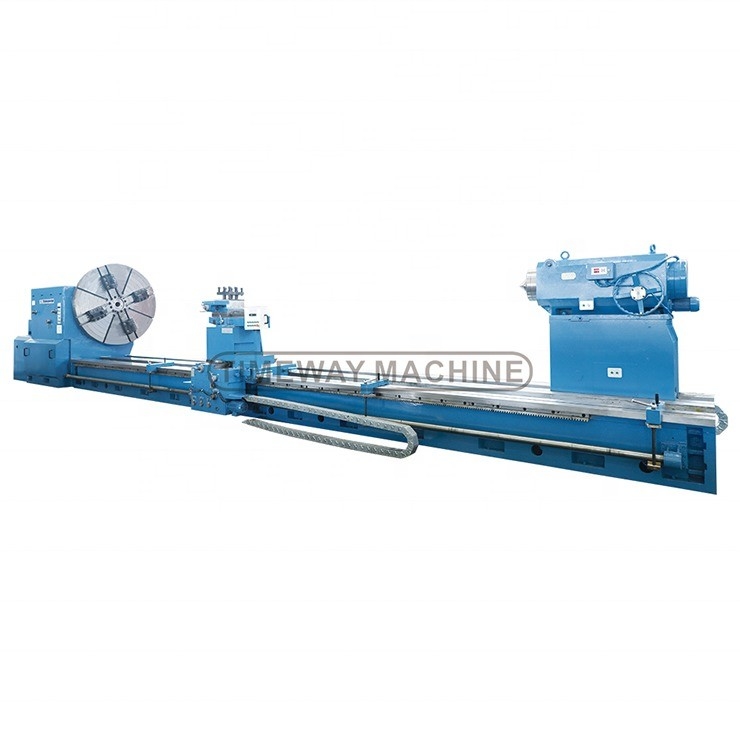

| Special Supplier Big Swing Diameter Rotating Lathe Machine For Large Roller
∴ AL-2000Hx8000 ∴
|
| Application: cutting the big roller |
| |
| Standard accessories:
| Optional accessaries: |
|
|
|
| Technical Parameter: |
| Specification | Unit | AL-2000H | AL-2500H |
| Max. swing over bed | mm | 2000 | 2500 |
| Max. swing over cross slide | mm | 1600 | 2200 |
| Distance between centers | mm | 3000~20000 | 3000~20000 |
| Max. torque of chuck | N.m | 80000 | 80000 |
| Bed width | mm | 1600 (3 slideway) | 1600 (3 slideway) |
| Loading capacity | tons | 32 | 32 |
| Spindle taper | - | 75° | 75° |
| Chuck diameter | mm | 1600/1800 | 1600/1800/2000 |
| Spindle speed range | rpm | 0.8-160 (stepless) | 0.8-160 (stepless) |
| Range of longitudinal feed | mm | 0.125-48 (18) | 0.125-48 (18) |
| Range of cross feed | mm | 0.063-24 (18) | 0.063-24 (18) |
| Metric thread | mm | 2-40 | 2-40 |
| Inch thread | TPI | 1-14 | 1-14 |
| Module thread | MP | 1.5-20 | 1.5-20 |
| Max. travel of cross slide | mm | 725 | 800 |
| Max. travel of top slide | mm | 600 | 600 |
| Section of tool shank | mm | 70x70 | 70x70 |
| Tailstock quill daimeter | mm | 300 | 300 |
| Tailstock quill travel | mm | 300 | 300 |
| Tailstock quill taper | - | 100, 1:7 | 100, 1:7 |
| Tailstock rapid feed speed | mm/min | 3000 | 3000 |
| Tailstock quill rapid feed speed | mm/min | 664 | 664 |
| Main motor power | kw | 75 | 75 |
| Machine length | mm | 13577~21577 | 13577~21577 |
| Machine width | mm | 2479 | 2515 |
| Machine height | mm | 2580 | 2655 |
| Features: |
This lathe machine is a universal lathe with loading capacity of 25/32/40 tons, after used roller support and steady rest, loading capacity to be 40tons. It is suitable for high-speed steel and hard alloy steel tools. For shaft parts of different materials, cylindrical and disc-shaped parts, turning outer ring, end face, slotting, cutting, The boring, the inner and outer cones of the rut, and the use of the upper tool holder (via the hanging wheel) for turning various threads of less than 600 mm in length.
1.The lathe bed is integral box-shaped three rectangular rail structure, which is cast in one-time casting with high-grade cast iron (HT300). After two times of aging treatment, the stability is good; the width of the guide rail is 1600mm, the rigidity is good, and the anti-vibration capability is strong; Precision grinding by imported guide grinding machines ensures long life, high precision and good retention.
2. The main drive mechanism of the machine tool is driven by a 75KW DC motor. The total speed ratio of the variable speed control mode is 1:22.2, 3steps speed changing, and the mechanical and electrical speed ratio is 1:200. The spindle obtains a stepless speed regulation range of 0.8 to 160 r/min.
3.The feed system is connected to the main drive through the light bar, so that the feed is directly related to the spindle speed, and the feed rate is convenient to select.
4.The tailstock quill is a rotatable structure, which reduces the wear and heat of the centers.
5.The machine tool standard equipped with electric moving tailstock, reduce operator labor intensity and improve work efficiency.
6.This series of machine tools supply two kinds of center frame, that is a closed center frame and an open center frame.
7.Two rows of high-precision racks are installed on front and behind the machine, the front racks drives the carriage feed to realize turning thread, and the rear row of racks drives the tailstock for motorized movement.
8.High rigidity and high precision spindle: The machine tool spindle bearing adopts domestic famous brand products. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term operation.
| Machine details: |

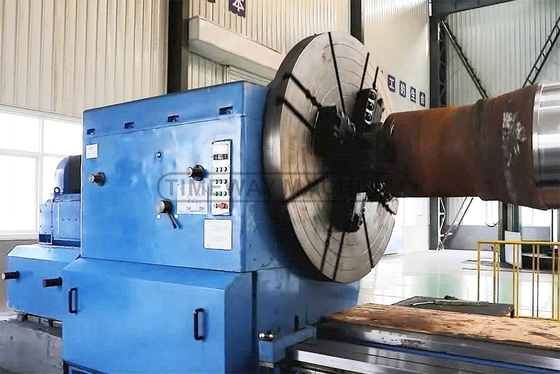

| Spindle box: For the giant lathes, the spindle through hole diameter 85mm, box split structure, high contact rigidity; The spindle using front and back support type two-point support mechanical structure, so that the big lathes's radial run-out and axial run-out, high rotation accuracy. High-frequency quenching and precision grinding of gear, high precision, smooth operation, low noise.
|
|
|

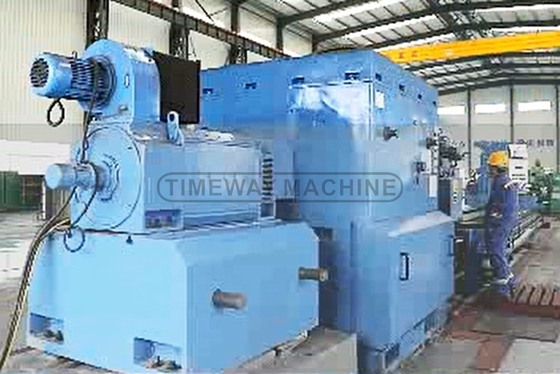

DC 75KW Main Motor:
The heavy duty lathes can gain spindle speed 0.8-160rpm with stepless, the main transmission structure is driven by the DC 75KW main motor, large torque and strong turning force for the heavy duty cutting, the spindle speed is adjusted through adjustment of the pressure and magnetism.
|
| |
|
Carriage:
The lathes feed system is connected to the main drive through the light bar, so that the feed is directly related to the spindle speed, and the feed rate covenient to select. Two rows of high precision racks are installed on front and behind the giant heavy duty lathes, the front racks drives the carriage feed to realize turning theads, and the behind rack drives foe motorized movment. |
|
|

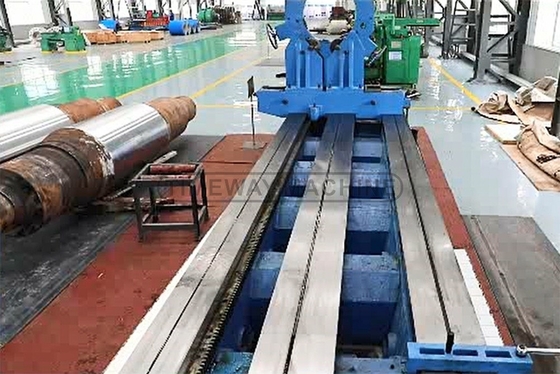

Three slideway rails:
The big heavy duty adopts the three slideway rails structure, bed width is up to 1600mm, high rigidity and strong antivibration so that the loading capacity 40tons. The lathes' rails adopt medium-frequency hardened (HRC68), and ground by imported rail grinding machine. So the heavy duty have long-service life, high rigidity, and good stable. |
|
|
Tailstock:
High rigidity and large loading capacity. Tailstock diameter: 400mm Center tapered angle: 75° Tailstock effective travel: 300mm Tailstock cross moving stroke: 15mm |
|
|
Steady rest and roller support:
The giant lathes standard are equipped with steady rest, the roller support is optional for the client' choice. |
|
|
Electric cabinet:
Clearly wire layout, CE marks electrical components. |
|

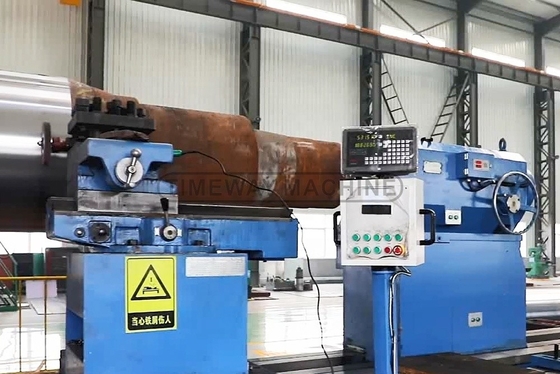

| Clinet's site: |
