>> 2/3-axis digital readout (DRO) is available.
>> Chuck guard is available.
 |

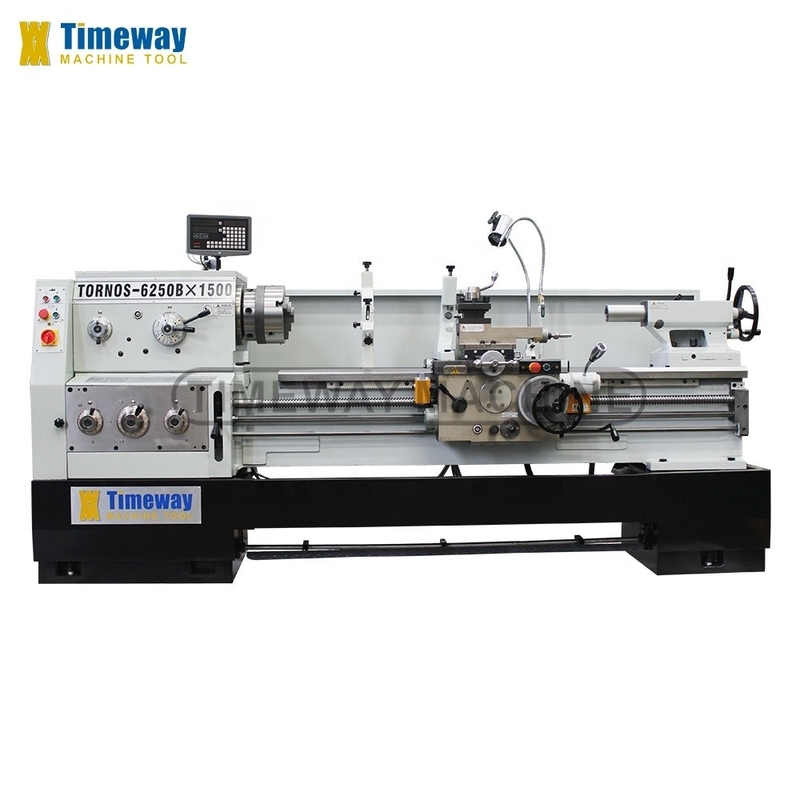

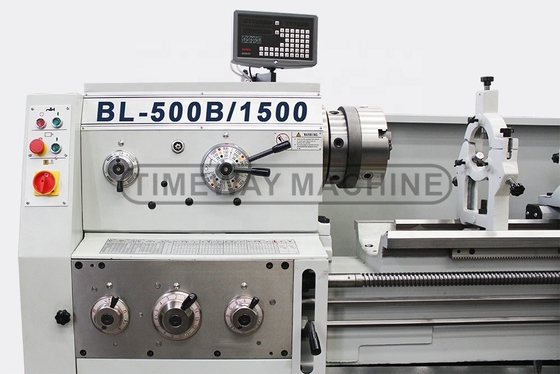

Horizontal Flat Bed Lathe Machine Tool with 500mm Swing and MT5 Tailstock Quill Taper
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC, TIMEWAY |
| Model Number: | TORNOS-6250B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets 1-4 sets |
| Packaging Details: | wooden case (can be fumigated) |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1500 | Range Of Spindle Speed(r.p.m): | 9 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 400 |
| Type: | Horizontal | Spindle Motor Power(kW): | 7.5 |
| Voltage: | As Customers' Requirement | Dimension(L*W*H): | 3132x975x1230mm |
| Weight (KG): | 2300 KG | Warranty: | 1 Year |
| Key Selling Points: | High Safety Level | Marketing Type: | Hot Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Style: | Horizontal Type Gap Bed Tornos Lathe Machine |
| Machine Rails Type: | Flat-V Type | Woring Accuracy: | IT6 |
| Roughness: | Ra1.6um | Spindle Taper: | 1:20 |
| Spindle Nose: | D8 | Spindle Speed Ranges: | 9-1600rpm (24steps) |
| Tailstock Quill Diameter: | 75mm | Tailstock Quill Travel: | 150mm |
| Tailstock Quill Taper: | MT5 | Condition: | New |
| Spindle Bore(mm): | 82 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Canada, United States, Italy, France, Germany, Brazil, Mexico, Russia, Spain, Chile, Algeria, Romania, South Africa, Ukraine, Uzbekistan, Australia | Core Components: | Bearing, Pump, Gear, Motor |
| Max. Turned Length (mm): | 1450 Mm | Year: | 2021 |
| Port: | China Port | ||
Product Description
Products Description
3-jaw chuck | Living center |
4-jaw chuck | Taper turning attachment |
Face plate | Drill chuck |
Dead center | Quick change tool holder |
Thread chasing dial | 2/3 axis digital readout |
Splash guard | Chuck cover |
Oil gun | Leadscrew cover |
Work lamp | Tool post cover |
Cooling system | Driving plate |
Steady rest | |
Follow rest | |
Change gears | |
Reducing sleeve | |
Foot brake | |
Foundation bolts | |
Tool-box & tools | |
Operation manual |
Specification | Unit | TORNOS-6250B | TORNOS-6266B | TORNOS-6280B |
Max. swing over bed | mm | 500 | 660 | 800 |
Max. swing over cross slide | mm | 300 | 420 | 560 |
Max. swing over gap | mm | 710 | 870 | 1000 |
Gap length | mm | 240 | 240 | 240 |
Distance between centers | mm | 750/1000/1500/2000/3000 | 750/1000/1500/2000/3000 | 2000/3000 |
Max. turning length | mm | 700/950/1450/1950/2950 | 700/950/1450/1950/2950 | 1850/2850 |
Spindle bore | mm | Φ82 | Φ82 | Φ82 |
Spindle taper | - | Φ90, 1:20 | Φ90, 1:20 | Φ90, 1:20 |
Spindle nose | - | ISO 702/II No.8 | ISO 702/II No.8 | ISO 702/II No.8 |
Spindle speed range (steps) | rpm | 9-1600 (24) | 9-1600 (24) | 8-1400 (24) |
Top slide travel | mm | 145 | 145 | 145 |
Cross slide travel | mm | 320 | 310 | 320 |
Tool section size | mm | 25x25 | 25x25 | 25x25 |
X-axis rapid feed speed | m/min | 50HZ: 1.9; 60HZ: 2.3 | 50HZ: 1.9; 60HZ: 2.3 | 50HZ: 1.9; 60HZ: 2.3 |
Z-axis rapid feed speed | m/min | 50HZ: 4.5; 60HZ: 5.4 | 50HZ: 4.5; 60HZ: 5.4 | 50HZ: 4.5; 60HZ: 5.4 |
X-axis feed range | mm/r | 0.012-2.73 (93) | 0.012-2.73 (93) | 0.012-2.73 (93) |
Z-axis feed range | mm/r | 0.028-6.43 (93) | 0.028-6.43 (93) | 0.028-6.43 (93) |
Metric threads range (kinds) | mm | 0.5-224 (48) | 0.5-224 (48) | 0.5-224 (48) |
Inch threads range (kinds) | TPI | 72-1/8 (46) | 72-1/8 (46) | 72-1/8 (46) |
Module threads range (kinds) | MP | 0.5-112 (42) | 0.5-112 (42) | 0.5-112 (42) |
Diametrical threads range (kinds) | DP | 56-1/4 (45) | 56-1/4 (45) | 56-1/4 (45) |
Tailstock quill diameter | mm | Φ75 | Φ75 | Φ90 |
Tailstock quill travel | mm | 150 | 150 | 150 |
Tailstock quill taper | - | MT5 | MT5 | MT5 |
Main motor power | kw | 7.5 | 7.5 | 7.5 |
Rapid feed motor power | kw | 0.3 | 0.3 | 0.3 |
Coolant pump motor power | kw | 0.12 | 0.12 | 0.12 |
Machine length | mm | 2382/2632/3132/3632/4632 | 2382/2632/3132/3632/4632 | 3365/4365 |
Machine width | mm | 975 | 975 | 1340 |
Machine height | mm | 1230 | 1270 | 1430 |
Machine weight | kg | 2050/2100/2300/2500/2900 | 2150/2200/2400/2600/3000 | 330/3700 |
Machine Details
The series gap bed lathe is suitable for all kinds of turning work, such as internal and external turning, taper turning, and other rotary parts turning, end face turning, also turning all kinds of common thread: Inch, Metric, Module and D.P; perform drilling, reaming, tapping and groove broaching.
===================================
>> Standard 3-jaw lathe chuck, quickly clamping workpiece;
===================================
>> The bed with ribs is made of high quality casting iron;
>> The guideway rails are hardened and ground, and the hardness up to be HRC52;
===================================

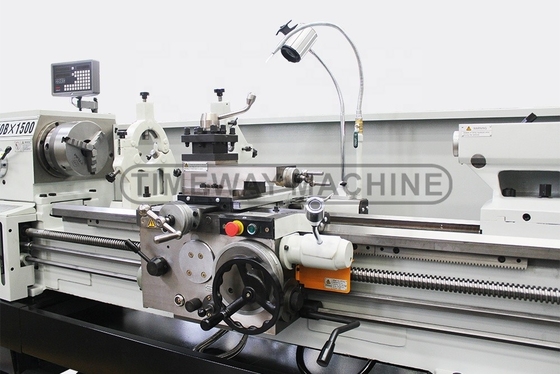

>> Automatic feed and rapid feed on the X/Z-axis by one handle.

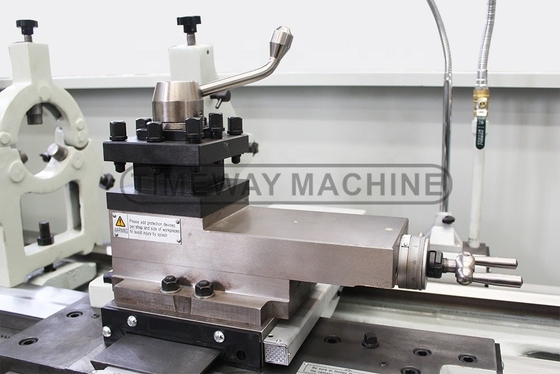

>> USA-type, EUROPE-Type, Italian type quick change tool post for choice;
===================================

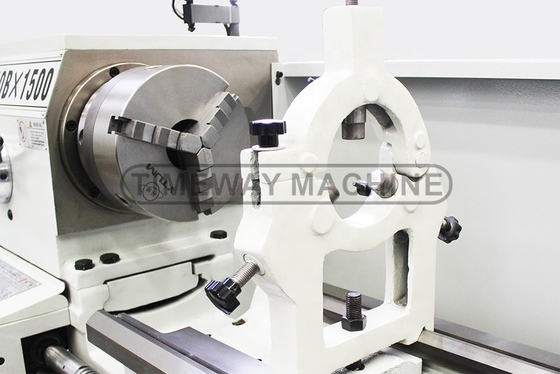

>> Steady rest and follow rest are standard equipped for the flat bed lathe.

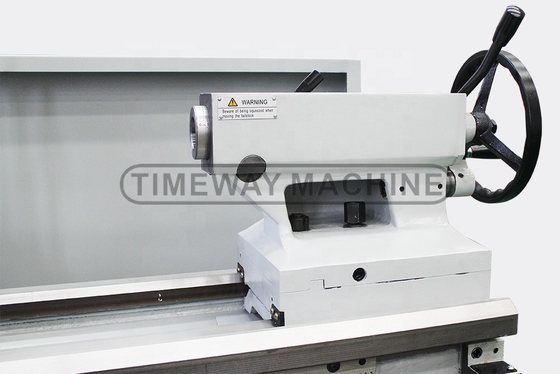

>> Manual tailstock can quickly lock and loosen.
Test - roundness & cylindricity:
Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:
Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Comprehensive testing parts (only for CNC horizontal lathe):
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
Why Choose Us
Renishaw laser interferometer (only for CNC horizontal lathe)：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
