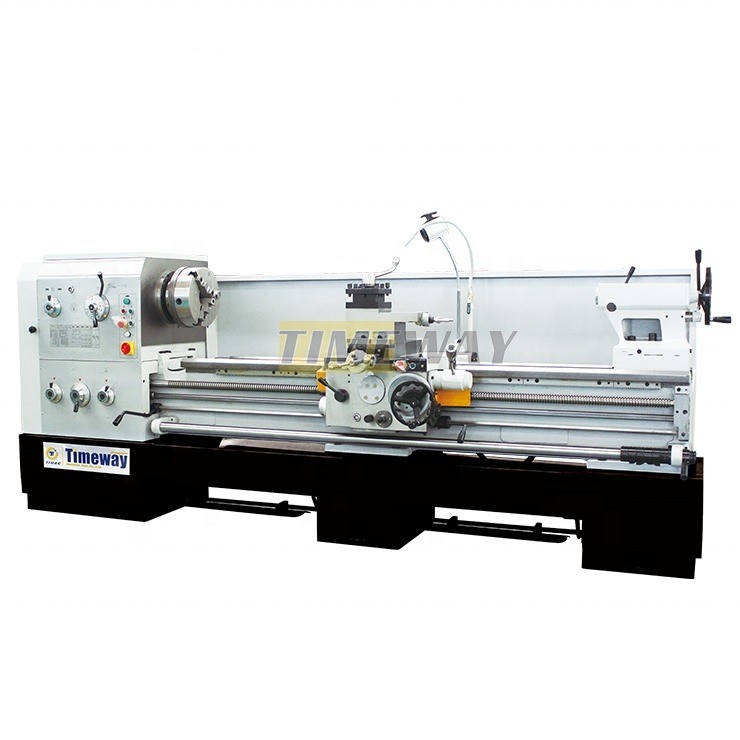

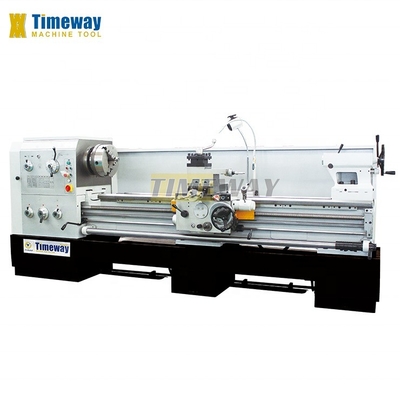

500mm Swing Gap Bed Lathe with High Productivity and ISO 702/II No.8 Spindle Nose
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | BL-500B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 9 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 7.5 | Weight (KG): | 2150 KG |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Lathe: | Machine Tools |
| Coolant Pump Motor Power: | 0.12kw | Tailstock Quill Taper: | MT5 |
| Tailstock Quill Diameter: | 75mm | Tool Section Size: | 25x25mm |
| Spindle Nose: | ISO 702/II No.8 | After-sales Service Provided: | Online Support |
| Spindle Bore: | 82 | Spidle Nose: | ISO 702/II No.8 |
| Condition: | New | Spindle Bore(mm): | 82 |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Energy & Mining | Showroom Location: | Canada, United States, Germany, Spain |
| Core Components: | Bearing, Pump, Gear, Motor | Max. Turned Length (mm): | 2950 Mm |
| Port: | China Port | ||
Product Description
Products Description
Features:
1. The series lathe is suitable for all kinds of turning work, such as internal and external turning, taper turning, and other rotary parts turning, end face turning, also turning all kinds of common thread: Inch, Metric, Module and D.P; perform drilling, reaming, tapping and groove broaching.
2. High torsional horizontal lathe bed, high quality cast iron manufacturing, guideway through the medium frequency quenching and precision grinding.

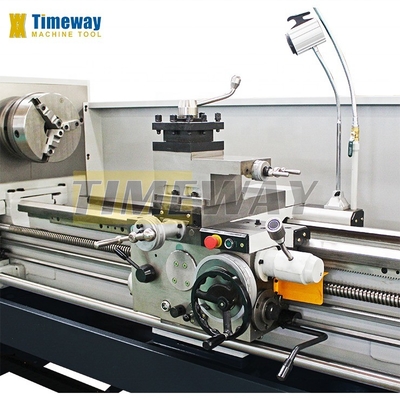

3. Saddle guideway paste PTFE guide soft belt, wear-resisting, vibration absorbing, good accuracy stable.
4. Spindle adopts three support structure, good rigidity, high precision, strong cutting.
5. Wide range of speed, the rationality of implementation speed.
6. The machine can cut directly thread metric and inch.
7. Gap-bed lathe can realize cutting all kinds of flat stocks and irregular shapes.
8. Equipped with complete the special parts for user to choose.
9. Spindle through hole diameter Φ82.
1. The series lathe is suitable for all kinds of turning work, such as internal and external turning, taper turning, and other rotary parts turning, end face turning, also turning all kinds of common thread: Inch, Metric, Module and D.P; perform drilling, reaming, tapping and groove broaching.
2. High torsional horizontal lathe bed, high quality cast iron manufacturing, guideway through the medium frequency quenching and precision grinding.
3. Saddle guideway paste PTFE guide soft belt, wear-resisting, vibration absorbing, good accuracy stable.
4. Spindle adopts three support structure, good rigidity, high precision, strong cutting.
5. Wide range of speed, the rationality of implementation speed.
6. The machine can cut directly thread metric and inch.
7. Gap-bed lathe can realize cutting all kinds of flat stocks and irregular shapes.
8. Equipped with complete the special parts for user to choose.
9. Spindle through hole diameter Φ82.
Specification | Unit | BL-500B | BL-660B | BL-800B |
Max. swing over bed | mm | 500 | 660 | 800 |
Max. swing over cross slide | mm | 300 | 420 | 560 |
Max. swing over gap | mm | 710 | 870 | 1000 |
Gap length | mm | 240 | 240 | 240 |
Distance between centers | mm | 750/1000/1500/2000/3000 | 750/1000/1500/2000/3000 | 2000/3000 |
Max. turning length | mm | 700/950/1450/1950/2950 | 700/950/1450/1950/2950 | 1850/2850 |
Spindle bore | mm | Φ82 | Φ82 | Φ82 |
Spindle taper | - | Φ90, 1:20 | Φ90, 1:20 | Φ90, 1:20 |
Spindle nose | - | ISO 702/II No.8 | ISO 702/II No.8 | ISO 702/II No.8 |
Spindle speed range (steps) | rpm | 9-1600 (24) | 9-1600 (24) | 8-1400 (24) |
Top slide travel | mm | 145 | 145 | 145 |
Cross slide travel | mm | 320 | 310 | 320 |
Tool section size | mm | 25x25 | 25x25 | 25x25 |
X-axis rapid feed speed | m/min | 50HZ: 1.9; 60HZ: 2.3 | 50HZ: 1.9; 60HZ: 2.3 | 50HZ: 1.9; 60HZ: 2.3 |
Z-axis rapid feed speed | m/min | 50HZ: 4.5; 60HZ: 5.4 | 50HZ: 4.5; 60HZ: 5.4 | 50HZ: 4.5; 60HZ: 5.4 |
X-axis feed range | mm/r | 0.012-2.73 (93) | 0.012-2.73 (93) | 0.012-2.73 (93) |
Z-axis feed range | mm/r | 0.028-6.43 (93) | 0.028-6.43 (93) | 0.028-6.43 (93) |
Metric threads range (kinds) | mm | 0.5-224 (48) | 0.5-224 (48) | 0.5-224 (48) |
Inch threads range (kinds) | TPI | 72-1/8 (46) | 72-1/8 (46) | 72-1/8 (46) |
Module threads range (kinds) | MP | 0.5-112 (42) | 0.5-112 (42) | 0.5-112 (42) |
Diametrical threads range (kinds) | DP | 56-1/4 (45) | 56-1/4 (45) | 56-1/4 (45) |

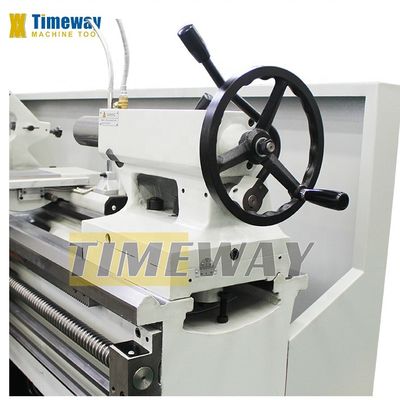

Tailstock quill diameter | mm | Φ75 | Φ75 | Φ90 |
Tailstock quill travel | mm | 150 | 150 | 150 |
Tailstock quill taper | - | MT5 | MT5 | MT5 |
Main motor power | kw | 7.5 | 7.5 | 7.5 |
Rapid feed motor power | kw | 0.3 | 0.3 | 0.3 |
Coolant pump motor power | kw | 0.12 | 0.12 | 0.12 |
Machine length | mm | 2382/2632/3132/3632/4632 | 2382/2632/3132/3632/4632 | 3365/4365 |
Machine width | mm | 975 | 975 | 1340 |
Machine height | mm | 1230 | 1270 | 1430 |
Machine weight | kg | 2050/2100/2300/2500/2900 | 2150/2200/2400/2600/3000 | 330/3700 |
