7.5kW Spindle Motor Horizontal Universal Lathe with Morse No.5 Tailstock Sleeve Taper
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE norms |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $14,989.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 Mm | Range Of Spindle Speed(r.p.m): | 11 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 400 |
| Type: | Horizontal | Spindle Motor Power(kW): | 7.5 |
| Voltage: | As Required | Weight (KG): | 4500 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Automatic Grade: | Manual |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Lathe: | Turning Lathe Machine |
| Power(W): | 7.5kw | Max. Swing Diameter: | 660mm |
| Max. Swing Diameter (mm): | 660 | Main Motor Power: | 7.5 Kw |
| Tailstock Sleeve Taper: | Morse No.5 | Condition: | New |
| Spindle Bore(mm): | 105 | Applicable Industries: | Manufacturing Plant, Other |
| Showroom Location: | Canada, Turkey, Italy, France, Viet Nam, Saudi Arabia, Morocco, Algeria, Sri Lanka, Romania, South Africa, Malaysia | Core Components: | Bearing, Pump, Gear, Motor, Other, Engine |
| Max. Turned Length (mm): | 3000 Mm | Port: | China Port |
Product Description
Products Description

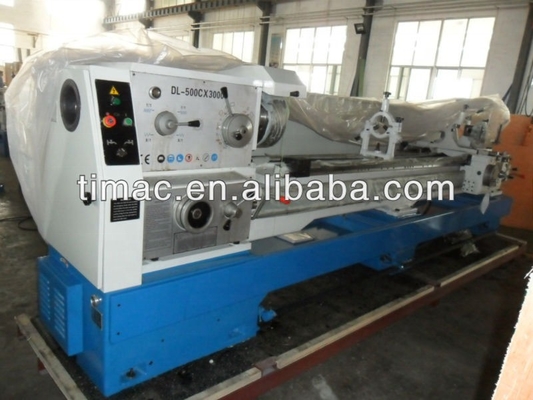

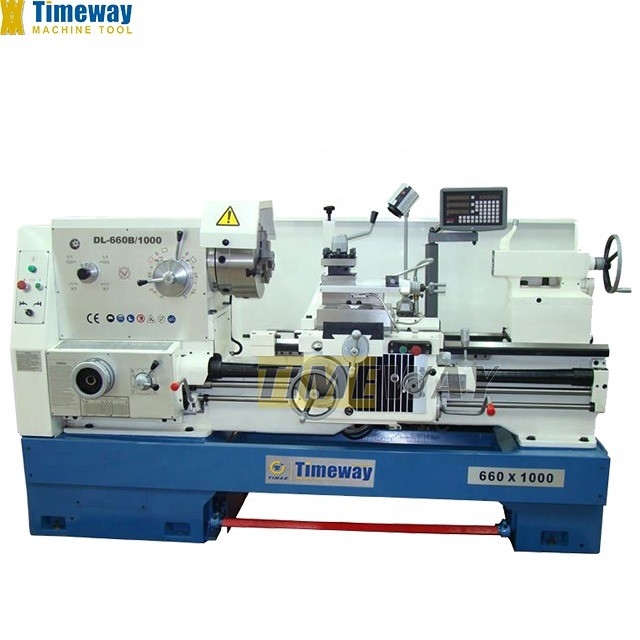

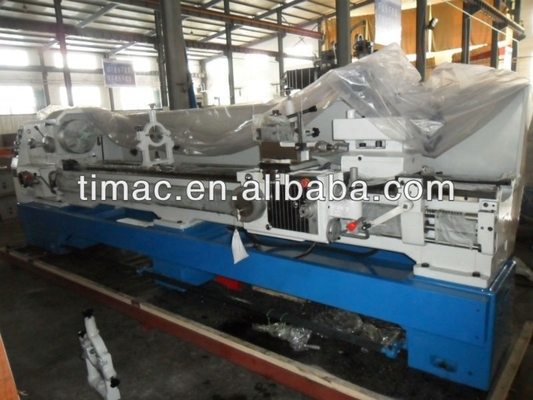

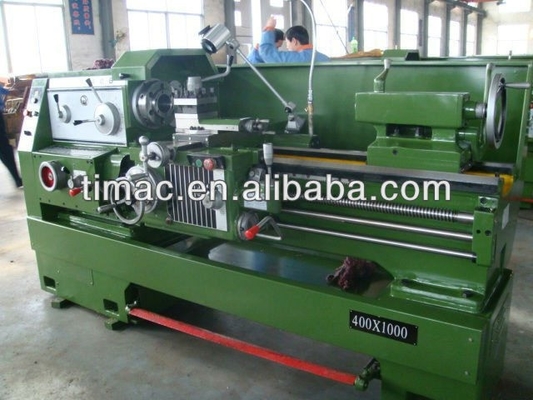

Universal Horizontal Gap Bed Lathe
These lathes are mainly suitable for turning internal and external cylindrical,conical and other swing surfaces as well as various metric, inch, module and diametric pitch threads.They can also be used for broaching oil grooves and keyways
1. Hardened by means of moddle-frequency induction method , the guideway surfaces of the beds are durable.
2. The construction rigidity and driving rigidity are higher.
3. With higher power utilization ratio, these lathes are suitable for heavy and high speed cutting operation.
4. There are three kinds of spindle bore (A:52mm; B:82mm; C:105mm) available for choice.
These lathes are mainly suitable for turning internal and external cylindrical,conical and other swing surfaces as well as various metric, inch, module and diametric pitch threads.They can also be used for broaching oil grooves and keyways
1. Hardened by means of moddle-frequency induction method , the guideway surfaces of the beds are durable.
2. The construction rigidity and driving rigidity are higher.
3. With higher power utilization ratio, these lathes are suitable for heavy and high speed cutting operation.
4. There are three kinds of spindle bore (A:52mm; B:82mm; C:105mm) available for choice.
Specification | Unit | DL-500C | DL-610C | DL-660C | DL-800C | ||||
Capacity | Center height | mm | 250 | 305 | 330 | 400 | |||
Max.swing over bed | mm | 500 | 610 | 660 | 800 | ||||
Max.swing over carriage | mm | 300 | 370 | 400 | 540 | ||||
Max.swing over gap* | mm | 720 | 830 | 880 | 1020 | ||||
Effective width of gap* | mm | 210 | |||||||
Max.length of workpiece | mm | 750/1000/1500/2000/3000 | |||||||
Width of bed | mm | 400 | |||||||
Section of tool shank | mm | 25 x 25 | |||||||
Spindle | Spindle bore | mm | 105 | ||||||
Spindle taper | Morse No.6 | ||||||||
Spindle speed | r.p.m | 11~1600(24steps) | |||||||
Feed | Longitudinal feed range | mm/r | 0.028~6.33(64 kinds) | ||||||
Cross feed range | mm/r | 0.014~3.16(64 kinds) | |||||||
Threads | Range of metric threads(kinds) | mm | 1~192(44 kinds) | ||||||
Range of inch threads(kinds) | T.P.I | 1~24(21 kinds) | |||||||
Range of module threads(kinds) | mm | 0.25~48(39 kinds) | |||||||
Range of diametric pitch threads(kinds) | D.P | 1~96(37 kinds) | |||||||
Tailstock | Max.tailstock sleeve travel | mm | 150 | ||||||
Tailstock sleeve diameter | mm | 75 | |||||||
Tailstock sleeve taper | Morse No.5 | ||||||||
Other | Main motor power | kw | 7.5 (10HP) | ||||||
Diameter of Tailstock quill | mm | 85 | |||||||
Travel of tailstock quill | mm | 150 | |||||||
Taper Hole of tailstock quill | Morse | Morse No. 5 | |||||||
Workpiece accuracy | IT6IT7 | ||||||||
Surface roughness | µm | Ra1.6 | |||||||
Main power | kW | 7.5 | |||||||
Lathe weight | kg | 2600/2900/3200/3600/4000 | |||||||
Overall dimensions(L×W×H) | mm | 2380/2610/2860/3430/3910×1340×1750 | |||||||
· 3 jaw chuck ·4 jaw chuck · Face plate · Steady rest · Follow rest · Dead center · Oil gun · Coolant system · Working light · General tools · Foundation bolts · Driving plate · Chasing dial indicator · Operation manual(English edition). | · Digital readout system (D.R.O) · Quick change tool post & holders · Taper turning attachment |
