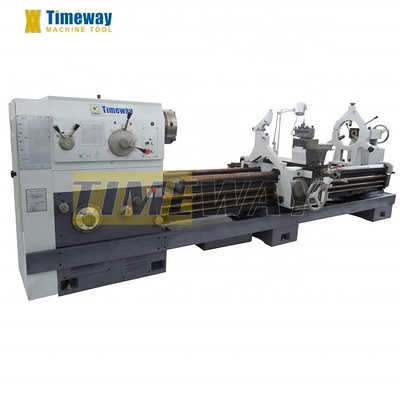

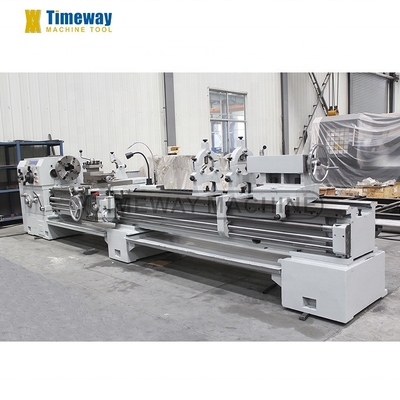

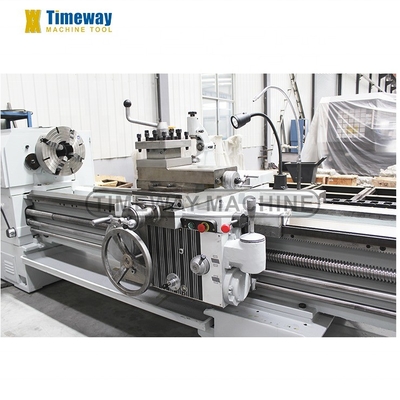

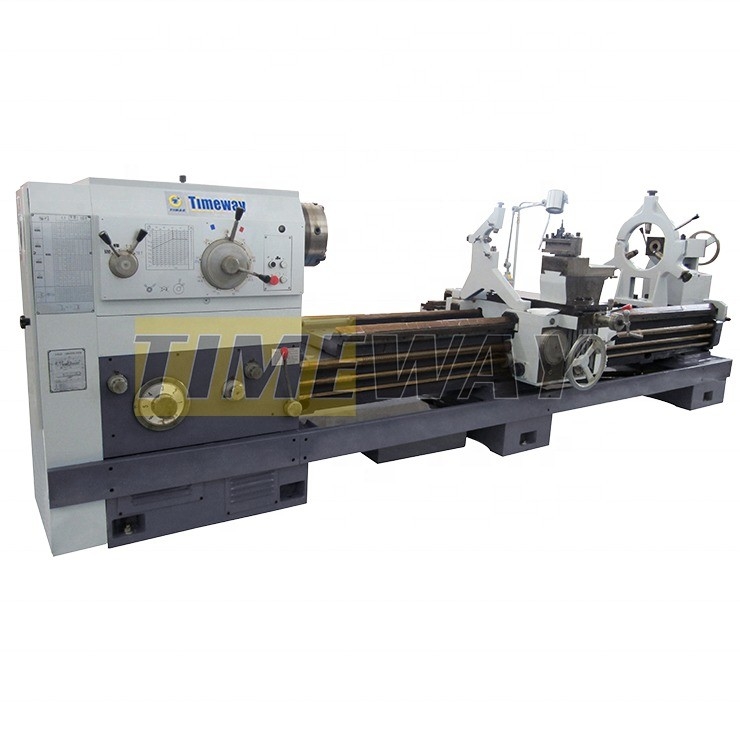

2021 Horizontal Tornos For Industry Field Max. rotating diameter over carriage 350mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | AL-630Bx4M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases (fumigated) |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 4000 | Range Of Spindle Speed(r.p.m): | 7.5 - 1000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 550 |
| Type: | Horizontal | Spindle Motor Power(kW): | 11 |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 6275x1393x1537 Mm |
| Weight (KG): | 6300 KG | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Rotating Diameter: | 630 Mm |
| Max. Rotating Diameter Over Carriage: | 350 Mm | Max. Weight Of Workpiece: | 2000 Kg |
| Spindle Nose: | C11 | Spindle Taper: | Metric 120 |
| Tailstock Quill Taper: | MT5 | Tailstock Quill Diameter: | 100 Mm |
| Tailstock Quill Travel: | 250 Mm | Tornos Color: | Customized |
| Tornos Structure: | Horizontal Type | Condition: | New |
| Spindle Bore(mm): | 100 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Energy & Mining |
| Showroom Location: | Canada, United States, Italy, France, Germany, Russia, Australia | Core Components: | Bearing, Gear, Motor, Gearbox, Pressure Vessel |
| Max. Turned Length (mm): | 3850 Mm | Year: | 2021 |
| Port: | Tianjin Or Shanghai Or Qingdao Port | ||

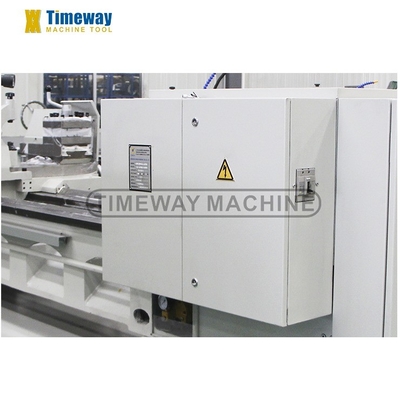

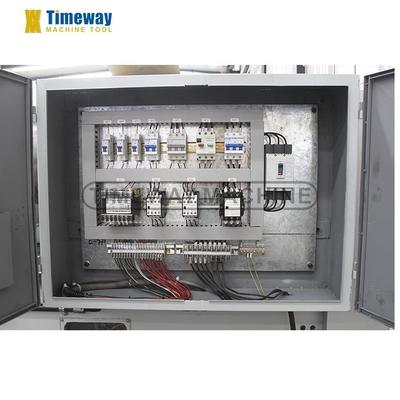

Product Description
Products Description
Features:
* The horizontal tornos are suitable for turning inner and outer cylindrical surfaces, conical surfaces and other rotating parts.They can process all kinds of commonly used metric, inch, modulus and radial threads, and can cut oil grooves and keyways.
* Mature structure: the tornos is solid work, strong in rigidity, high in power, wide in speed range, and capable of high-speedand powerful cutting.
* Stable performance: Tornos is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous metals.
* Highly rigid bed: The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. In the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state,thereby avoiding the occurrence of low-speed crawling.
* High rigidity and high precision spindle: The machine tool spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-way angular contact ball bearing. Improve accuracy and increase rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term operation.
* High torsion-resistant flat bed, high-quality cast iron carefully manufactured, and induction on the rail surface quenching precision treatment, by the sticky PTFE conductive rails and precision scraping by hand.
* Spindle standard through the hole for the Φ100mm large hole; Large speed range with 18 speeds for machining a wide variety of workpieces.
* Adopt split type bed structure, the guide rail surface adopt double V-flat rails, 550mm bed width and the bearing capacity can be to 2000kg.
* Mature structure: the tornos is solid work, strong in rigidity, high in power, wide in speed range, and capable of high-speedand powerful cutting.
* Stable performance: Tornos is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous metals.
* Highly rigid bed: The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. In the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state,thereby avoiding the occurrence of low-speed crawling.
* High rigidity and high precision spindle: The machine tool spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-way angular contact ball bearing. Improve accuracy and increase rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term operation.
* High torsion-resistant flat bed, high-quality cast iron carefully manufactured, and induction on the rail surface quenching precision treatment, by the sticky PTFE conductive rails and precision scraping by hand.
* Spindle standard through the hole for the Φ100mm large hole; Large speed range with 18 speeds for machining a wide variety of workpieces.
* Adopt split type bed structure, the guide rail surface adopt double V-flat rails, 550mm bed width and the bearing capacity can be to 2000kg.
Specifications | Unit | AL-630B | AL-800B | AL-940B | ||||
Capacity | ||||||||
Swing over bed | mm | 630 | 800 | 940 | ||||
Swing over carriage | mm | 350 | 520 | 660 | ||||
Max. length of workpiece | mm | 500/1000/1500/2000/3000/4000/5000/6000/8000/ 10000 | ||||||
Max. turning length | mm | 600/850/1350/1850/2850/3850/4850/5850/7850/9850 | ||||||
Swing over gap (optional) | mm | 830 | 1000 | 1140 | ||||
Effective width of gap (optional) | mm | 300 | 300 | 300 | ||||
Span of guideway | mm | 550 | 550 | 550 | ||||
Max. weight of workpiece | kg | 2000 | 2000 | 2000 | ||||
Spindle | ||||||||
Spindle nose | C11 | C11 | C11 | |||||
Spindle bore | mm | 100 | 100 | 100 | ||||
Taper hole of spindle | Metric 120 | Metric 120 | Metric 120 | |||||
Range of spindle speeds | r/min | 7.5-1000 | 6-800 | 6-800 | ||||
No. of spindle speeds | steps | 18 | 18 | 18 | ||||
Feed | ||||||||
Longitudinal feed speed | mm/r | 0.1-24.32 (64) | 0.1-24.32 (64) | 0.1-24.32 (64) | ||||
Cross feed speed | mm/r | 0.05-12.16 (64) | 0.05-12.16 (64) | 0.05-12.16 (64) | ||||
Screw pitch of leadcsrew | mm | 12 | 12 | 12 | ||||
No. and range of metric thread | mm | 1-240 (50) | 1-240 (50) | 1-240 (50) | ||||
No. and range of inch thread | 14-1 (26) | 14-1 (26) | 14-1 (26) | |||||
No. and range of module thread | mm | 0.5-120 (53) | 0.5-120 (53) | 0.5-120 (53) | ||||
No. and range of dia. thread | 28-1 (24) | 28-1 (24) | 28-1 (24) | |||||
Rapid traverse speed | mm/min | 4000 | 4000 | 4000 | ||||
Tool post | ||||||||
Max. travel of cross slide | mm | 440 | 540 | 570 | ||||
Max. travel of top slide | mm | 200 | 200 | 200 | ||||
Section of tool shank | mm | 32x32 | 32x32 | 32x32 | ||||
Tailstock | ||||||||
Dia. of tailstock quill | mm | 100 | 100 | 100 | ||||
Travel of tailstock quill | mm | 250 | 250 | 250 | ||||
Taper hole of tailstock quill | MT5 | MT5 | MT5 | |||||
Others | ||||||||
Main motor power | kw | 11 | 11 | 11 | ||||
Length | mm | 2958/3275/3725/4225/5225/6275/7355/8355/10275/ 12275 | ||||||
Width | mm | 1393 | 1473 | 1430 | ||||
Height | mm | 1537 | 1622 | 1690 | ||||
