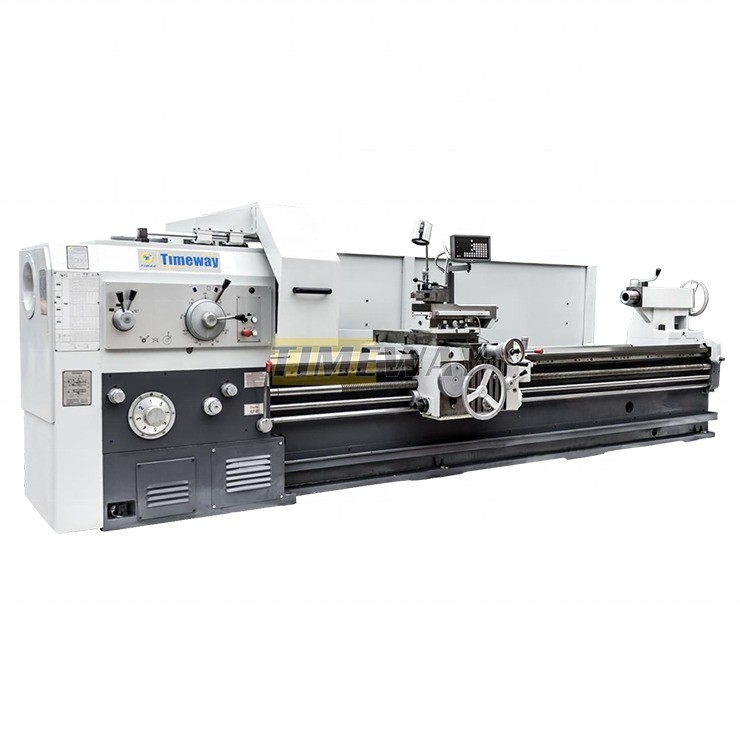

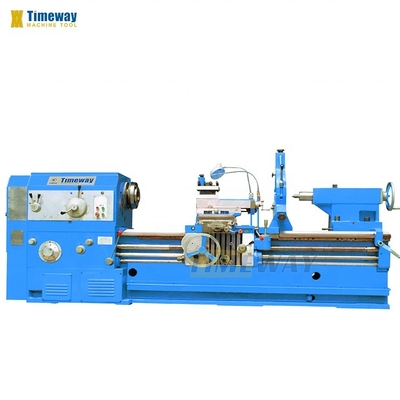

Max. Swing Over Cross Slide 480mm Heavy Type Horizontal Lathe for Industry Field
Product Details:
| Place of Origin: | China |
| Brand Name: | Timac |
| Model Number: | AL800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $42,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 6000 | Range Of Spindle Speed(r.p.m): | 6 - 750 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 11 | Voltage: | 220V/380V |
| Dimension(L*W*H): | 8260x1730x1450 | Weight (KG): | 5000 KG |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Swing Over Bed: | 800m | Max. Swing Over Cross Slide: | 480mm |
| Distance Between Center: | 6000mm | Max. Turning Length: | 5850mm |
| Bed Width: | 600mm | Spindle Taper: | 1:20 |
| Spindle Speed Range: | 6-750rpm | Spindle Nose: | C11 |
| Loading Capacity: | 3000kg | Top Slide Trave: | 200mm |
| Condition: | New | Spindle Bore(mm): | 100 |
| Applicable Industries: | Machinery Repair Shops | Showroom Location: | Egypt, United Kingdom, France, Philippines, Mexico, Morocco, UAE, Bangladesh, Australia, None |
| Core Components: | Engine | Max. Turned Length (mm): | 6000 Mm |
| Port: | China Port | ||
Product Description
Products Description
Features:

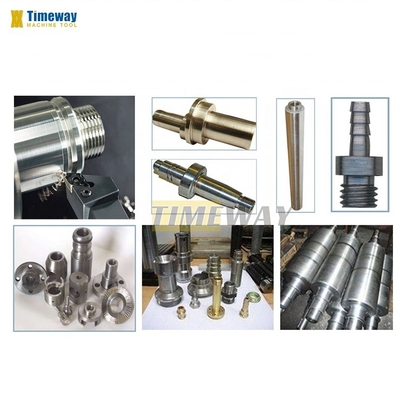

1.These lathes are suitable for turning inner and outer cylindrical surfaces, conical surfaces and other rotating parts.
They can process all kinds of commonly used metric, inch, modulus and radial threads, and can cut oil grooves and key ways.
2.The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting;When finished, the roundness error is not more than 0.01 mm, the cylindrical degree error is not more than 0.03 mm in the measuring length of 300 mm.
3.It is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous metals.
4.The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. On the sliding guide surface, the anti-crawling guide plate technology is adopted,
and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low- speed crawling.

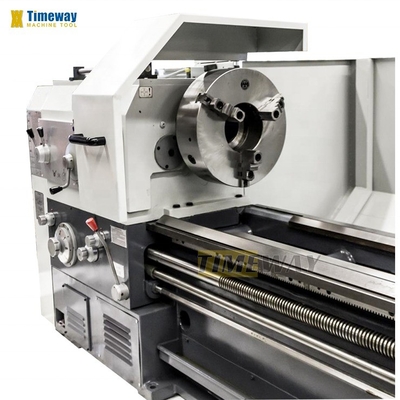

5.The machine spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-raw angular contact ball bearing,
improving accuracy and increasing rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term operation.
6.High rigidity one-piece type bed with 600mm bed span, which ensures the machine has strong stability and high precision, and loading capacity between centers can be up to 3000kg.
7.Spindle standard through hole diameter Ф100mm, can be Ф140mm as optional; For machining a wide variety of workpieces, the machine has a speed range of 6-775rpm with 24 speeds.

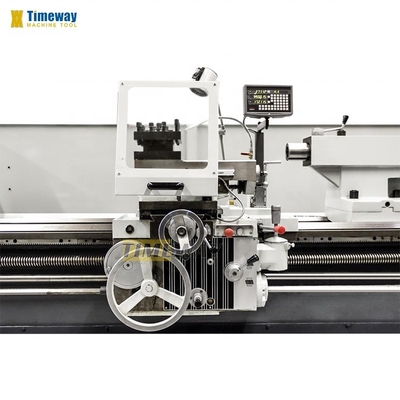

10.Top slide can turn short cone by automatic feed or by hand, top slide and longitudinal feed ae combined can turn the long conical surface.
2.The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting;When finished, the roundness error is not more than 0.01 mm, the cylindrical degree error is not more than 0.03 mm in the measuring length of 300 mm.
3.It is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous metals.
4.The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. On the sliding guide surface, the anti-crawling guide plate technology is adopted,
and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low- speed crawling.
5.The machine spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-raw angular contact ball bearing,
improving accuracy and increasing rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term operation.
6.High rigidity one-piece type bed with 600mm bed span, which ensures the machine has strong stability and high precision, and loading capacity between centers can be up to 3000kg.
7.Spindle standard through hole diameter Ф100mm, can be Ф140mm as optional; For machining a wide variety of workpieces, the machine has a speed range of 6-775rpm with 24 speeds.
10.Top slide can turn short cone by automatic feed or by hand, top slide and longitudinal feed ae combined can turn the long conical surface.
Specifications | Unit | AL-800 |
Swing over bed | mm | 800 |
Swing over carriage | mm | 480 |
Max. length of workpiece | mm | 1500-6000 |
Max. turning length | mm | 1350-5850 |
Span of guideway | mm | 600 |
Max. weight of workpiece | kg | 3000 |
Spindle nose | - | C11 (C15 optional) |
Spindle bore | mm | 100 (140 optional) |
Taper hole of spindle | - | Metric 1:20 |
Range of spindle speeds | rpm | CCW: 6-750; CW: 10-775 |
No. of spindle speeds | steps | 18; 6 |
Longitudinal feed speed | mm/r | 0.1-24.32 (64) |
Cross feed speed | mm/r | 0.05-12.16 (64) |
No. and range of metric thread | mm | 1-240 (50) |
No. and range of inch thread | TPI | 14-1 (26) |
No. and range of module thread | MP | 0.5-120 (53) |
No. and range of dia. thread | DP | 28-1 (24) |
Rapid traverse speed | mm/min | 4000 |
Distance of spindle and tool plane | mm | 33 |
Tool post swing range | ° | ±90 |
Max. travel of cross slide | mm | 500 |
Max. travel of top slide | mm | 200 |
Section of tool shank | mm | 32x32 |
Dia. of tailstock quill | mm | 100 |
Travel of tailstock quill | mm | 250 |
Taper hole of tailstock quill | MT6 | |
Main motor power | kw | 11 |
Length | mm | 3670~8260 |
Width | mm | 1730 |
Height | mm | 1450 |
STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
3-jaw chuck, Steady rest (over 2M length), Follow rest , Manual moving tailstock, Dead center, 4-station tool post, Cooling system, Work lamp, Tools & tool-box, Leveling wedge and bolts, Operation manual (English) | 4-jaw independent chuck, Face plate, 2 or 3-axis DRO, Chuck guard, Tool-post guard, Rear splash guard, Quick changing tool post, Grinding attachment |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
