Machinery Repair Shops Manual Horizontal Heavy Duty Lathe Machine Prices for Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | Timac |
| Model Number: | AL1400C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $85,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 11800 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 400mm |
| Type: | Horizontal | Spindle Motor Power(kW): | 22 |
| Voltage: | 220V/380V | Dimension(L*W*H): | 15100x2150x1950mm |
| Weight (KG): | 8000 KG | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Marketing Type: | Other |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Swing Over Bed: | 1400mm |
| Swing Over Carriage: | 1010mm | Max. Length Of Workpiece: | 11800mm |
| Max. Turning Length: | 3800mm | Bed Width: | 970m |
| Max. Cutting Force: | 45000N | Spindle Nose: | A2-15 |
| Spindle Bore: | 130mm | Taper Hole Of Spindle: | Metric140 |
| Range Of Spindle Speeds: | Foreward:3.15-315, Reversal:3.5-291 | Condition: | New |
| Spindle Bore(mm): | 130 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Canada, Brazil, Saudi Arabia, Pakistan, Sri Lanka, Romania, South Africa, Ukraine, Nigeria, Uzbekistan | Core Components: | Bearing, Pump, Gear |
| Max. Turned Length (mm): | 11800 Mm | Port: | China Port |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Products Description

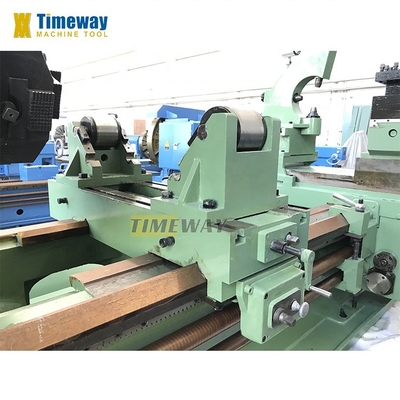

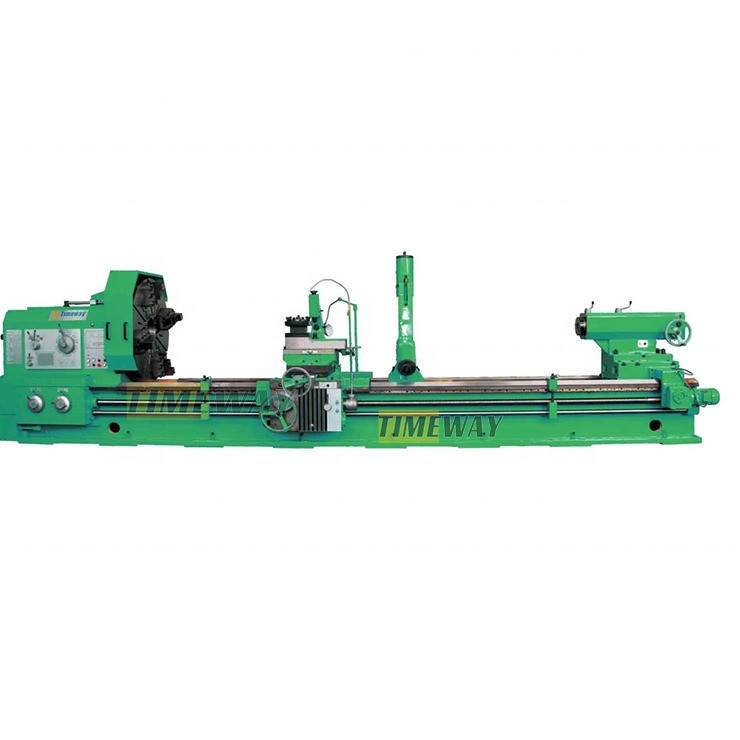

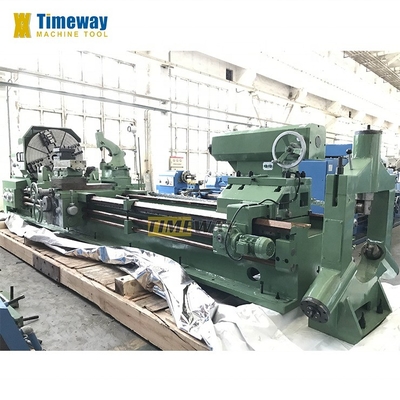

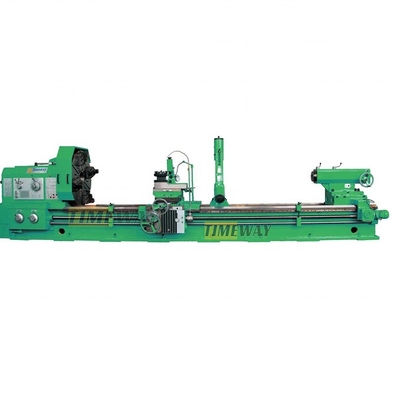

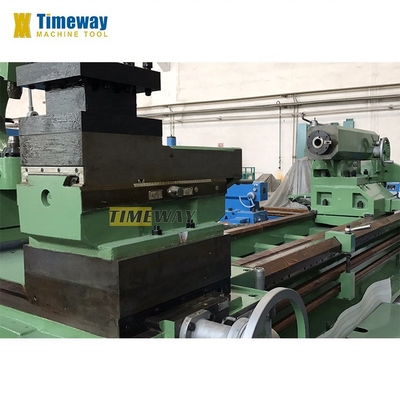

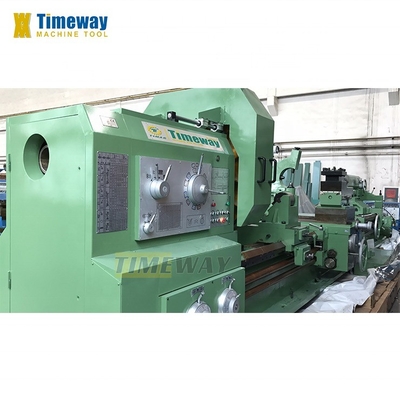

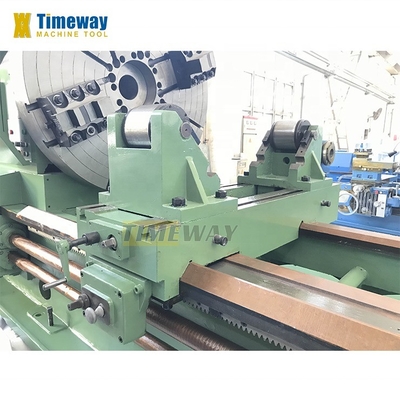

heavy duty horizontal lathe
Features:
1.This series horizontal lathe is suitable for processing large and medium-sized parts of castings, steels and non-ferrous metals.
It can turn outer
circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn various internal and
external threads, such as metric, inch, modulus and diametrical.
2.The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful
cutting; When finished, the roundness error is not more than 0.01mm, the cylinder degree error is not more than 0.03mm in the
measuring length of 300mm.
3.The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts
an intermediate frequency quenching grinding process. On the sliding guide surface, the anti-crawling guide plate technology is
adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the
occurrence of low-speed
crawling.
4.The machine spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal
deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated
with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-row angular contact ball
bearing. Improve accuracy and increase rigidity.
5.The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle
has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain
relatively stable accuracy during long-term operation.
6.High rigidity one piece type with 970mm bed span, which ensures the machine has strong stability and high precision.
7.Spindle standard through hole diameter is Ф130mm large hole, and adopt A2-15 spindle nose connection type, runout accuracy of
spindle is better.
8.The machine can be used to cut the short conical surface by the top tool post, and the long conical
surface can be turned by the top tool post and the longitudinal feed together.
9.High power, high rigidity and wide speed range for high speed and powerful cutting, speed range
of 3.15-315rpm with 33 speeds. The machine standard is equipped with electric moving tailstock, reduce operator labor intensity
and improve work efficiency.
11.The lathe standard loading capacity is 10000kg; Optional can be 12000kg
Specifications | Unit | AL-1400C |
Swing over bed | mm | 1400 |
Swing over carriage | mm | 1010 |
Max. length of workpiece | mm | 3000/4000/5000/6000/8000/10000/12000 |
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800 |
Span of guideway | mm | 970 |
Max. cutting force | N | 45000 |
Max. weight of workpiece | kg | 10000 |
Dia. of spindle hole | mm | 130 |
Taper hole of spindle | - | metric 140 |
Range of spindle speeds | r/min | foreward: 3.15-315, reversal：3.5-291 |
No. of spindle speeds | steps | foreward:21, reversal：12 |
Longitudinal and cross | kinds | 56 |
Range of feed motion | mm/r | longitudinal:0.1-12, Cross:0.05-6, top tool-post：0.025-3 |
No. and range of metric thread | mm | 1-120 (44) |
No. and range of inch thread | TPI | 28-1/4 (31) |
No. and range of module thread | MP | 0.5-60 (45) |
No. and range of dia. thread | DP | 1/2-56 (38) |
Max. travel of cross slide | mm | 650 |
Max. travel of top slide | mm | 300 |
Section of tool shank | mm | 45x45 |
Tool post swing range | ° | ±90 |
Rapid of tool post | mm/min | longitudinal: 1870, Cross: 3740, top tool-post: 935 |
Dia. of tailstock quill | mm | 220 |
Travel of tailstock quill | mm | 300 |
Taper hole of tailstock quill | - | MT6 |
Main motor power | kw | 22 |
Length | mm | 6020/7020/8020/9020/11020/13020/15020 |
Width | mm | 1995 |
Height | mm | 2325 |
STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
4-jaw heavy independent chuck, Steady rest (over 3M length), Follow rest, Manual moving tailstock, Dead center, 4-station tool post, Cooling system, Work lamp, Tools & tool-box, Leveling wedge and bolts, Operation manual (English). | 2 or 3-axis DRO, Chuck guard, Tool-post guard, Rear splash guard, Electric moving tailstock, Grinding attachment |
