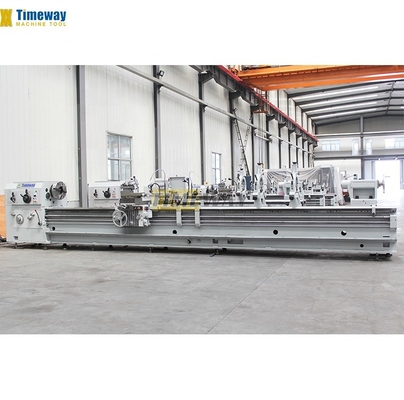

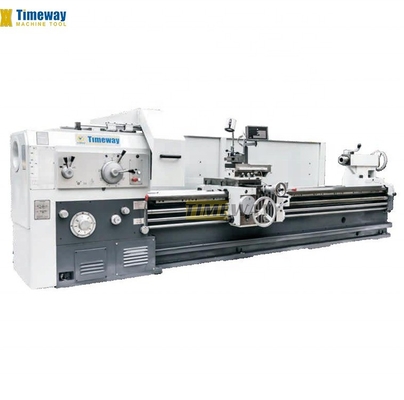

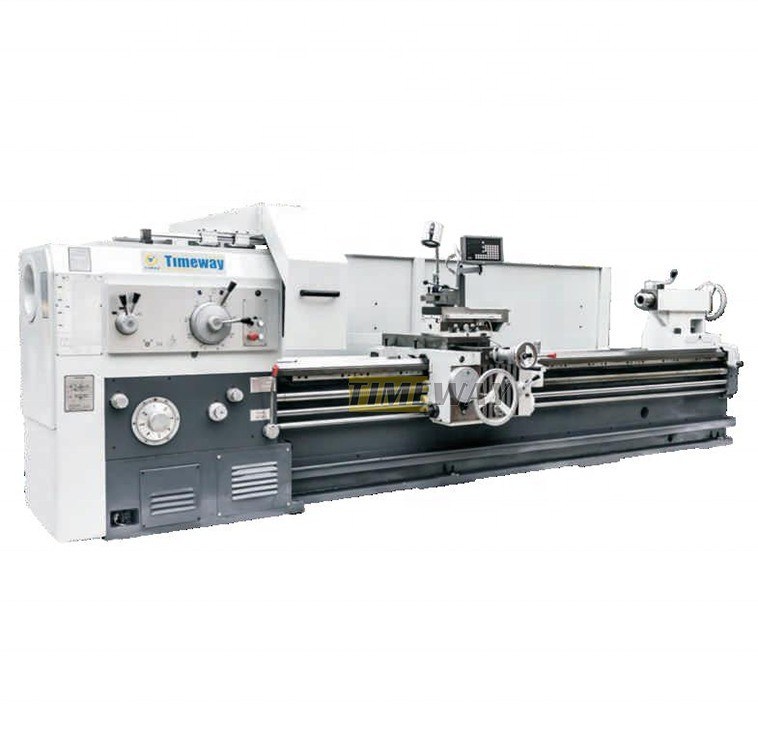

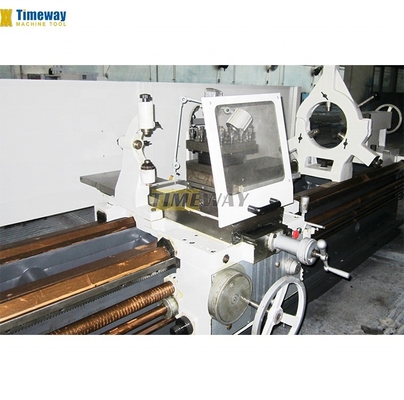

3000 kg Loading Capacity Horizontal Lathe for Heavy Duty Machining Requirements Online
Product Details:
| Place of Origin: | SHANGHAI |
| Brand Name: | TIMEEWAY |
| Model Number: | AL-630/AL-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,000.00/sets 1-1 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1500 | Range Of Spindle Speed(r.p.m): | 6 - 750 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Width Of Bed (mm): | 1730 |
| Type: | Horizontal | Spindle Motor Power(kW): | 11 |
| Voltage: | 220V/380V/400V/415V | Dimension(L*W*H): | 3000x1400x1290 |
| Weight (KG): | 5000 KG | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Swing Over Bed: | 800 Mm |
| Distance Between Centers: | 1500/2000/3000 Mm | Bed Width: | 600 Mm |
| Loading Capacity: | 3000 Kg | Spindle Bore: | 100 Mm |
| Spindle Speed Range: | 6-750 Rpm | Rapid Feed Speed: | 4000 Mm/min |
| Tool Section Size: | 32x32 Mm | Machine Width: | 1730 Mm |
| Machine Height: | 1450 Mm | Condition: | New |
| Spindle Bore(mm): | 100 | Applicable Industries: | Manufacturing Plant, Construction Works |
| Showroom Location: | France, Indonesia, Russia | Core Components: | Pump, PLC |
| Max. Turned Length (mm): | 1350 Mm | Year: | NEW |
| Port: | China Port | ||
Product Description
Products Description
1. These lathes are suitable for turning inner and outer cylindrical surfaces, conical surfaces and other rotating parts. They can process all kinds of commonly used metric, inch, modulus and radial threads, and can cut oil grooves and keyways.
2. The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting;
3. When finished, the roundness error is not more than 0.01mm, the cylindrical degree error is not more than 0.03mm in the measuring length of 300mm.
4. It is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous metals.
5. The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. On the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence
of low- speed crawling.

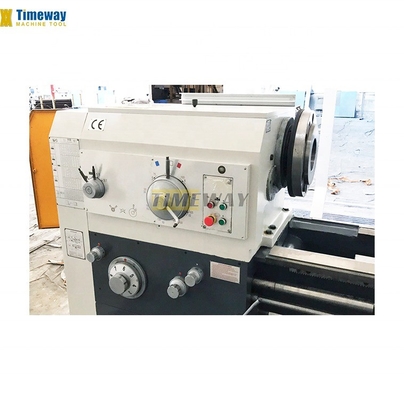

6. The machine spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal
deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-raw angular contact ball bearing, improving accuracy and increasing rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term operation.
7. High rigidity one-piece type bed with 600mm bed span, which ensures the machine has strong stability and high precision, and loading capacity between centers can be up to 3000kg.
8. Spindle standard through hole diameter Ф100mm, can be Ф140mm as optional; For machining a wide variety of workpieces, the machine has a speed range of 6-775rpm with 24 speeds.
9. Top slide can turn short cone by automatic feed or by hand, top slide and longitudinal feed ae combined can turn the long conical surface.
2. The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting;
3. When finished, the roundness error is not more than 0.01mm, the cylindrical degree error is not more than 0.03mm in the measuring length of 300mm.
4. It is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous metals.
5. The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. On the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence
of low- speed crawling.
6. The machine spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal
deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-raw angular contact ball bearing, improving accuracy and increasing rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term operation.
7. High rigidity one-piece type bed with 600mm bed span, which ensures the machine has strong stability and high precision, and loading capacity between centers can be up to 3000kg.
8. Spindle standard through hole diameter Ф100mm, can be Ф140mm as optional; For machining a wide variety of workpieces, the machine has a speed range of 6-775rpm with 24 speeds.
9. Top slide can turn short cone by automatic feed or by hand, top slide and longitudinal feed ae combined can turn the long conical surface.
Specifications | Unit | AL-630 | AL-800 |
Swing over bed | mm | 630 | 800 |
Swing over carriage | mm | 350 | 480 |
Max. length of workpiece | mm | 1000-10000 | 1500-6000 |
Max. turning length | mm | 850-9850 | 1350-5850 |
Span of guideway | mm | 600 | 600 |
Max. weight of workpiece | kg | 3000 | 3000 |
Spindle nose | - | C11 | C11 (C15 optional) |
Spindle bore | mm | 100 | 100 (140 optional) |
Taper hole of spindle | - | Metric 120 | Metric 1:20 |
Range of spindle speeds | rpm | 6-800 | CCW: 6-750; CW: 10-775 |
No. of spindle speeds | steps | 2steps, stepless in steps | 18; 6 |
Longitudinal feed speed | mm/r | 0.1-12.2 | 0.1-24.32 (64) |
Cross feed speed | mm/r | 0.05-6.6 | 0.05-12.16 (64) |
No. and range of metric thread | mm | 1-120 (47) | 1-240 (50) |
No. and range of inch thread | TPI | 28~1/2 (25) | 14-1 (26) |
No. and range of module thread | MP | 0.5-60 (45) | 0.5-120 (53) |
No. and range of dia. thread | DP | 28-1 (29) | 28-1 (24) |
Rapid traverse speed | mm/min | 3800 | 4000 |
Distance of spindle and tool plane | mm | 33 | 33 |
Tool post swing range | ° | ±90 | ±90 |
Max. travel of cross slide | mm | 449 | 500 |
Max. travel of top slide | mm | 200 | 200 |
Section of tool shank | mm | 32x32 | 32x32 |
Dia. of tailstock quill | mm | 120 | 100 |
Travel of tailstock quill | mm | 200 | 250 |
Taper hole of tailstock quill | MT6 | MT6 | |
Main motor power | kw | 15 | 11 |
Length | mm | 3000-12000 | 3670~8260 |
Width | mm | 1400 | 1730 |
Height | mm | 1290 | 1450 |
3-jaw chuck Steady rest (over 2M length)Follow rest Manual moving tailstock, Dead center 4-station tool post Cooling system Work lamp Tools & tool-box Leveling wedge and bolts Operation manual (English) | 4-jaw independent chuck, Face plate 2 or 3-axis DRO Chuck guard Tool-post guard Rear splash guard Quick changing tool post Grinding attachment |
