Heavy Duty Horizontal Lathe Metric 120 Spindle Taper 660mm Max. Swing Over Cross Slide
Product Details:
| Place of Origin: | SHN |
| Brand Name: | TIMEWAY |
| Model Number: | AL-940B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,500.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 750 | Range Of Spindle Speed(r.p.m): | 7.5 - 1000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 550 |
| Type: | Horizontal | Spindle Motor Power(kW): | 11 |
| Voltage: | 220V/380V | Dimension(L*W*H): | 2958x1393x1537 |
| Weight (KG): | 5200 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Swing Over Bed: | 940 Mm |
| Max. Swing Over Cross Slide: | 660 Mm | Max. Turning Length: | 600/850/1350/1850/2850 Mm |
| Bed Width: | 550 Mm | Loading Capacity: | 2000 Kg |
| Spindle Nose: | C11 | Spindle Taper: | Metric 120 |
| Spindle Bore: | 100mm | Processing Capacity: | Heavy Duty |
| Workpiece Length: | 750mm | Condition: | New |
| Spindle Bore(mm): | 100 | Applicable Industries: | Manufacturing Plant, Construction Works |
| Showroom Location: | Canada, Germany, Indonesia, Morocco | Core Components: | Pump, PLC |
| Max. Turned Length (mm): | 600 Mm | Year: | NEW |
| Port: | China Port | ||
Product Description
Summary
1. This series lathes are suitable for turning inner and outer cylindrical surfaces, conical surfaces and other rotating parts. They can process all kinds of commonly used metric, inch, modulus and diametrical threads, and can cut oil grooves and keyways.
2. It is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous metals.
3. Adopt split type bed structure, the guide rail surface adopt double V-flat rails, 550mm bed width and the loading capacity can be up to 2000kg.
4. Spindle standard through the hole for the Ф100mm large hole; Large speed range with 18 speeds for machining a wide variety of workpieces.
Products Description

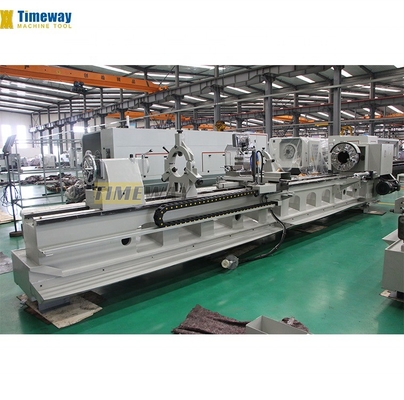

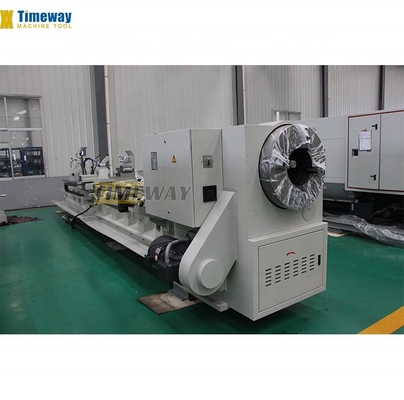

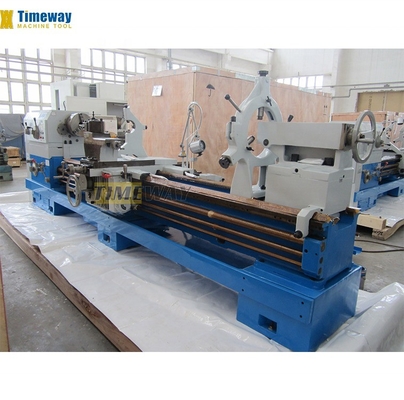

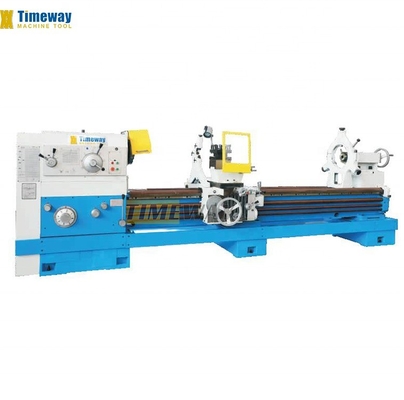

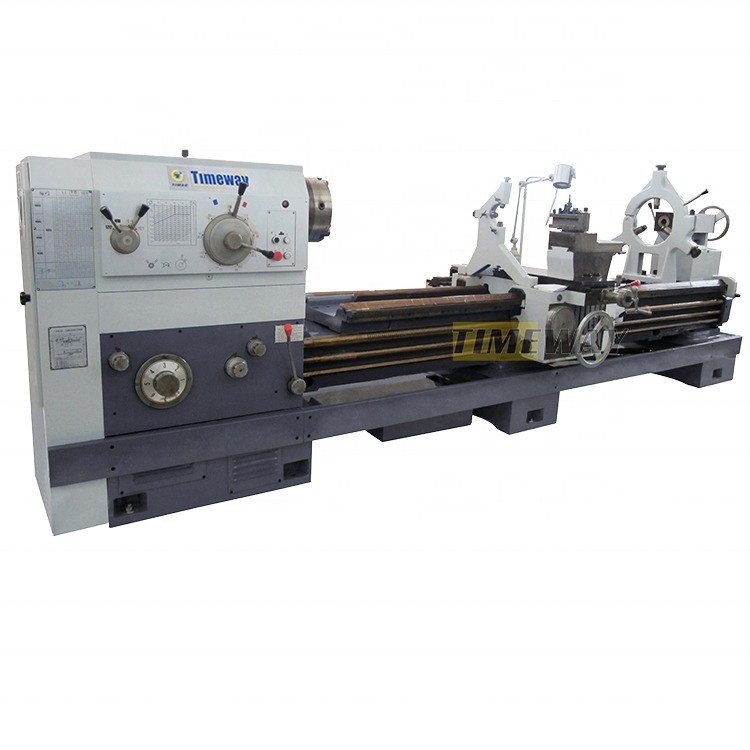

Heavy Duty Horizontal Lathe
1. Solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting. 2. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. 3 To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. 4. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. 5.The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long- term operation.
Specifications | Unit | AL-800B | AL-940B | |
Swing over bed | mm | 800 | 940 | |
Swing over carriage | mm | 520 | 660 | |
Max. length of workpiece | mm | 500/1000/1500/2000/3000/4000/5000/6000/8000/10000 | ||
Max. turning length | mm | 500/1000/1500/2000/3000/4000/5000/6000/8000/10000 | ||
Swing over gap (optional) | mm | 1000 | 1140 | |
Effective width of gap (optional) | mm | 300 | 300 | |
Span of guideway | mm | 550 | 550 | |
Max. weight of workpiece | kg | 2000 | 2000 | |
Spindle bore | mm | 100 | 100 | |
Main motor power | kw | 11 | 11 | |
Length | mm | 2958/3275/3725/4225/5225/6275/7355/8355/10275/12275 | ||
Width | mm | 1473 | 1430 | |
Height | mm | 1622 | 1690 | |
3-jaw chuck Steady rest (over 2M length)Follow rest Manual moving tailstock Dead center 4-station tool post Cooling system Work lamp Tools & tool-box Leveling wedge and bolts Operation manual (English) | 4-jaw independent chuck, Face plate 2 or 3-axis DRO Chuck guard Tool-post guard Rear splash guard Quick changing tool post Grinding attachment |
Positive Comments From Customers
Company Introduction

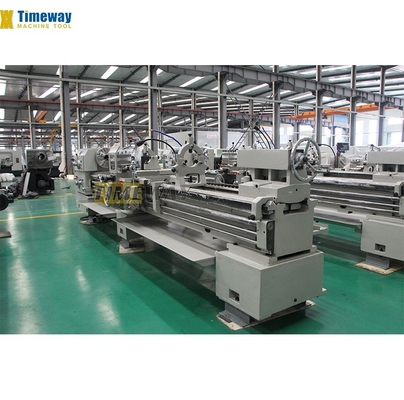

Factory Display：
