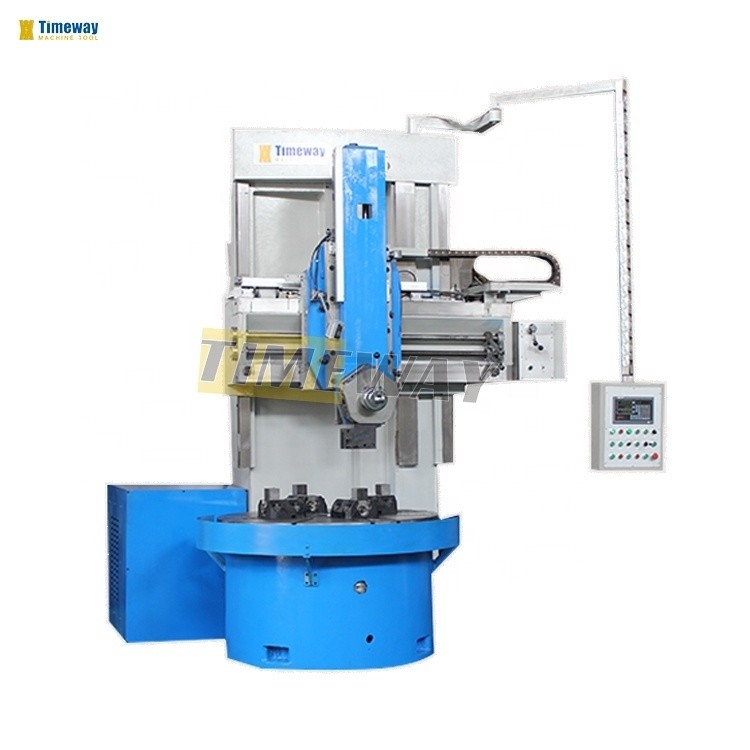

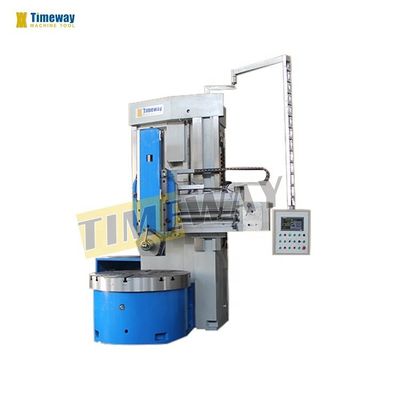

Speed Worktable 1600mm Single Column Vertical Lathe Machine for Workpiece Length 1400mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | VL1600E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $65,000.00/sets >=1 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1400mm | Range Of Spindle Speed(r.p.m): | 5 - 160 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | VERTICAL |
| Spindle Motor Power(kW): | 30 | Voltage: | As Customer's Requirements |
| Dimension(L*W*H): | 3350*2713*4680 Mm | Weight (KG): | 13000 KG |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Turning Diameter: | 1600mm | Max. Height Of Workpiece: | 1400mm |
| Max. Weight Of Workpiece: | 8000kg | Worktable Diameter: | 1400mm |
| Max. Cutting Force Of Tool-post: | 25KN | Max. Torque Of Worktable: | 25KN.m |
| Worktable Speed: | 5-160rpm | Tool Post Feed Speed: | 0.8-86mm/min |
| Vertical Travel Of Tool Post: | 800mm | Cross Travel Of Tool Post: | 915mm |
| Condition: | New | Showroom Location: | Egypt, Canada, United Kingdom, United States, Italy, France, Brazil, Peru, Indonesia, Pakistan, India, Russia, Chile, UAE, Australia |
| Core Components: | Bearing, Motor, Gearbox, PLC, Engine | Spindle Bore(mm): | Other |
| Max. Turned Length (mm): | 1600 Mm | Year: | 2022 |
| Applicable Industries: | Manufacturing Plant, Construction Works , Other | ||
Product Description
Products Description
Feature:
1.This machine is suitable for mechanical processing of all industries. It can be used for rough and finish processing of inside and outside cylinder, cone surface, end face, grooving and cutting, as well as boring internal hole.2. The basic part is whole casting structure, using high strength and low stress cast iron material, annealing after casting, aging treatment after rough machining. The column guide rail adopt grinding processing, beam guide and ram guide adopt grinding processing after the intermediate frequency quenching.
3. Main transmission is driven by AC motor, main drive speed changing with 16 steps is controlled by solenoid valves. All gears in the gear-box adopt high frequency quenching process.

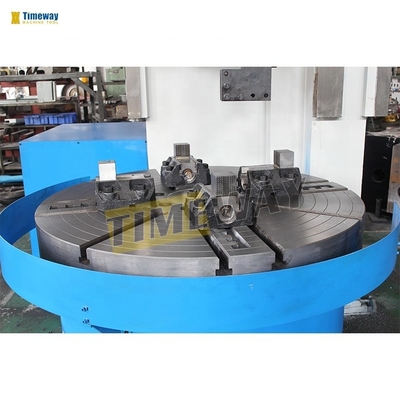

4. Worktable adopts the type of rolling guideway, so large loading capacity of worktable and high turning precision.

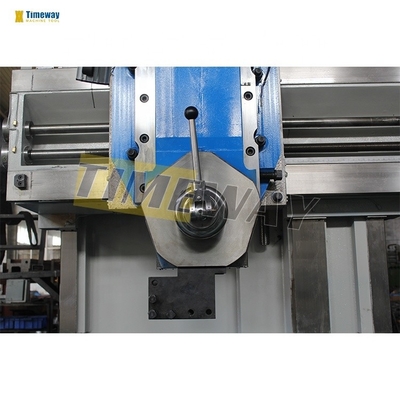

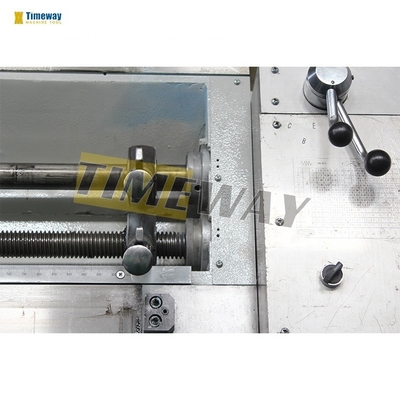

5.Vertical tool-post is equipped with five station tool-post, and adopts high precision rat-gear disk positioning. The tool-posts adopt hydraulic balance. Horizontal and Vertical feed of vertical tool-post use the sliding screw driving. The tool-post is driven by 3-ph AC motor, the type of guideway is sliding guide rail, and the guideway paste high strength PTFE soft belt.
6. Hydraulic system is equipped with German traffic transmission device, to guarantee oil flow stability for the worktable lubricating.

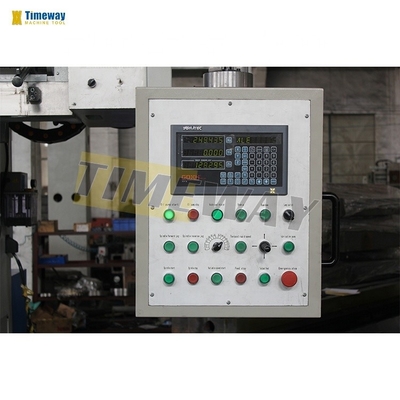

7. The machine uses PLC control, high reliability, electrical wiring in accordance with the process.
8. Beautiful appearance, agreeableness, convenient operation and maintenance.
9. According to customer's special requirement, we can provide digital display device, T-type ram and square ram.
Specification | Unit | C5116 |
Max. Turning diameter | mm | 1600 |
Max. Height of workpiece | mm | 1400 |
Max. Weight of workpiece | kg | 8000 |
Worktable diameter | mm | 1400 |
Max. Cutting force of tool-post | KN | 25 |
Max. Torque of worktable | KN.m | 25 |
Worktable speed | rpm | 5-160 (16) |
Tool post feed speed | mm/min | 0.8-86 (12) |
Tool-post rapid feed speed | mm/min | 1800 |
Swiveling angle of tool-post | ° | ±30 |
Cross travel of tool-post | mm | 915 |
Vertical travel of tool-post | mm | 800 |
Max. Height of tool shank section | mm | 40 |
Main motor power | kw | 30 |
Beam lifting motor power | kw | 2.2 |
Worktable guideway type | - | rolling |
Tool-post guideway type | - | sliding |
Machine weight | kg | 1300 |
Machine dimension(L×W×H) | mm | 3350×2713×4680 |
